Main Image
SAT3510U3V
3.5in USB 3 SATA HDD Enclosure
Turn a 3.5in SATA drive into an external USB 3.0 hard drive
Main Image
Product Images
BOM Image
Product Name 3.5in USB 3 SATA HDD Enclosure Product Number SAT3510U3V UPC 065030841337 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) 3.5in USB 3.0 SATA Hard Drive Enclosure Product Title (Standard) 3.5in USB 3.0 SATA Hard Drive Enclosure Product Title (Long) 3.5in USB 3.0 SATA Hard Drive Enclosure Title Ingram (Part 1) 3.5in SuperSpeed USB 3.0 SATA Ha Title Ingram (Part 2) rd Drive Enclosure Website Product Headline Turn a 3.5in SATA drive into an external USB 3.0 hard drive Bullet 1 Compliant with the SuperSpeed USB 3.0 standard, with transfer rates up to 5Gbps Bullet 2 Backwards compatible with USB 2.0 standards, with transfer rates up to 480Mbps Bullet 3 Sturdy, light-weight aluminum construction Bullet 4 Plug-and-Play compatible Bullet 5 On/Off power switch Bullets (Consolidated) Turn a 3.5in SATA drive into an external USB 3.0 hard drive - 3.5in Hard Drive Enclosure - 3.5in HDD Enclosure - 3.5in Hard Disk Enclosure - 3.5in SATA Hard Drive Enclosure - 3.5in External Drive Enclosure Marketing Copy Applications - Upgrade from a USB 2.0 enclosure to a faster USB 3.0 enclosure without losing your data.
- Turn an unused SATA hard drive into a portable external hard drive.
- Expand the storage capabilities of a computer system, without having to open the computer case.
Website Search Keyword - usb 3.0 enclosure
- external hard drive
- external hdd
- sata enclosure
- external storage
- external data storage
- 3.5" enclosure
- 3.5 inch
- 3.5in
Accessory Products - PEXUSB3S2
- ECUSB3S2
- PEXUSB3S11
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
Related Products - SAT3510U3VP
- SATDOCKU3SE
- SATDOCKU3E
- SATDOCKU3S
- SATDOCKU3SP
- SAT3510BU3
- SAT2510BU3
- USB3S2SATA
Replacement Product S3510SMU33 Equivalent Part Number in the UK SAT3510U3VGB Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Silver Humidity 5~90% RH Material Aluminum and Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 186 Product Width (mm) 104 Product Height (mm) 31.5 Product Weight (g) 570 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives OS Compatibility - Windows 8
- Linux
- Mac OS X Mavericks (10.9)
- Windows 7

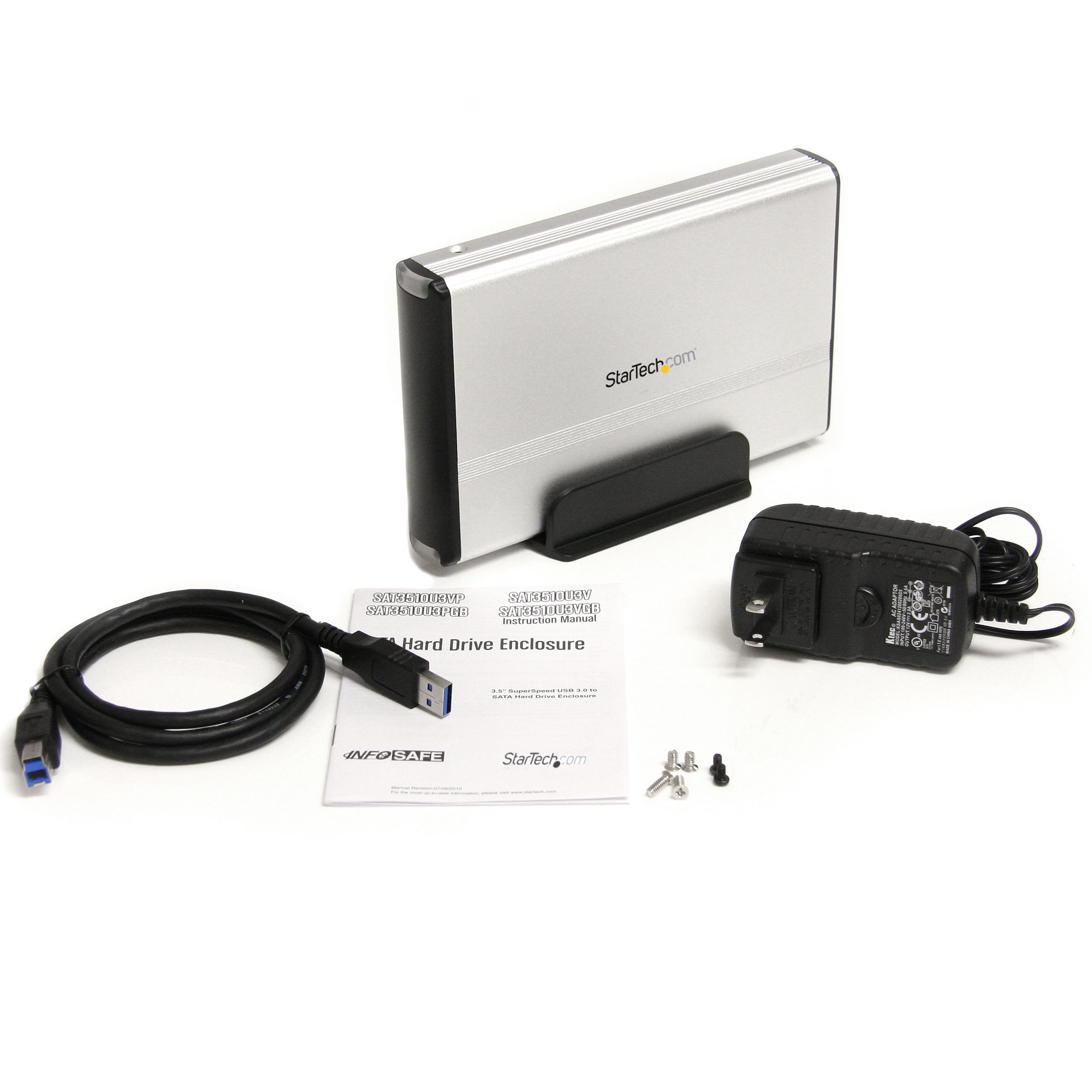

RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID JMicron - JMS539 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power/Activity (blue) Number of Drives 1 Carton Depth (mm) 570 Carton Height (mm) 290 Carton Quantity 10 Carton Weight Gross (g) 9900 Included in Package - 1 - USB 3.0 drive enclosure
- 1 - USB 3.0 cable
- 1 - Instruction Manual
- 1 - Screw Kit
- 1 - Power Adapter
- 1 - Enclosure Stand
Package Depth (mm) 105 Package Height (mm) 130 Package Width (mm) 265 Package Weight (g) 870 Packaging Description USB 3.0 to 3.5" SATA HDD Enclosure Packaging Description India USB 3.0 to 3.5" SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
