SAT3510U3VP

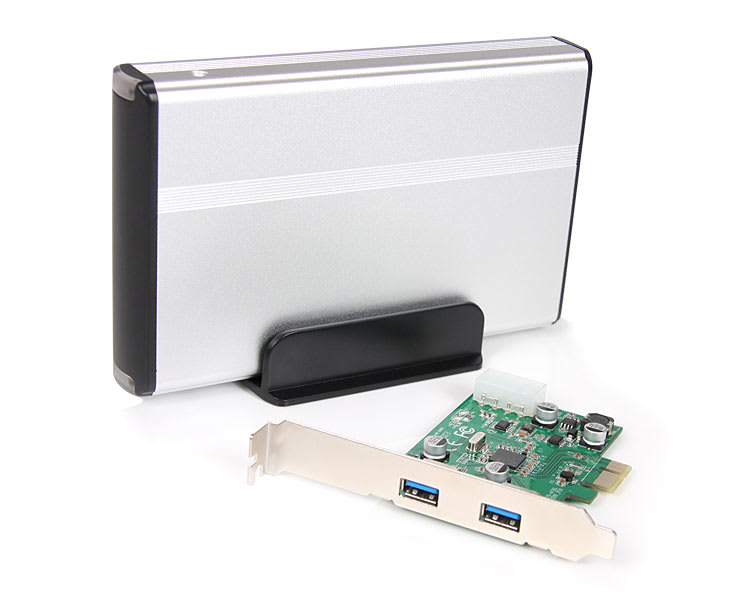

3.5in USB 3.0 SATA Hard Drive Enclosure with PCIe Card
Turn a 3.5in SATA drive into an external USB 3.0 hard drive
Main Image
Product Images
Product Images
Product Name 3.5in USB 3.0 SATA Hard Drive Enclosure with PCIe Card Product Number SAT3510U3VP UPC 065030841344 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) 1 Country of Origin History (2) China Product Title (Short) 3.5in USB 3 SATA HDD Enclosure w/ Card Product Title (Standard) 3.5in USB 3.0 SATA Hard Drive Enclosure with PCIe Card Product Title (Long) 3.5in USB 3.0 SATA Hard Drive Enclosure with PCIe Card Title Ingram (Part 1) 3.5in USB 3.0 SATA Hard Drive En Title Ingram (Part 2) closure w/ PCIe Card Website Product Headline Turn a 3.5in SATA drive into an external USB 3.0 hard drive Bullet 1 Enclosure and controller card are both compliant with the SuperSpeed USB 3.0 standard, with transfer rates up to 5Gbps Bullet 2 Enclosure and controller card both backward compatible with USB 2.0 standards, with transfer rates up to 480Mbps Bullet 3 Sturdy, light-weight aluminum construction Bullet 4 Fan-less design Bullet 5 On/Off power switch Marketing Copy Applications - Expand the storage capabilities of a computer system, without having to open the computer case
- Turn an unused SATA hard drive into a portable USB 3.0 external hard drive
- Upgrade a PCI Express-enabled USB 2.0 PC to support the faster USB 3.0 enclosure
Website Search Keyword - sata enclosure
- sata hard drive enclosure
- data storage enclosure
- USB 3.0 hdd enclosure
- 3.5" external storage
- 3.5in external enclosure
- 3.5 inch external data storage
Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Silver Humidity 5~90% RH Material Aluminum and Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 186 Product Width (mm) 104 Product Height (mm) 31.5 Product Weight (g) 570 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Max Drive Capacity Tested up to 2.0 TB OS Compatibility - Windows 7
- Windows Server 2008 R2
- Windows XP
- Windows Vista
SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile Chipset ID Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power/Activity (blue) Number of Drives 1 Included in Package - 1 - SAT3510U3V drive enclosure

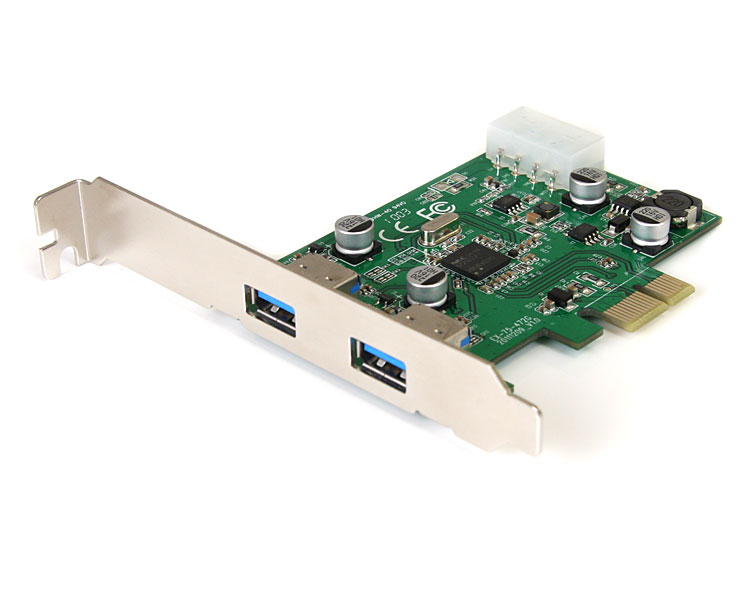

- 1 - PCIe USB 3.0 controller card
- 1 - Driver CD
- 1 - USB 3.0 cable
- 1 - Instruction Manual
- 1 - Power Adapter
Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes
