Main Image
SAT3520U2ER

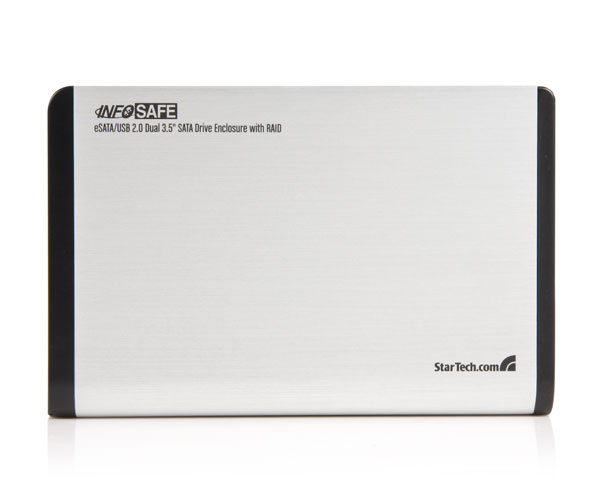

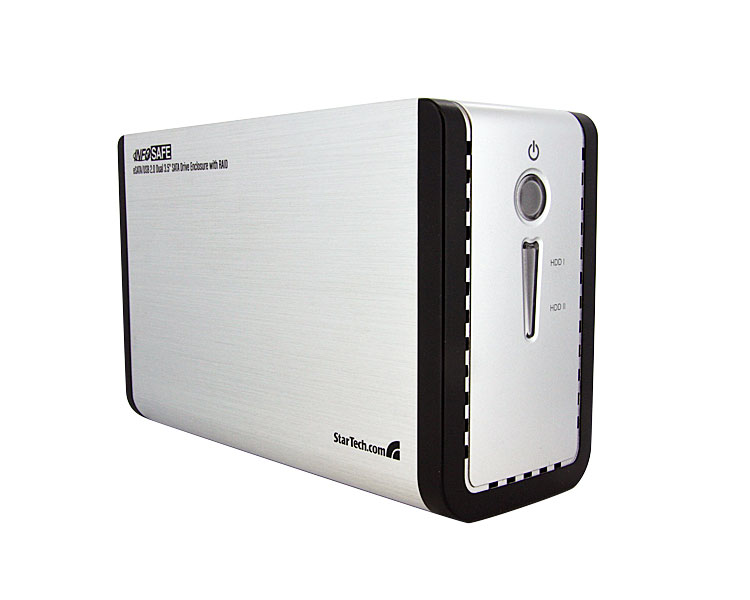

3.5 eSATA USB Dual SATA External HDD Enclosure
RAID array supported External storage enclosure for up to 2 SATA hard drives requiring only a single eSATA connection
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 3.5 eSATA USB Dual SATA External HDD Enclosure Product Number SAT3520U2ER UPC 065030830676 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) eSATA USB Dual External HDD Enclosure Product Title (Standard) StarTech.com eSATA USB Dual External HDD Enclosure Product Title (Long) 3.5in Silver eSATA USB Dual SATA External RAID Hard Drive Enclosure Title Ingram (Part 1) eSATA USB Dual 3.5 SATA External Title Ingram (Part 2) Hard Drive Enclosure RAID Website Product Headline RAID array supported External storage enclosure for up to 2 SATA hard drives requiring only a single eSATA connection Bullet 1 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 2 50mm cooling fan Bullet 3 High Speed USB 2.0 compliant host interface, with transfer rates up to 480 Mbps Bullet 4 LED indicators for each drive, host interface and power Bullet 5 SATA revision 2 compliant eSATA host interface, with transfer rates up to 3.0 Gbps Marketing Copy Applications - Add external RAID storage solution without worrying about driver or software support
- Businesses requiring external RAID storage for data redundancy
- External storage that is easily transferable between different computer systems
- Large volume external storage for backups/archiving
- Video editing or photography professional/enthusiasts working with very large file sizes
Website Search Keyword - External Hard Drive Enclosure
- External Hard Drive
- 3.5"
- Dual
- eSATA/USB
- RAID
- SATA HDD
Special Notes The maximum supported partition size for 32-bit Windows systems is 2 TB. Windows cannot detect multiple drives in any RAID mode if the total size exceeds 2TB. Hard drives in non-RAID mode (JBOD) are supported up to 2TB. Accessory Products - USB2HAB6
- USB2HAB10
- PCI220USB
- PEX400USB2
- PEXESATA1
- PEXESATA2I
- CBESATA2
- ECESATA22
- ESATA3
- SATA2ESATA6
- ESATAPLATE1
- ESATAPLATE2
Related Products - SAT3550ESR
- SAT3520U2R
- ESATCASE2
- SAT3520U2
- SAT3540ER
Equivalent Part Number in the UK SAT3520UERGB Input Voltage 115V-230V AC Output Current 4.2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Silver Material Aluminum Product Length (mm) 230 Product Width (mm) 100 Product Height (mm) 142 Product Weight (g) 1900.45 TAA Compliant No Max Drive Capacity 2 TB Each (4 TB Total) OS Compatibility - Linux
- Mac OS X
- Windows ME
- Windows 2000
- Windows XP
- Windows Vista
- Windows 2003
- Windows 7
RAID Yes SATA Type and Rate SATA II (3 Gbps) USB Type and Rate USB 2.0 (480Mbps) Chipset ID Silicon Image - SiI5744 Compatible Drive Types SATA Fans 1 - 50 mm Fans Included? Yes/No Yes Interface/Bridge USB 2.0 & eSATA LED Indicators - 1 - Power
- 2 - Hard Drive Indicators (One Each)

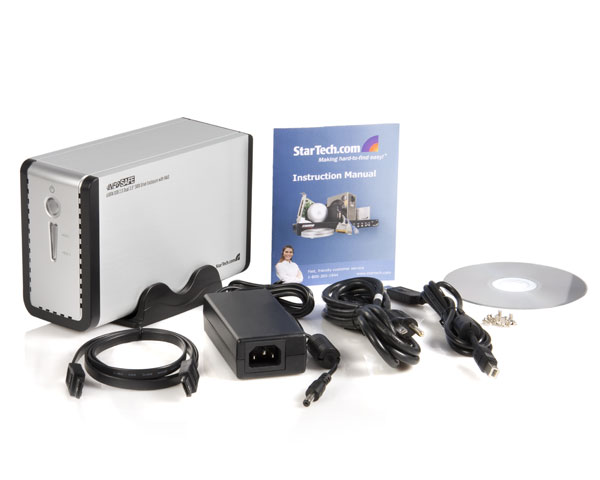

Number of Drives 2 Carton Depth (mm) 480 Carton Height (mm) 280 Carton Quantity 6 Carton Weight Gross (g) 13260 Included in Package - 1 - Aluminum Enclosure
- 1 - Instruction Manual
- 1 - Plastic Stand
- 1 - eSATA Cable
- 1 - USB Cable
- 1 - Screw Kit
- 1 - Power Adapter
- 1 - Power Cable
- 1 - Installation CD
Package Depth (mm) 154 Package Height (mm) 188 Package Width (mm) 264 Package Weight (g) 2010 Packaging Description eSATA/USB to Dual SATA HDD Enclosure Packaging Description India eSATA/USB to Dual SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 2 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 2 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
