Main Image
SAT3520U2R

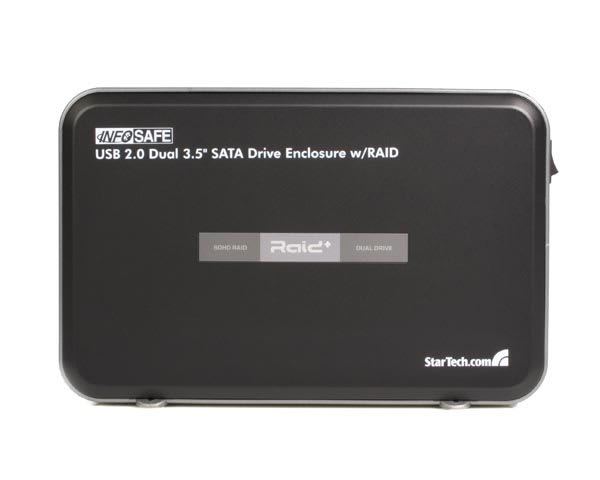

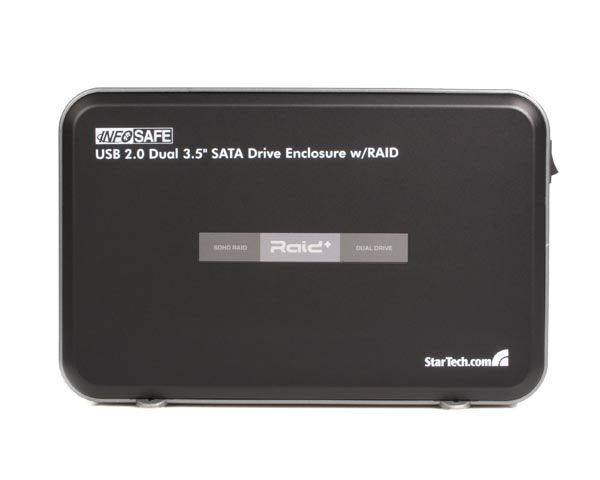

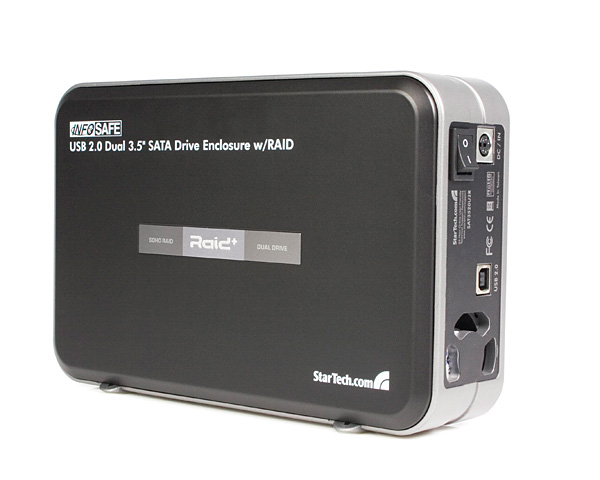

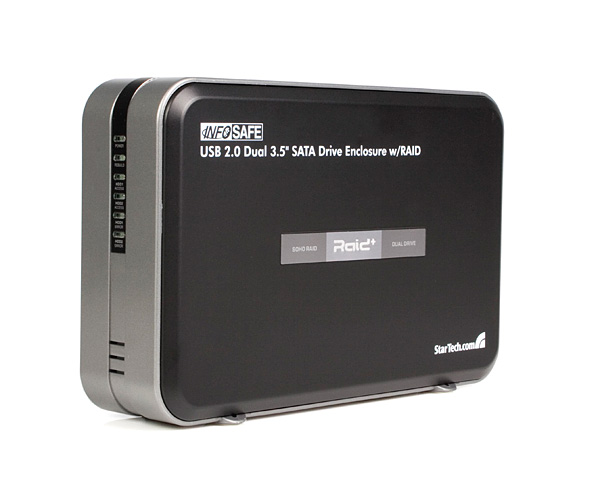

2 Drive USB 2.0 External RAID 0,1 Enclosure
InfoSafe USB 2.0 Dual 3.5" SATA Drive Enclosure w/RAID
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 2 Drive USB 2.0 External RAID 0,1 Enclosure Product Number SAT3520U2R UPC 065030826914 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 3.5 USB Dual SATA Hard Drive Enclosure Product Title (Standard) StarTech.com 3.5 USB Dual SATA Hard Drive Enclosure Product Title (Long) 3.5in Black USB 2.0 to Dual SATA Hard Drive Enclosure with RAID Title Ingram (Part 1) 3.5in Black USB 2.0 Dual SATA Ha Title Ingram (Part 2) rd Drive Enclosure with RAID Website Product Headline InfoSafe USB 2.0 Dual 3.5" SATA Drive Enclosure w/RAID Bullet 1 Supports up to two 3.5" SATA hard drives Bullet 2 High Speed USB 2.0 host interface, with supported transfer rates up to 480 Mbps Bullet 3 Supported RAID modes: 0, 1, JBOD, BIG (span/concatenation) Bullet 4 Activity and Error LED indicators for each drive, plus enclosure Power and Rebuild LED indicator Bullet 5 40mm cooling fan Marketing Copy Applications - Add external RAID storage solution without worrying about driver or software support
- Businesses requiring external RAID storage for data redundancy
- External storage that is easily transferable between different computer systems
- Large volume external storage for backups/archiving
- Video editing or photography professional/enthusiasts working with very large file sizes
Website Search Keyword - Dual Drive
- SATA I II 150 300
- RAID 0 1 JBOD
- USB 2.0
- External Hard Drive Enclosure
- 1.0 Terabyte TB hard drives
- SATCASE2U2R
Special Notes The maximum supported partition size for 32-bit Windows systems is 2 TB. Windows cannot detect multiple drives in any RAID mode if the total size exceeds 2TB. Hard drives in non-RAID mode (JBOD) are supported up to 2TB. Accessory Products - CBUSB220
- PCI420USB
- PCI625USB2I
- USB2FAAEXT15
- USB2HAB10
- USB2HAB15
Related Products - ESATCASE2
- SAT3550ESR
- SATCASE2U2
- SATCASE2U2R
Equivalent Part Number in the UK SAT3520U2RGB Output Current 2A Output Voltage (V) 12/5V DC Power Source AC Adapter Included Center Tip Polarity Not Applicable Color Black Material Aluminum Product Length (mm) 226 Product Width (mm) 62 Product Height (mm) 145 Product Weight (g) 600 TAA Compliant No General Specifications - Drive Type Compatibility: SATA, SATA II, SATA III Hard Drives
- Chipset: Oxford OXU921DS
- Drive Size: Tested up to a 2.0 TB hard drive per drive bay. Seagate Barracuda 7200 RPM hard drives up to 1 Terabyte have been tested.
- AC Input: 100VAC / 240VAC
OS Compatibility - Linux
- Mac OS X
- Windows 2000
- Windows NT
- Windows XP
- Windows Vista
- Windows 2003
- Windows 7
- Windows 8

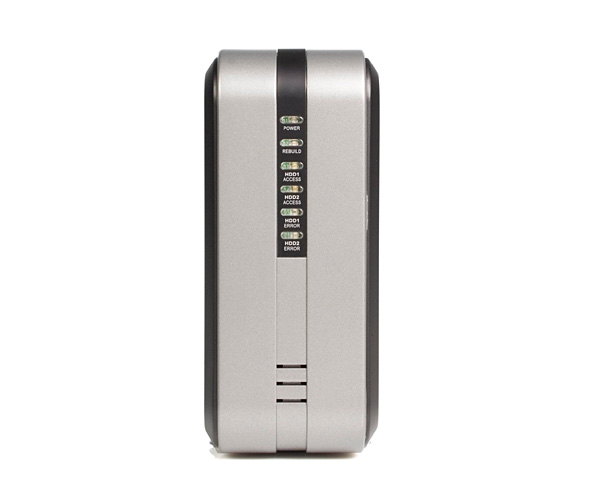

RAID Yes Chipset ID PLX/Oxford - OXU921DS Compatible Drive Types SATA Fans 1 - 40 mm Fans Included? Yes/No Yes Interface/Bridge USB 2.0 LED Indicators - 1 - Power
- 1 - Rebuild
- 1 - HDD1 Access
- 1 - HDD2 Access
- 1 - HDD1 Error
- 1 - HDD2 Error

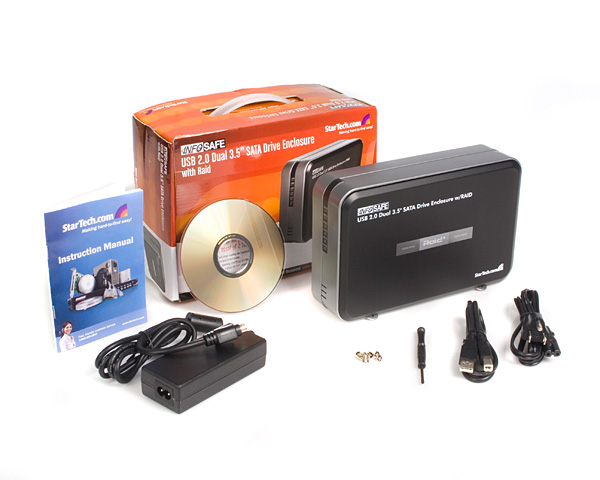

Number of Drives 2 Carton Depth (mm) 270 Carton Height (mm) 402 Carton Quantity 10 Carton Weight Gross (g) 13800 Included in Package - 1 - Aluminum Enclosure
- 1 - Power Adapter
- 1 - USB Cable
- 1 - Manual
- 1 - Hard drive mounting screws
- 1 - Screw Driver

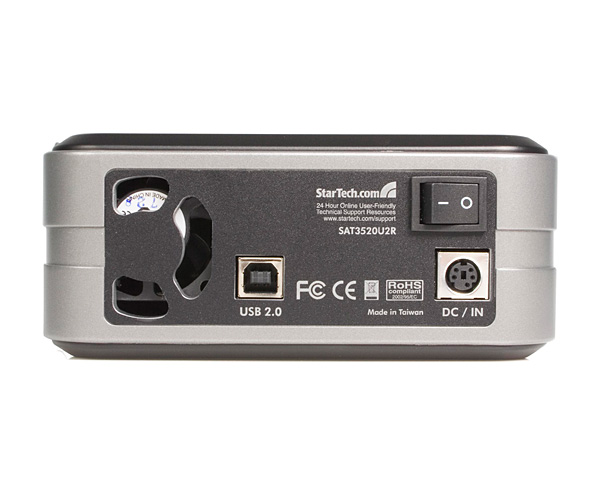

Package Depth (mm) 182 Package Height (mm) 112 Package Width (mm) 242 Package Weight (g) 1260 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
