SAT3520U3R
Dual 3.5" USB 3 Hot Swap Trayless SATA HDD Enclosure
Connect Two Removable SATA Hard Drives through a Single USB 3.0 Connection
Main Image
Product Images
Product Images
BOM Image
Product Name Dual 3.5" USB 3 Hot Swap Trayless SATA HDD Enclosure Product Number SAT3520U3R UPC 065030845410 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) Dual 3.5in USB 3.0 to SATA HDD Enclosure Product Title (Standard) Dual 3.5in USB 3.0 Hot Swap Trayless SATA Hard Drive Enclosure w/ Fan Product Title (Long) Dual 3.5in USB 3.0 Hot Swap Trayless SATA Hard Drive Enclosure w/ Fan Product Title (AMZ) Dual 3.5in USB 3.0 Hot Swap Trayless SATA Hard Drive Enclosure w/ Fan (SAT3520U3R) Title Ingram (Part 1) Dual 3.5in USB 3 Hot Swap Trayle Title Ingram (Part 2) ss SATA Hard Drive Enclosure Website Product Headline Connect Two Removable SATA Hard Drives through a Single USB 3.0 Connection Bullet 1 SuperSpeed USB 3.0 compliant host interface, which supports transfer rates up to 5 Gbps Bullet 2 Power and Activity LED indicators Bullet 3 Plug-and-Play and Hot-Swap compatible Bullet 4 Lockable drive doors Bullet 5 Backward compatible with USB 2.0 systems, out of the box Bullets (Consolidated) Replaced by S3520BU33ER - Connect two removable SATA hard drives through a single USB 3.0 connection Marketing Copy Applications - Adding external storage that is easily transferable between different computer systems
- Turning unused SATA hard drives into additional external data storage
- Adding external storage capacity for video editing or photo editing stations, making it easier to work with very large file sizes
- Expand the storage capabilities of a small form factor/embedded system or laptop, with an external hard drive
- Creating additional backup/archive storage for IT professionals
Website Search Keyword - trayless
- raid enclosure
- raid array
- portable
- external storage
- superspeed
- hot swap
System and Cable Requirements Available USB port Accessory Products - USB3SAB1
- USB3SAB3
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- PCIUSB3S2
- ECUSB3S1
- PEXUSB3S2
- ECUSB3S254F
- PEXUSB3S11
- MPEXUSB3S2
- PEXUSB3S4
Related Products - SAT3510BU2E
- SAT2510BU3
- SAT3510U3V
- S352U2RERC
- SAT3510BU3
- SATDOCK4U3E
- S252U2ERR
- SATDOCKU3SEF
- SAT3520U2R
- SATDOCKU3S
Replacement Product S3520BU33ER Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 12V DC Power Source AC Adapter Included Color Black Humidity 8% ~ 90% RH Material Aluminum and Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 210 Product Width (mm) 76 Product Height (mm) 135 Product Weight (g) 858 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15, 000 cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives per bay (8TB total) OS Compatibility OS Independent RAID Yes SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID JMicron - JMS551 Compatible Drive Types SATA Fans 1 - 55 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators - 2 - Power (blue)
- 2 - Activity (blue)

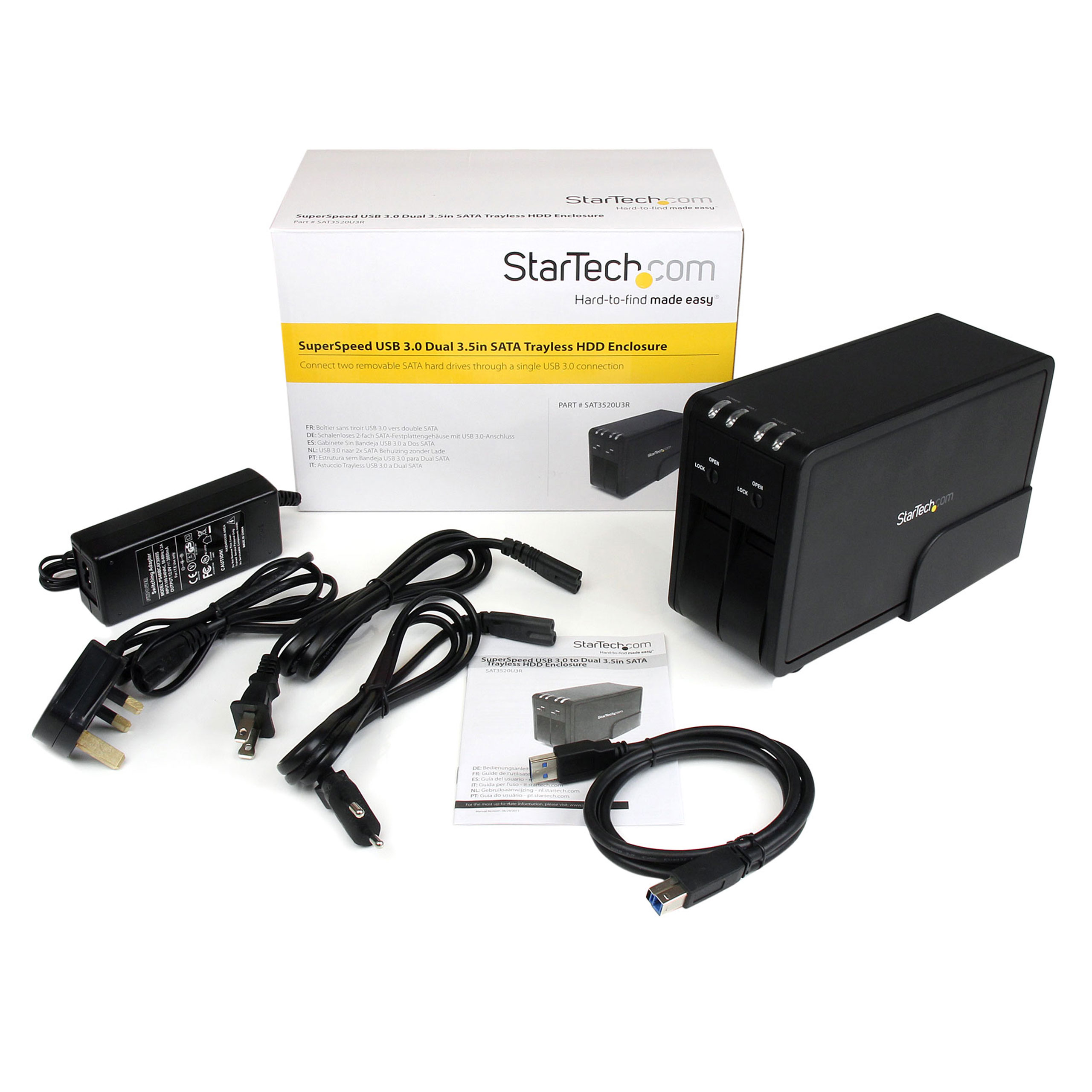

Number of Drives 2 Carton Depth (mm) 265 Carton Height (mm) 385 Carton Quantity 8 Carton Weight Gross (g) 13600 Included in Package - 1 - Universal Power Adapter
- 3 - Power Cord (NA/UK/EU)
- 1 - Hard Drive Enclosure
- 1 - USB 3.0 Cable
- 1 - Instruction Manual
Package Depth (mm) 139 Package Height (mm) 180 Package Width (mm) 255 Package Quantity 1 Package Weight (g) 1545 Packaging Description USB 3.0 to Dual SATA Trayless Enclosure Packaging Description India USB 3.0 to Dual SATA Trayless Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
