SAT3520U3SR
3.5" SATA USB 3 RAID HDD Hard Drive Enclosure 2Bay
Turn 2 SATA hard drives into external RAID storage, connected through USB 3.0

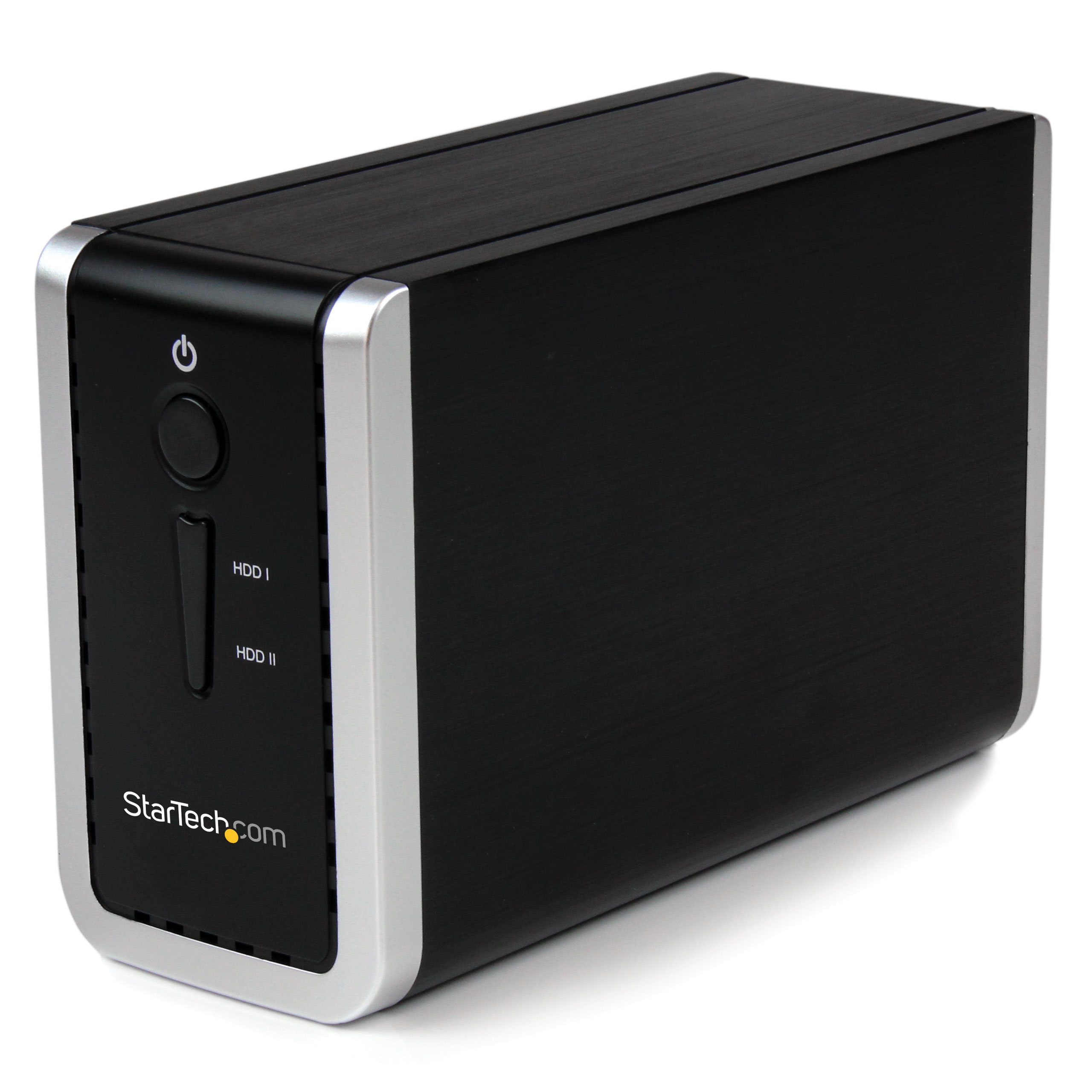

Main Image

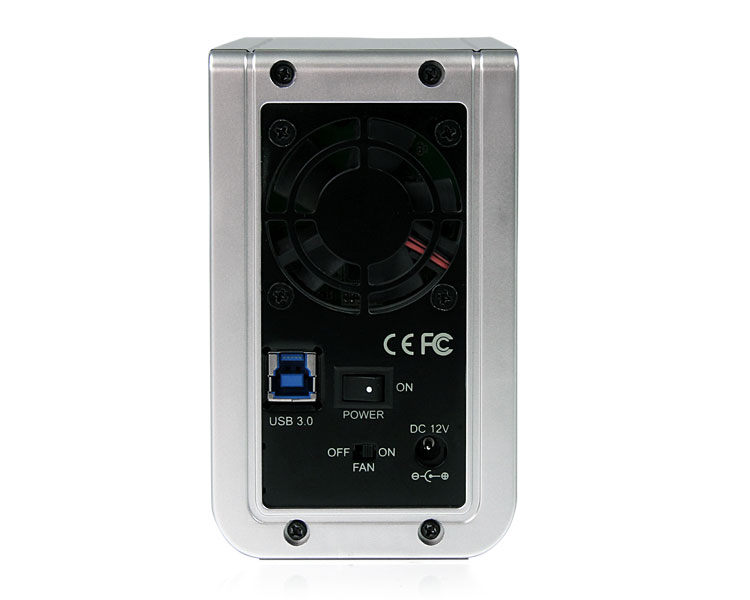

Product Images

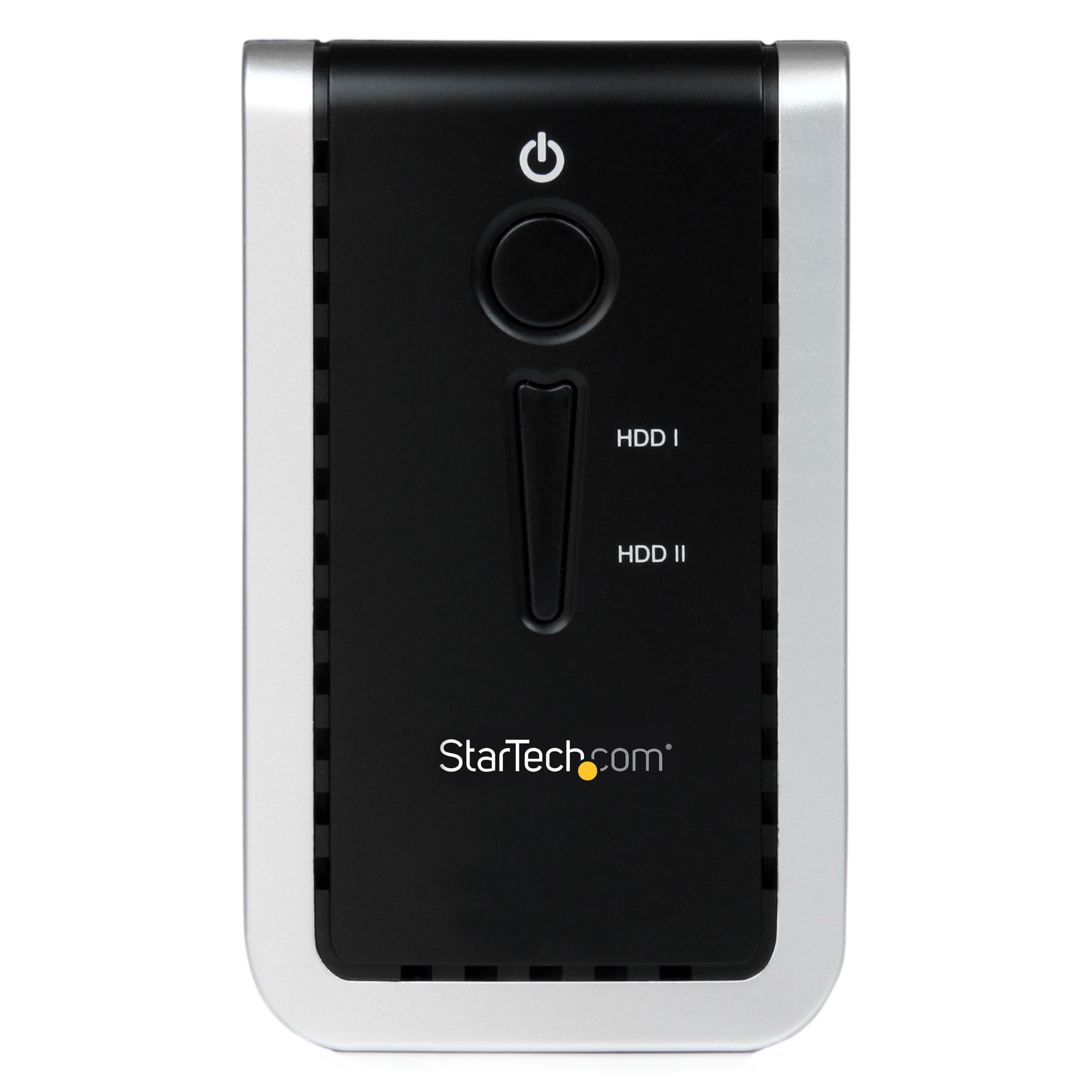

Product Images

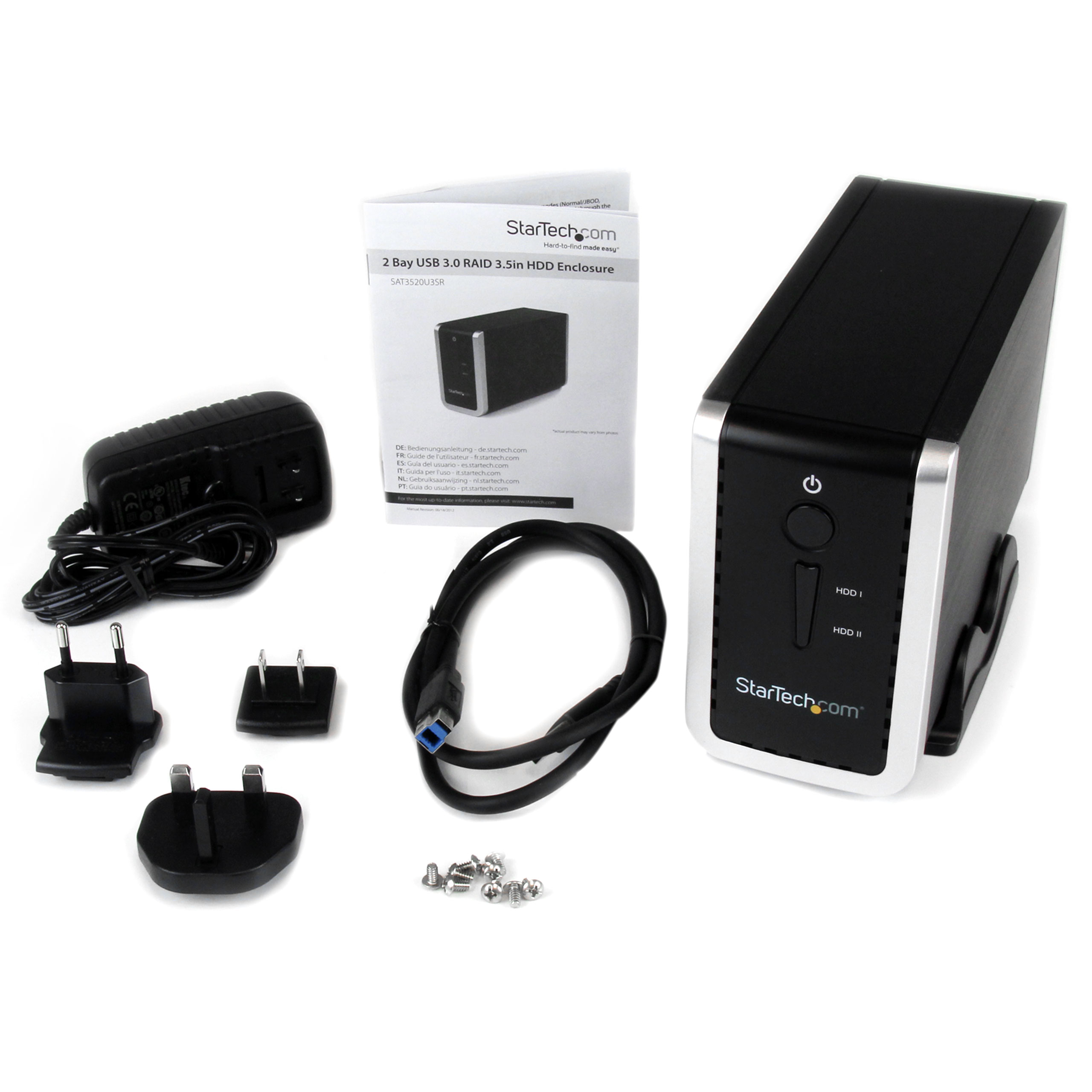

BOM Image
Product Name 3.5" SATA USB 3 RAID HDD Hard Drive Enclosure 2Bay Product Number SAT3520U3SR UPC 065030848442 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) Dual Bay 3.5" SATA HDD Enclosure USB 3.0 Product Title (Standard) Dual Bay SATA External Hard Drive Enclosure - 2 Bay USB 3.0 RAID 3.5in HDD Enclosure Product Title (Long) Dual Bay SATA External Hard Drive Enclosure - 2 Bay USB 3.0 RAID 3.5in HDD Enclosure Product Title (AMZ) Dual Bay SATA External Hard Drive Enclosure - 2 Bay USB 3.0 RAID 3.5in HDD Enclosure (SAT3520U3SR) Title Ingram (Part 1) 3.5in SATA USB 3.0 HDD Hard Driv Title Ingram (Part 2) e Enclosure 2 Bay RAID Enclosure Website Product Headline Turn 2 SATA hard drives into external RAID storage, connected through USB 3.0 Bullet 1 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 2 Power and activity LED for each drive bay Bullet 3 Supports 3.5" form factor SATA hard drives Bullet 4 50mm cooling fan Bullet 5 Supported RAID modes: 0, 1, JBOD Marketing Copy Applications - Scenarios requiring easy storage transferability between different computer systems and large volume external storage for backups/archiving
- Business applications that require external RAID storage for data redundancy
- Video editing or photography professional/enthusiasts working with very large file sizes
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes System and Cable Requirements Available USB 3.0 port Accessory Products - USB3SAB3
- PEXUSB3S11
- ECUSB3S254F
- ECUSB3S1
- USB3SAB6
- PEXUSB3S2
- ECUSB3S22
- USB3SAB1
- USB3SAB10
- PEXUSB3S4
Related Products - SAT3520U2ER
- SAT3520U2R
- SAT3540U3ER
- SAT3520U3R
- S354UFER
- S252U2ERR
Replacement Product S3520BU33ER Input Voltage 110V-240V AC Output Current 3000 mA Output Voltage (V) 12V DC Power Source AC Adapter Included Color Silver Humidity 10% ~ 90% RH Material Aluminum and Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 192 Product Width (mm) 75 Product Height (mm) 125 Product Weight (g) 1283 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives per bay (8TB total) Maximum Data Transfer Rate 10 Gbps OS Compatibility - Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows 7
RAID Yes SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Compatible Drive Types SATA Fans 1 - 50 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators - 2 - Drive Power/Activity
- 1 - Power
Number of Drives 2 Carton Depth (mm) 275 Carton Height (mm) 397 Carton Quantity 6 Carton Weight Gross (g) 11200 Included in Package - 3 - Power Adapter Plug (NA/EU/UK)
- 1 - Screw Kit
- 1 - Plastic Stand
- 1 - Instruction Manual
- 1 - USB 3.0 Cable
- 1 - Dual Drive Enclosure
- 1 - Universal Power Adapter
Package Depth (mm) 152 Package Height (mm) 186 Package Width (mm) 261 Package Quantity 1 Package Weight (g) 1800 Packaging Description 2 Bay USB 3.0 to SATA HDD RAID Enclosure Packaging Description India 2 Bay USB 3.0 to SATA HDD RAID Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
