SAT35401U
4 bay 3.5" SATA 1U rackmount enclosure
Turn four 3.5” SATA/SAS drives into a 1U rack-mountable storage solution with external Mini SAS connectivity
Main Image
Product Images
Product Images
BOM Image
Product Name 4 bay 3.5" SATA 1U rackmount enclosure Product Number SAT35401U UPC 065030852647 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) Rackmount Enclosure Product Title (Short) 1U Rackmount 4-Bay 3.5” SATA Enclosure Product Title (Standard) 1U Rackmount 4-Bay 3.5” SATA / SAS External Hard Drive Enclosure w/ SATA 6 Gbps Product Title (Long) 4-Bay 1U Rackmount Enclosure for 3.5in SATA / SAS Drives Product Title (AMZ) 1U Rackmount 4-Bay 3.5” SATA SAS External Trayless Hard Drive Enclosure - 3.5 inch External HDD Enclosure w/ SATA 6 Gbps (SAT35401U) Title Ingram (Part 1) 4-Bay 1U Rack Mount Trayless Title Ingram (Part 2) 3.5" SATA Hard Drive Enclosure Website Product Headline Turn four 3.5” SATA/SAS drives into a 1U rack-mountable storage solution with external Mini SAS connectivity Bullet 1 Rack-mountable chassis Bullet 2 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullet 3 Hot-swap compatible Bullet 4 Universal External power adapter Bullet 5 Compatible with SAS revision I/II (3.0/6.0 Gbps) Bullets (Consolidated) Turn four 3.5" SATA/SAS drives into a 1U rack-mountable storage solution with external Mini SAS connectivity - 1U rackmount enclosure supports SATA I/II/III (up to 6 Gbps) - SATA External Hard Drive Enclosure supports SAS I/II (3.0/6.0 Gbps) - Rugged steel rack-mountable chassis for 3.5" HDDs - 3.5 inch external hard drive enclosure with Mini SAS interface connection - 4 Bay Enclosure with 4 trayless drive bays - 3 cooling fans - Compatible with RAID controllers Marketing Copy Applications - Rack-mountable for easy integration into a server room environment
- Replace or upgrade old IDE or SATA backplanes with a SAS/SATA backplane
- Backup systems where physically removing the backed up data from the system is required
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - ISAS88881
- ISAS88882
- PEXSAT34SFF
- ISAS88883
- ISAS88702
- ISAS88701
- 25SAT35HDD
- 25SATSAS35
- ISAS88704
- SVA12DN4NEUA
Related Products - SATSASBAY3BK
- SATSASTRAYBK
- SATATRAYBK
- SATSASBAY425
- HSB320SATBK
- HSB430SATBK
- HSB220SAT25B
- SATSAS425BK
- HSB2535SATBK
- HSB100SATBK
- HSB110SATBK
- HSB225SATBK
- DRW110SATBK
- DRW115SATBK
- DRW150SATBK
- HSB3SATSASBA
Input Current 2.5A Input Voltage 100 - 240 AC Output Current 6.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 78 Power Source AC Adapter Included Plug Type M Color Black Humidity 20%RH ~ 80%RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 440 Product Width (mm) 302 Product Height (mm) 44.5 Product Weight (g) 4160 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Hot Swap Capability Yes Maximum Data Transfer Rate 6 Gbps OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types SAS & SATA Fans 3 - 40 mm Fans Included? Yes/No Yes LED Indicators - 1 - Power/Activity (Drive 1)
- 2 - Power/Activity (Drive 2)
- 3 - Power/Activity (Drive 3)
- 4 - Power/Activity (Drive 4)

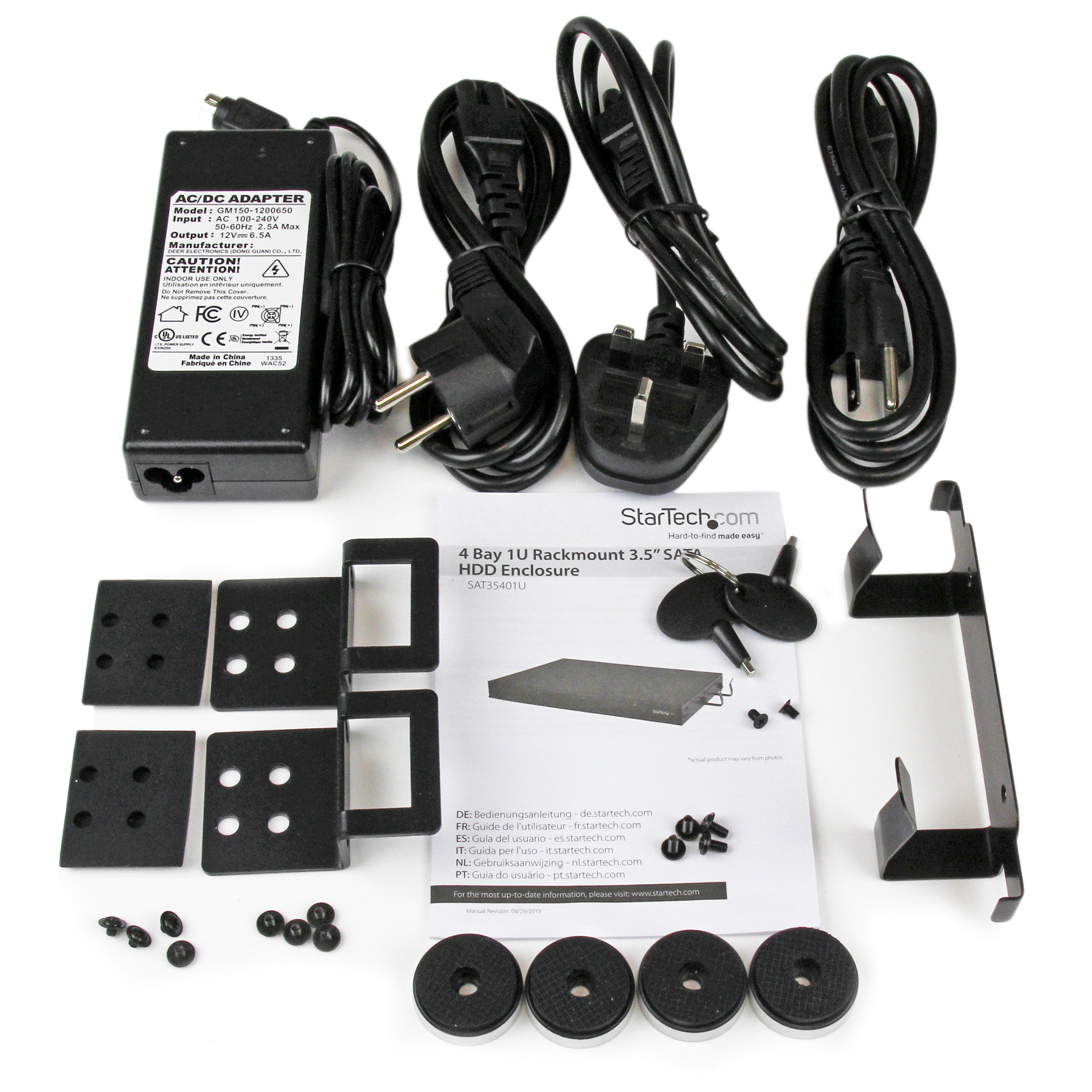

Number of Drives 4 Carton Depth (mm) 410 Carton Height (mm) 323 Carton Quantity 2 Carton Weight Gross (g) 13770 Included in Package - 1 - 4 Bay Rackmount 3.5” HDD Enclosure
- 1 - Mounting Bracket Set
- 1 - Power Adapter
- 1 - Hole Cover Set
- 1 - Rubber foot Set
- 1 - User Manual
- 1 - Power Adapter Bracket w/ Mounting hardware
Package Depth (mm) 390 Package Height (mm) 140 Package Width (mm) 530 Package Quantity 1 Package Weight (g) 6280 Packaging Description 4 Bay 1U Rackmount 3.5” SATA HDD Enclosure Packaging Description India 4 Bay 1U Rackmount 3.5” SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFF-8482 (29-Pin, SAS) Connector 1 (Quantity) 4 Host Connector 1 SFF-8088 (26-Pin, Mini SAS) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-08-02 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tony Parackal Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
