SAT3540ER

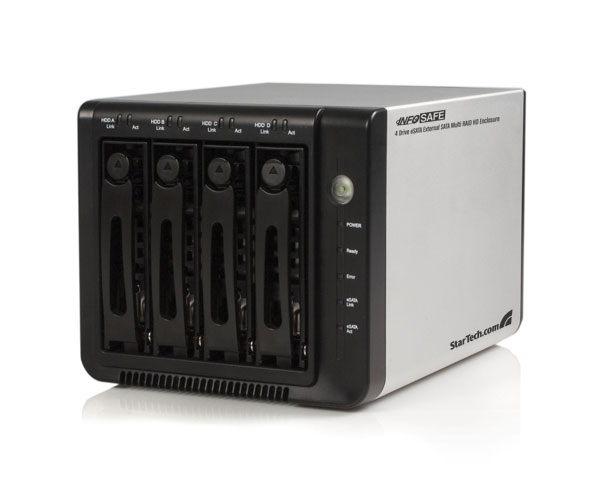

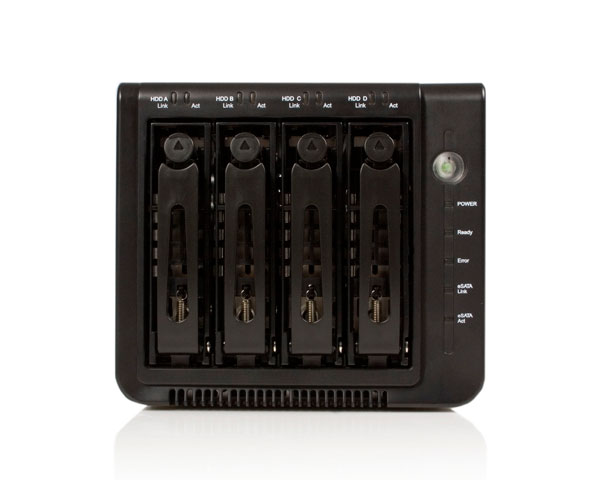

4-Drive eSATA External SATA Drive Enclosure
InfoSafe 4 Drive eSATA External SATA Multi RAID HD Enclosure
Main Image
Product Images
Product Images
Product Images
Product Name 4-Drive eSATA External SATA Drive Enclosure Product Number SAT3540ER UPC 065030832038 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) 4 Drive eSATA External HDD Enclosure Product Title (Standard) StarTech.com 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller - Hard drive array - 4 bays ( SATA-300 ) - 0 x HD - Serial ATA-300 (external) Product Title (Long) 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller Title Ingram (Part 1) 3.5 4 Drive eSATA RAID External Title Ingram (Part 2) Hard Drive Enclosure Website Product Headline InfoSafe 4 Drive eSATA External SATA Multi RAID HD Enclosure Bullet 1 Supports up to four 3.5" SATA I/II 2 Terabyte hard drives Bullet 2 LEDs to detect Hard Drive activity Bullet 3 Each hard drive bay is hot swappable featuring removable hard drive trays Bullet 4 80mm internal fan for enhanced hard drive cooling Bullet 5 Supports data transfer rates up to 3 Gbps Marketing Copy Applications - JBOD Disk Farms
- Professional grade Audio and Video Editing
- Reliably managing large business databases
- Digital/Multimedia file archiving
- Video streaming
- Large Audio projects
- DVD Authoring
- Managing large music & image libraries
- Secure backup
Website Search Keyword - esata hard drive enclosures
- port multiplier support
- raid 0 1 0+1
- 3.5" sata I II 150 300
- sata drive enclosures
- hard drive raid
- extra space
- external hard drive storage
- big safe storage
- Mirroring
- Striping
- Spanning concatentation concatenating
- removable hard drives
- external hard drive enclosure
- terabyte tb hard drives
Special Notes - The maximum supported partition size for 32-bit Windows systems is 2 TB. Windows cannot detect multiple drives in any RAID mode if the total size exceeds 2TB. Hard drives in non-RAID mode (JBOD) are supported up to 2TB.
Accessory Products - PEXESATA1
- ESATA3
- ESATA6
- ECESATA22
- SATA2ESATA6
- USB2ESATA
- PEXESATA2
- PEXESATA2I
- ECESATUSB1
- SAT3500TRAY
Related Products - SAT3550ESR
- ESATCASE2
- SAT3510U2E
- SAT5210U2E
Color Silver Material Aluminum Product Length (mm) 230 Product Width (mm) 170 Product Height (mm) 146 Product Weight (g) 3400 TAA Compliant No General Specifications - Chipset:

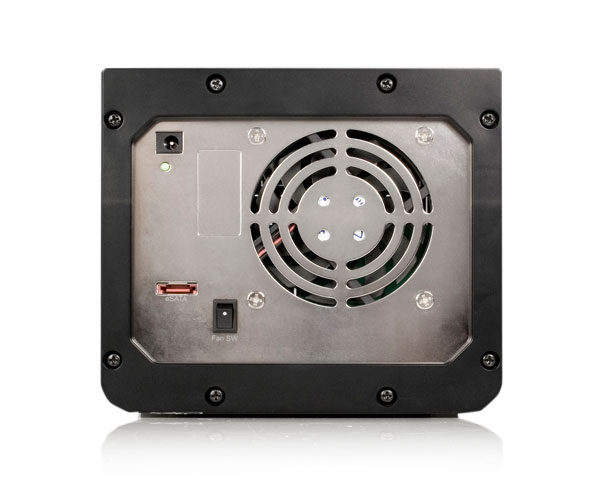

- Fan: 1x 80mm Ball Bearing Fan
- Hard Drive Support: Up to 4 x 2 Terabyte SATA II hard drives in RAID 1
- Power Supply: 12V 8.33A (100-240V, 100w)
- Comes with a eSATA cable and eSATA to PCI-Express Host Card
- Enclosure: Sil4726
- Host Card: Sil3531
OS Compatibility - Linux
- Mac OS X
- Windows 2000
- Windows 2003
- Windows 7
- Windows 98SE
- Windows ME
- Windows Vista
- Windows XP

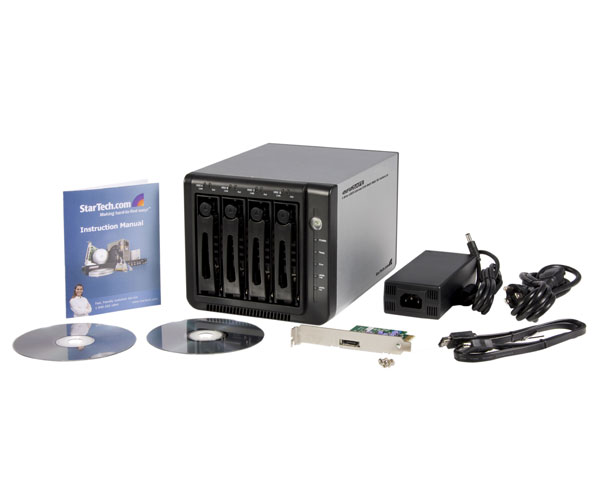

RAID Yes Compatible Drive Types SATA Fans Included? Yes/No Yes Interface/Bridge eSATA Number of Drives 4 Carton Depth (mm) 550 Carton Height (mm) 290 Carton Quantity 4 Carton Weight Gross (g) 19280 Included in Package - 1 - Drive Enclosure
- 1 - PCI Express Controller Card
- 1 - eSATA Cable
- 1 - Screw Kit
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Power Supply
Package Depth (mm) 178 Package Height (mm) 267 Package Width (mm) 270 Package Weight (g) 4520 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 eSATA (7-Pin) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
