SAT3540ER2

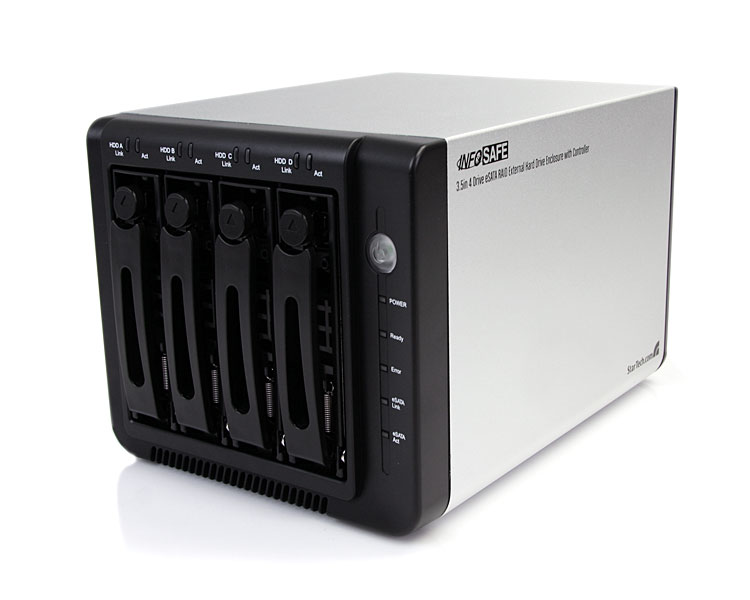

4 Drive eSATA RAID External Enclosure
Add up to 8TB of RAIDed, hot-swappable 3.5in SATA hard drive storage capacity to your computer through eSATA
Main Image
Product Images
Product Images
Product Images
Product Name 4 Drive eSATA RAID External Enclosure Product Number SAT3540ER2 UPC 065030837682 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) eSATA RAID External Hard Drive Enclosure Product Title (Standard) 3.5in 4 Drive eSATA RAID Hard Drive Enclosure Product Title (Long) 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller Title Ingram (Part 1) 3.5in 4 Drive eSATA RAID Externa Title Ingram (Part 2) l Hard Drive Enclosure Website Product Headline Add up to 8TB of RAIDed, hot-swappable 3.5in SATA hard drive storage capacity to your computer through eSATA Bullet 1 Supported RAID modes: 0, 1, 5, 10 (1+0), JBOD, Spanning, and Clone (Raid 1 + Spare) Bullet 2 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) hard drives Bullet 3 80mm cooling fan Bullet 4 SATA revision 2 compliant eSATA host interface with transfer rates up to 3 Gbps Bullet 5 LED indicators for each drive, host interface and power Marketing Copy Applications - Add large volume external storage for backups/archiving
- Video editing or photography professional/enthusiasts working with very large file sizes
- Businesses requiring external RAID storage for data redundancy
Website Search Keyword - big safe storage
- esata hard drive enclosures
- external hard drive enclosure
- external hard drive storage
- Mirroring
- port multiplier support
- removable hard drives
- sata drive enclosures
- Spanning concatenation
- Striping
- terabyte tb hard drives
- RAID 1 with Hot Spare
- 4 drive bay
- quad drive bay
- four drive
- SAT3540ER
Special Notes The maximum supported partition size for 32-bit Windows systems is 2 TB. Windows cannot detect multiple drives in any RAID mode if the total size exceeds 2TB. Hard drives in non-RAID mode (JBOD) are supported up to 2TB. Accessory Products - ECESATA22
- ECESATUSB1
- ESATA3
- ESATA6
- PEXESATA1
- PEXESATA2
- PEXESATA2I
- SATA2ESATA6
- USB2ESATA
- SAT3500TRAY
Related Products - SAT5210U2E
- SAT3540U2E
- S354UFER
- SATDOCK4U3E
- SATDOCK4U2E
- SATDOCK4U3
Input Voltage 110V-240V AC Output Current 8.33A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black & Silver Humidity 0°C to 70°C (32°F to 158°F) Material Aluminum Operating Temperature 10~90% RH Product Length (mm) 230 Product Width (mm) 170 Product Height (mm) 149.23 Product Weight (g) 3400 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Insertion Rating 5,000 Cycles Max Drive Capacity Tested up to 2.0 TB OS Compatibility - Linux
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7

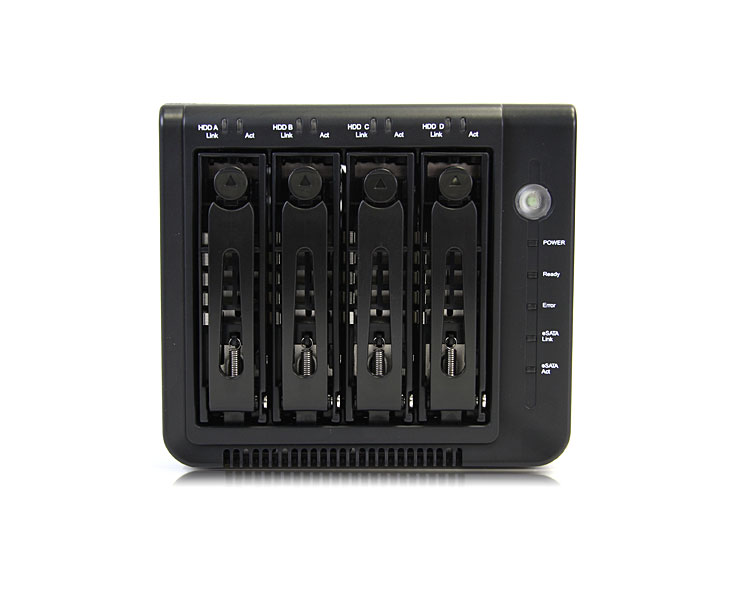

RAID Yes SATA Type and Rate SATA II (3 Gbps) UASP Support No Chipset ID Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge eSATA LED Indicators - 4 - HDD Link
- 4 - HDD Activity
- 1 - Power
- 1 - Enclosure Ready
- 1 - Error
- 1 - eSATA Link
- 1 - eSATA Activity

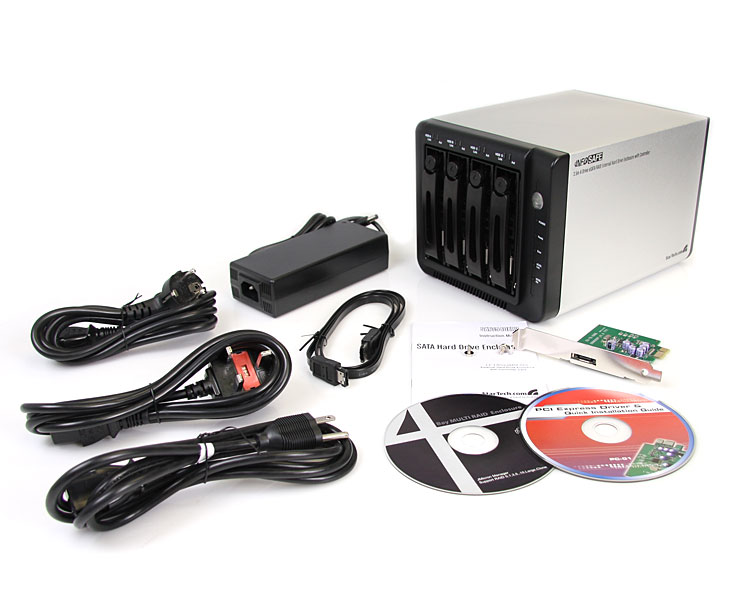

Number of Drives 4 Carton Depth (mm) 380 Carton Height (mm) 320 Carton Quantity 4 Carton Weight Gross (g) 20720 Included in Package - 1 - 4 Drive Enclosure
- 1 - Software CD
- 1 - eSATA Cable
- 1 - Instruction Manual
- 1 - PCI Express Controller Card
- 1 - Universal Power Adapter
- 1 - Screw Kit
- 3 - Power Cords (UK, US, EU)
Package Depth (mm) 180 Package Height (mm) 280 Package Width (mm) 270 Package Weight (g) 4880 Packaging Description 4 Drive eSATA to SATA RAID Enclosure Packaging Description India 4 Drive eSATA to SATA RAID Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
