SAT3540U2E
3.5in eSATA USB 4 Bay SATA External Hard Drive
Turn four SATA drives into an external storage device with USB 2.0 and eSATA connectivity
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 3.5in eSATA USB 4 Bay SATA External Hard Drive Product Number SAT3540U2E UPC 065030836357 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 4 Drive Multi Bay External HDD Enclosure Product Title (Standard) 4 Bay External Hard Drive Array Storage Tower – eSATA USB 3.0 Enclosure Product Title (Long) 4 Bay External Hard Drive Array Storage Tower – eSATA USB 2.0 Enclosure Product Title (AMZ) 4 Bay External Hard Drive Array Storage Tower - 4 Drive eSATA USB 2.0 Multi Bay External Hard Drive Enclosure (SAT3540U2E) Title Ingram (Part 1) 4 Drive eSATA USB Multi Bay Exte Title Ingram (Part 2) rnal Hard Drive Enclosure Website Product Headline Turn four SATA drives into an external storage device with USB 2.0 and eSATA connectivity Bullet 1 High Speed USB 2.0 host interface, with transfer rates up to 480Mbps Bullet 2 SATA revision 2 compliant eSATA host interface with transfer rates up to 3.0Gbps Bullet 3 Manually switchable between eSATA and USB host interfaces Bullet 4 Removable front cover and accessible drive trays Bullet 5 80mm cooling fan with 4 selectable speeds: Low, Med, High, Auto Marketing Copy Applications - Add external storage solution without worrying about driver or software support
- External storage that is easily transferable between different computer systems
- Large volume external storage for backups/archiving
- Video editing or photography professional/enthusiasts working with very large file sizes
Website Search Keyword - eSATA USB Enclosure
- External Storage
- SATA Drive
- 3.5in Hard Drive
- Storage Array
- Desktop HDD
- multi drive bay enclosure
Special Notes Some operating modes of the enclosure require an eSATA host port to provide Port Multiplier (PM) support. Without PM support, only one of the drives will be accessible. Accessory Products - PEXESATA1
- ESATA3
- ESATA6
- ECESATA22
- SATA2ESATA6
- USB2ESATA
- PEXESATA2
- PEXESATA2I
- ECESATUSB1
- CBESAT2
- USB2HAB10T
- USB2HAB15T
- USB2HAB15
- USB2HAB10
- USB2HAB6T
Related Products - SAT3550ESR
- SAT5210U2E
- SAT3540ER
- S354UFER
- SAT3520U2R
- SAT3520U2ER
- S352U2RER
- S352U2RERC
Replacement Product S3540BU33E Input Voltage 115V-230V AC Output Current 5A Output Voltage (V) 12V DC Power Source AC Adapter Included Color Black Humidity 90%RH Material Aluminum Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 215 Product Width (mm) 126 Product Height (mm) 170 Product Weight (g) 1800 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives per bay (16TB total) OS Compatibility - Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows 7
RAID No RPM SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID EXAR - XRS10L240 Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge USB 2.0 & eSATA LED Indicators - 3 - Fan speed indicators
- 2 - Fan mode indicators
- 2 - Interface indicators
- 1 - Power indicator (Blue - On, Orange - Standby, Off - Off)
- 1 - Sync mode indicator (Blue - 6 second delay after disconnect to turn off, Orange - Standby right after disconnect, Off - Do nothing on disconnect)

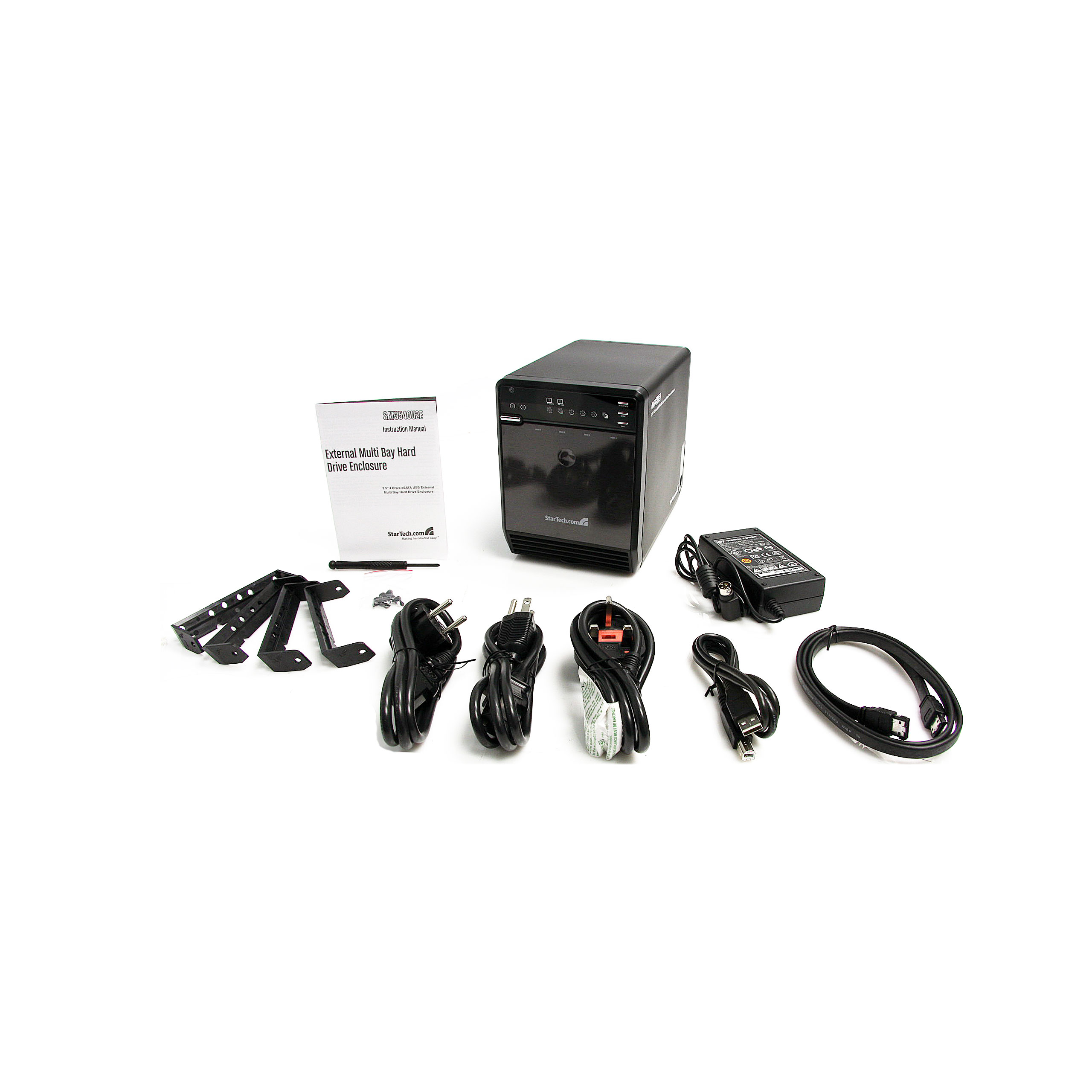

Number of Drives 4 Carton Depth (mm) 609 Carton Height (mm) 299 Carton Quantity 4 Carton Weight Gross (g) 13760 Included in Package - 1 - Four drive HDD enclosure
- 1 - Universal Power Adapter
- 1 - USB Cable
- 1 - eSATA Cable
- 1 - Screw driver and screw kit
- 1 - Manual
- 3 - Power Cords (NA/UK/EU)
Package Depth (mm) 163 Package Height (mm) 271 Package Width (mm) 293 Package Weight (g) 3140 Packaging Description 4 Drive eSATA/USB to SATA HDD Enclosure Packaging Description India 4 Drive eSATA/USB to SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
