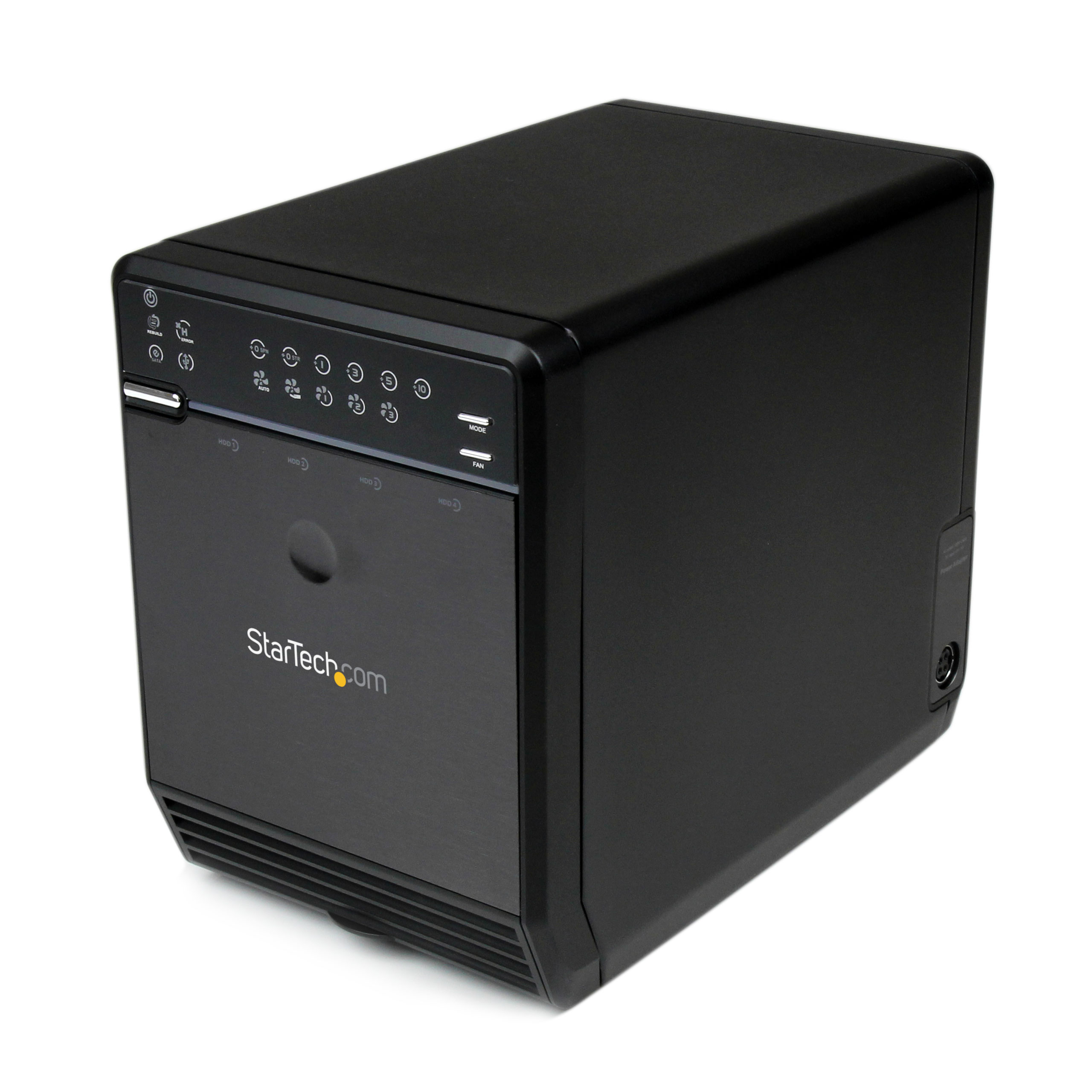

Main Image
SAT3540U3ER
4 Bay RAID Tower Hard Drive Array eSATA USB 3.0
Turn 4 SATA hard drives into external RAID storage, connected through USB 3.0 or eSATA
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Bay RAID Tower Hard Drive Array eSATA USB 3.0 Product Number SAT3540U3ER UPC 065030846424 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 4 Bay HDD Array RAID Tower eSATA USB 3.0 Product Title (Standard) 4 Bay External Hard Drive Array RAID Tower – eSATA USB 3.0 Enclosure Product Title (Long) 4 Bay External Hard Drive Array RAID Tower – eSATA USB 3.0 Enclosure Product Title (AMZ) 4 Bay External Hard Drive Array RAID Tower - eSATA USB 3.0 Enclosure - Storage RAID Enclosure Tower (SAT3540U3ER) Title Ingram (Part 1) 4 Bay Hard Drive Array RAID Towe Title Ingram (Part 2) r – eSATA USB 3.0 Enclosure Website Product Headline Turn 4 SATA hard drives into external RAID storage, connected through USB 3.0 or eSATA Bullet 1 SuperSpeed USB 3.0 host interface, with transfer rates up to 5 Gbps Bullet 2 SATA revision 2 compliant eSATA host interface, supporting transfer rates up to 3.0Gbps Bullet 3 Supported RAID modes: 0 (stripe), 1 (mirror), 3 (parity disk), 5 (striped parity), 10 (1+0), Span/Concatenation Bullet 4 User-configurable, directly from the unit itself Bullet 5 Removable front cover and accessible drive trays Bullets (Consolidated) Turn 4 SATA hard drives into external RAID storage - connected through USB 3.0 or eSATA - 4 Bay Hard Drive Enclosure - 4 Bay Hard Disk Enclosure - 4 Bay External SATA Enclosure - 4 Drive RAID Enclosure - External RAID Enclosure - 3.5" Hard Drive Array Tower - eSATA USB 3 HDD Enclosure - transfer rates up to 3.0Gbps Marketing Copy Applications - Add external RAID storage without worrying about driver or software support
- Maximizing the transferability of storage between different computer systems
- Large volume external storage with redundancy for backups or archiving important data
- Video editing or photography professional/enthusiasts working with very large file sizes
Website Search Keyword - 3.5in Hard Drive
- Desktop HDD
- eSATA USB Enclosure
- External Storage
- SATA Drive
- Storage Array
- RAID Array
- RAID 0
- RAID 1
- RAID 10
- RAID 1+0
- RAID 3
- RAID 5
- Spanning
- striped disks
- mirrored
- striped disks with parity
- SuperSpeed USB 3.0
- 4 Bay External Hard Drive Array RAID Tower eSATA USB 3.0 Enclosure storage
Special Notes The maximum supported partition size for some 32-bit Windows systems is 2 TB. These versions of Windows cannot detect multiple drives in any RAID mode if the total size exceeds 2 TB. System and Cable Requirements Available USB or eSATA port Accessory Products - CBESAT2
- ECESATA22
- ECESATUSB1
- ESATA3
- ESATA6
- PEXESATA1
- PEXESATA2
- PEXESATA2I
- PEXUSB3S11
- PEXUSB3S4
- ECUSB3S1
- USB3SAB3
- USB3SAB1
- PEXUSB3S2
- PCIUSB3S2
- MPEXUSB3S2
- ECUSB3S254F
- USB3SAB6BK
- USB3SAB10BK
Related Products - S354UFER
- SAT3540U2E
- SATDOCK4U3
- SATDOCK4U3RE
- SATDOCK4U2E
- SATDOCK4U3E
Replacement Product S3540BU33E Input Current 1.6A Input Voltage 115V-230V AC Output Current 5A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type 4-pin DIN Color Black Humidity 5% ~ 95% RH Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 215 Product Width (mm) 126 Product Height (mm) 170 Product Weight (g) 1800 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4 TB 5400 RPM hard drives per bay (16TB total) OS Compatibility OS Independent RAID Yes RPM SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 1 - 80 mm Fans Included? Yes/No Yes Front Door Key Lock No Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- USB 3.0 & eSATA
- eSATA
LED Indicators - 2 - Host Connection Type
- 2 - Fan Mode
- 3 - Fan Speed
- 1 - Power
- 1 - RAID Rebuild
- 1 - HDD Error
- 6 - RAID Mode

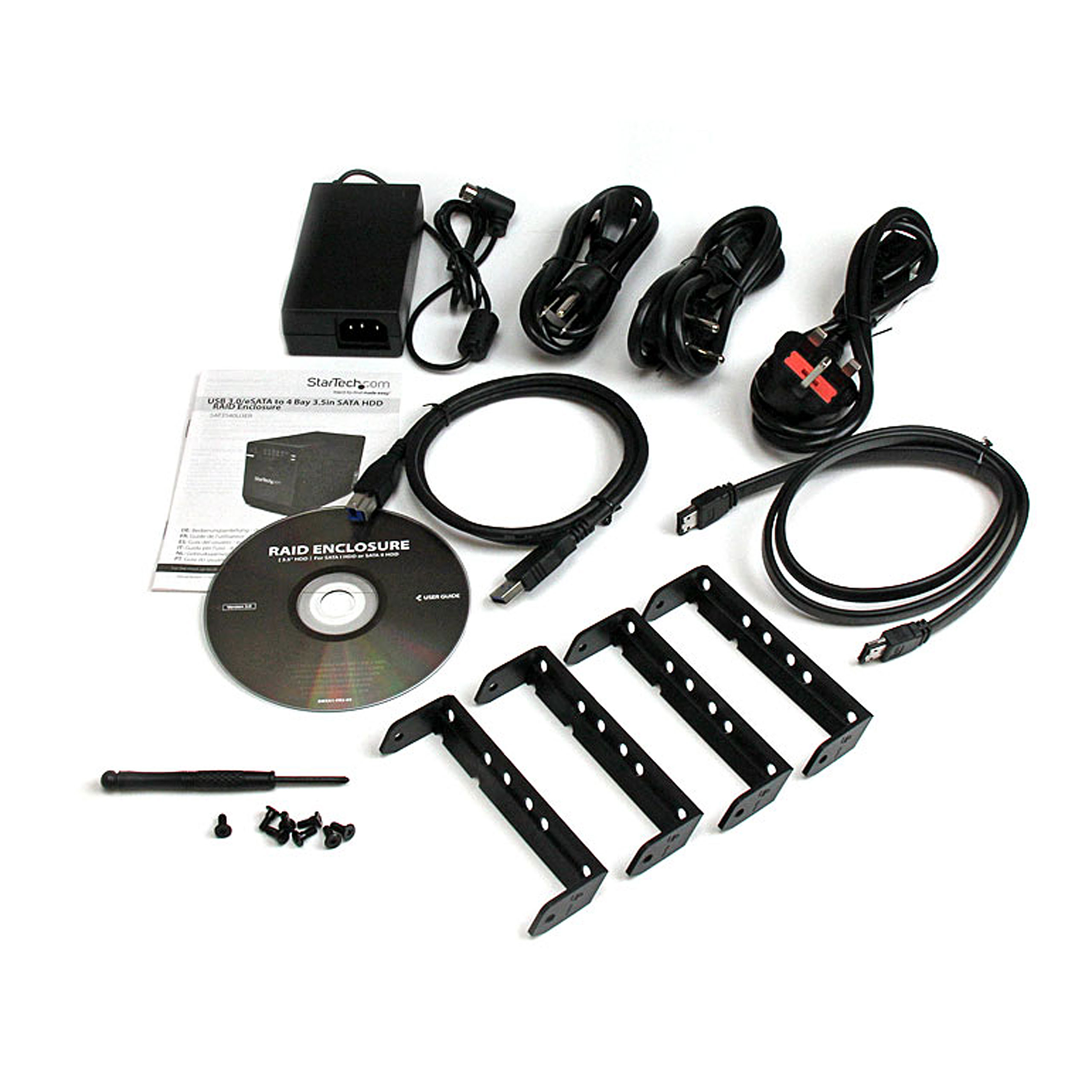

Number of Drives 4 Carton Depth (mm) 342 Carton Height (mm) 290 Carton Quantity 4 Carton Weight Gross (g) 14440 Included in Package - 1 - eSATA Cable
- 1 - Four drive HDD enclosure
- 1 - Universal Power Adapter
- 1 - Screw driver and screw kit
- 1 - USB 3.0 Cable
- 1 - Instruction Manual
- 3 - Power Cord (NA/ UK/ EU)
- 4 - Hard Drive Handle
Package Depth (mm) 158 Package Height (mm) 272 Package Width (mm) 293 Package Quantity 1 Package Weight (g) 2750 Packaging Description 4 Drive USB 3.0/eSATA RAID Enclosure Packaging Description India 4 Drive USB 3.0/eSATA RAID Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
