SAT3550ESR
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 5 Drive 2.5"/3.5" eSATA RAID Enclosure Product Number SAT3550ESR UPC 065030824873 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 2.5in 3.5in 5 Drive eSATA SATA External Hard Enclosure with RAID Bullet 1 5 separate drive bays to provide up to 5 terabytes of external storage capacity; JBOD mode only Bullet 2 Hard drives are removable using removable trays Bullet 3 Provides support for RAID striping (0) , mirroring (1), RAID 10 and JBOD Bullet 4 Can select individual or combined hard drive mode Bullet 5 Supports data transfer speeds up to 3 Gb/s Marketing Copy Applications - For users requiring mega amounts of storage but limited space and budget
- Professionals in audio/video production and related work
- Graphic designers, creative artists and engineers working with CAD drawings
- Create RAID arrays using striping for editing uncompressed files (high definition video, audio) or with large bandwidth applications.
- Large data backups and multiple project management
- Large database file protection
Website Search Keyword - 5 drive bay
- RAID
- External Enclosure
- 2.5
- 3.5
- 1 Terabyte TB hard drive
- SAT3550ESR
Accessory Products - ESATAPLATE1
- SATA2ESATA6
- PEXSATA22
Related Products - SATCASE2U2R
- SAT3540ER
Color Black Material Aluminum Product Length (mm) 300 Product Width (mm) 150 Product Height (mm) 230 Product Weight (g) 5000 TAA Compliant No General Specifications - Bus Type: eSATA
- Connectors: 1x 7 pin eSATA connector
- Power: Internal 200 Watt Power Supply
- Maximum Data Transfer Rate: eSATA 3 Gb/s
- Note: Comes with a eSATA cable and eSATA to PCI-Express Host RAID card
- Chipset: Silicon Image 3132
- Hard Drive Support: Up to 5 x 1 Terabyte SATA hard drives

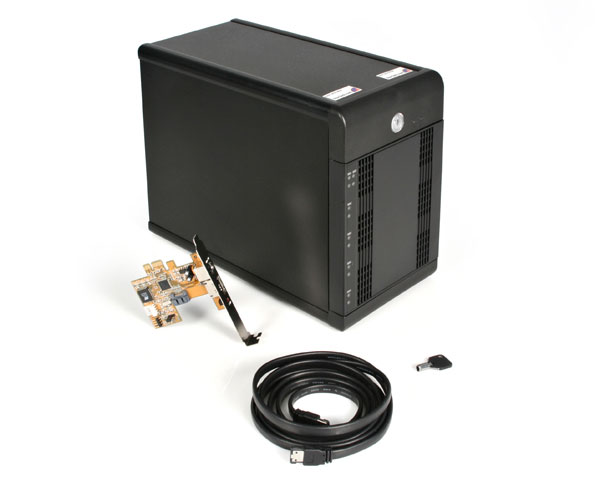

Fans 2 - 80 mm Carton Depth (mm) 490 Carton Height (mm) 373 Carton Quantity 2 Carton Weight Gross (g) 13200 Included in Package - 1 - External Drive Enclosure
- 1 - eSATA Cable
- 1 - Instruction Manual
- 1 - RAID Software
- 1 - Driver CD
- 1 - Power Cord
- 1 - Screw Kit

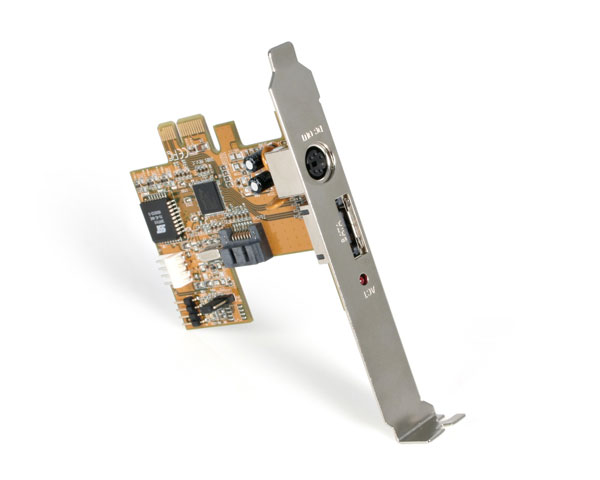

- 1 - eSATA PCI-E RAID Controller
- 1 - Set of Keys
Package Depth (mm) 236 Package Height (mm) 332 Package Width (mm) 432 Package Weight (g) 6000 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager David Muzinic
