SATA12RA1

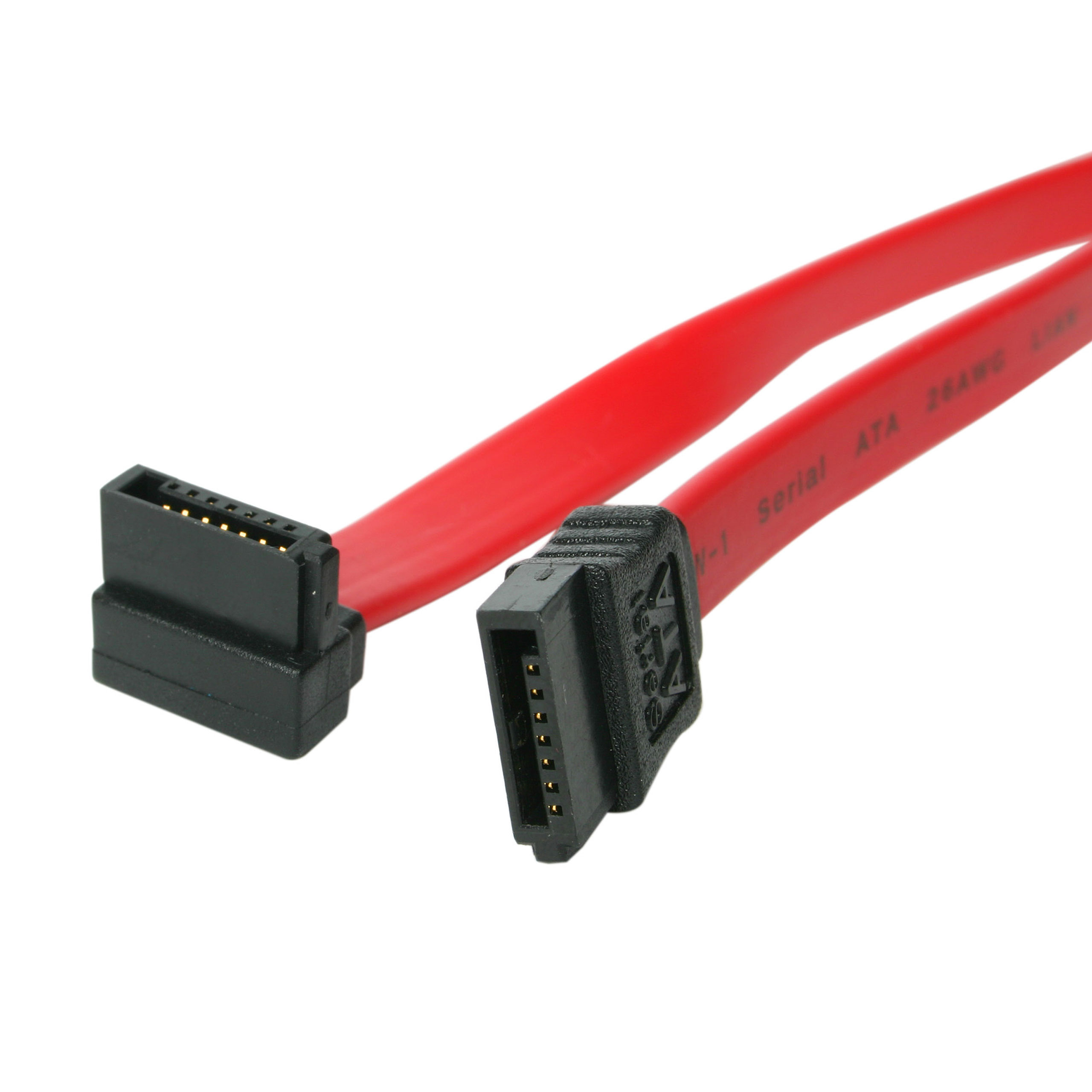

12in SATA to Right Angle SATA Serial ATA Cable
Make a right-angled connection to your SATA drive, for installation in tight spaces
Main Image
BOM Image
Product Name 12in SATA to Right Angle SATA Serial ATA Cable Product Number SATA12RA1 UPC 065030822756 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Internal Data & Power Category Level 1 Cables - Other Category Level 2 Drive Cables Category Level 3 SATA Cables Family SATA Cables Angled Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX087X Product Title (Short) 12in SATA to Right Angle SATA Cable Product Title (Medium) x Product Title (Standard) 12in SATA to Right Angle SATA Serial ATA Cable Product Title (Long) 12in SATA to Right Angle SATA Serial ATA Cable Product Title (AMZ) 12in SATA to Right Angle SATA Serial ATA Cable (SATA12RA1) Title Ingram (Part 1) 12in SATA to Right Angle SATA Se Title Ingram (Part 2) rial ATA Cable Website Product Headline Make a right-angled connection to your SATA drive, for installation in tight spaces Bullet 1 1x SATA connector Bullet 2 1x Right-angled/90-degree SATA connector Bullet 3 Compatible with both 3.5” and 2.5” SATA hard drives Bullet 4 Supports full SATA 3.0 6Gbps bandwidth Bullet 5 Provides 12" in cable length Bullets (Consolidated) SATA cable - Serial ATA 150/300/600 - SATA (R) to SATA (R) - 1 ft - right-angled connector - red Marketing Copy Applications - Installing Serial ATA hard drives, and DVD drives in Small Form Factor computer cases
- Server and storage subsystem applications
- High-end workstation drive installations
- Connections to SATA Drive Arrays
Website Search Keyword - SATA serial ata data storage cable internal right angled
- P941-12I
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Related Products - SATA12LA1
- SATA24RA1
- SATA36RA1
- SATARA18
- SATARA24
- SATARA36
- SATA18LA1
- SATA24LA1
Cable Length (mm) 304.8 Color Red Connector Style Straight to Right Angle Primary Material Plastic Product Length (mm) 304.800 Product Width (mm) 14.000 Product Height (mm) 6.000 Product Weight (g) 9.741 TAA Compliant No Wire Gauge 26 AWG (0.404 mm) SATA Type and Rate SATA III (6 Gbps) Cable Jacket Material PVC - Polyvinyl Chloride Number of Conductors 2 Carton Depth (mm) 338 Carton Height (mm) 220 Carton Quantity 200 Carton Weight Gross (g) 3912 Included in Package 1 - 12in SATA to Right Angle SATA Serial ATA Cable Included In Package for Label 1 - 12In SATA To Right Angle SATA Serial Ata Cable Number of Sub-Cartons 20 Package Depth (mm) 126 Package Height (mm) 19 Package Width (mm) 139 Package Quantity 1 Package Weight (g) 16 Packaging Description 12in SATA to Right Angle SATA Cable Packaging Description India 12in SATA to Right Angle SATA Cable Sub-Carton Depth (mm) 140 Sub-Carton Height (mm) 69 Sub-Carton Width (mm) 251 Sub-Carton Quantity 10 Sub-Carton Weight (g) 158 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,PL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
