SATABAY3
Main Image

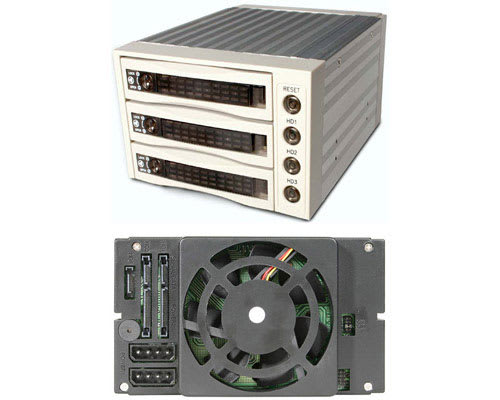

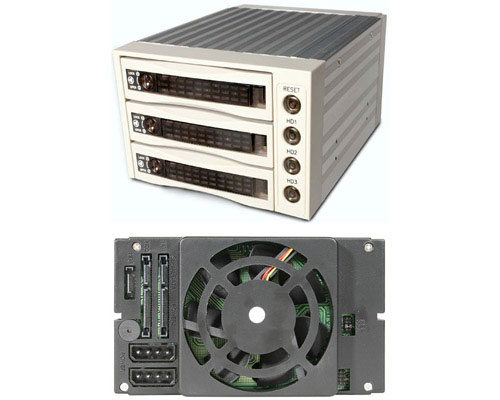

Product Name 3 Drive SATA Backplane Product Number SATABAY3 UPC 065030808774 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Long) 3 Drive Serial ATA Backplane Bullet 1 All aluminum construction for maximum durability and heat dissipation Bullet 2 Equipped with an 80mm rear mounted ball-bearing fan to ensure all your hard drives remains cool Bullet 3 LEDs continuously report hard drive and fan activity Bullet 4 Supports RAID applications Bullet 5 Equipped with audible buzzer alarm that sounds when hard drive overheating occurs Marketing Copy Applications - Serial ATA servers and storage subsystems
- High-end workstations
- Serial ATA Drive Arrays
- Network Attached Storage
- Enterprises replacing IDE/Parallel ATA hard drives with SATA/300(SATA II) or SATA/150 hard drives
System and Cable Requirements Two free 5.25" drive bays Accessory Products - SATA36
- SATA18POW
- SATATRAY
- SATA18RA1
- SATA36RA1
Related Products - SATABAY3BK
- SATABAY4
- SATABAY4BK
Color Beige Material - Aluminum
- Plastic
Product Length (mm) 202 Product Width (mm) 146 Product Height (mm) 82 Product Weight (g) 1300 TAA Compliant No General Specifications - Hard Drive Compatibility: SATA/300(SATA II) or SATA150 (SATA I) hard drives
- Hard Drives Supported: Up to three 750Gb hard drives
- Connectors:
- 3 x 7-pin SATA
- 2 x 15-pin SATA
- 2 x 4-pin LP4
- Hard Drive Connection: Cableless internal connection
- Construction: Aluminum
- Fan: 1 x 80mm Ball Bearing Fan
- LEDs: 3 x Hard Drive Activity, 1 x Reset x 1 x Fan Status
- Alarm: Over Heating Alarm
- Dimensions: 5.75 x 7.95 x 3.39 Inches (146 x 202 x 86 mm)
- Weight: 2.86 lbs (1.3 kg)
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 1 - 80 mm LED Indicators 1 - Activity Carton Depth (mm) 412 Carton Height (mm) 278 Carton Quantity 8 Carton Weight Gross (g) 13280 Package Depth (mm) 190 Package Height (mm) 128 Package Width (mm) 258 Package Weight (g) 1510 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
