SATABAY4
Main Image

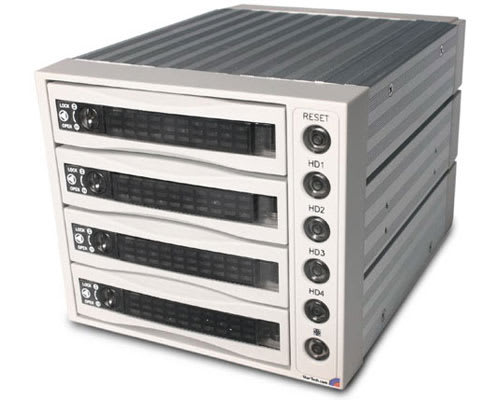

Product Name 4 Drive SATA Backplane Product Number SATABAY4 UPC 065030808798 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Long) 4 Drive Serial ATA Backplane Bullet 1 All aluminum construction for maximum durability and heat dissipation Bullet 2 Equipped with an 80mm rear mounted ball-bearing fan to ensure all your hard drives remains cool Bullet 3 LEDs continuously report hard drive and fan activity Bullet 4 Supports RAID applications Bullet 5 Equipped with audible buzzer alarm that sounds when hard drive overheating occurs Marketing Copy Applications - Serial ATA servers and storage subsystems
- High-end workstations
- Serial ATA Drive Arrays
- Network Attached Storage
- Enterprises replacing IDE/Parallel ATA hard drives with SATA/300(SATA II) and SATA150 hard drives
Website Search Keyword SATABAY3 System and Cable Requirements Three free 5.25" drive bays Accessory Products - SATA18POW
- SATA36
- SATATRAY
- SATA18RA1
- SATA36RA1
Related Products - SATABAY3BK
- SATABAY4BK
- SATABAY3
Color Beige Material - Aluminum
- Plastic
Product Length (mm) 202 Product Width (mm) 146 Product Height (mm) 126 Product Weight (g) 1600 TAA Compliant No General Specifications - Hard Drive Compatibility: SATA/300(SATA II) or SATA/150 (SATA I) hard drives
- Hard Drives Supported: Up to four 750Gb hard drives
- Connectors:
- 4 x 7-pin SATA
- 2 x 15-pin SATA
- 2 x 4-pin LP4
- Hard Drive Connection: Cableless internal connection
- Construction: Aluminum
- Fan: 1 x 80mm Ball Bearing Fan
- LEDs: 4 x Hard Drive Activity, 1 x Reset x 1 x Fan Status
- Alarm: Over Heating Alarm
- Dimensions: 5.75 x 7.95 x 4.96 Inches (146 x 202 x 126 mm)
- Weight: 3.53 lbs (1.6 kg)
- Required Cables: (2)SATA18POW , (1) SATA36
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 1 - 80 mm LED Indicators 1 - Activity Carton Depth (mm) 412 Carton Height (mm) 280 Carton Quantity 6 Carton Weight Gross (g) 12420 Package Depth (mm) 176 Package Height (mm) 192 Package Width (mm) 263 Package Weight (g) 1870 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
