SATABAY425BK

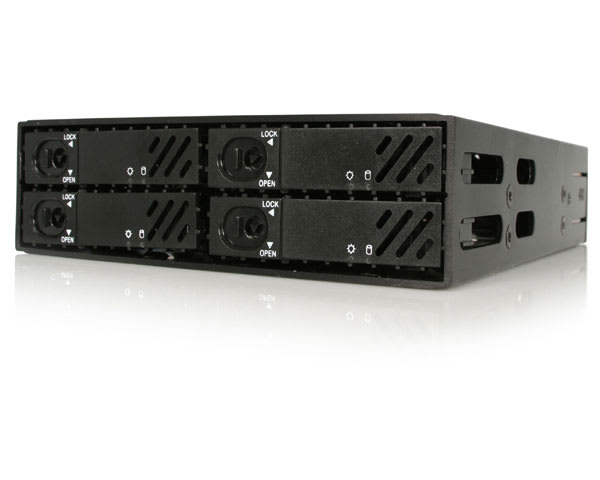

4x 2.5" SAS/SATA RAID Backplane for 5.25" Bay
4 x 2.5" SAS/SATA RAID Backplane for 5.25" Bay
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 4x 2.5" SAS/SATA RAID Backplane for 5.25" Bay Product Number SATABAY425BK UPC 065030826532 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Short) 4 Drive 2.5in SAS SATA Backplane Product Title (Standard) StarTech.com 4 Drive 2.5in Removable Mobile Rack SAS SATA Backplane Product Title (Long) 4 Drive 2.5in Removable Mobile Rack SAS SATA Backplane Title Ingram (Part 1) 4 Drive 2.5in Removable Mobile R Title Ingram (Part 2) ack SAS SATA Backplane Website Product Headline 4 x 2.5" SAS/SATA RAID Backplane for 5.25" Bay Bullet 1 Holds up to four 2.5" SATA/SAS drives across one 5.25" bays Bullet 2 Dual 40mm cooling fans Bullet 3 Durable, vented aluminum construction Bullet 4 Power/Activity LED for each drive Bullet 5 Fully supports SAS revision 1/2 (3.0/6.0 Gbps) hard drives and controllers Marketing Copy Applications - System builders who need to image many 2.5" drives simultaneously and quickly
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
- Add additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE or SATA-only backplane with a SAS/SATA backplane
Website Search Keyword - SAS
- SATA
- 5.25 Bay
- RAID 0 1 5 JBOD
- 2.5
- disk drive array
Accessory Products - PCISATA4R1
- SATA18
- SATA24
- LSATA18
- LSATA24
- LP4SATAFM
Related Products - DRW150SASBK
- DRW150SATBK
- SATABAY4BK
- HSB430SATBK
Replacement Product SATSASBP425 Color Black Product Length (mm) 183 Product Width (mm) 146 Product Height (mm) 42 Product Weight (g) 680 TAA Compliant No General Specifications - Interface: SAS I/II and SATA I/II/III
- Form Factor: 5.25" Bay
- Material: Aluminum

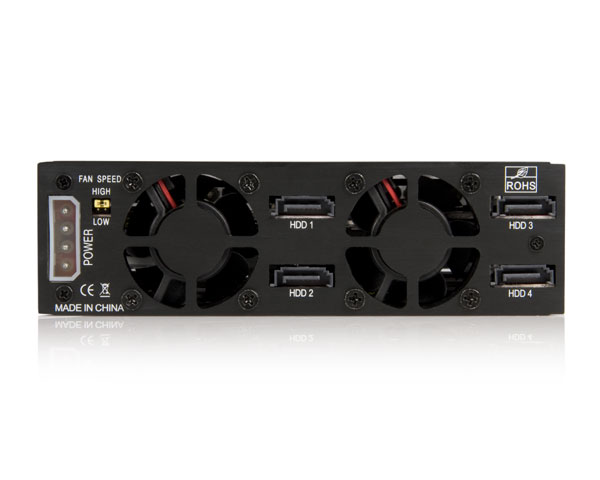

- Fans: 2 x 40mm fans with adjustable speeds

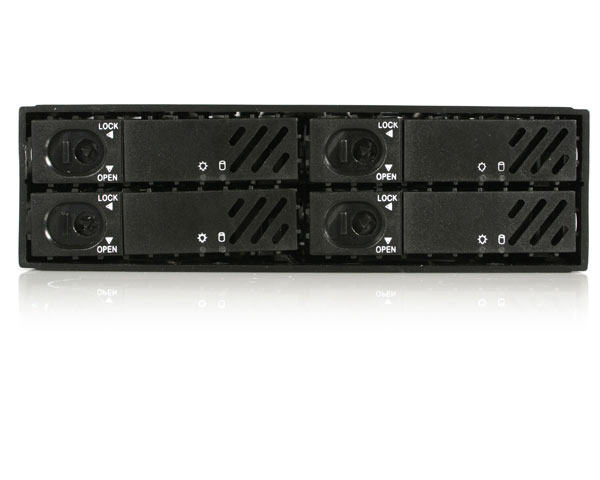

- LED Indicators: power and hard drive activity
- Transfer Rates Supported: SAS - 3Gbps SATA I - 1.5Gbps SATA II - 3Gbps
- Supports RAID 0,1,5 with optional SAS/SATA RAID controller card (not included)
- Cables Included: 4x Sata Data Cables

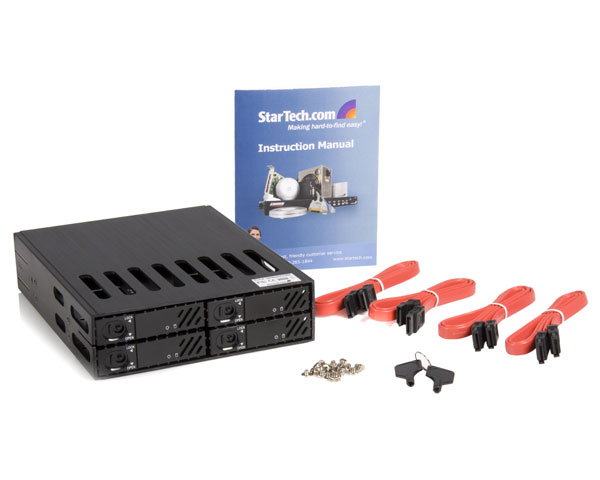

Carton Depth (mm) 445 Carton Height (mm) 355 Carton Quantity 10 Carton Weight Gross (g) 12800 Included in Package - 1 - Mobile Backplane

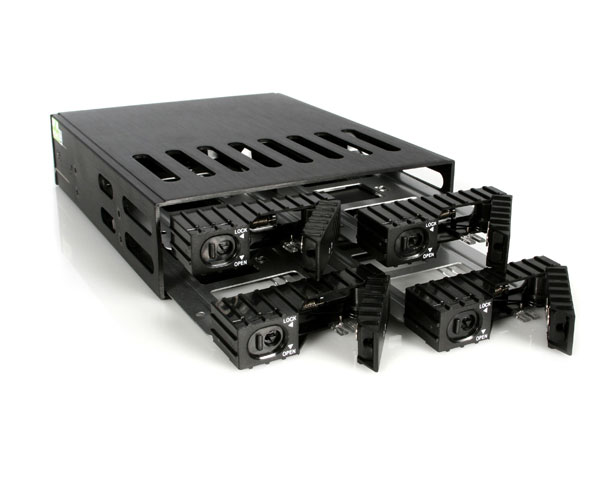

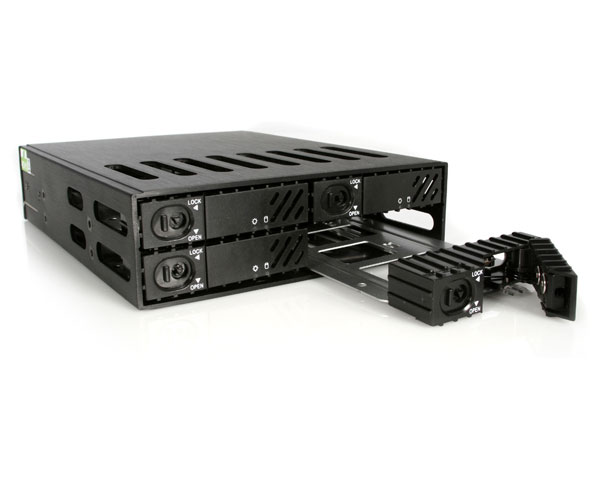

- 4 - 2.5 SAS/SATA Caddys
- 1 - Set of keys
- 1 - Screw Kit
- 4 - SATA cables
- 1 - Instruction Manual
Package Depth (mm) 65 Package Height (mm) 210 Package Width (mm) 355 Package Weight (g) 1160 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager David Muzinic
