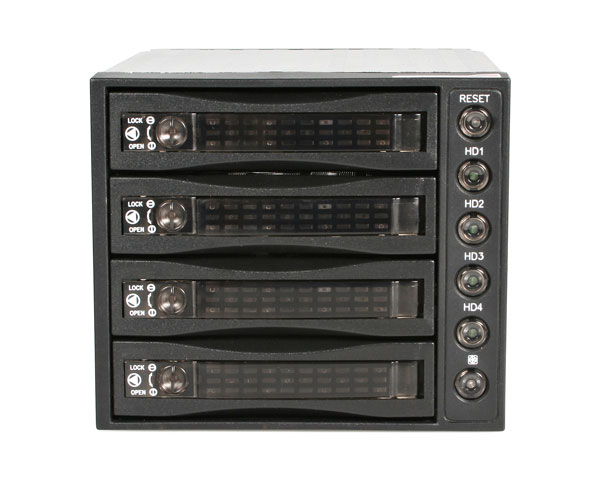

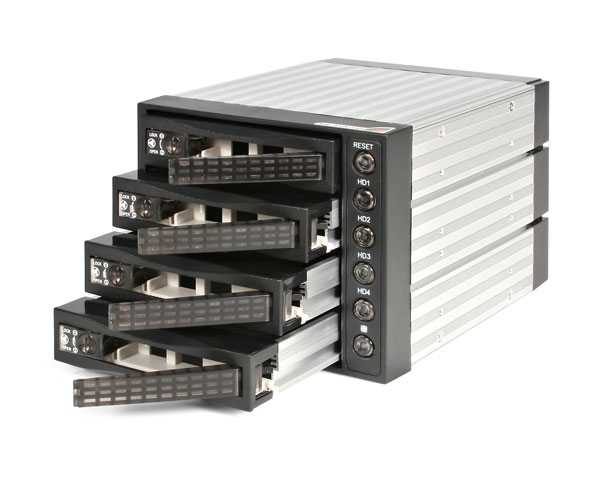

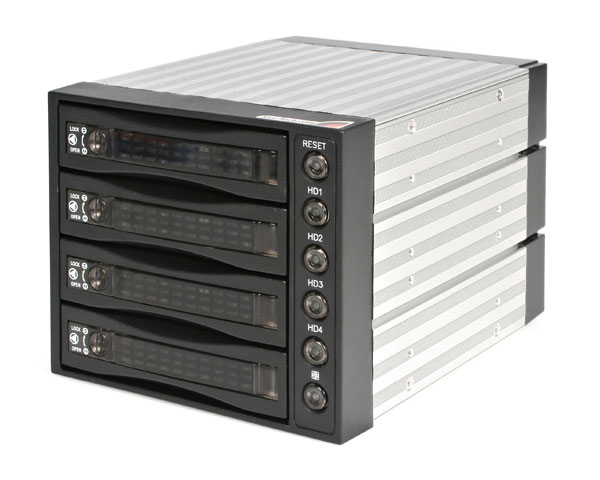

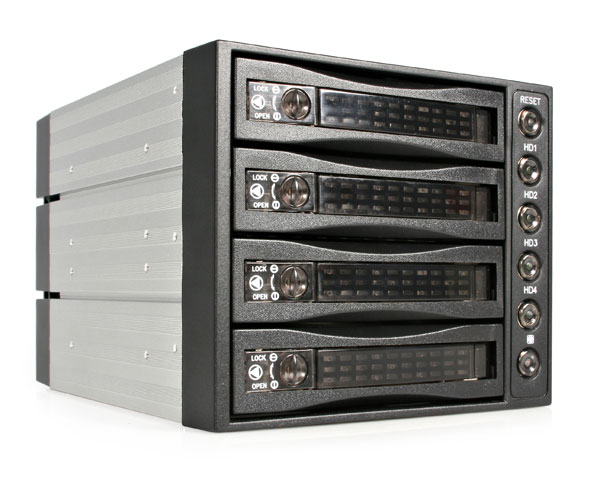

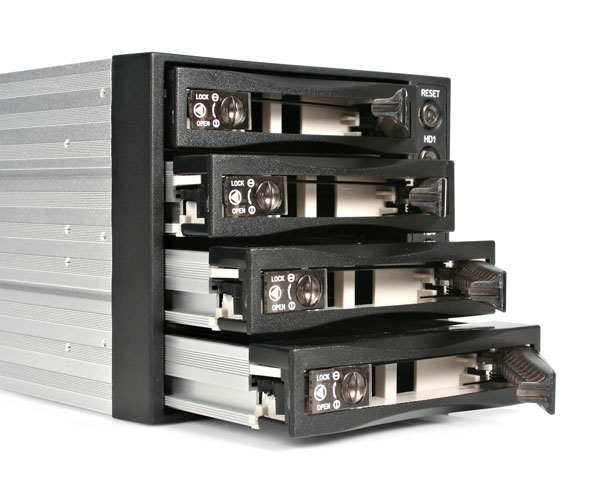

Product Name 4 Drive Black SATA Backplane Product Number SATABAY4BK UPC 065030808804 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Short) 4 Drive 3.5in SATA HD Backplane Product Title (Standard) StarTech.com 4 Drive 3.5in Removable SATA Mobile Rack Backplane - Storage drive cage - black Product Title (Long) 4 Drive 3.5in Removable SATA Mobile Rack Backplane Title Ingram (Part 1) 4 Drive 3.5in Removable SATA Mob Title Ingram (Part 2) ile Rack Backplane Bullet 1 Supports up to four 3.5" SATA hard drives across three 5.25" drive bays Bullet 2 Lockable drive trays Bullet 3 Rear mounted 80mm ball-bearing fan Bullet 4 Push-button power switch for each drive Bullet 5 Power/Activity LED indicator for each drive and Fan Status LED indicator Marketing Copy Applications - Add additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE backplane with a SATA backplane
- System builders who need to image many drives simultaneously and quickly
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Website Search Keyword - ino
- RJR400
- SC21J117
- StorCase
- S21J117
- 1.5 terabyte hard drives
System and Cable Requirements Three free 5.25" drive bays Accessory Products - SATA18POW
- SATA36
- SATATRAYBK
- SATA18RA1
- SATA36RA1
Related Products - SATABAY3
- SATABAY3BK
- SATABAY4
- HSB320SATBK
- HSB430SATBK
Color Black Material - Aluminum
- Plastic
Product Length (mm) 202 Product Width (mm) 146 Product Height (mm) 126 Product Weight (g) 1600 TAA Compliant No General Specifications - Hard Drive Compatibility: SATA, SATA II, SATA III hard drives
- Hard Drives Supported: Tested up to four 1.5 Terabyte hard drives

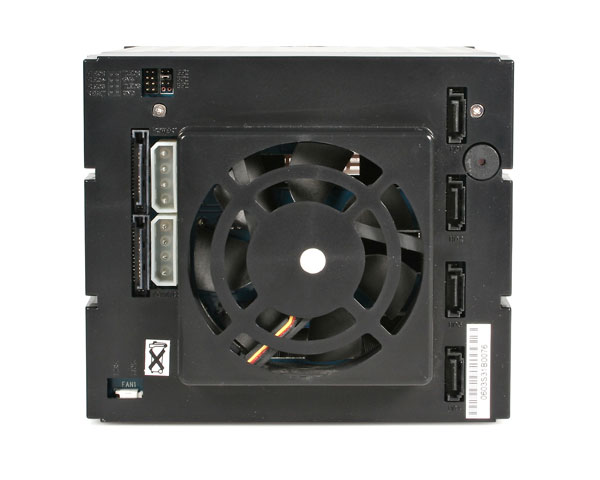

- Connectors:
- 4 x 7-pin SATA
- 2 x 15-pin SATA
- 2 x 4-pin LP4
- Hard Drive Connection: Cableless internal connection
- Construction: Aluminum
- Fan: 1 x 80mm Ball Bearing Fan
- LEDs: 4 x Hard Drive Activity, 1 x Reset x 1 x Fan Status
- Alarm: Over Heating Alarm
- Dimensions: 5.75 x 7.95 x 4.96 Inches (146 x 202 x 126 mm)
- Weight: 3.53 lbs (1.6 kg)

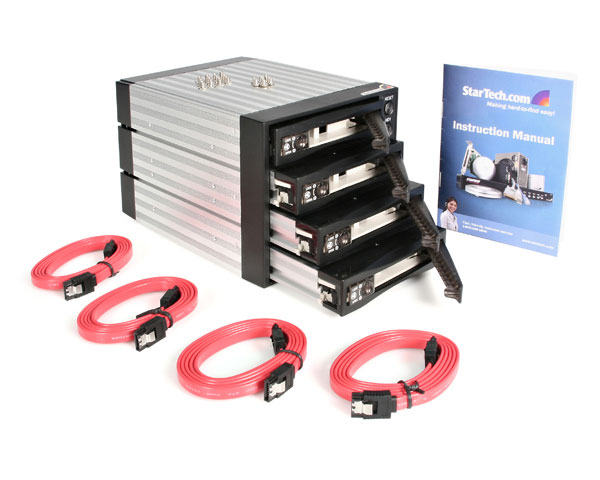

- Required Cables: (2)SATA18POW , (1) SATA36
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
- Fan Noise Level: 35.7 dBa
Fans 1 - 80 mm LED Indicators 1 - Activity Carton Depth (mm) 538 Carton Height (mm) 276 Carton Quantity 6 Carton Weight Gross (g) 12600 Package Depth (mm) 174 Package Height (mm) 192 Package Width (mm) 260 Package Weight (g) 1900 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
