SATADOCK22UE
Dual Drive USB 2.0 eSATA HDD Docking Stati
Easily connect and swap two 2.5 or 3.5in SATA hard drives through eSATA or USB
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Dual Drive USB 2.0 eSATA HDD Docking Stati Product Number SATADOCK22UE UPC 065030832335 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - USB 2.0 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) eSATA USB to SATA HDD Docking Station Product Title (Standard) eSATA USB to SATA Hard Drive Docking Station Product Title (Long) eSATA USB to SATA Hard Drive Docking Station for Dual 2.5 or 3.5in HDD Product Title (AMZ) eSATA USB to SATA Hard Drive Docking Station for Dual 2.5 or 3.5in HDD (SATADOCK22UE) Title Ingram (Part 1) eSATA USB to SATA Hard Drive Doc Title Ingram (Part 2) king Station - Dual 2.5/3.5 Website Product Headline Easily connect and swap two 2.5 or 3.5in SATA hard drives through eSATA or USB Bullet 1 Dual top slot loading design with drive doors Bullet 2 Patented drive ejection mechanism for each drive Bullet 3 Power button with integrated Power/Activity LED indicator for each drive Bullet 4 Dual SATA revision 1 compliant eSATA host interfaces, with support for transfer rates up to 1.5 Gbps for each drive Bullet 5 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480 Mbps Bullets (Consolidated) Easily connect and swap two 2.5 or 3.5in SATA hard drives through eSATA or USB - Compatible with USB and eSATA enabled computer systems such as EliteBook 8470p and 2.5in or 3.5in SATA solid-state Drives and hard drives - HDD Dock/SSD Dock/USB Hard Drive Dock/eSATA Hard Drive Dock/External Hard Drive Docking Staiton/SATA HDD and SSD Dock - Save time while backing up data to an external drive for archiving - Easily transfer data from one hard drive to another Marketing Copy Applications - Access spare or removed 2.5/3.5" drives quickly to retrieve data from
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Transfer data from one hard drive to another from the same dock
Website Search Keyword - USB to SATA External HDD Dock
- eSATA
- USB
- 2.5
- 3.5
- hard drive
Accessory Products - USB2HAB6
- USB2HAB10
- ESATA3
- ESATA6
- HDDSLEV25
- HDDSLEV35
- PEXESATA2
- ECESATA22
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - SAT2510BU2
- SAT2510U2
- SAT3510U2B
- SAT3510U2V
- SAT3520U2
- SATADOCKU2
- SATHDDDOCKU2
- SATADOCKU2E
- SAT3510BU2E

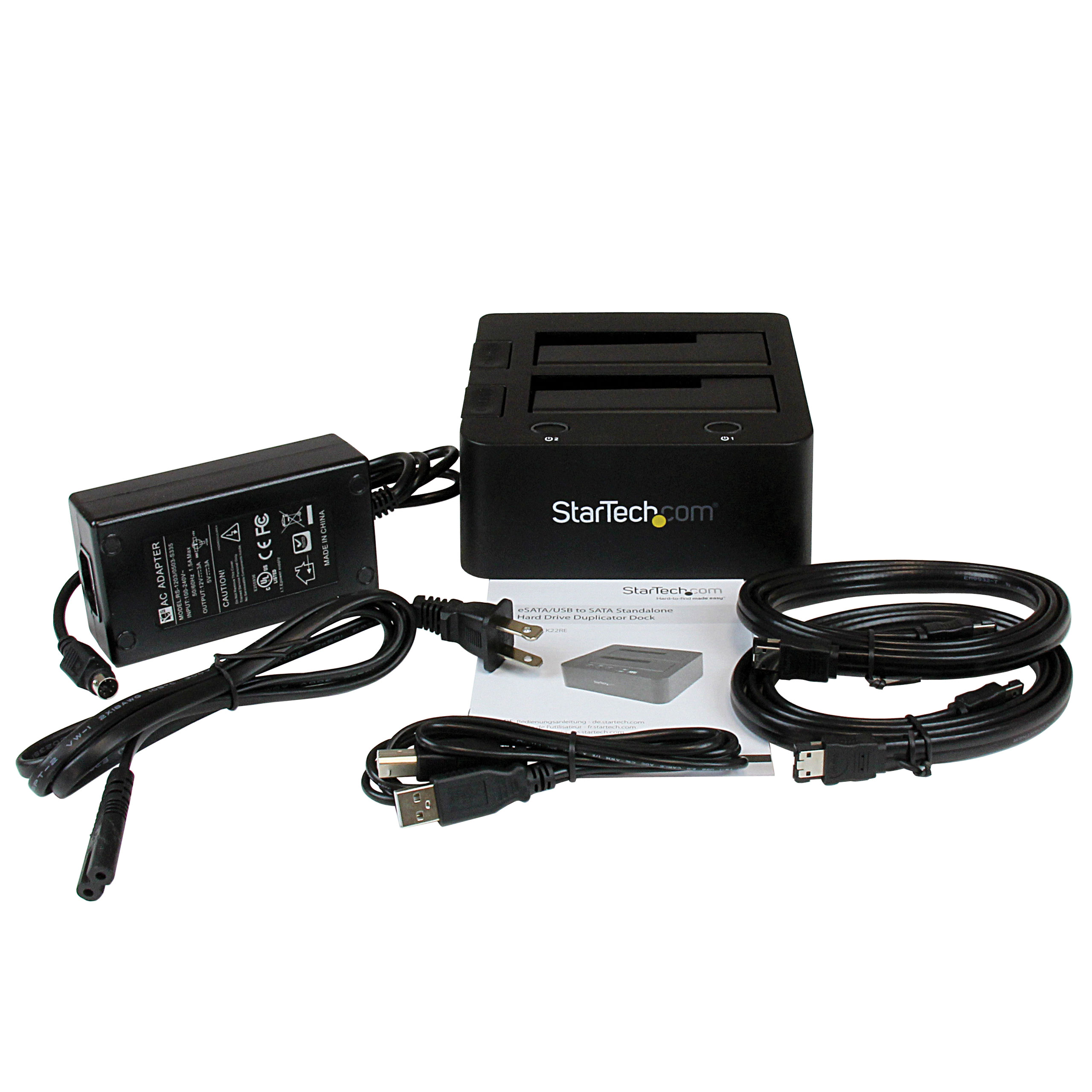

Replacement Product SDOCK2U33EB Equivalent Part Number in the EU SATDOCK2UEEU Equivalent Part Number in the UK SATDOCK2UEGB Input Voltage 115V-230V AC Output Current 3A Output Voltage (V) 12/5V DC Power Source AC Adapter Included Plug Type 6 pin mini-DIN PS/2 Female Color Black Material Plastic Product Length (mm) 147 Product Width (mm) 132 Product Height (mm) 70 Product Weight (g) 547 TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives per bay (8TB total) and 1TB 5400 RPM 2.5" hard drives (2TB total) OS Compatibility OS Independent SATA Type and Rate SATA I (1.5 Gbps) UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID Initio - INIC-1611 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 & eSATA LED Indicators 2 - Solid - Power, Blinking - Activity Number of Drives 2 Carton Depth (mm) 625 Carton Height (mm) 468 Carton Quantity 10 Carton Weight Gross (g) 9400 Included in Package - 2 - eSATA Cable
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - SATA hard drive docking station
- 1 - USB Cable
Package Depth (mm) 120 Package Height (mm) 210 Package Width (mm) 185 Package Quantity 1 Package Weight (g) 820 Packaging Description USB 2.0/eSATA to Dual SATA HDD Dock Packaging Description India USB 2.0/eSATA to Dual SATA HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
