SATADOCK525

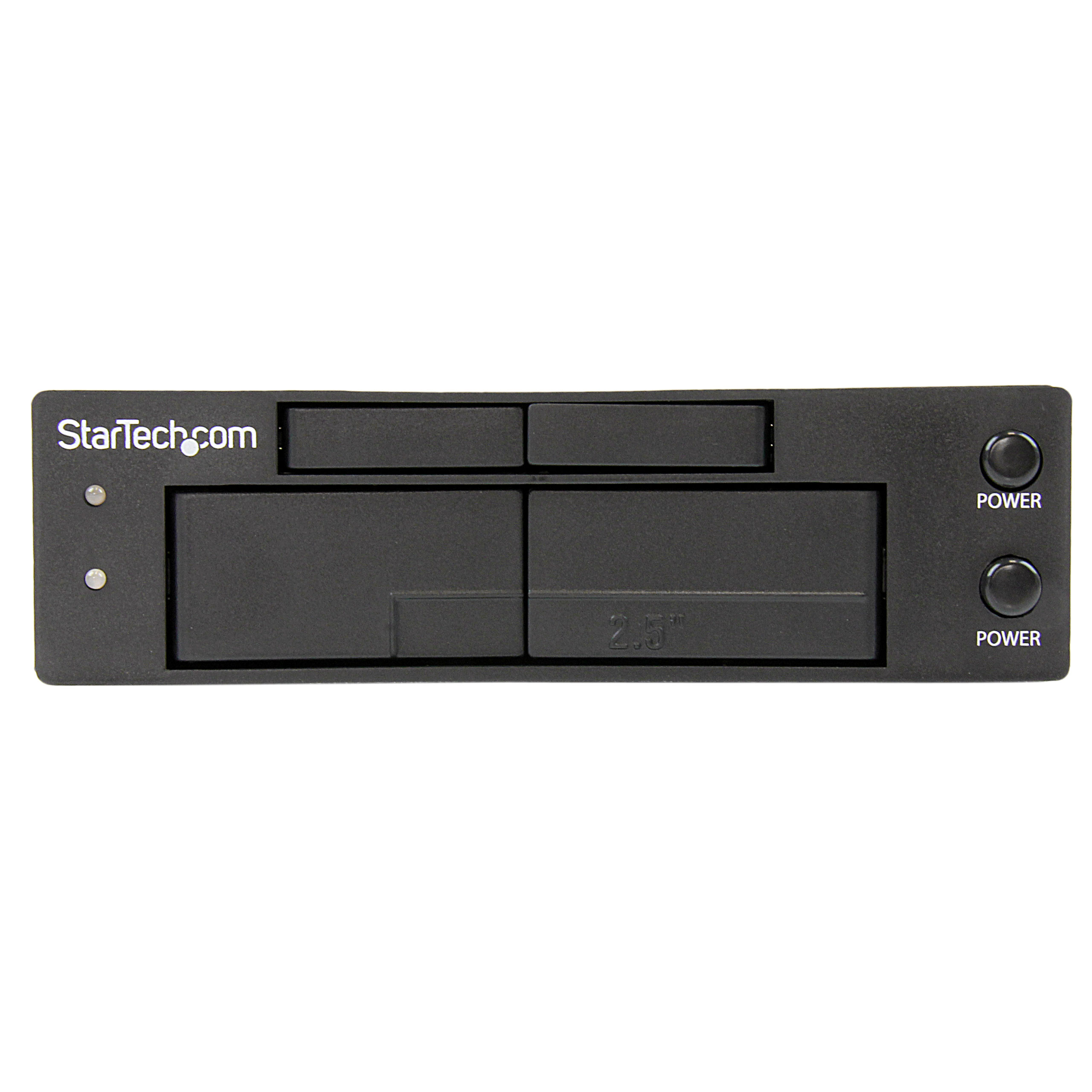

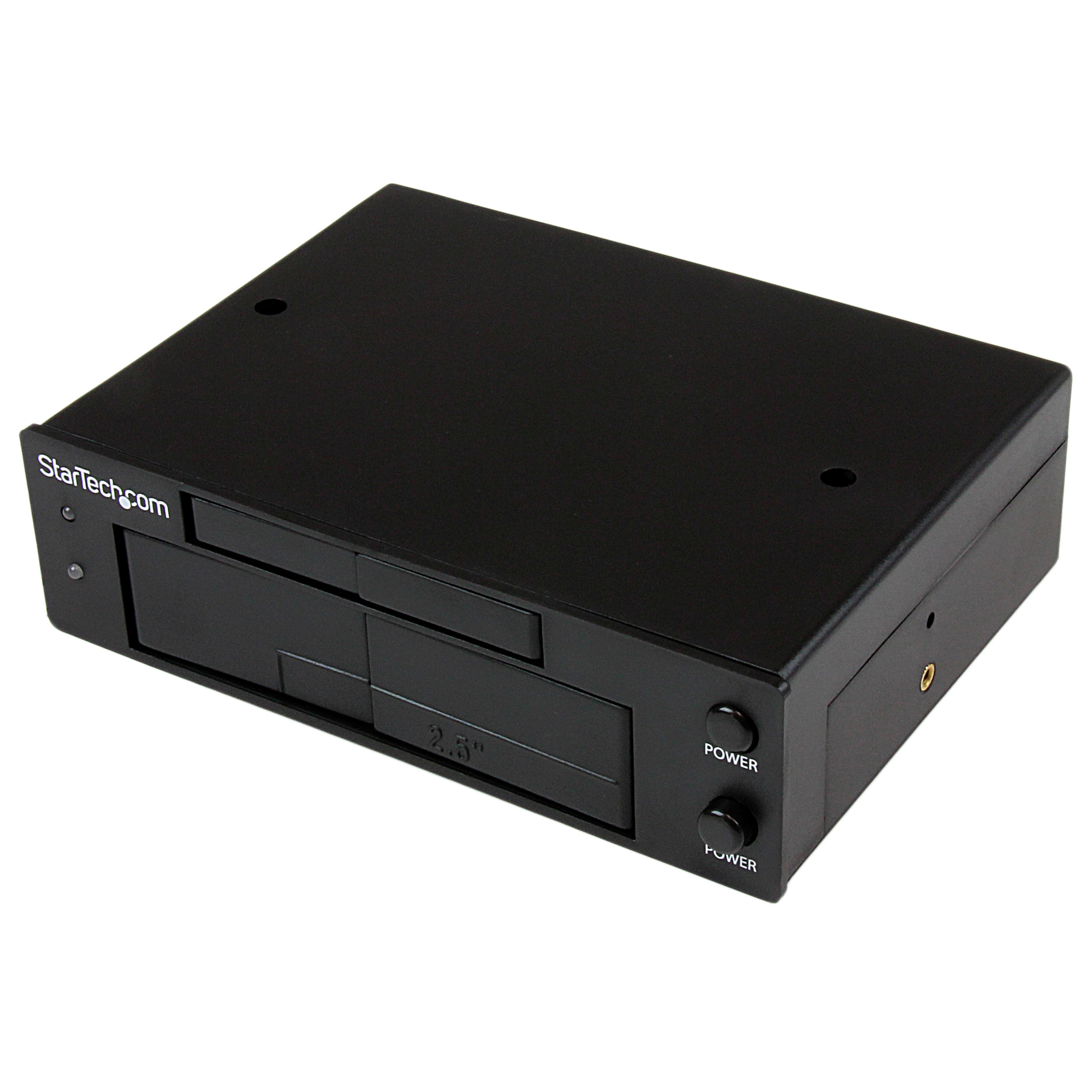

5.25 inch Bay Mounted SATA HDD Docking System
Easily connect and swap 2.5in and 3.5in SATA drives from a 5.25in front bay
Main Image
Product Images
Product Images
BOM Image
Product Name 5.25 inch Bay Mounted SATA HDD Docking System Product Number SATADOCK525 UPC 065030833677 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX020X Product Title (Short) 5.25 Bay Mounted 2.5/3.5 HDD Dock Product Title (Standard) 5.25 Bay Mounted 2.5/3.5 SATA HDD Docking Station Product Title (Long) 5.25in Bay Mounted 2.5in and 3.5in SATA Hard Drive Docking Station Product Title (AMZ) 5.25in Bay Mounted 2.5in and 3.5in SATA Hard Drive Docking station - HDD Docking station - SATA Dock (SATADOCK525) Title Ingram (Part 1) 5.25in Bay Mounted 2.5/3.5in SAT Title Ingram (Part 2) A Hard Drive Docking Station Website Product Headline Easily connect and swap 2.5in and 3.5in SATA drives from a 5.25in front bay Bullet 1 Supports one 2.5" and one 3.5" SATA form factor hard drive (HDD) or solid state drive (SSD) simultaneously Bullet 2 Fits into a single 5.25" drive bay Bullet 3 Dust resistant drive door design Bullet 4 Front accessible power button Bullet 5 Power/Activity LED indicators for each drive Marketing Copy Applications - Easily add two SATA hard drives to a system with an available external 5.25" bay
- System builders who need to image drives quickly and efficiently
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Website Search Keyword - internal hard drive docking bay
- SATA serial ATA HDD docking station
- trayless SATA hard drive dock
- trayless hard drive HDD drive drawer
- hard drive HDD mobile rack
- 2.5in 3.5in
Special Notes Hot-swap capabilities are a function of the SATA controller that the dock is connected to. If hot-swappable, then the hard drive can be removed and replaced without the need to restart the operating system. Accessory Products - SATA18POW
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - HSB100SATBK
- HSB220SAT25B
- SATABAY425BK
- DRW110SATBK
- HSB320SATBK
- HSB430SATBK

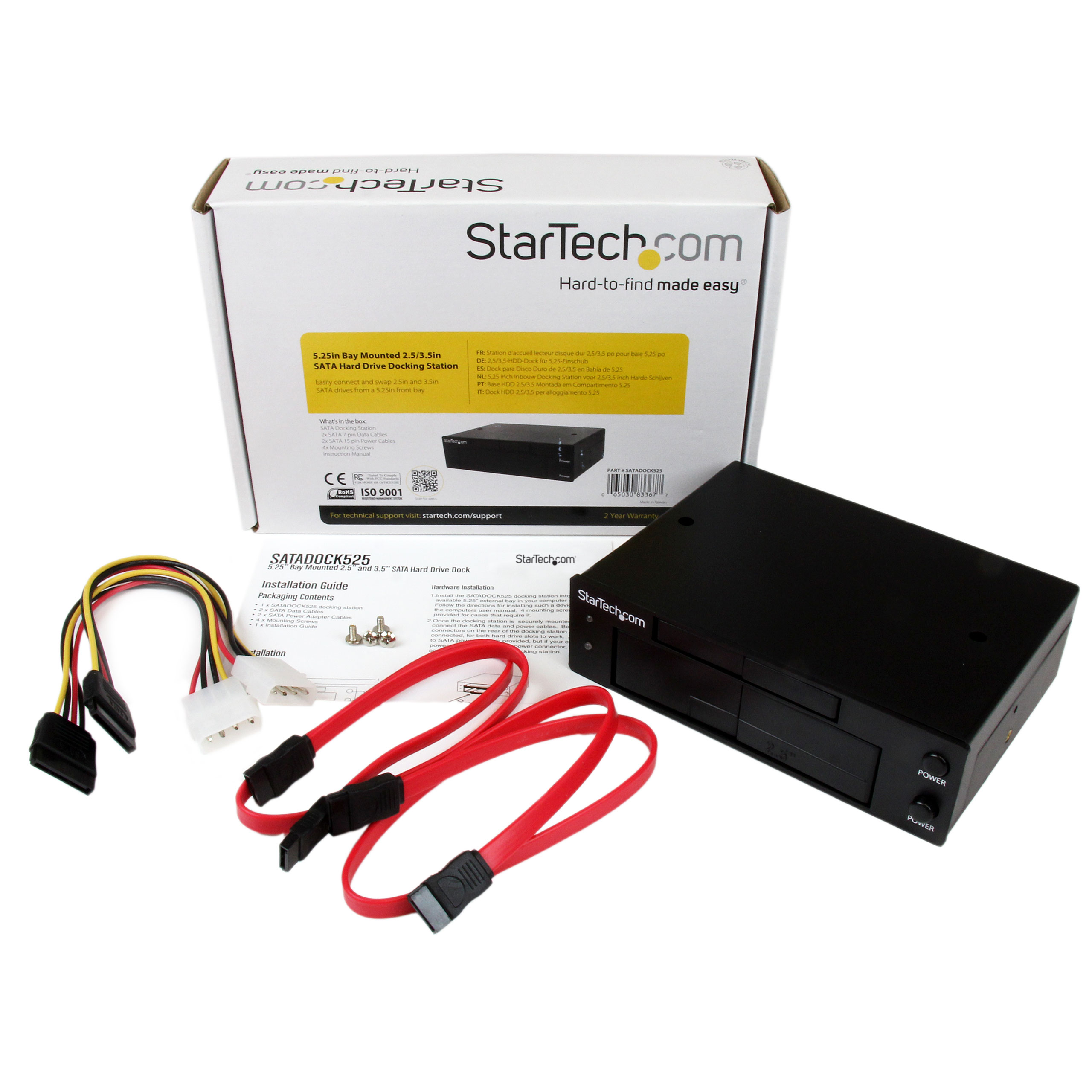

Color Black Material Plastic Product Length (mm) 145 Product Width (mm) 108 Product Height (mm) 42 Product Weight (g) 240 TAA Compliant No Hot Swap Capability Yes Max Drive Capacity Tested up to 2.0 TB RAID No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge SATA LED Indicators 2 - Power/Activity Number of Drives 2 Carton Depth (mm) 330 Carton Height (mm) 600 Carton Quantity 36 Carton Weight Gross (g) 17400 Included in Package - 1 - SATA Docking Station
- 1 - Instruction Manual
- 2 - SATA 7 pin Data Cables
- 2 - SATA 15 pin Power Cables
- 4 - Mounting Screws
Package Depth (mm) 54 Package Height (mm) 236 Package Width (mm) 132 Package Weight (g) 450 Packaging Description 5.25 Bay Mounted 2.5/3.5 HDD Dock Packaging Description India 5.25 Bay Mounted 2.5/3.5 HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 2 en-US Content Approved Yes Product Manager David Muzinic
