SATADOCKU2
2.5in/3.5in USB 2.0 SATA HDD Dock
Easily connect and swap a 2.5in or 3.5in SATA hard drive through USB
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2.5in/3.5in USB 2.0 SATA HDD Dock Product Number SATADOCKU2 UPC 065030832359 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - USB 2.0 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) USB to SATA Hard Drive Docking Station Product Title (Standard) USB to SATA Hard Drive Docking Station for 2.5/3.5in Product Title (Long) USB to SATA External Hard Drive Docking Station for 2.5 or 3.5in HDD Title Ingram (Part 1) USB to SATA Hard Drive Docking S Title Ingram (Part 2) tation for 2.5 or 3.5in HDD Website Product Headline Easily connect and swap a 2.5in or 3.5in SATA hard drive through USB Bullet 1 Top slot loading design with drive door Bullet 2 Power/Activity LED indicator Bullet 3 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480 Mbps Bullet 4 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 5 Supports 2.5" or 3.5" form factor hard drives (HDD) and solid state drives (SSD) Marketing Copy Applications - Access spare or removed 2.5/3.5" drives quickly to retrieve data from
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who regularly test or benchmark different hard drives
Website Search Keyword - USB to SATA External HDD Dock
- 2.5/"3.5"
- Hard Drive
- Adapter
- SATHDDDOCKU2
Special Notes Advance Format drives are not fully supported Accessory Products - USB2HAB6
- USB2HAB10
- PCI220USB
- PEX400USB2
- HDDSLEV35
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - SATHDDDOCKU2
- SAT2510U2
- SAT2510BU2
- SAT3510U2V
- SAT3510U2B
- SAT3520U2
- SATADOCKU2E
- SATADOCK22UE
- SAT3510BU2E
Replacement Product SDOCKU33BV Equivalent Part Number in the EU SATDOCKU2EU Equivalent Part Number in the UK SATDOCKU2GB Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Plastic Product Length (mm) 140 Product Width (mm) 91 Product Height (mm) 55 Product Weight (g) 220 TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drive OS Compatibility OS Independent UASP Support No USB Type and Rate USB 2.0 (480Mbps) Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 LED Indicators 1 - Solid - Power, Blinking - Activity Number of Drives 1 Carton Depth (mm) 190 Carton Height (mm) 380 Carton Quantity 10 Carton Weight Gross (g) 6400 Included in Package - 1 - SATA hard drive docking station
- 1 - Instruction Manual
- 1 - USB Cable

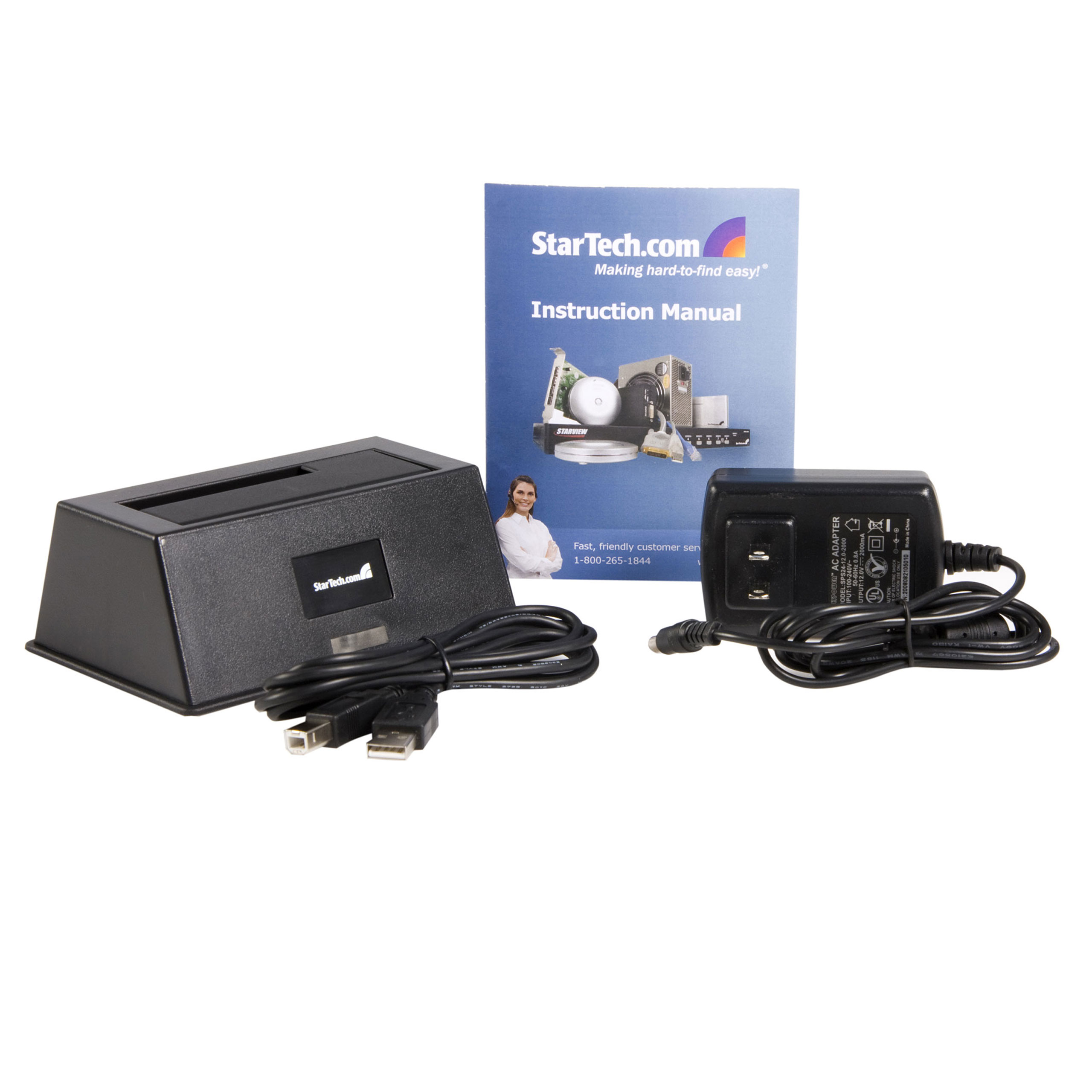

- 1 - Power Adapter
Package Depth (mm) 90 Package Height (mm) 170 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 520 Packaging Description USB to SATA Hard Drive Docking Station Packaging Description India USB to SATA Hard Drive Docking Station Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
