SATADOCKU2E
2.5in/3.5in eSATA/USB 2.0 SATA HDD Dock
Easily connect and swap a 2.5in or 3.5in SATA hard drive through USB or eSATA
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2.5in/3.5in eSATA/USB 2.0 SATA HDD Dock Product Number SATADOCKU2E UPC 065030832342 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) eSATA USB to SATA HDD Docking Station Product Title (Standard) eSATA USB to SATA Hard Drive Docking Station Product Title (Long) eSATA USB to SATA External Hard Drive Docking Station for 2.5 or 3.5in Title Ingram (Part 1) eSATA USB to SATA External Hard Title Ingram (Part 2) Drive Docking Station Website Product Headline Easily connect and swap a 2.5in or 3.5in SATA hard drive through USB or eSATA Bullet 1 Top slot loading design with drive doors Bullet 2 Power/Activity LED indicator Bullet 3 SATA revision 1 compliant eSATA host interfaces, with support for transfer rates up to 1.5 Gbps Bullet 4 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480 Mbps Bullet 5 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullets (Consolidated) Easily connect and swap a 2.5in or 3.5in SATA hard drive through USB or eSATA - Compatible with USB or eSATA enabled computer systems and 2.5in/3.5in SATA Hard Drives or Solid-state Drives - Hard Drive Dock/Hard Drive Docking Station/HDD Docking Station/HDD Dock/SATA Dock/SSD Dock/SSD Docking Station - Dock and Swap any SATA HDD/SSD Marketing Copy Applications - Access spare or removed 2.5/3.5" drives quickly to retrieve data from
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who regularly test or benchmark different hard drives
Website Search Keyword - USB to SATA External HDD Dock
- 2.5/3.5
- eSATA/USB
- Dual
- Convienant
- removable
Special Notes Maximum supported drive size in Mac OSX® is 2TB Accessory Products - USB2HAB6
- USB2HAB10
- ESATA3
- ESATA6
- HDDSLEV25
- HDDSLEV35
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - SAT2510BU2
- SAT2510U2
- SAT3510U2B
- SAT3510U2V
- SAT3520U2
- SATHDDDOCKU2
- SATADOCKU2
- SATADOCK22UE
- SAT3510BU2E

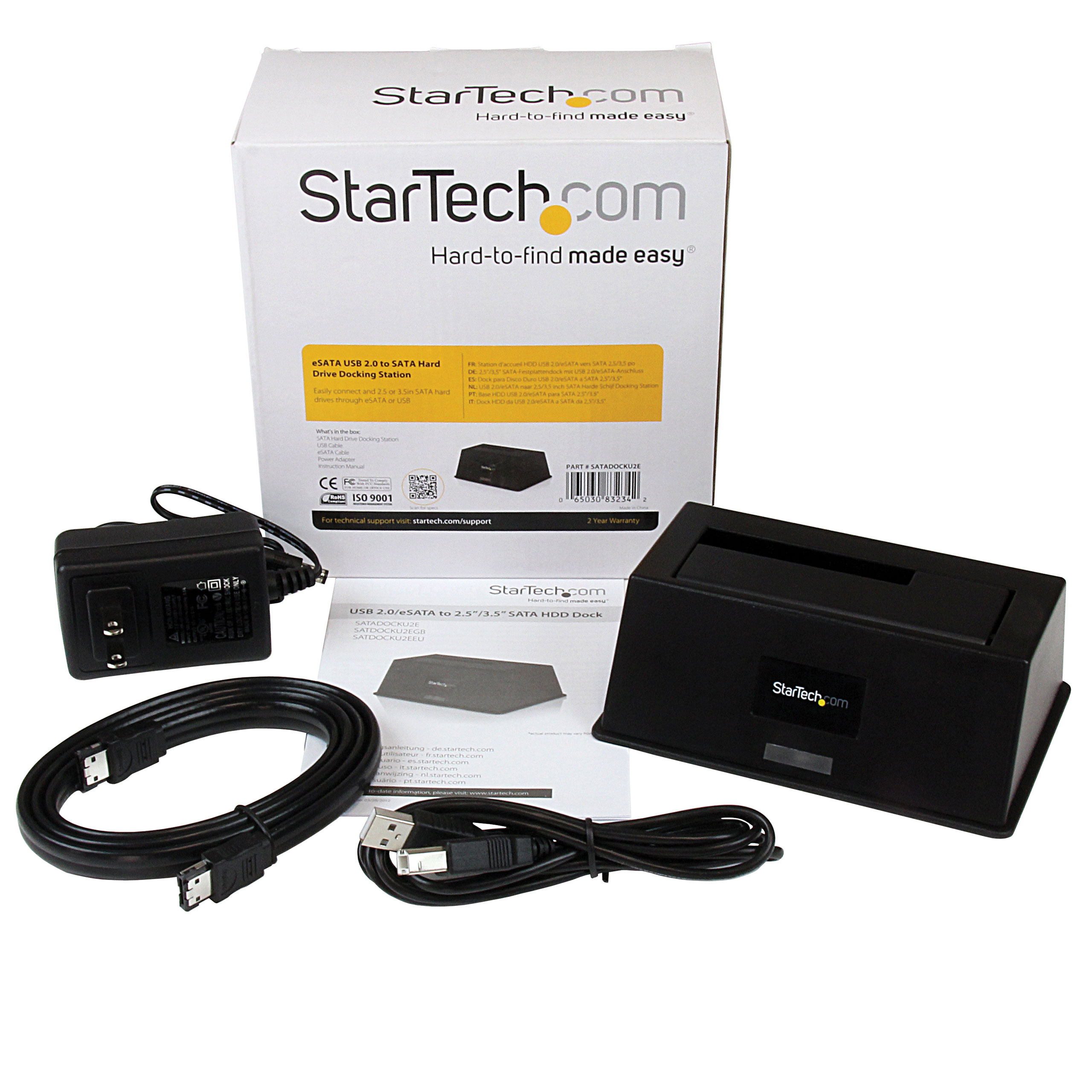

Replacement Product SDOCKU33EBV Equivalent Part Number in the EU SATDOCKU2EEU Equivalent Part Number in the UK SATDOCKU2EGB Input Current 0.8A Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 12 AC Power Source AC Adapter Included Plug Type M Color Black Material Plastic Product Length (mm) 140 Product Width (mm) 91 Product Height (mm) 55 Product Weight (g) 221 TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drive OS Compatibility OS Independent SATA Type and Rate SATA I (1.5 Gbps) UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JMB351 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 & eSATA LED Indicators 1 - Solid - Power, Blinking - Activity Number of Drives 1 Carton Depth (mm) 470 Carton Height (mm) 190 Carton Quantity 10 Carton Weight Gross (g) 9600 Included in Package - 1 - Instruction Manual
- 1 - Power Adapter
- 1 - USB Cable
- 1 - SATA hard drive docking station
- 1 - eSATA Cable
Package Depth (mm) 92 Package Height (mm) 172 Package Width (mm) 164 Package Weight (g) 840 Packaging Description USB 2.0/eSATA to 2.5"/3.5" SATA HDD Dock Packaging Description India USB 2.0/eSATA to 2.5"/3.5" SATA HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
