SATDOCK22R
HDD Duplicator Stand Alone - USB to SATA
Clone your SATA hard drives quickly and easily, making exact 1 to 1 copies of drive contents; offers standalone operation
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name HDD Duplicator Stand Alone - USB to SATA Product Number SATDOCK22R UPC 065030835909 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) USB to SATA Hard Drive Duplicator Dock Product Title (Standard) USB to SATA Standalone Hard Drive Duplicator Dock Product Title (Long) USB to SATA Standalone Hard Drive Duplicator Dock Title Ingram (Part 1) USB to SATA Standalone Hard Driv Title Ingram (Part 2) e Duplicator Dock Website Product Headline Clone your SATA hard drives quickly and easily, making exact 1 to 1 copies of drive contents; offers standalone operation Bullet 1 Sector-by-Sector drive duplication including the HPA Bullet 2 LED progress indicator for cloning status Bullet 3 Patented drive ejection mechanism Bullet 4 Push button switching between Duplication and Docking Station Modes Bullet 5 Audible warnings on errors Marketing Copy Applications - Disk imaging/hard drive cloning - create exact replicas of a source drive onto a new drive - perfect for scenarios/environments where consistency and integrity is crucial (law enforcement and forensics applications)
- Quick, hassle-free hard drive backups, data recovery
- SMB, OEM, System Integrators, IT and service technicians requiring quick access to bare external hard drive contents, or the ability to clone data for data / disk recovery.
- Law Enforcement and Forensics
Website Search Keyword - Hard Drive Duplicator
- SATA HDD Duplicator
- USB to SATA External HDD Dock
- Hard Drive Cloning
- Hard Drive Mirroring
- Duplicator
- SATA Docking Station
- standalone hd duplicator
- duplicator dock
- HD duplicator
Special Notes If the source disk contains an EISA (Extended Industry Standard Architecture) partition, the EISA partition needs to be removed prior to the duplicating operation. Accessory Products - USB2HAB10
- USB2HAB6
- HDDSLEV25
- HDDSLEV35
- USB2HAB1
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- USB2HAB3
- USB2HAB6T
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25YW
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25WH
- HDDCASE25OR
Related Products - SAT2510BU2
- SAT2510U2
- SAT3510U2B
- SAT3510U2V
- SAT3520U2
- SATADOCK22UE
- SATADOCKU2
- SATHDDDOCKU2
- UNIDUPDOCK
- SATDOCK22RE
Input Voltage 115V-230V AC Output Current 2A Output Voltage (V) 12/5V DC Power Source AC Adapter Included Color Black Humidity 90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 144.8 Product Width (mm) 133.6 Product Height (mm) 75.3 Product Weight (g) 550 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Tested up to 2.0 TB OS Compatibility - Windows 98SE
- Windows XP
- Windows 2000
- Windows Vista
- Mac OS X
- Linux
- Windows 8

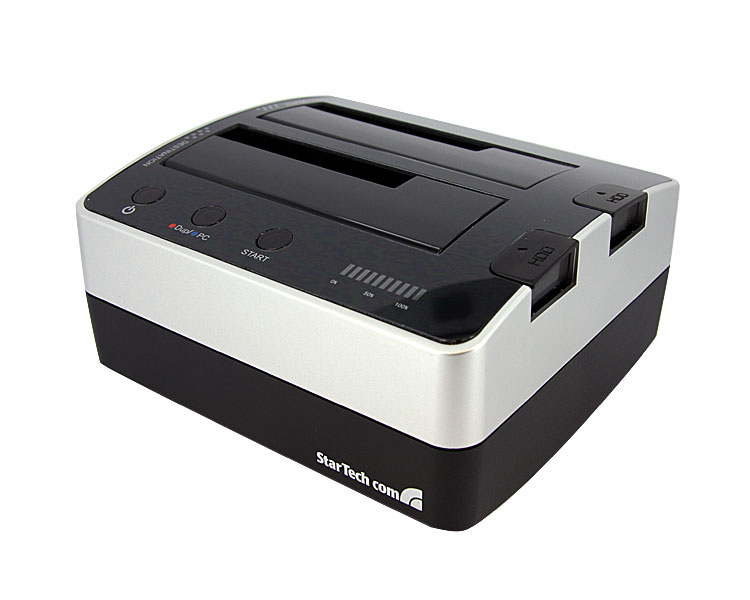

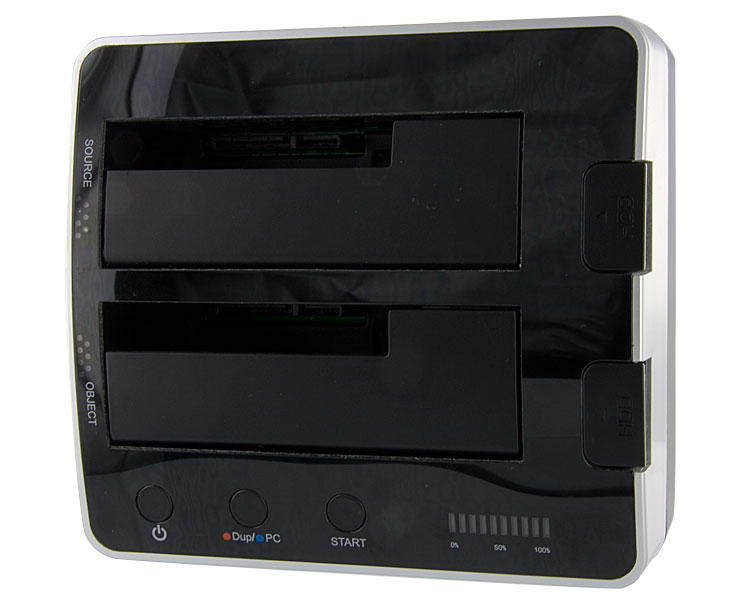

USB Type and Rate USB 2.0 (480Mbps) Chipset ID ACARD - ARC286 Compatible Drive Types SATA Interface/Bridge USB 2.0 LED Indicators - 2 - Drive Status (Blue - HDD present, Flashing Red - Activity, Solid Red - Drive not present)
- 1 - Power (Blue)
- 1 - Mode Indicator (Blue - JBOD, Red - Duplication)
- 1 - Progress Bar (Blue)

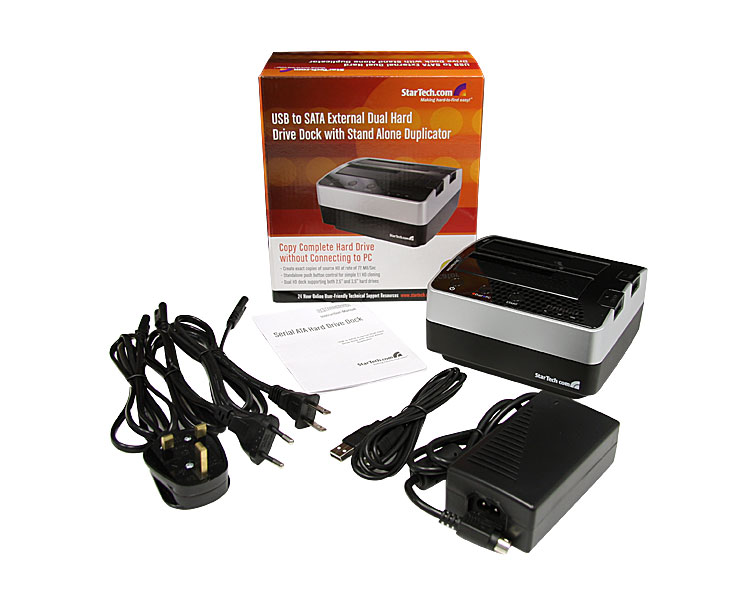

Number of Drives 2 Carton Depth (mm) 612 Carton Height (mm) 420 Carton Quantity 10 Carton Weight Gross (g) 7600 Included in Package - 1 - Instruction Manual
- 1 - Universal Power Adapter
- 1 - SATA hard drive docking station
- 1 - USB Cable
- 3 - Power Cord

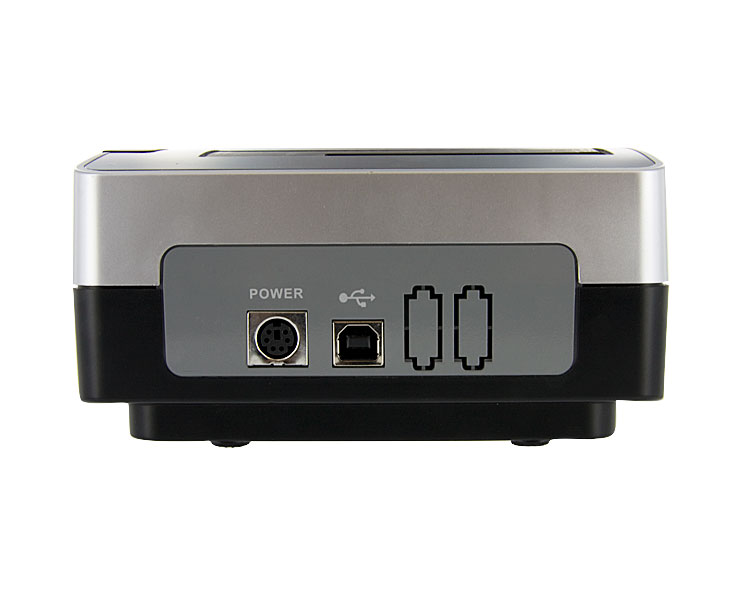

Package Depth (mm) 120 Package Height (mm) 210 Package Width (mm) 185 Package Weight (g) 640.0155 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
