Main Image
SATDOCK22RE

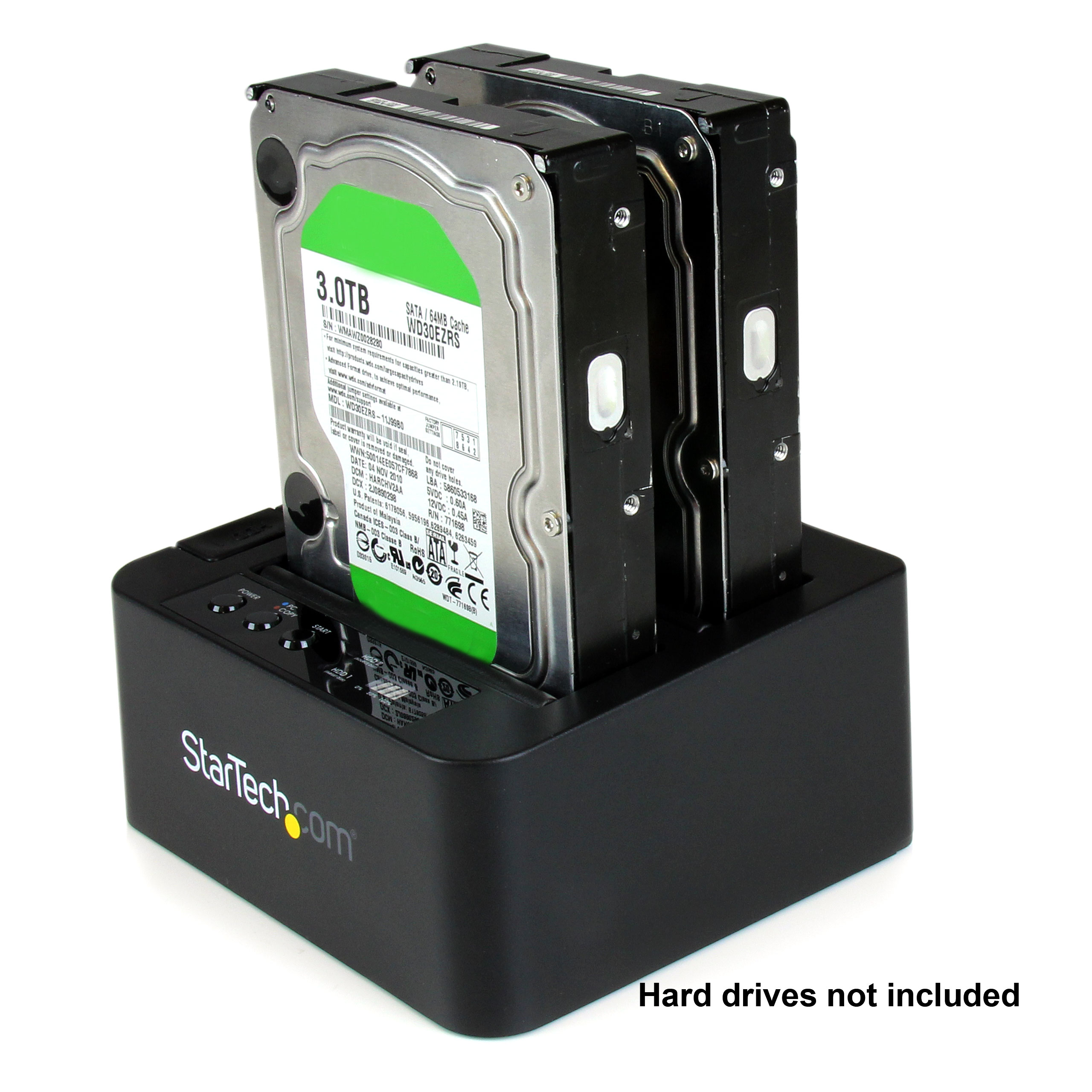

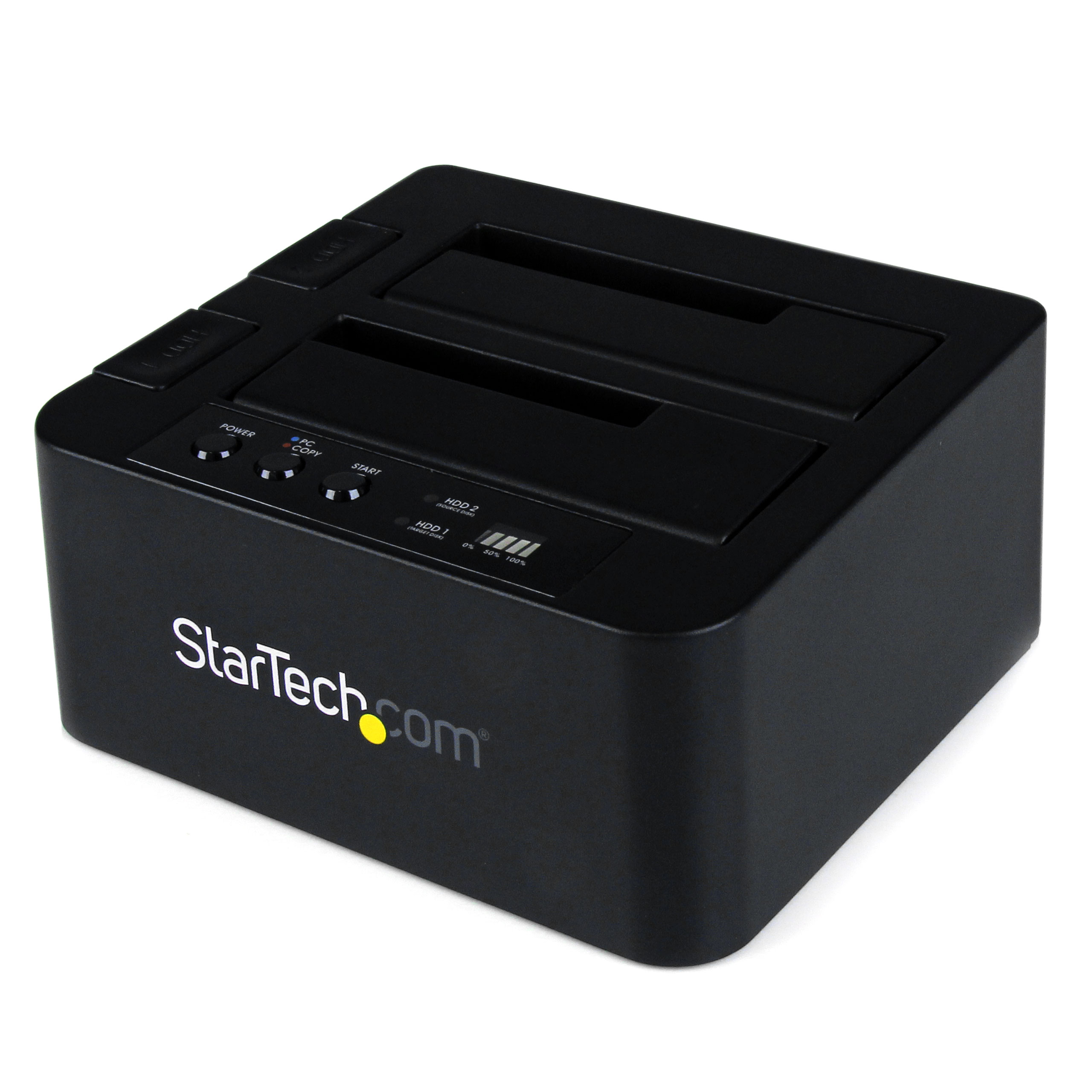

SATA Hard Drive Duplicator Docking Station
Exactly duplicate one 2.5in or 3.5in SATA hard drive to another, effortlessly and without a computer
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name SATA Hard Drive Duplicator Docking Station Product Number SATDOCK22RE UPC 065030840729 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Duplicators and Erasers Category Level 3 Drive Duplicators and Erasers - SATA Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) SATA HDD Duplicator Dock - eSATA USB Product Title (Standard) SATA Hard Drive HDD Duplicator Dock - eSATA USB Product Title (Long) SATA Hard Drive HDD Duplicator Dock - eSATA USB Product Title (AMZ) SATA Hard Drive HDD Duplicator Dock - eSATA USB Hard Disk Drive Duplicator - 2.5in / 3.5in Hard Drive Cloner (SATDOCK22RE) Title Ingram (Part 1) eSATA USB to SATA Standalone Har Title Ingram (Part 2) d Drive Duplicator Dock Website Product Headline Exactly duplicate one 2.5in or 3.5in SATA hard drive to another, effortlessly and without a computer Bullet 1 Standalone Sector by Sector copying including the HPA Bullet 2 Supports 2.5in or 3.5in form factor hard drives (HDD) or solid state drives (SSD) Bullet 3 Supports SATA revision 1.0/2.0 (SATA 150/300) drives up to 2.0TB in capacity Bullet 4 LED progress bar for duplication status Bullet 5 High speed USB 2.0 host interface, with transfer rates up to 480Mbps Bullets (Consolidated) Exactly duplicate one 2.5in or 3.5in SATA hard drive to another - effortlessly and without a computer - SATA Hard Drive HDD Duplicator Dock - eSATA USB Hard Disk Drive Duplicator - 2.5in/3.5in Hard Drive Cloner Marketing Copy Applications - Disk sector imaging/cloning to create an exact replica of a source drive onto a different drive.
- Technicians who require access to bare hard drives for backup/recovery purposes or needs to swap between drives regularly.
- Quickly access data from a drive, without having to install it internally or into an enclosure.
- Create identical backups for when data integrity is crucial, such as data recovery and forensic applications.
Website Search Keyword - hard drive duplicator
- hard drive replicator
- hard drive dock
- hard drive mirroring
- hard drive cloning
- duplicator dock
- sata duplicator
- docking station
- usb dock
- esata dock
- standalone external duplicator
- hdd dock
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes Accessory Products - USB2HAB10
- USB2HAB6
- HDDSLEV25
- HDDSLEV35
- USB2HAB1
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- USB2HAB3
- USB2HAB6T
- ESATA3
- ESATA6
- ESATAPLATE1
- ESATAPLT1LP
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - SATDOCK22R
- SATADOCK22UE
- SATADOCKU2
- SATHDDDOCKU2
- SAT2510BU2
- SAT3510U2B
- SAT3520U2
- SAT2510U2
- UNIDUPDOCK

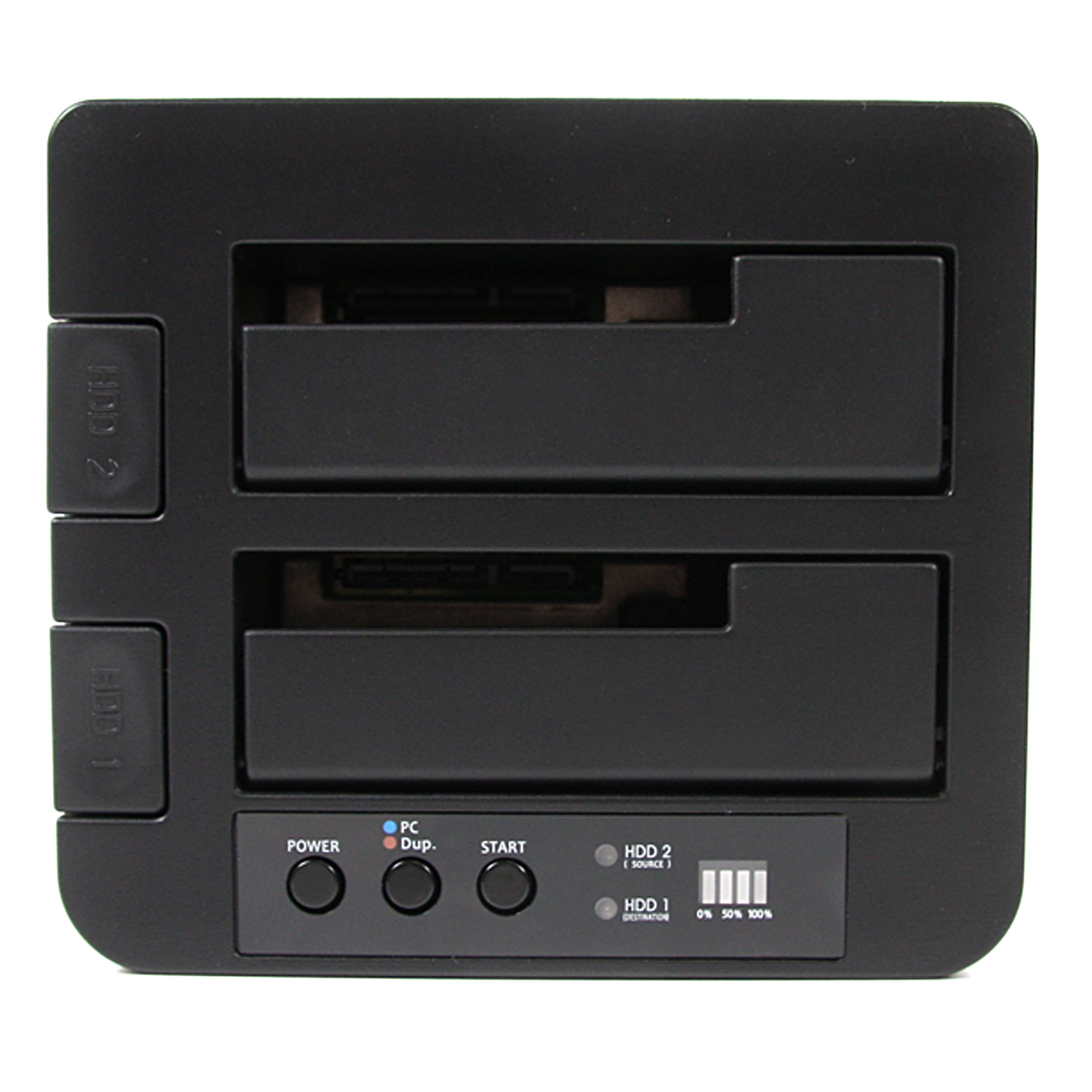

Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 12/5V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Color Black Humidity 8~90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 147 Product Width (mm) 132 Product Height (mm) 70 Product Weight (g) 547 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives per bay (8TB total) and 1TB 5400 RPM 2.5" hard drives (2TB total) OS Compatibility OS Independent SATA Type and Rate SATA II (3 Gbps) USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JMB352U Compatible Drive Types SATA Interface/Bridge USB 2.0 & eSATA LED Indicators - 2 - Drive Status (Blue - drive detected, Red - drive not detected, Flashing Red - Activity)
- 1 - Power Indicator (Blue)
- 1 - Mode Indicator (Blue - JBOD, Red - Duplication)
- 1 - Progress Bar (Blue)

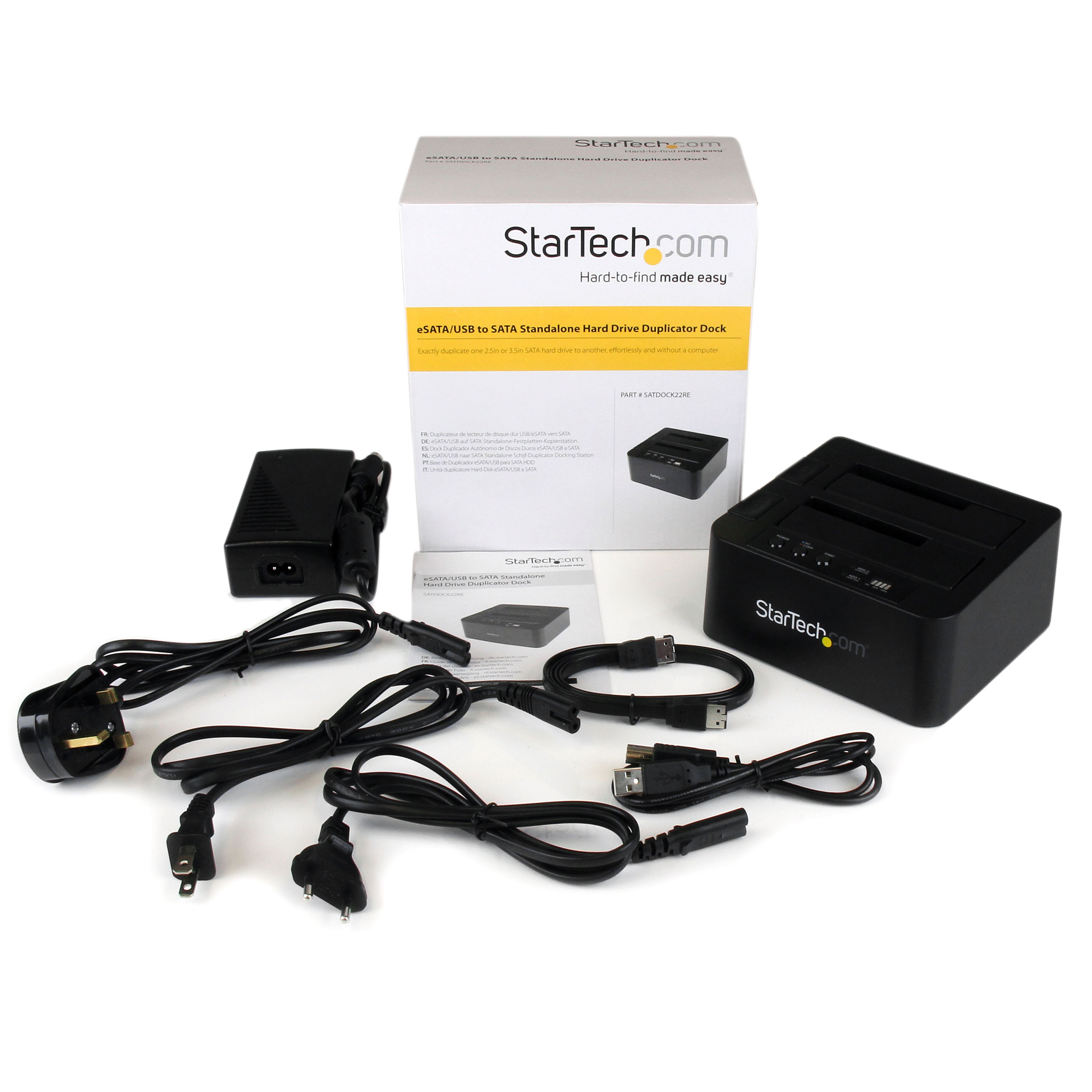

Number of Drives 2 Carton Depth (mm) 200 Carton Height (mm) 460 Carton Quantity 10 Carton Weight Gross (g) 9400 Included in Package - 1 - SATA HDD Duplicator Dock
- 1 - Universal Power Adapter
- 3 - Power Cord (NA/GB/EU)
- 1 - USB 2.0 Cable
- 1 - eSATA Cable
- 1 - Instruction Manual
Package Depth (mm) 120 Package Height (mm) 210 Package Width (mm) 185 Package Quantity 1 Package Weight (g) 820 Packaging Description eSATA/USB to SATA HDD Duplicator Dock Packaging Description India eSATA/USB to SATA HDD Duplicator Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
