SATDOCK22RU3
USB 3.0 -- SATA Hard Drive Duplica--r and Docking
Clone a SATA hard drive, sector-by-sector, to another SATA hard drive
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3.0 -- SATA Hard Drive Duplica--r and Docking Product Number SATDOCK22RU3 UPC 065030846332 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX080X Product Title (Short) Hard Drive Duplicator Dock USB 3.0 SATA Product Title (Standard) Hard Disk Drive Duplicator Dock – USB 3.0 to SATA HDD Duplicator Product Title (Long) Hard Disk Drive Duplicator Dock – USB 3.0 to SATA HDD Duplicator Title Ingram (Part 1) Hard Disk Drive Duplicator Dock Title Ingram (Part 2) USB 3 to SATA HDD Duplicator Website Product Headline Clone a SATA hard drive, sector-by-sector, to another SATA hard drive Bullet 1 Standalone Sector by Sector copying including the HPA Bullet 2 SuperSpeed USB 3.0 host interface, with support for data transfer rates up to 5 Gbps Bullet 3 Compact, desktop-style form factor Bullet 4 Supports 2.5in or 3.5in form factor hard drives (HDD) or solid state drives (SSD) Bullet 5 LED progress bar for duplication status Marketing Copy Applications - Disk sector imaging/cloning to create an exact replica of a source drive onto another hard drive
- Create identical backups for when data integrity is crucial, such as in data recovery and forensic applications
- Technicians who require access to bare hard drives for backup/recovery purposes or needs to swap between drives regularly
- Quickly access data from a drive, without having to install it internally or into an enclosure
Website Search Keyword - sector copy
- sata clone
- hard drive copy
- hdd duplicator
- hdd cloning
- hard drive replicator
- hdd dock
- usb dock
- superspeed USB 3.0
- Hard Disk Drive Duplicator Dock – SuperSpeed USB 3.0 to SATA HDD Duplicator
Special Notes Accessory Products - SAT2IDEADP
- USB3SAB10
- USB3SAB3
- HDDSLEV35
- USB3SAB6
- USB3SAB1
- HDDSLEV25
Related Products - SATDOCK22RE
- SATDUPUE
- SATDOCK22U3S
- SATDOCK22R
- SATDOCK4U3RE
- UNIDUPDOCK
Replacement Product SATDOCK2REU3 Equivalent Part Number in the EU SATDOC2RU3EU Equivalent Part Number in the UK SATDOC2RU3GB Input Current 1.2A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 5% ~ 90% RH Material Plastic Operating Temperature 0°C to 85°C (32°F to 185°F) Product Length (mm) 128.000 Product Width (mm) 103.000 Product Height (mm) 62.000 Product Weight (g) 562.000 Storage Temperature -10°C to 95°C (14°F to 203°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives per bay (8TB total) and 1TB 5400 RPM 2.5" hard drives (2TB total) OS Compatibility - Windows 7
- Windows Server 2008 R2
- Linux
- Windows XP
- Windows Vista
- Windows Server 2003
- Windows 8
SATA Type and Rate SATA II (3 Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID JMicron - JMS551 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators - 1 - Power (Green)
- 1 - Duplication Progress (Blue)
- 2 - Drive Power/Activity (Blue)

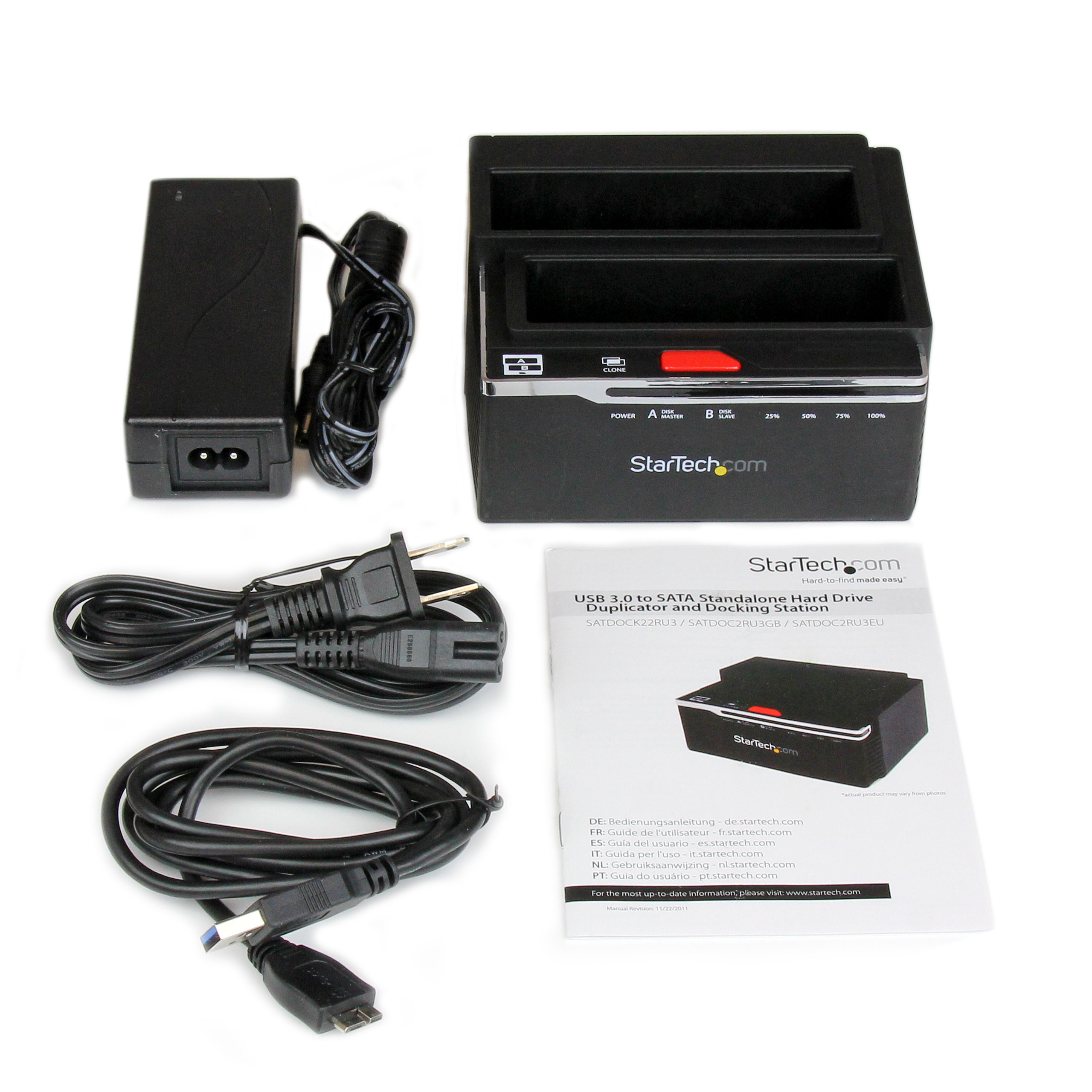

Number of Drives 2 Carton Depth (mm) 350 Carton Height (mm) 300 Carton Quantity 20 Carton Weight Gross (g) 15000 Included in Package - 1 - Power Adapter
- 1 - Instruction Manual
- 1 - Hard Drive Duplicator
- 1 - USB 3.0 Cable
Package Depth (mm) 120 Package Height (mm) 120 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 700 Packaging Description USB 3.0 to SATA Hard Drive Duplicator Packaging Description India USB 3.0 to SATA Hard Drive Duplicator Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
