SATDOCK22U3S

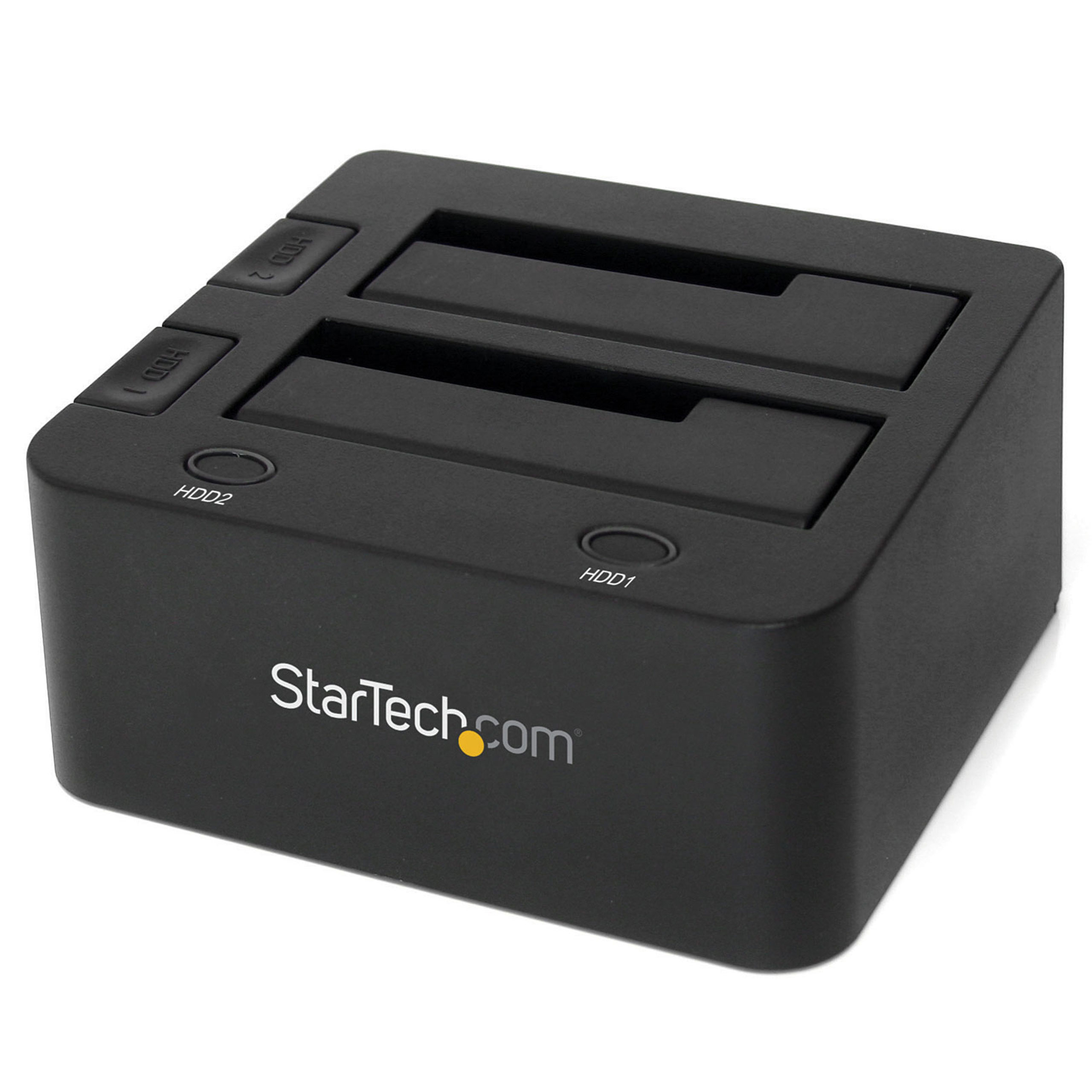

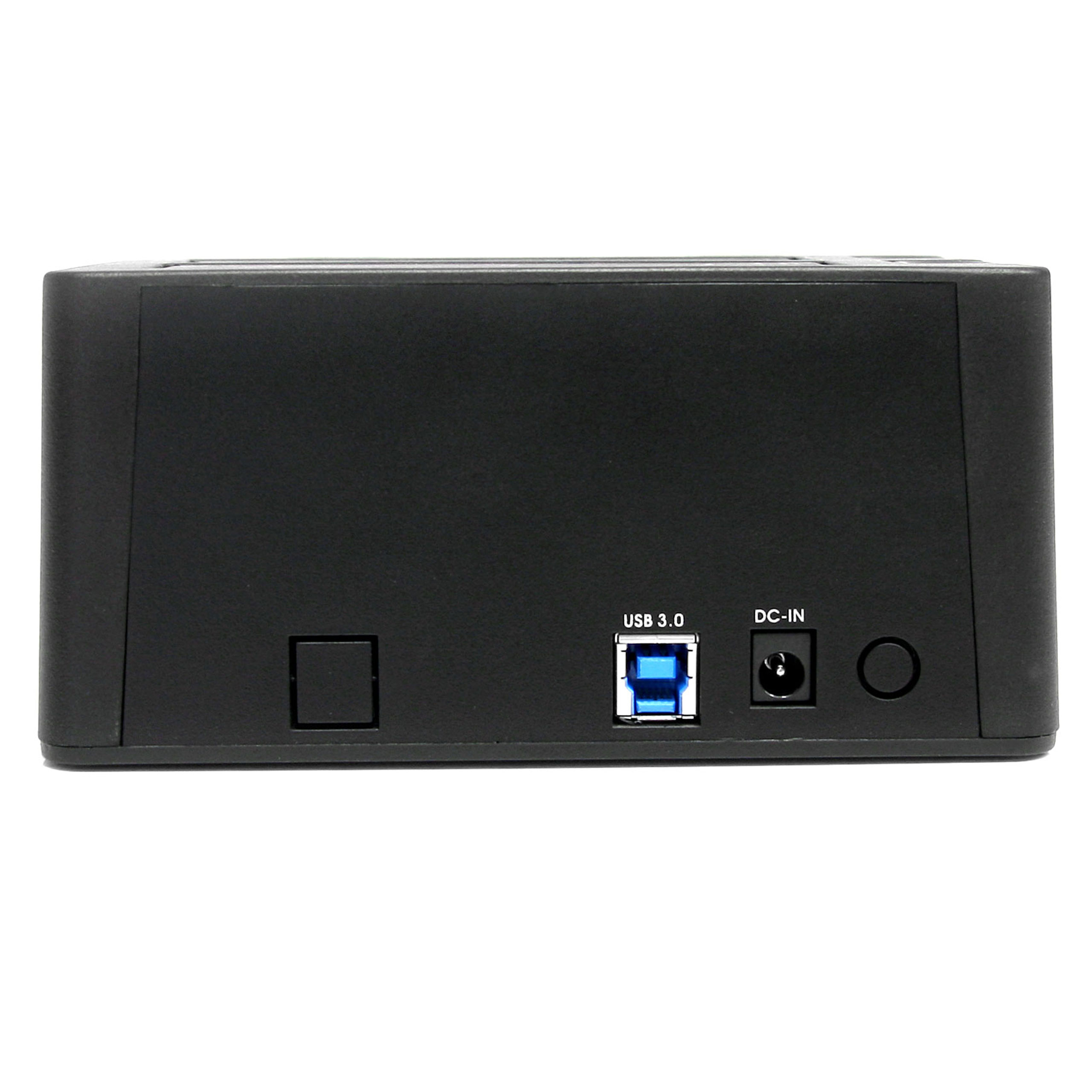

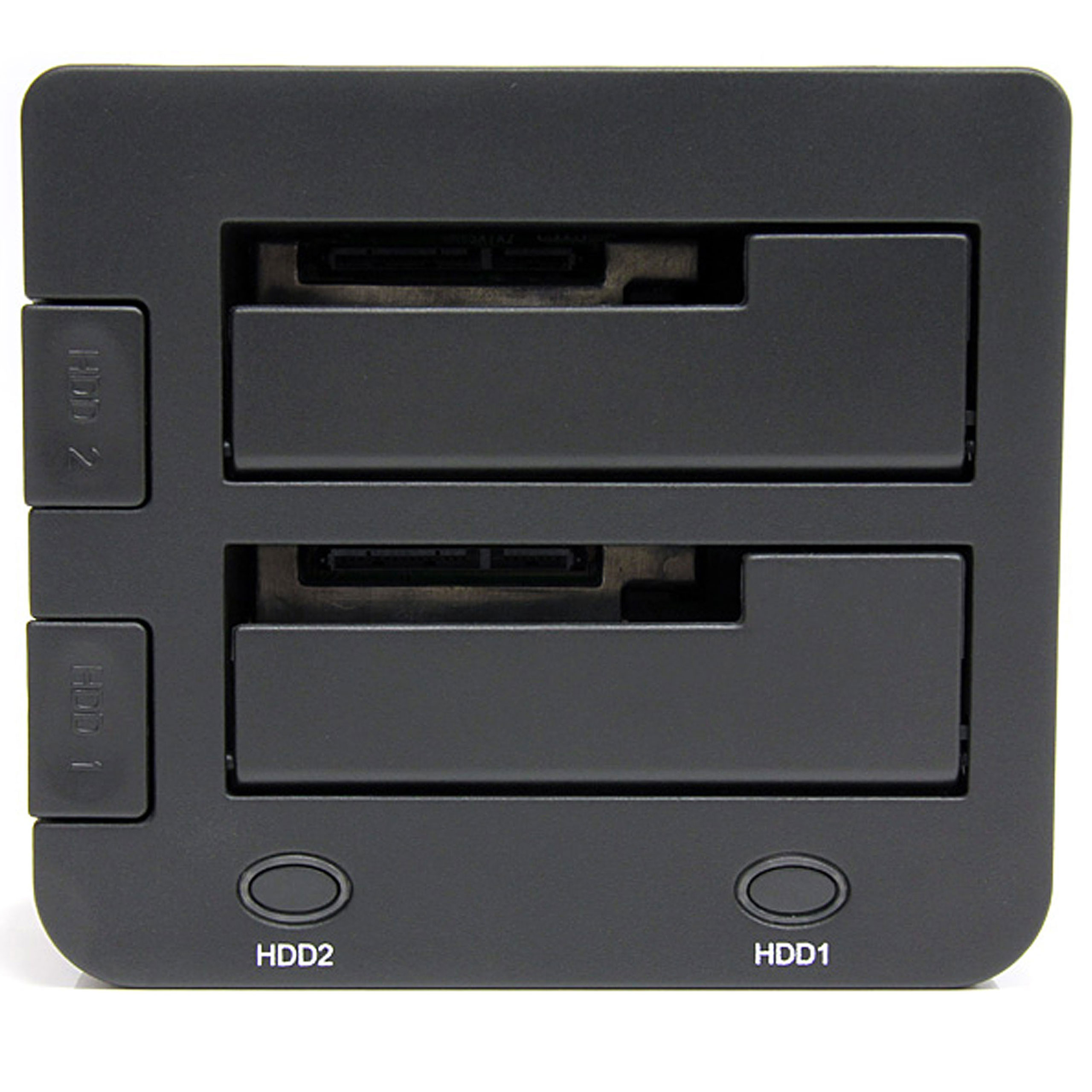

USB 3.0 to SATA Dual Hard Drive Docking Station
Connect and control up to two 2.5"/3.5" SATA HDDs over USB 3.0
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3.0 to SATA Dual Hard Drive Docking Station Product Number SATDOCK22U3S UPC 065030843898 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) . Product Title (Short) SuperSpeed USB 3.0 to Dual 2.5/3.5in SATA Hard Drive Docking Station Product Title (Standard) USB 3.0 to Dual 2.5/3.5in SATA Hard Drive Docking Station Product Title (Long) USB 3.0 to Dual 2.5/3.5in SATA Hard Drive Docking Station Product Title (AMZ) USB 3.0 to Dual 2.5/3.5in SATA Hard Drive Docking Station (SATDOCK22U3S) Title Ingram (Part 1) USB 3.0 to Dual 2.5/3.5in SATA H Title Ingram (Part 2) ard Drive Docking Station Website Product Headline Connect and control up to two 2.5"/3.5" SATA HDDs over USB 3.0 Bullet 1 SuperSpeed USB 3.0 standard compliant, which supports data transfer rates up to 5 Gbps Bullet 2 Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD) Bullet 3 Patented hard drive eject push-buttons for each drive Bullet 4 Supports SATA revision 1.0/2.0/3.0 (SATA 1.5/3.0/6.0 Gbps) drives Bullet 5 Drive Power/Activity LED indicators Bullets (Consolidated) Replaced by SDOCK2U33 - Connect and control up to two 2.5in/3.5in SATA HDDs over USB 3.0 Marketing Copy Applications - Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who test or benchmark multiple hard drives
- Take advantage of new laptops and desktops that feature USB 3.0 connectivity
- Upgrade from a USB 2.0 drive dock to faster USB 3.0
- Transferring data from one hard drive to another
Website Search Keyword - drive dock
- hdd dock
- superspeed dock
- drive toaster
- dual drive dock
- usb 3.0 docking station
- sata hdd dock
- ide pata hdd dock
System and Cable Requirements Available USB port Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
- HDDCASE25BL
- HDDCASE25GN
- HDDSLEV35
- HDDSLEV25
Related Products - SATDOCKU3S
- SATDOCKU3SE
- SATDOCKU3SP
- SATDOCK22R
- SATDOCK22RE
- SATDOCK22UEC
- UNIDOCK2U

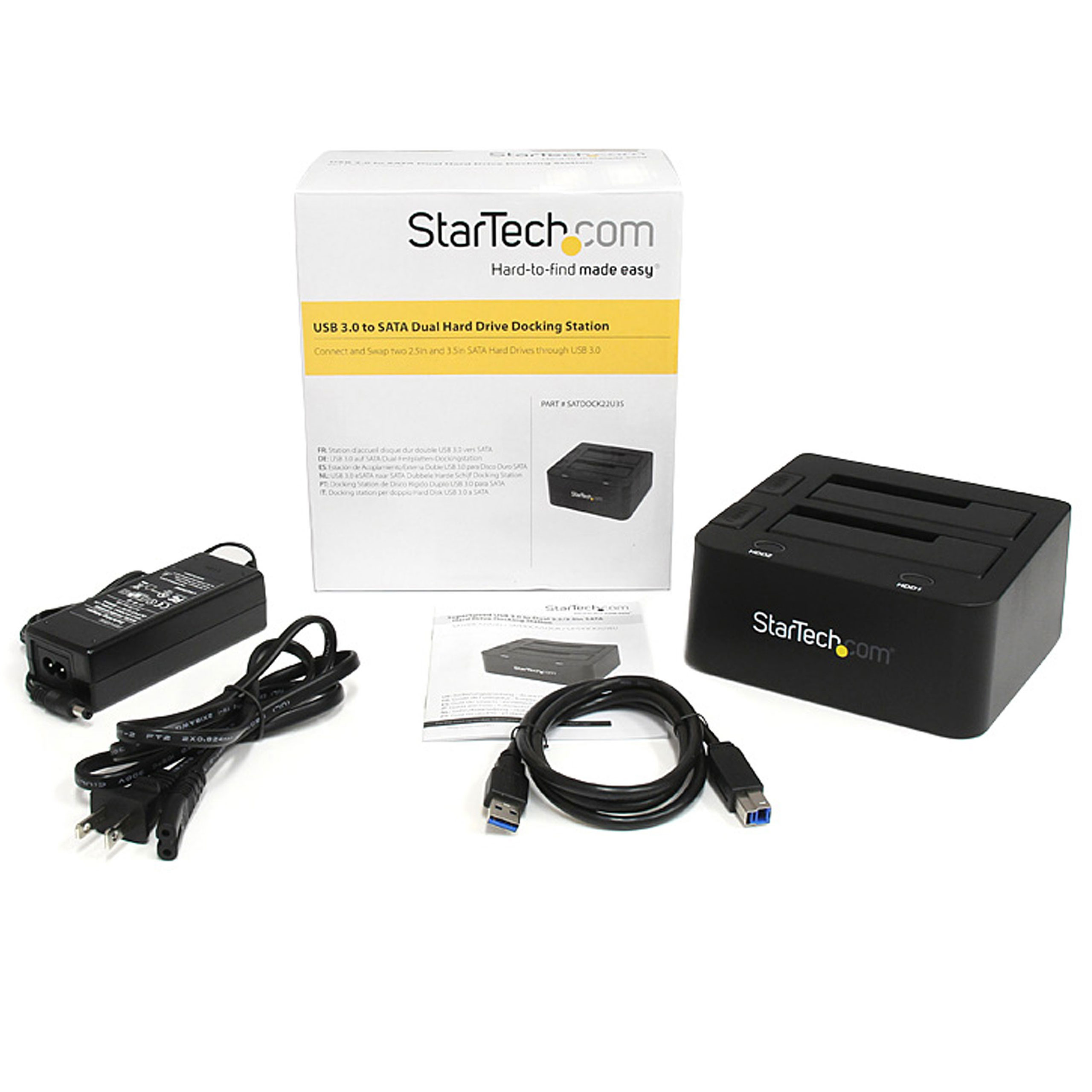

Replacement Product SDOCK2U33 Equivalent Part Number in the EU SATDOCK2U3EU Equivalent Part Number in the UK SATDOCK2U3GB Input Current 1.2A Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8% ~ 90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 142 Product Width (mm) 130 Product Height (mm) 70 Product Weight (g) 532 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives per bay (8TB total) and 1TB 5400 RPM 2.5" hard drives (2TB total) OS Compatibility OS Independent RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 2 - Drive Power/Activity Number of Drives 2 Carton Depth (mm) 200 Carton Height (mm) 460 Carton Quantity 10 Carton Weight Gross (g) 11500 Included in Package - 1 - SATA Hard Drive Dock
- 1 - USB 3.0 Cable
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - Power Cord
Package Depth (mm) 120 Package Height (mm) 210 Package Width (mm) 185 Package Weight (g) 1050 Packaging Description USB 3.0 to Dual 2.5/3.5in SATA HDD Dock Packaging Description India USB 3.0 to Dual 2.5/3.5in SATA HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
