SATDOCK22UEC
Dual Drive SATA HDD Docking station & Controller

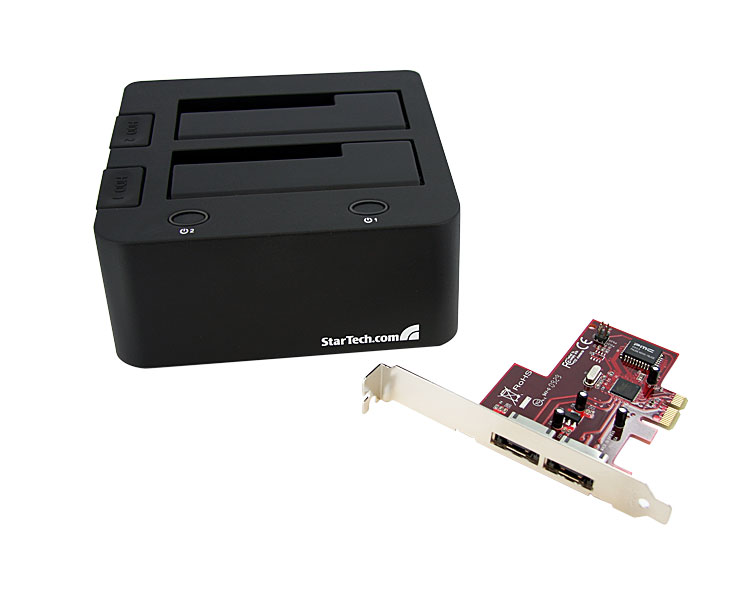

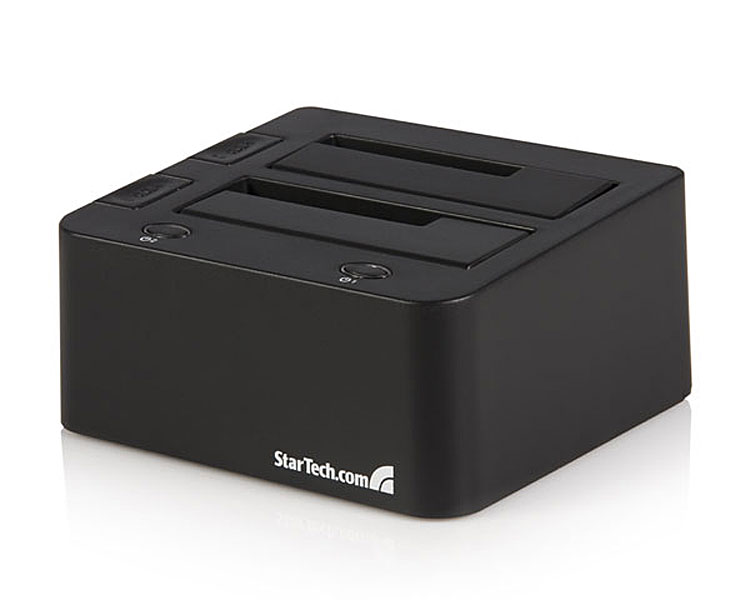

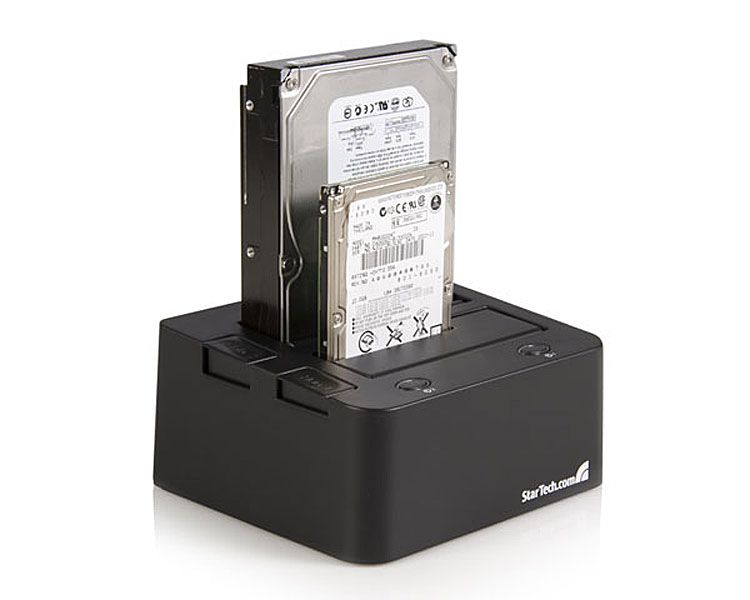

Dual 2.5/3.5" SATA Drive eSATA/USB 2.0 HD Docking Station and Controller kit
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images

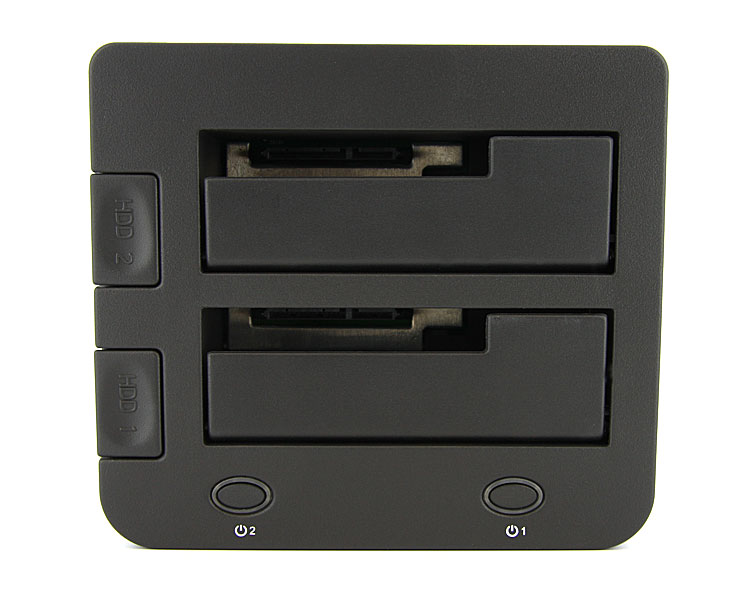

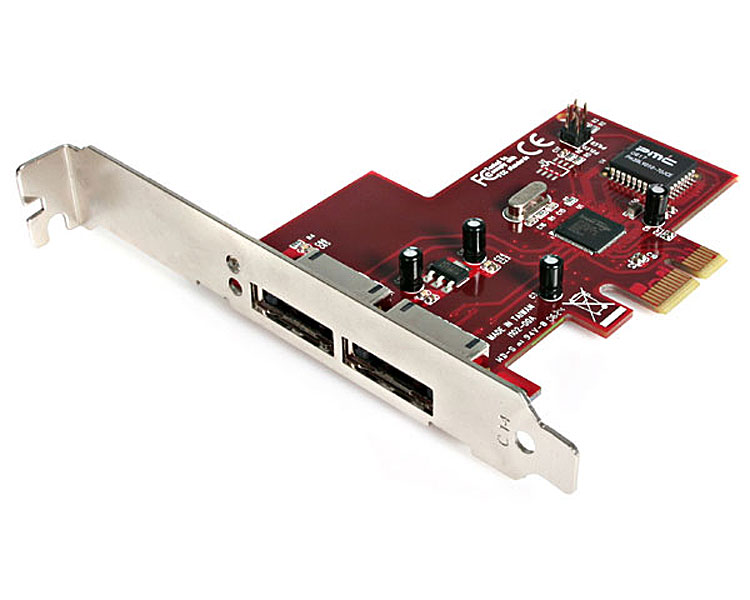

Product Name Dual Drive SATA HDD Docking station & Controller Product Number SATDOCK22UEC UPC 065030838900 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) eSATA USB to 2x SATA HDD Docking Station Product Title (Standard) eSATA USB to Dual SATA HDD Docking Station Product Title (Long) eSATA USB to Dual SATA Hard Drive Docking Station with Controller Card Title Ingram (Part 1) eSATA USB to Dual SATA Hard Driv Title Ingram (Part 2) e Docking Station Website Product Headline Dual 2.5/3.5" SATA Drive eSATA/USB 2.0 HD Docking Station and Controller kit Bullet 1 Power button with integrated Power/Activity LED indicator for each drive Bullet 2 Patented drive ejection mechanism for each drive Bullet 3 Includes a PCI Express two-port eSATA controller card Bullet 4 Dual SATA revision 1 compliant eSATA host interfaces, with support for transfer rates up to 1.5 Gbps for each drive Bullet 5 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480 Mbps Marketing Copy Applications - Need an eSATA drive dock, but computer doesn't have eSATA ports
- Access spare or removed 2.5/3.5" drives quickly to retrieve data from
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Transfer data from one hard drive to another from the same dock
Website Search Keyword - 2.5
- 3.5
- eSATA
- hard drive
- USB
- USB to SATA External HDD Dock
- SATA Controller
- Kit
Accessory Products - ECESATA22
- ESATA3
- ESATA6
- HDDSLEV25
- HDDSLEV35
- USB2HAB10
- USB2HAB6
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - SAT2510BU2
- SAT2510U2
- SAT3510BU2E
- SAT3510U2B
- SAT3510U2V
- SAT3520U2
- SATADOCK22UE
- SATADOCKU2
- SATADOCKU2E
- SATHDDDOCKU2
Input Voltage 115V-230V AC Output Current 2.4A Output Voltage (V) 12/5V DC Power Source AC Adapter Included Color Black Material Plastic Product Length (mm) 147 Product Width (mm) 132 Product Height (mm) 70 Product Weight (g) 547 TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Tested up to 2.0 TB OS Compatibility - Linux
- Mac OS X
- Windows 2000
- Windows 2003
- Windows 7
- Windows 98SE
- Windows ME
- Windows Vista
- Windows XP

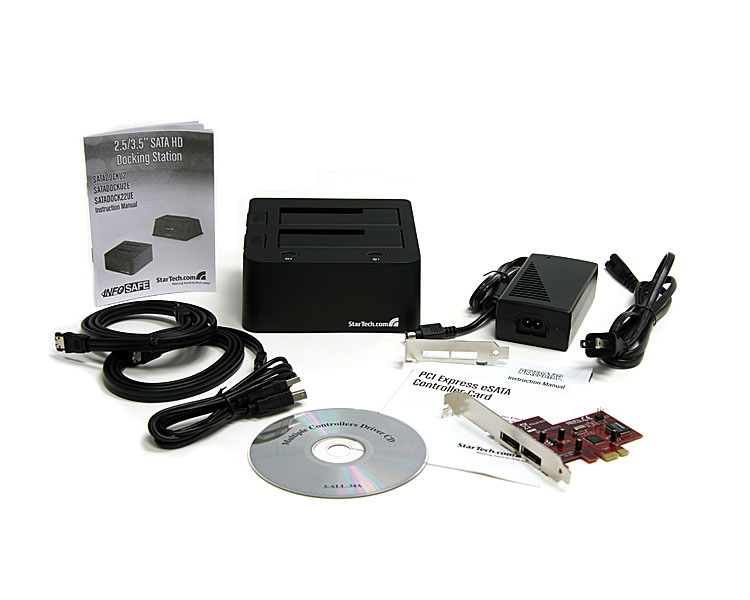

SATA Type and Rate SATA I (1.5 Gbps) USB Type and Rate USB 2.0 (480Mbps) Chipset ID Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 & eSATA LED Indicators 2 - Solid - Power, Blinking - Activity Number of Drives 2 Carton Depth (mm) 625 Carton Height (mm) 468 Carton Quantity 10 Carton Weight Gross (g) 9400 Included in Package - 2 - eSATA Cable
- 1 - Manual
- 1 - Power Adapter
- 1 - SATA hard drive docking station
- 1 - USB Cable
- 1 - 2 Port ESATA Controller Card
- 1 - Driver CD
- 1 - Low profile bracket

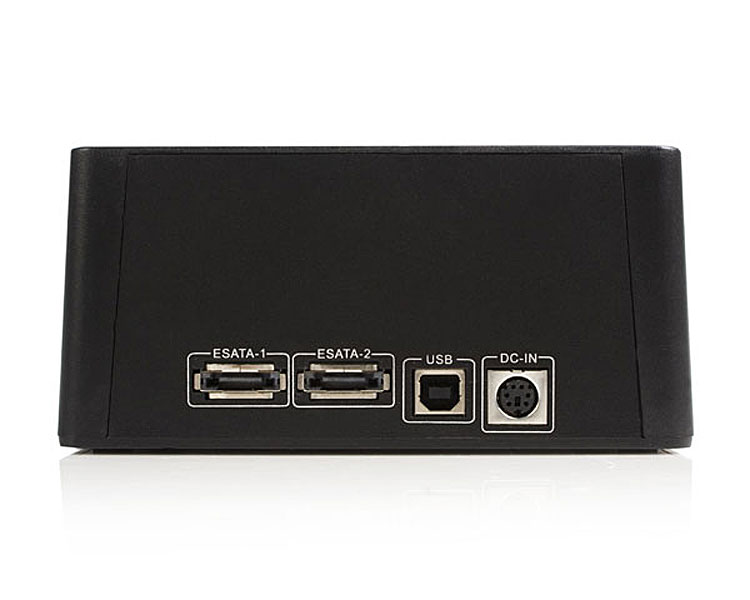

Package Depth (mm) 123 Package Height (mm) 213 Package Width (mm) 200 Package Weight (g) 887.87 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
