SATDOCK2520

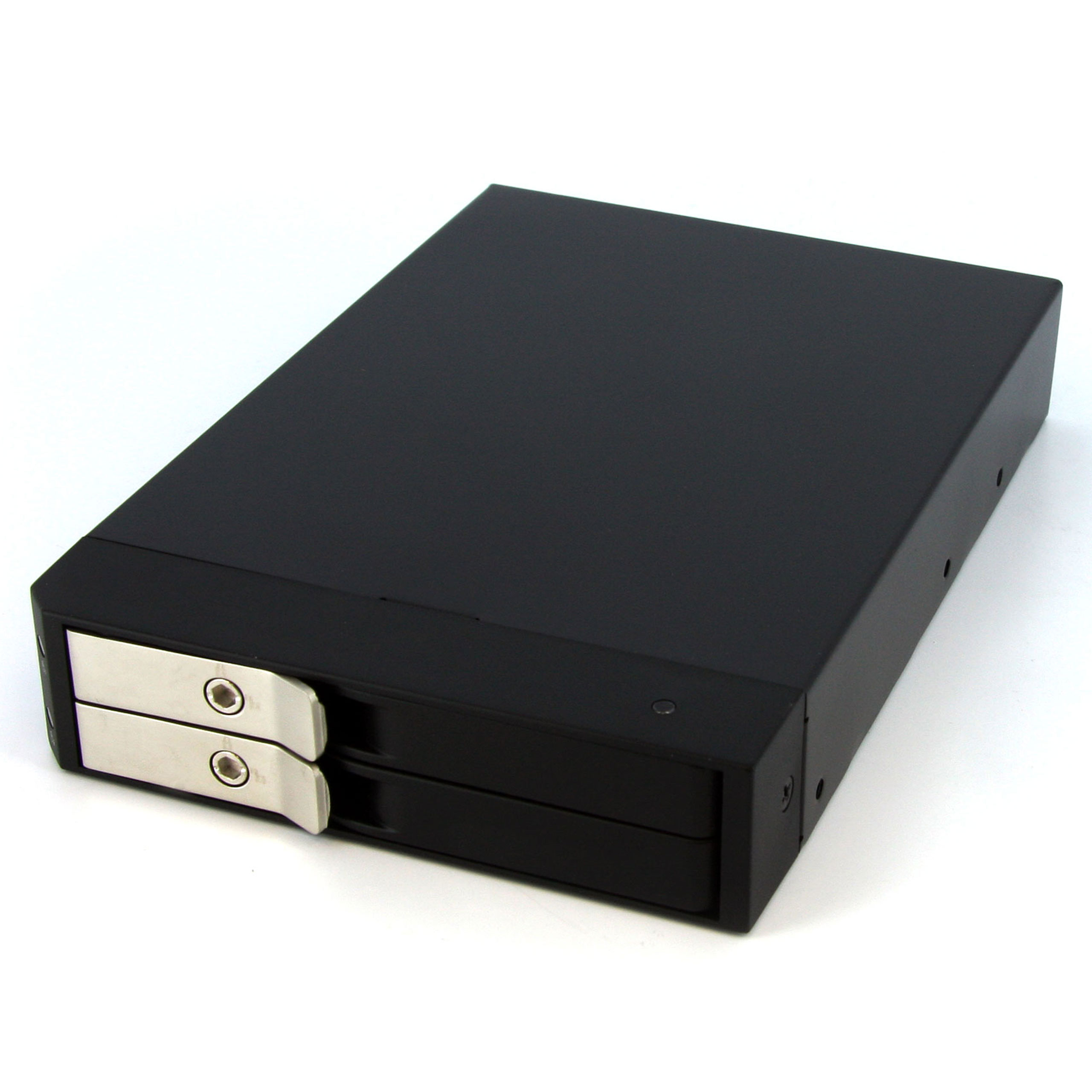

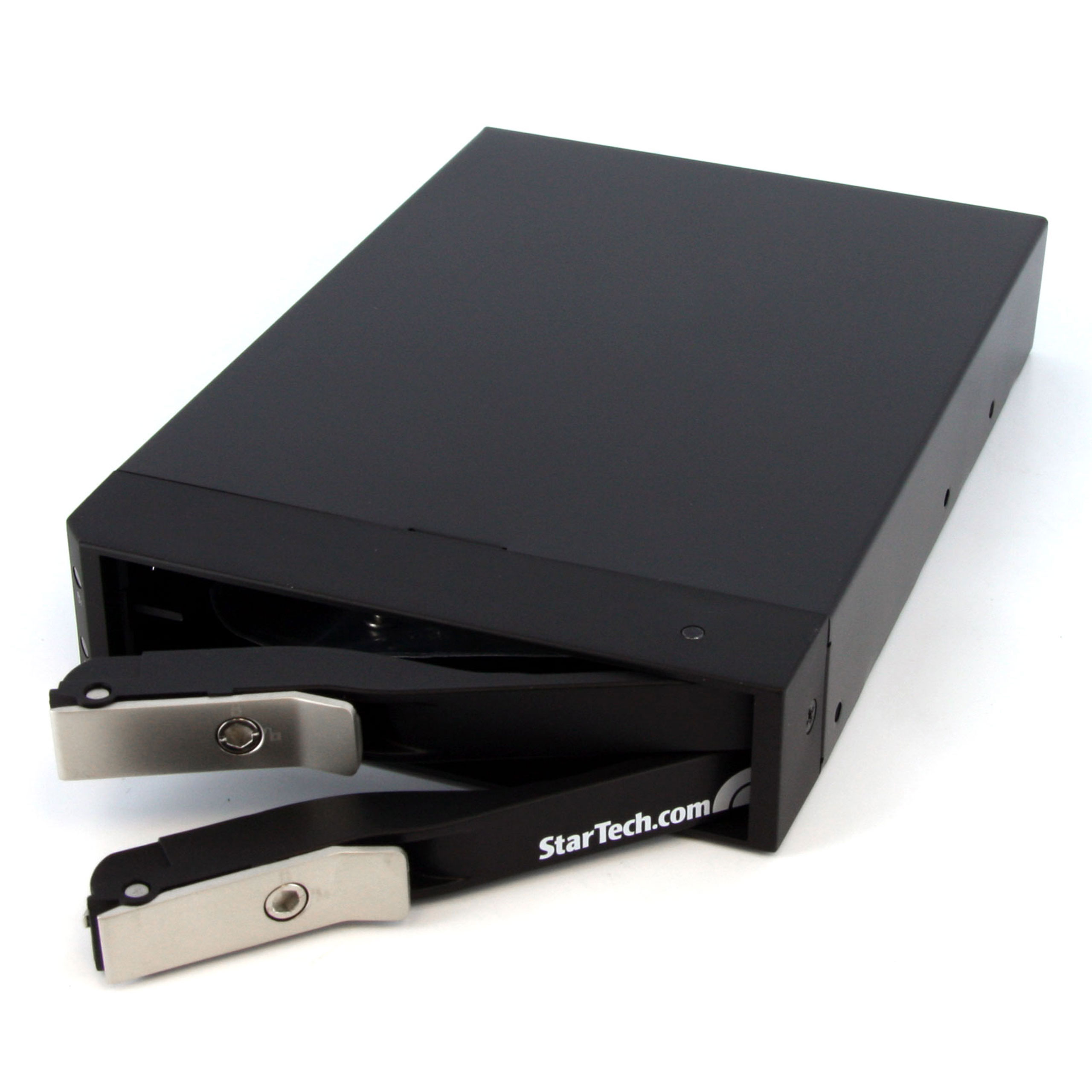

3.5in Bay Dual 2.5in SATA Hard Drive Trayless
Easily connect and swap two 2.5in SATA hard drives through a single 3.5in front bay
Main Image
Product Images
Product Images
BOM Image
Product Name 3.5in Bay Dual 2.5in SATA Hard Drive Trayless Product Number SATDOCK2520 UPC 065030837194 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) 3.5 SATA Mobile Rack for Dual 2.5 HDD Product Title (Standard) 3.5in Trayless SATA Mobile Rack for Dual 2.5in Hard Drives Product Title (Long) 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives Product Title (AMZ) 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives (SATDOCK2520) Title Ingram (Part 1) 3.5in Trayless SATA Mobile Rack Title Ingram (Part 2) for Dual 2.5in HDD Website Product Headline Easily connect and swap two 2.5in SATA hard drives through a single 3.5in front bay Bullet 1 Supports 2.5" form factor hard drives (HDD) and solid state drives (SSD) Bullet 2 Plug-and-Play and Hot-Swap compatible Bullet 3 Durable steel construction Bullet 4 Accepts up to two 2.5" SATA drives in a single 3.5" drive bay form factor Bullet 5 Lockable drive doors Marketing Copy Applications - Easily add two 2.5" SATA hard drives or solid state drives to a system with an available external 3.5" bay
- System builders who need to image drives quickly and efficiently
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
- Technicians who regularly test or benchmark different hard drives and need to swap between them
Website Search Keyword - Trayless
- Mobile Back Plane
- Drive Drawer
- 2.5in SATA Hard Drive
- 3.5in bay
- Floppy Bay
- Internal Enclosure
- SATA II
- SATA I
Special Notes Some SSD's require 12V power, which is not supplied by this device. Accessory Products - LP4LSATAADAP
- SATA18POWRA
- PYO1LP4SATA
- PYO2LP4SATA
- SATAPOWADAP
- SATA18POW
- SATA24POW
- SATA18
- SATA24
- SATA36
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - SATADOCK22UE
- SATADOCK525
- SATADOCKU2
- SATADOCKU2E
- SATDOCKCRH
- UNIDOCK2U
- SATDOCK22R
- SAT2510U2REM
- SATABAY425BK
- HSB220SAT25B
- HSB100SATBK

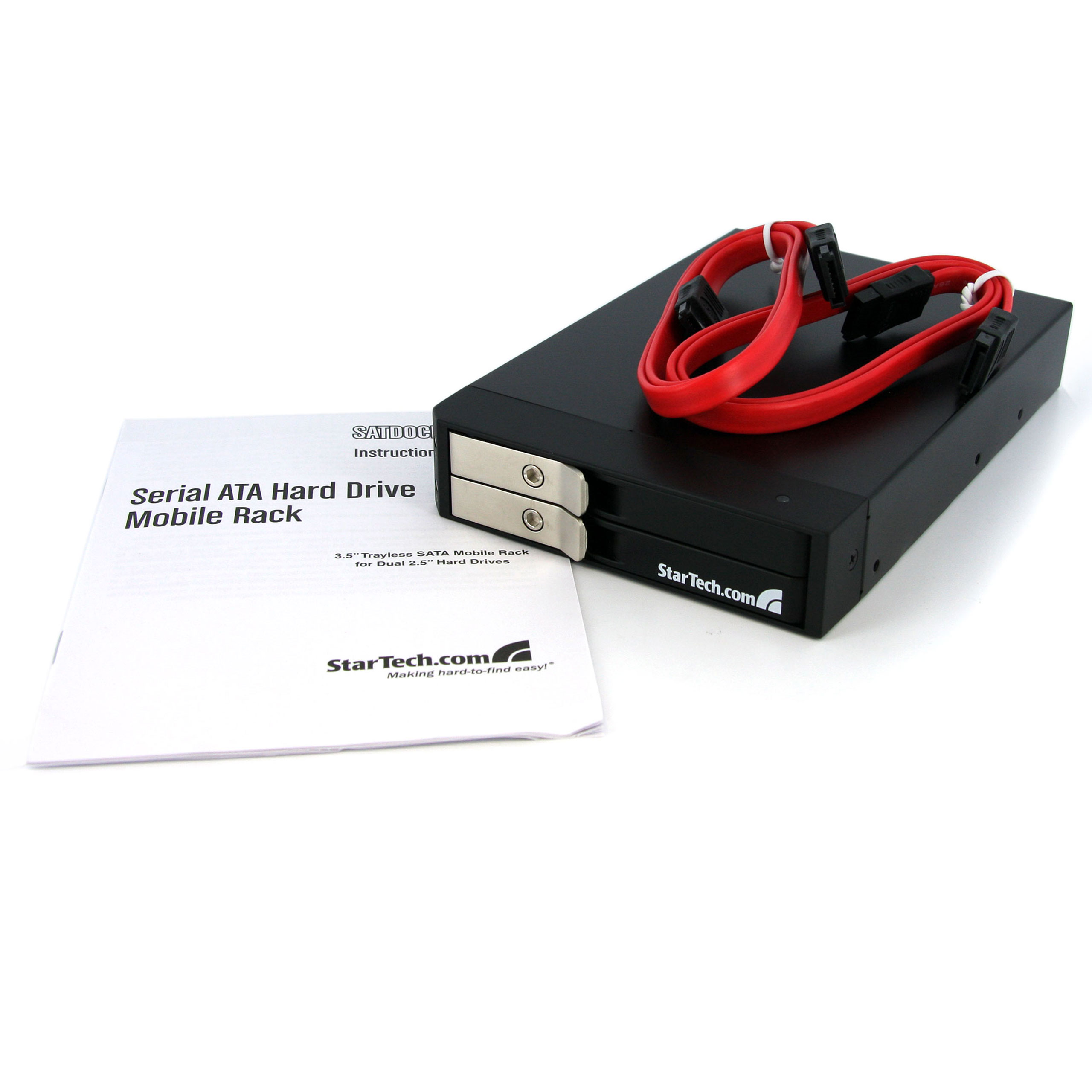

Color Black Humidity 8~90% RH Material Steel and Plastic Max Drive Height (mm) 9.5 Operating Temperature 5°C to 70°C (41°F to 158°F) Product Length (mm) 154 Product Width (mm) 101 Product Height (mm) 25 Product Weight (g) 224 Storage Temperature -40°C to 80°C (-40°F to 176°F) TAA Compliant No Hot Swap Capability Yes Insertion Rating 15,000 Cycles OS Compatibility OS Independent Compatible Drive Types SATA Front Door Key Lock Yes LED Indicators 2 - Blue/Red (Blue-Online, Red-Activity) Number of Drives 2 Carton Depth (mm) 383 Carton Height (mm) 323 Carton Quantity 20 Carton Weight Gross (g) 7800 Included in Package - 1 - Dual 2.5in HDD Dock
- 1 - Instruction Manual
- 2 - Keys
- 2 - SATA data cables
- 1 - Screw Kit

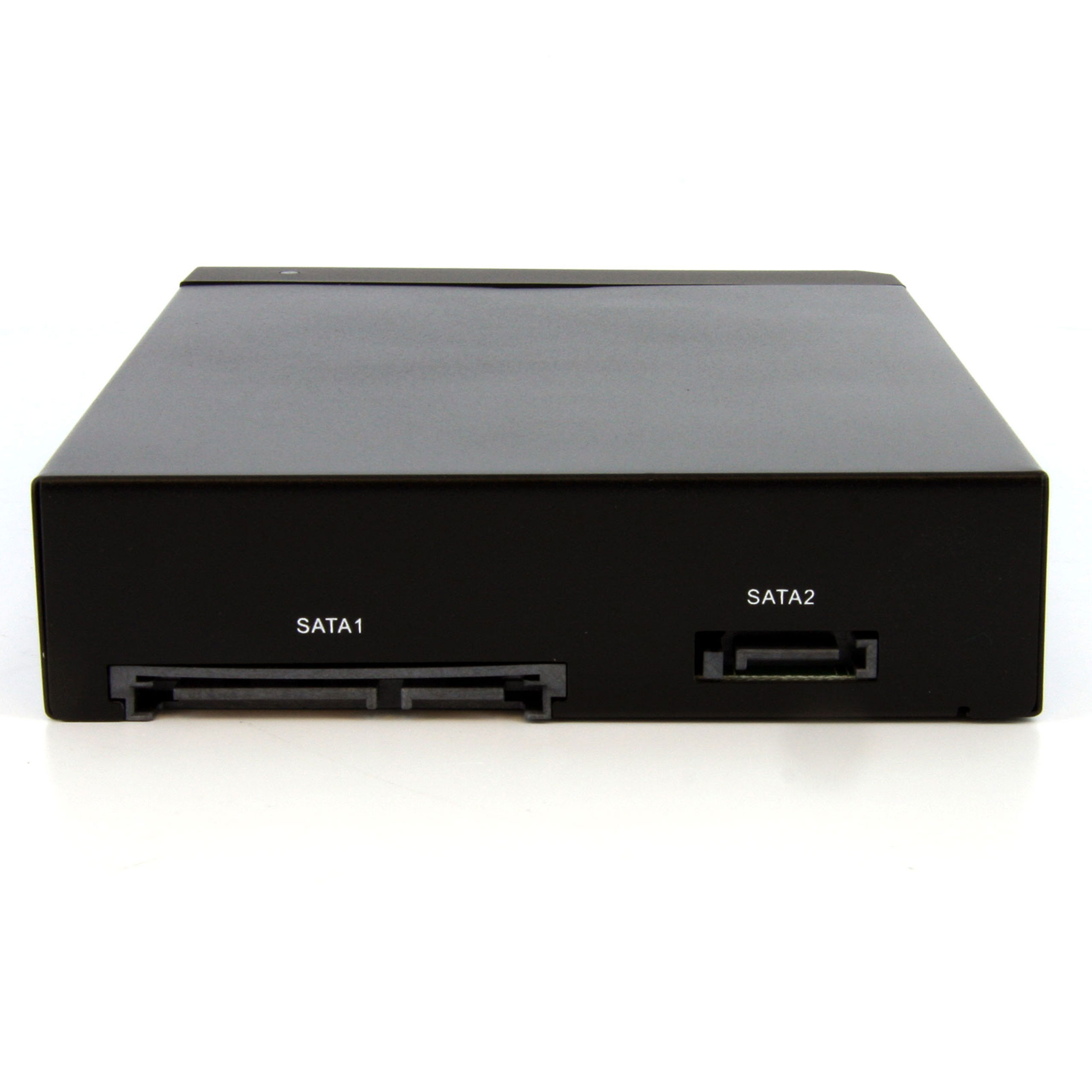

Package Depth (mm) 36 Package Height (mm) 165 Package Width (mm) 141 Package Weight (g) 330 Packaging Description Trayless SATA Mobile Rack for 2x 2.5 HDD Packaging Description India Trayless SATA Mobile Rack for 2x 2.5 HDD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 SATA (7-Pin + 15-Pin) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
