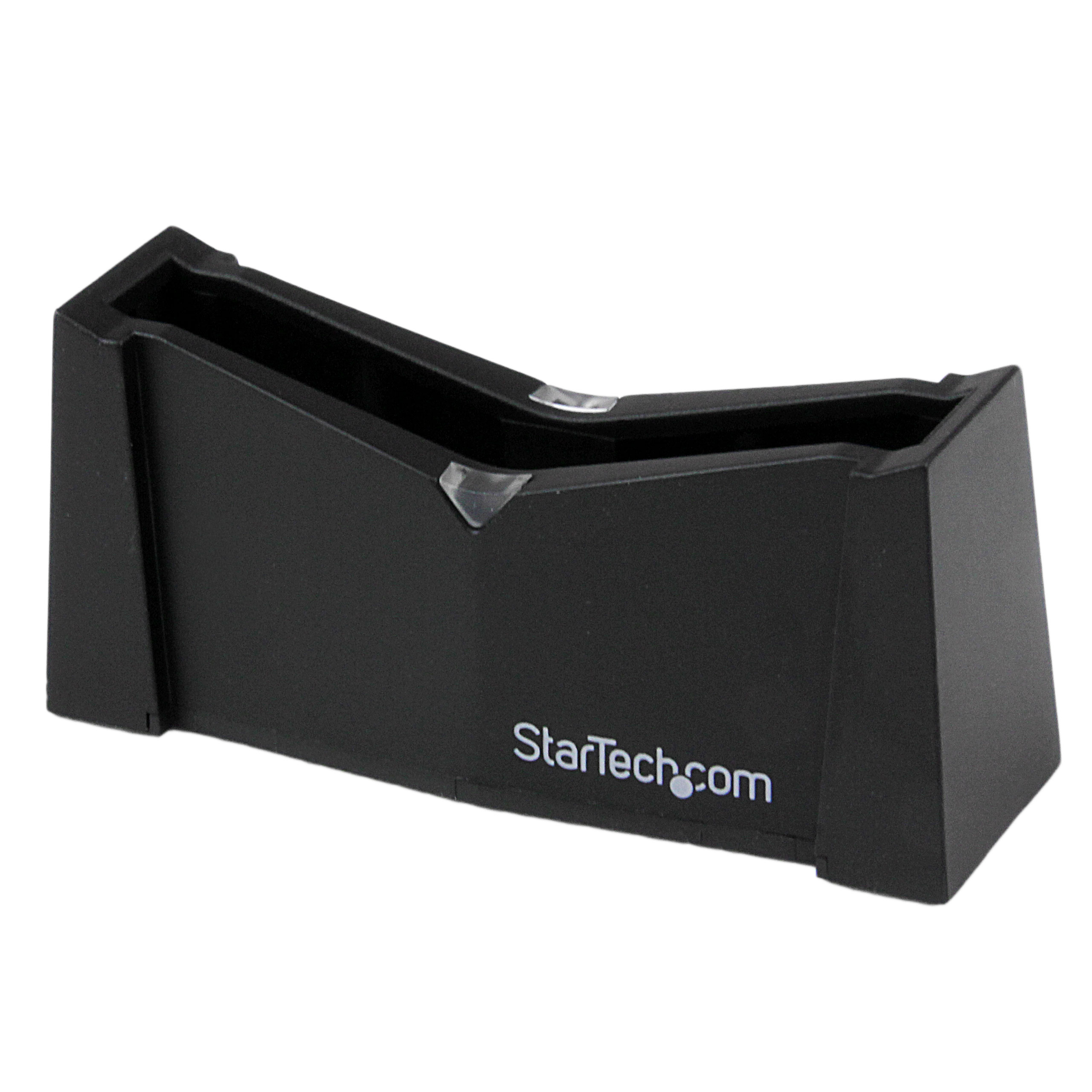

SATDOCK25U
USB External HDD Docking Station for 2.5 HDD

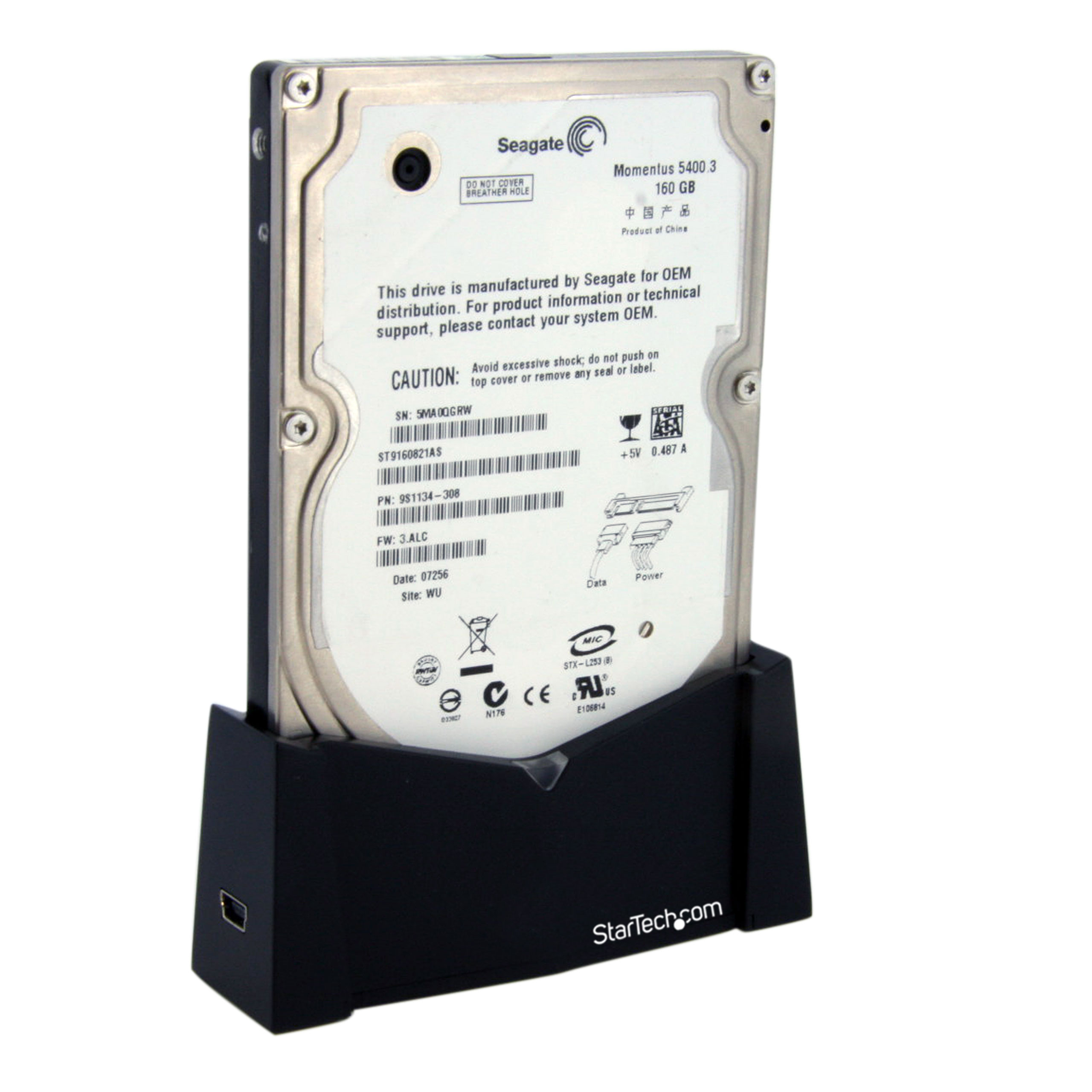

Enable external, hot-swap access to 2.5in SATA drives from a portable mini USB2.0 drive dock
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB External HDD Docking Station for 2.5 HDD Product Number SATDOCK25U UPC 065030837842 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - USB 2.0 Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) USB to SATA Hard Drive Docking Station Product Title (Medium) x Product Title (Standard) USB to SATA HDD Docking Station for 2.5in SATA HDD Product Title (Long) USB to SATA External Hard Drive Docking Station for 2.5in SATA HDD Product Title (AMZ) USB to SATA External Hard Drive Docking Station for 2.5in SATA HDD - SATA Hard Drive Dock (SATDOCK25U) Title Ingram (Part 1) USB to SATA Hard Drive Docking S Title Ingram (Part 2) tation for 2.5in SATA HDD Website Product Headline Enable external, hot-swap access to 2.5in SATA drives from a portable mini USB2.0 drive dock Bullet 1 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 2 Built-in rotating stand Bullet 3 Plug-and-Play and Hot-Swap compatible Bullet 4 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480 Mbps Bullet 5 Powered directly from the USB port Bullets (Consolidated) HDD docking station - bays: 1 - 2.5" - SATA 3Gb/s - 300 MBps - USB 2.0 - black Marketing Copy Applications - Access spare or removed 2.5" drives quickly to retrieve data from
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who regularly test or benchmark different hard drives and need to swap between them
Website Search Keyword - 2.5in SATA
- 2.5in SSD
- 2.5"
- Docking Station
- Hard Drive Dock
- Hot Swap Dock
- External Hard Drive Dock
- Portable
- Mobile
- USB to SATA
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - HDDSLEV25
- USB2HABM1
- USB2HABM3
- USB2HABM6
- USB2HABM10
- HDDCASE25BK
- HDDCASE25YW
- HDDCASE25BL
- HDDCASE25WH
- HDDCASE25GN
- HDDCASE25OR
Related Products - SATADOCK22UE
- SATADOCK525
- SATADOCKU2
- SATADOCKU2E
- SATDOCKCRH
- UNIDOCK2U
- SATDOCK22R
- UNIDUPDOCK
- SATDOCK2520
- HSB220SAT25B
- SAT2510BU2
- SAT2510BU2B
- SAT2510BU2E
- SAT2510U2
- SAT2510U2REM

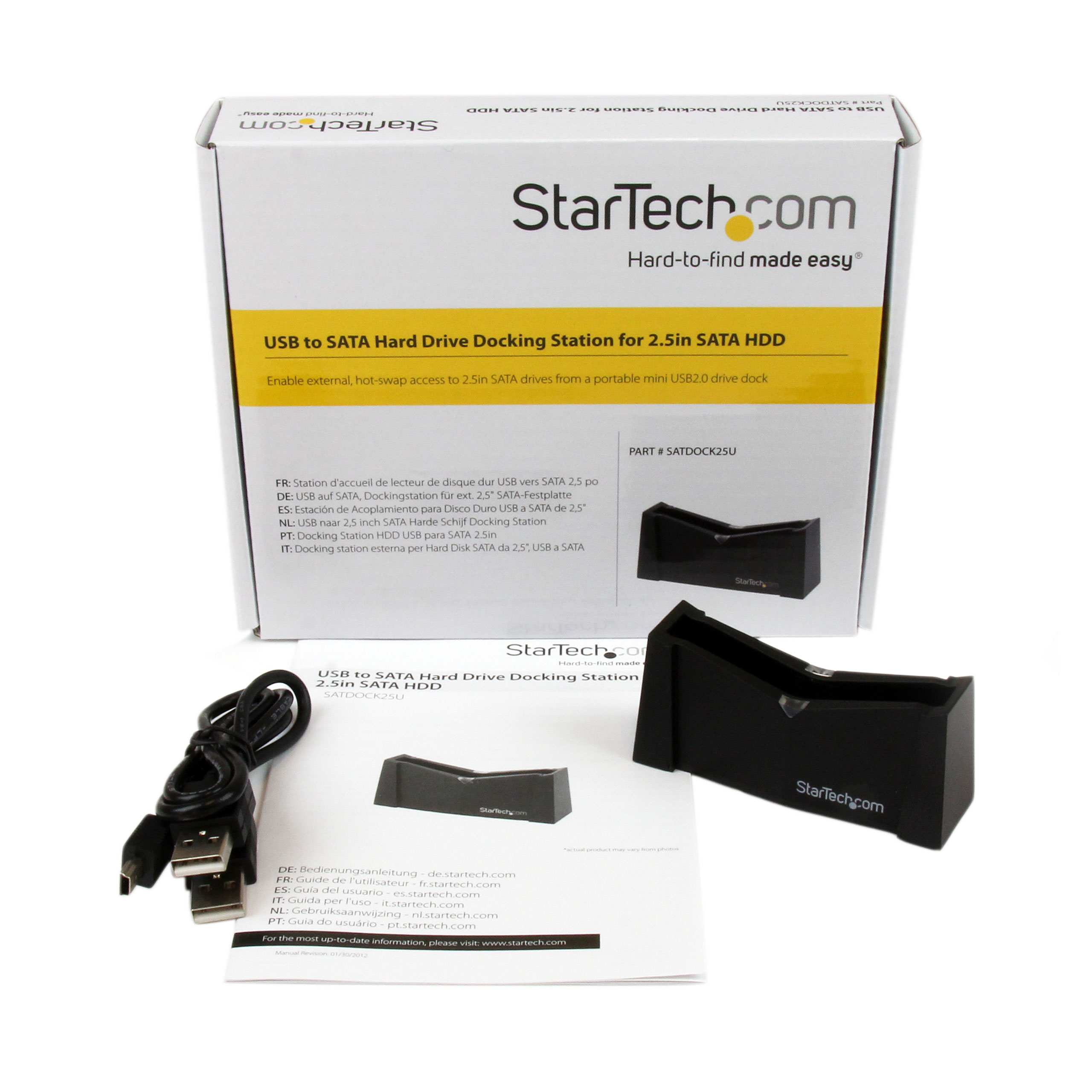

Color Black Humidity 90% RH Material Plastic Max Drive Height (mm) 9.5 Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 82.000 Product Width (mm) 25.000 Product Height (mm) 36.000 Product Weight (g) 30.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility OS Independent UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JM20329 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 LED Indicators 1 - Blue - Solid for power, blinking for Activity Number of Drives 1 Carton Depth (mm) 423 Carton Height (mm) 311 Carton Quantity 60 Carton Weight Gross (g) 8390 Included in Package - 1 - 2.5in SATA Hard Drive Dock
- 1 - USB mini-B Y Cable
- 1 - Instruction Manual

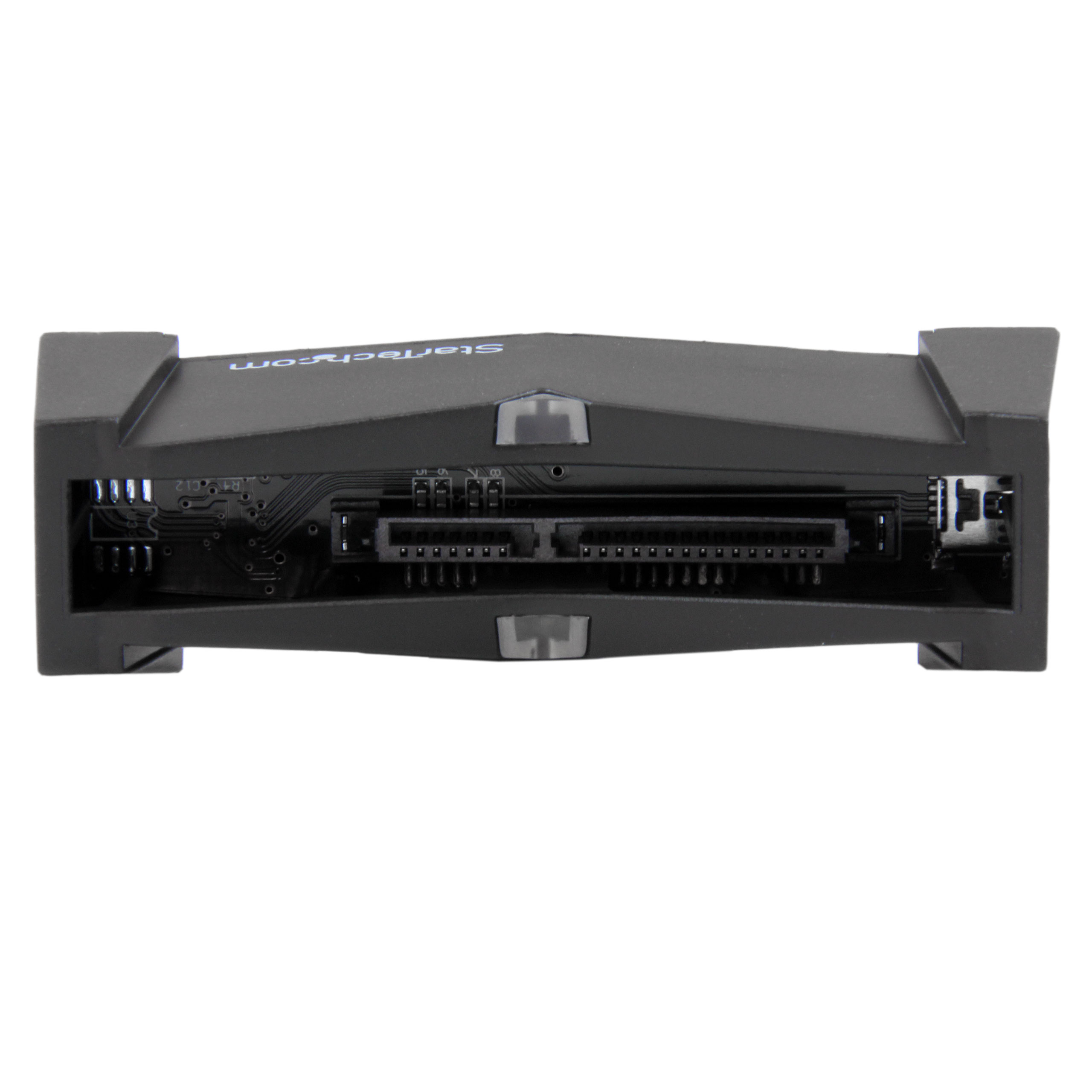

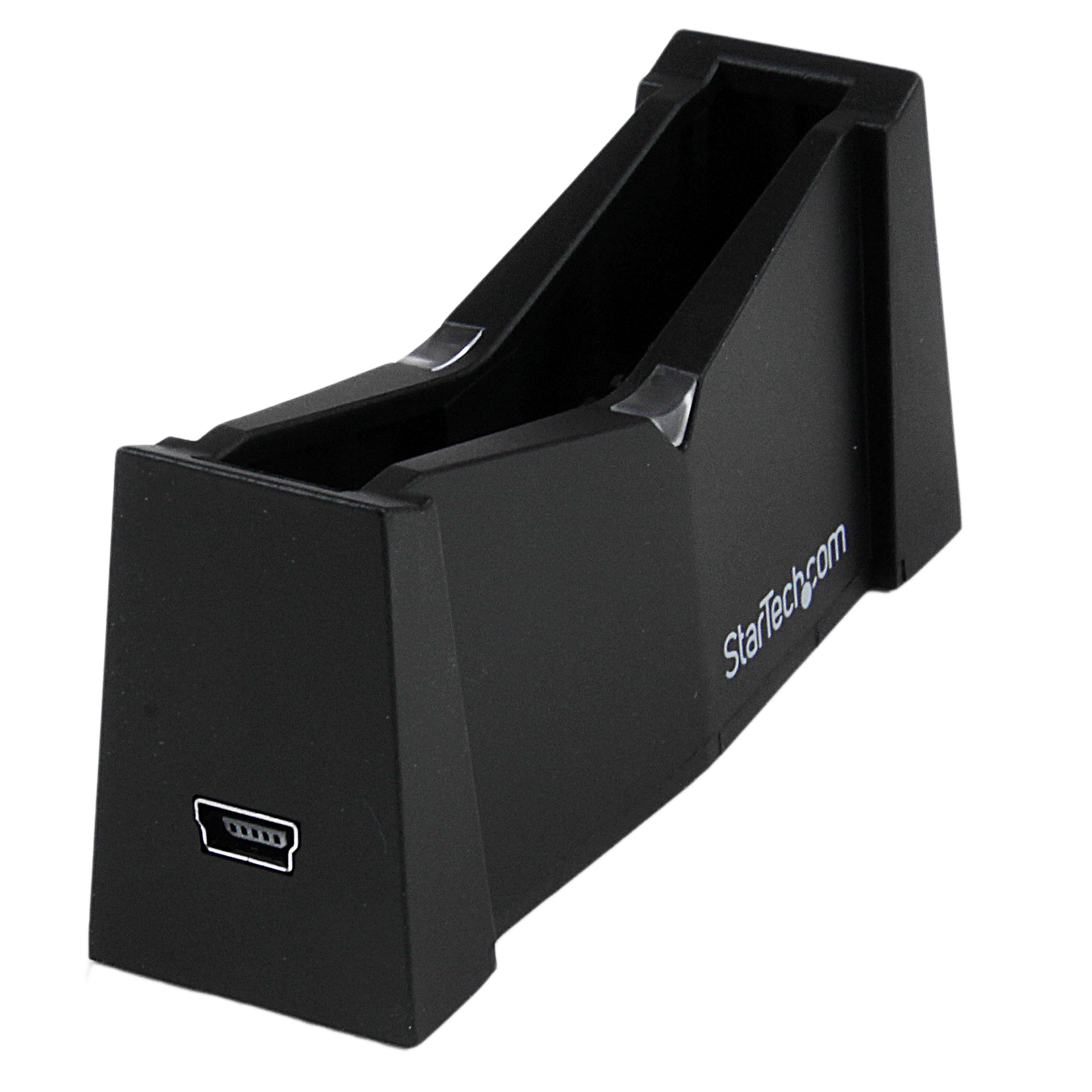

Package Depth (mm) 172 Package Height (mm) 32 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 126 Packaging Description USB to 2.5in SATA HDD Docking Station Packaging Description India USB to 2.5in SATA HDD Docking Station Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Mini-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,NZ,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
