SATDOCK2U3EU

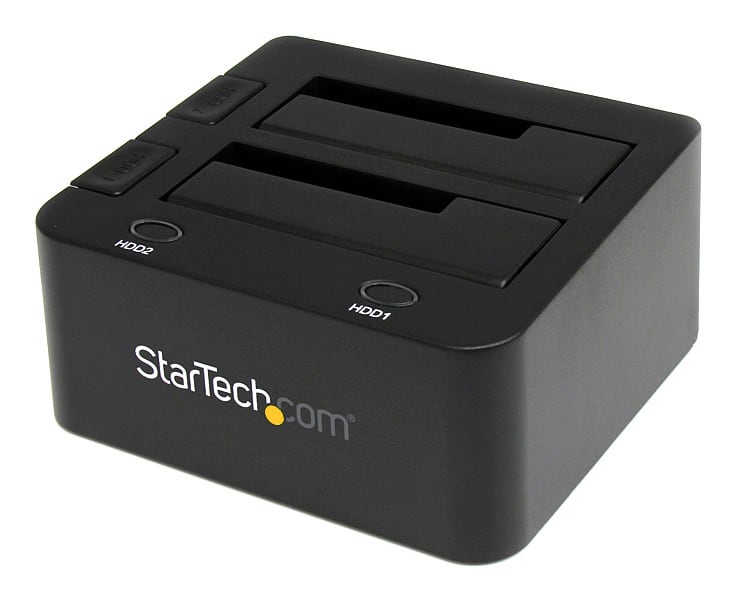

USB 3.0 - SATA Dual Hard Drive Docking Station
Connect and control up to two 2.5"/3.5" SATA HDDs over USB 3.0
Main Image
Product Images
Product Images
Product Images
Product Name USB 3.0 - SATA Dual Hard Drive Docking Station Product Number SATDOCK2U3EU UPC 065030843928 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) USB 3.0 Dual 2.5/3.5in SATA HDD/SSD Dock Product Title (Standard) USB 3.0 to Dual 2.5/3.5in SATA Hard Drive Docking Station Product Title (Long) USB 3.0 to Dual 2.5/3.5in SATA Hard Drive Docking Station Title Ingram (Part 1) USB 3.0 to Dual 2.5/3.5in SATA H Title Ingram (Part 2) ard Drive Docking Station Website Product Headline Connect and control up to two 2.5"/3.5" SATA HDDs over USB 3.0 Bullet 1 SuperSpeed USB 3.0 compliant host interface with supported data transfer rates up to 5 Gbps Bullet 2 Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD) Bullet 3 Patented hard drive eject push-buttons for each drive Bullet 4 Supports SATA revision 1.0/2.0/3.0 (SATA 1.5/3.0/6.0 Gbps) drives Bullet 5 Drive Power/Activity LED indicators Bullets (Consolidated) Replaced by SDOCK2U33 - Connect and control up to two 2.5in/3.5in SATA HDDs over USB 3.0 Marketing Copy Applications - Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who test or benchmark multiple hard drives
- Take advantage of new laptops and desktops with USB 3.0 connectivity
- Upgrade from a USB 2.0 drive dock to faster USB 3.0
- Transferring data from one hard drive to another
Website Search Keyword - drive dock
- hdd dock
- superspeed dock
- drive toaster
- dual drive dock
- usb 3.0 docking station
- sata hdd dock
- ide pata hdd dock
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference System and Cable Requirements Available USB port Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
- HDDCASE25BL
- HDDCASE25GN
- HDDSLEV35
- HDDSLEV25
Related Products - SATDOCKU3S
- SATDOCKU3SE
- SATDOCKU3SP
- SATDOCK22R
- SATDOCK22RE
- SATDOCK22UEC
- UNIDOCK2U
Replacement Product SDOCK2U33 Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8%~90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 142 Product Width (mm) 130 Product Height (mm) 70 Product Weight (g) 532 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives per bay (8TB total) and 1TB 5400 RPM 2.5" hard drives (2TB total) OS Compatibility - Windows 8
- Mac OS X Mavericks (10.9)
- Linux
- Windows 7

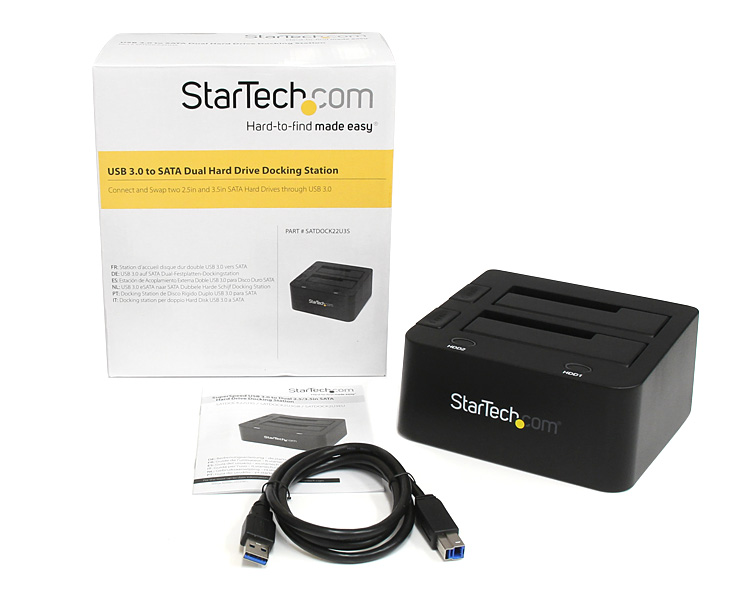

RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 2 - Drive Power/Activity Number of Drives 2 Carton Depth (mm) 200 Carton Height (mm) 460 Carton Quantity 10 Carton Weight Gross (g) 11500 Included in Package - 1 - SATA Hard Drive Dock
- 1 - USB 3.0 Cable
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - Power Cord
Package Depth (mm) 120 Package Height (mm) 210 Package Width (mm) 185 Package Quantity 1 Package Weight (g) 1050 Packaging Description USB 3.0 to Dual 2.5/3.5in SATA HDD Dock Packaging Description India USB 3.0 to Dual 2.5/3.5in SATA HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
