SATDOCK2UEGB

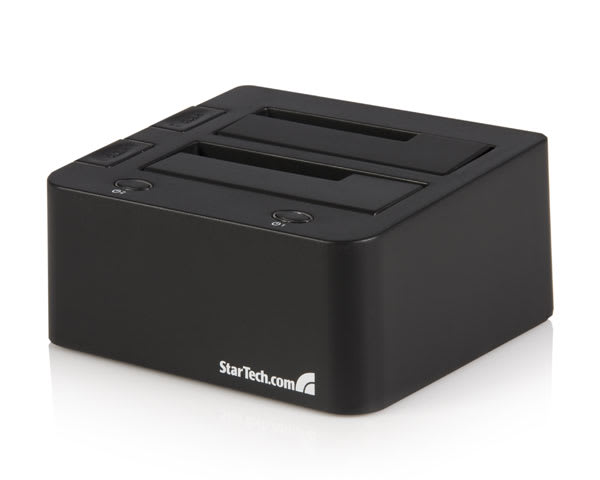

Dual Drive USB 2.0 eSATA HDD Docking Station
Easily connect and swap two 2.5 or 3.5in SATA hard drives through eSATA or USB
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name Dual Drive USB 2.0 eSATA HDD Docking Station Product Number SATDOCK2UEGB UPC 065030834834 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) eSATA USB Dual External HDD Dock Product Title (Standard) StarTech.com eSATA USB to SATA External HDD Dock for Dual 2.5 or 3.5in Hard Drive - Storage controller - 2 x 2.5"/3.5" shared - 2 Channel - SATA-300 - 300 MBps - Hi-Speed USB / eSATA-300 - black Product Title (Long) eSATA USB to SATA External HDD Dock for Dual 2.5 or 3.5in Hard Drive Title Ingram (Part 1) eSATA USB to SATA External HDD D Title Ingram (Part 2) ock for 2.5 3.5 Hard Drive Website Product Headline Easily connect and swap two 2.5 or 3.5in SATA hard drives through eSATA or USB Bullet 1 Dual top slot loading design with drive doors Bullet 2 Patented drive ejection mechanism for each drive Bullet 3 Power button with integrated Power/Activity LED indicator for each drive Bullet 4 Dual SATA revision 1 compliant eSATA host interfaces, with support for transfer rates up to 1.5 Gbps for each drive Bullet 5 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480 Mbps Marketing Copy Applications - Access spare or removed 2.5/3.5" drives quickly to retrieve data from
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Transfer data from one hard drive to another from the same dock
Website Search Keyword - 2.5
- 3.5
- eSATA
- hard drive
- USB
- USB to SATA External HDD Dock
- hot swap
- SATHDOCKU2GB
- SATADOCK22UE
Accessory Products - ESATA3
- ESATA6
- USB2HAB10
- USB2HAB6
- HDDSLEV25
- HDDSLEV35
- PEXESATA2
- ECESATA22
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - SAT3510BUEGB
- SATDOCKU2EGB
- SATDOCKU2GB
- SAT2510U2REM
- SAT3510U2GB
- SAT3510U2BGB
- SAT3510U2REM
- SAT5210U2EGB
- UNI3510UEBGB
Input Voltage 230 AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Plastic Product Length (mm) 147 Product Width (mm) 132 Product Height (mm) 70 Product Weight (g) 547 TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives per bay (8TB total) and 1TB 5400 RPM 2.5" hard drives (2TB total) OS Compatibility - Windows 2000
- Windows XP
- Windows Server 2003
- Windows Vista
- Windows 7
- Windows Server 2008 R2
- Mac OS X
- Linux

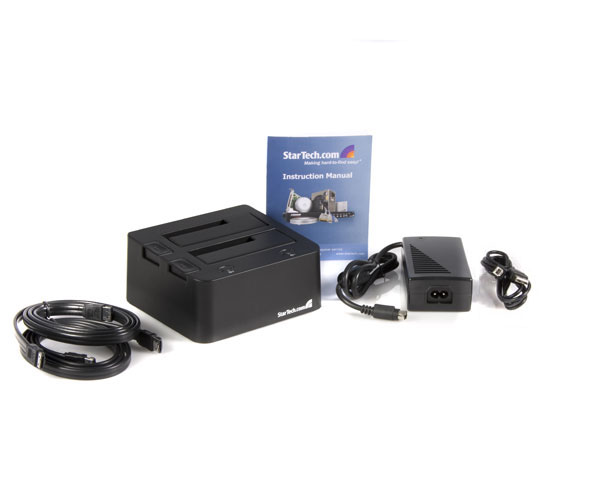

UASP Support No Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 & eSATA LED Indicators 2 - Power/Activity Number of Drives 2 Carton Depth (mm) 200 Carton Height (mm) 470 Carton Quantity 1 Carton Weight Gross (g) 14200 Included in Package - 2 - eSATA Cable
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - SATA hard drive docking station
- 1 - USB Cable
Package Depth (mm) 120 Package Height (mm) 210 Package Width (mm) 185 Package Weight (g) 1300 Packaging Description USB 2.0/eSATA to Dual SATA HDD Dock Packaging Description India USB 2.0/eSATA to Dual SATA HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager David Muzinic
