SATDOCK4U2E
4 Bay Hard Drive Dock eSATA USB - 2.5/3.5in HDD
Enable quick access to four 2.5”/3.5” SATA HDD from multiple computers
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Bay Hard Drive Dock eSATA USB - 2.5/3.5in HDD Product Number SATDOCK4U2E UPC 065030842563 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) 4 Bay eSATA USB to SATA Hard Drive Dock Product Title (Standard) 4 Bay eSATA USB 2.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD Product Title (Long) 4 Bay eSATA USB 2.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD Title Ingram (Part 1) 4 Bay eSATA USB to SATA Hard Dri Title Ingram (Part 2) ve Docking Station 2.5/3.5 Website Product Headline Enable quick access to four 2.5”/3.5” SATA HDD from multiple computers Bullet 1 Accepts up to four SATA drives simultaneously, in a single docking station Bullet 2 Multiple, independent host interfaces for each drive Bullet 3 Dual 60mm cooling fans mounted below the drives with variable speed controls (including OFF) Bullet 4 Supports both 2.5" and 3.5" form factor hard drives (HDD) and Solid State Drives (SSD) Bullet 5 Dual High Speed USB 2.0 host interfaces with support for transfer rates up to 480 Mbps Marketing Copy Applications - IT professionals who need to hot-swap between multiple SATA drives regularly
- System builders who need to quickly image or copy data to multiple drives simultaneously
- Technicians who need to access up to 4 different drives from a single station
- Create a centralized local hard drive hub for multiple computers simultaneously
- Users who want to use a hard drive dock on multiple computers, but do not want to have to swap cables between them
Website Search Keyword - hard drive dock
- SATA docking station
- usb 2.0 drive dock
- esata HDD dock
- quad bay external dock
- 4-bay SATA dock
System and Cable Requirements At least one USB or eSATA port Accessory Products - ESATA3
- ESATA6
- PEXSATA24E
- PEXESATA2
- ESATAPLATE2
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25WH
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25YW
Related Products - SATDOCK4U3E
- SATDOCK22R
- SATDOCK22RE
- SATADOCK22UE
- SATDOCKU3S
- SATDOCK25U
- SATDOCKCRH
Input Current 2500mA Input Voltage 110V-240V AC Output Current 6.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type DIN Color Black Humidity 8%~90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 290.5 Product Width (mm) 172.7 Product Height (mm) 94.7 Product Weight (g) 1020 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15, 000 cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives per bay (16TB total) and 1TB 5400 RPM 2.5" hard drives (4TB total) OS Compatibility - Windows 7
- Windows Server 2008 R2
- Mac OS X
- Linux
- Windows XP
- Windows Vista
- Windows Server 2003
- Windows 2000
- Windows 8
SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID Initio - INIC-1610 Compatible Drive Types SATA Fans 2 - 60 mm Fans Included? Yes/No Yes Interface/Bridge USB 2.0 & eSATA LED Indicators - 4 - Power (Blue)
- 4 - Activity (Red)

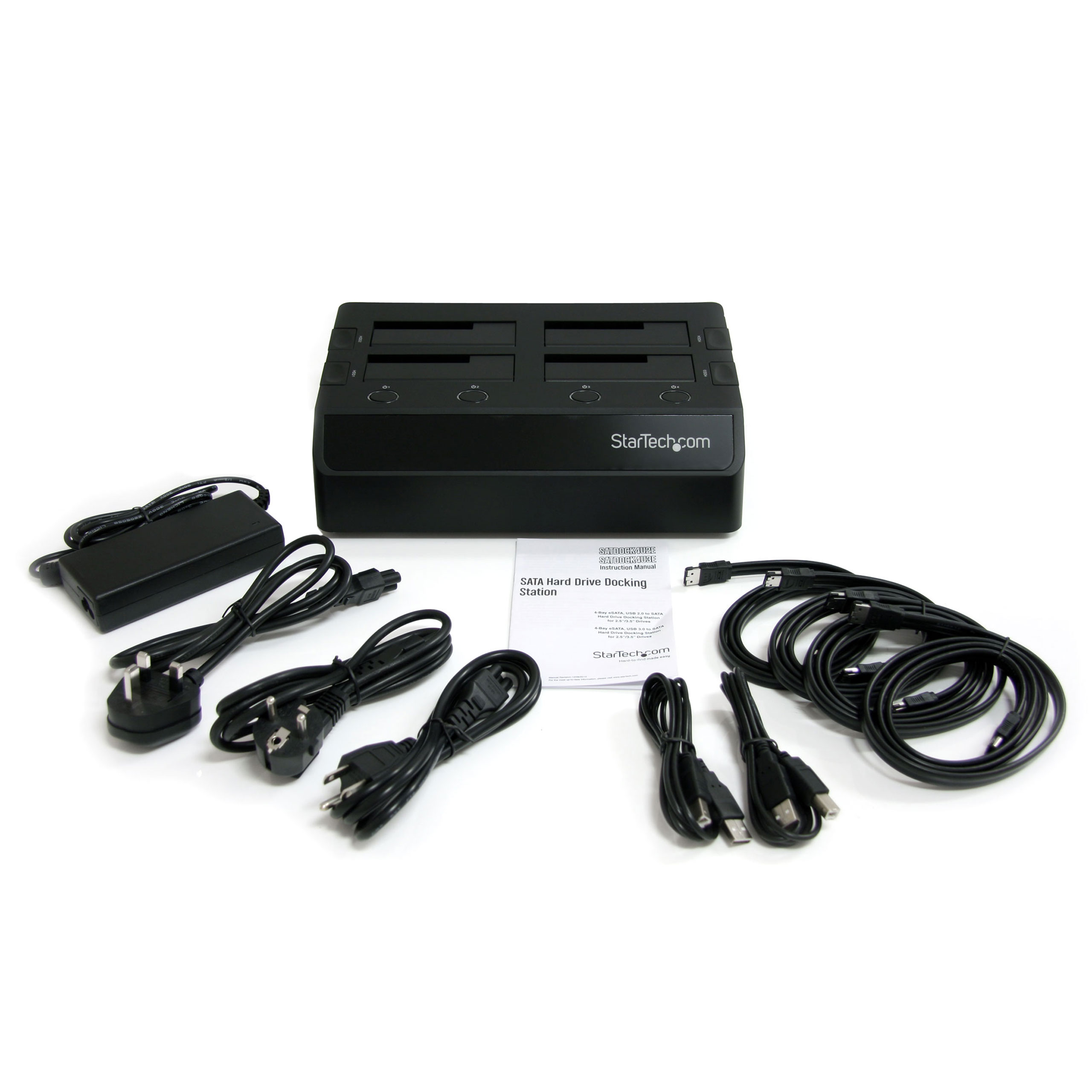

Number of Drives 4 Carton Depth (mm) 360 Carton Height (mm) 480 Carton Quantity 6 Carton Weight Gross (g) 14440 Included in Package - 1 - 4-Bay HDD Docking Station
- 1 - Instruction Manual
- 1 - Universal Power Adapter
- 3 - Power Cord (NA/UK/EU)
- 2 - USB 2.0 Cable
- 4 - eSATA Cable
Package Depth (mm) 168 Package Height (mm) 213 Package Width (mm) 340 Package Weight (g) 2240 Packaging Description 4 Bay eSATA/USB to SATA HDD Dock Packaging Description India 4 Bay eSATA/USB to SATA HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 2 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager David Muzinic
