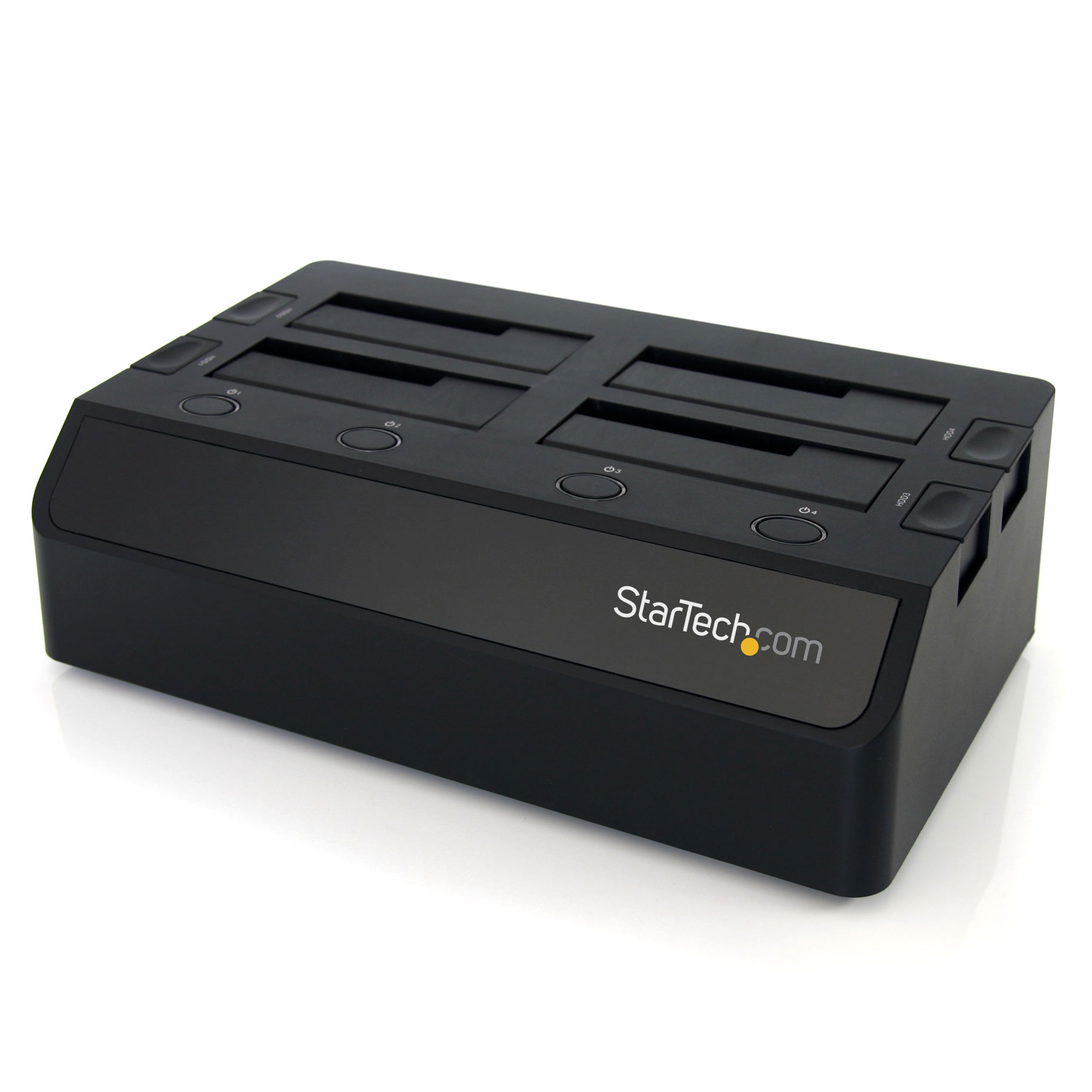

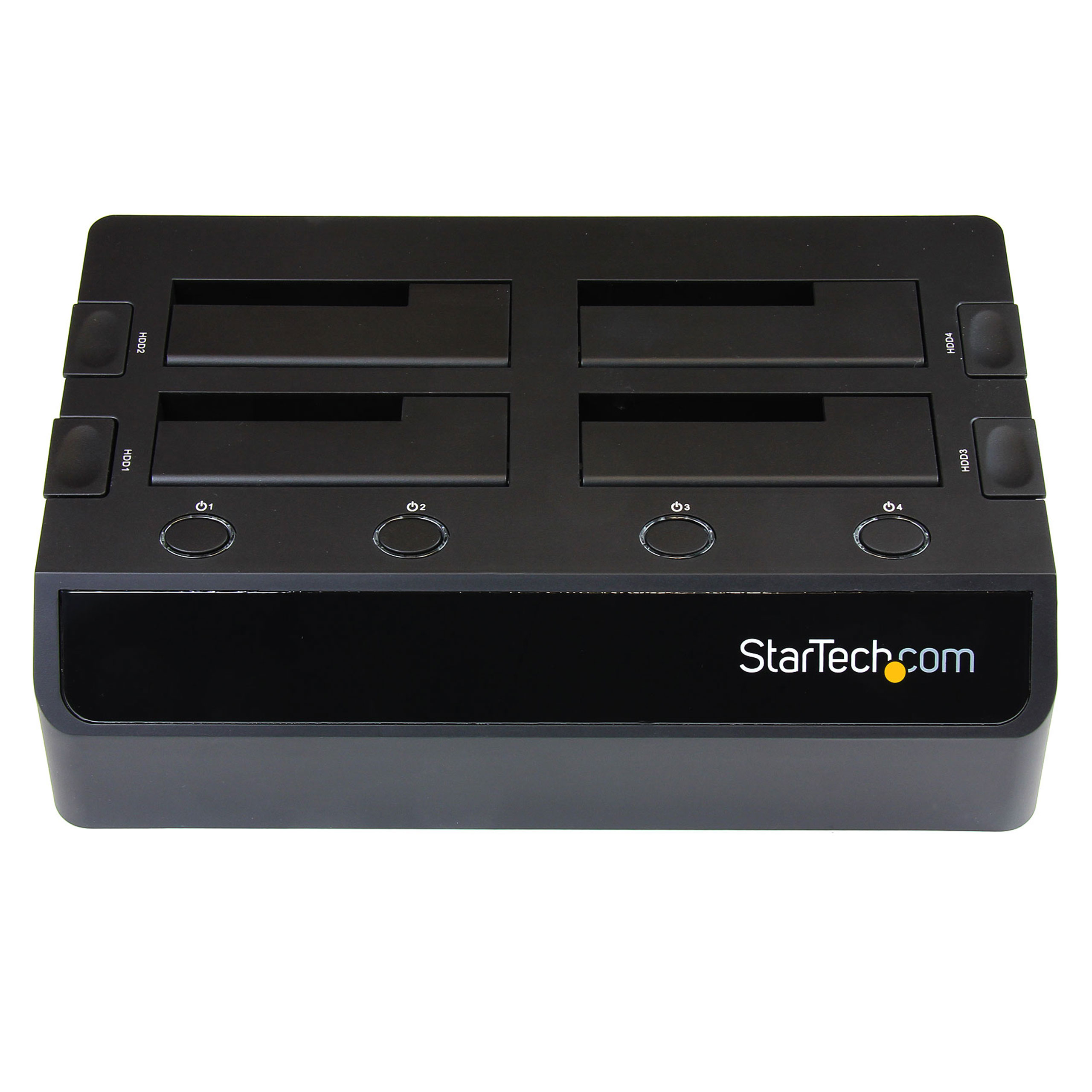

SATDOCK4U3
4 Bay Hard Drive Dock USB 3.0 2.5/3.5 HDD
Connect and Control up to four 2.5"/3.5" SATA HDDs over USB 3.0
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Bay Hard Drive Dock USB 3.0 2.5/3.5 HDD Product Number SATDOCK4U3 UPC 065030845434 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) 4 Bay USB 3.0 to SATA HDD Dock Product Title (Standard) 4 Bay USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD Product Title (Long) 4 Bay USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD Title Ingram (Part 1) 4 Bay USB 3.0 to SATA Hard Drive Title Ingram (Part 2) Docking Station Website Product Headline Connect and Control up to four 2.5"/3.5" SATA HDDs over USB 3.0 Bullet 1 Dual 60mm cooling fans mounted below the drives with variable speed controls (including OFF) Bullet 2 Plug-and-Play and Hot-Swap compatible Bullet 3 SuperSpeed USB 3.0 compliant host interface which supports transfer rates up to 5 Gbps Bullet 4 Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD) Bullet 5 Accepts up to 4 SATA hard drives simultaneously, in a single docking station Bullets (Consolidated) Replaced by SDOCK4U33 - Connect and control up to four 2.5in/3.5in SATA HDDs over USB 3.0 Marketing Copy Applications - Technicians who need to access up to 4 different drives from a single station
- Users who want to access multiple external drives but with a limited number of USB ports
- IT professionals who need to hot-swap between multiple SATA drives regularly
- System builders who need to quickly image or copy data to multiple drives simultaneously
Website Search Keyword - hard drive dock
- SATA hard drive docking station
- quad drive dock
- 4 bay HDD dock
- USB 3.0 dock
- external HDD docking station
System and Cable Requirements Available USB 2.0 or 3.0 port Accessory Products - PEXUSB3S11
- ECUSB3S2
- USB3SAB3BK
- USB3SAB10BK
- HDDSLEV25
- HDDSLEV35
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - SATDOCK22RE
- SATADOCK22UE
- SATDOCK22R
- SATDOCKU3S
- SATDOCKU3SE
- SATDOCKU3SP
- SATADOCKU2E
- UNIDUPDOCK
- SATDOCK4U3E
- SATDOCK4U2E

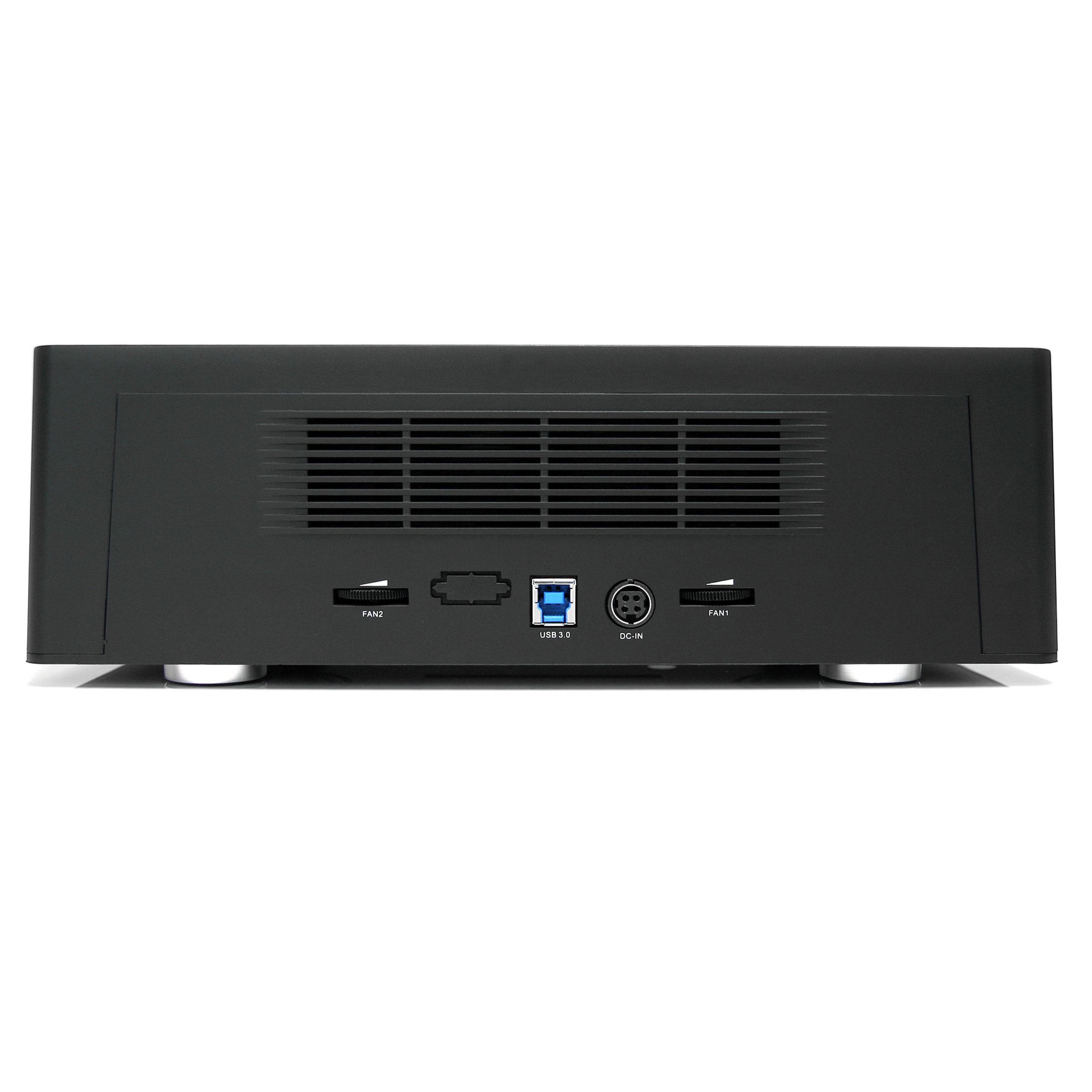

Replacement Product SDOCK4U33 Input Current 2.5 Input Voltage 110V-240V AC Output Current 6.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type 4-pin DIN Center Tip Polarity Positive Color Black Humidity 8% ~ 90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 280 Product Width (mm) 170 Product Height (mm) 90 Product Weight (g) 997 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15, 000 cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives per bay (16TB total) and 1TB 5400 RPM 2.5" hard drives (4TB total) OS Compatibility - Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows 7
RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fans 2 - 60 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators - 4 - Power (Blue)
- 4 - Activity (Red)

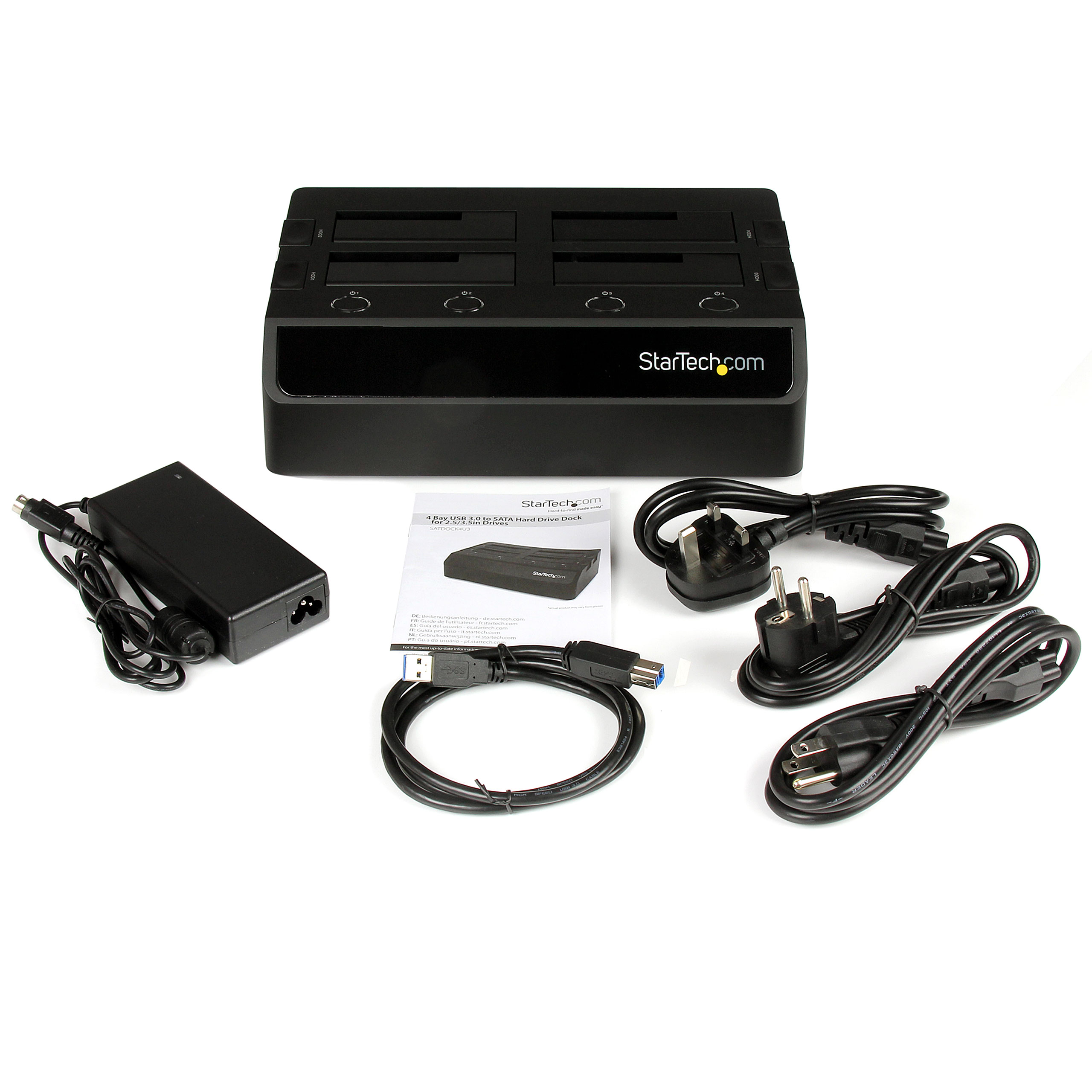

Number of Drives 4 Carton Depth (mm) 354 Carton Height (mm) 470 Carton Quantity 4 Carton Weight Gross (g) 9548 Included in Package - 1 - 4-Bay HDD Docking Station
- 1 - USB 3.0 cable
- 1 - Universal Power Adapter
- 3 - Power Cord (NA/UK/EU)
- 1 - Instruction Manual
Package Depth (mm) 215 Package Height (mm) 170 Package Width (mm) 340 Package Quantity 1 Package Weight (g) 2118 Packaging Description 4 Bay USB 3.0 to SATA HDD Dock Packaging Description India 4 Bay USB 3.0 to SATA HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
