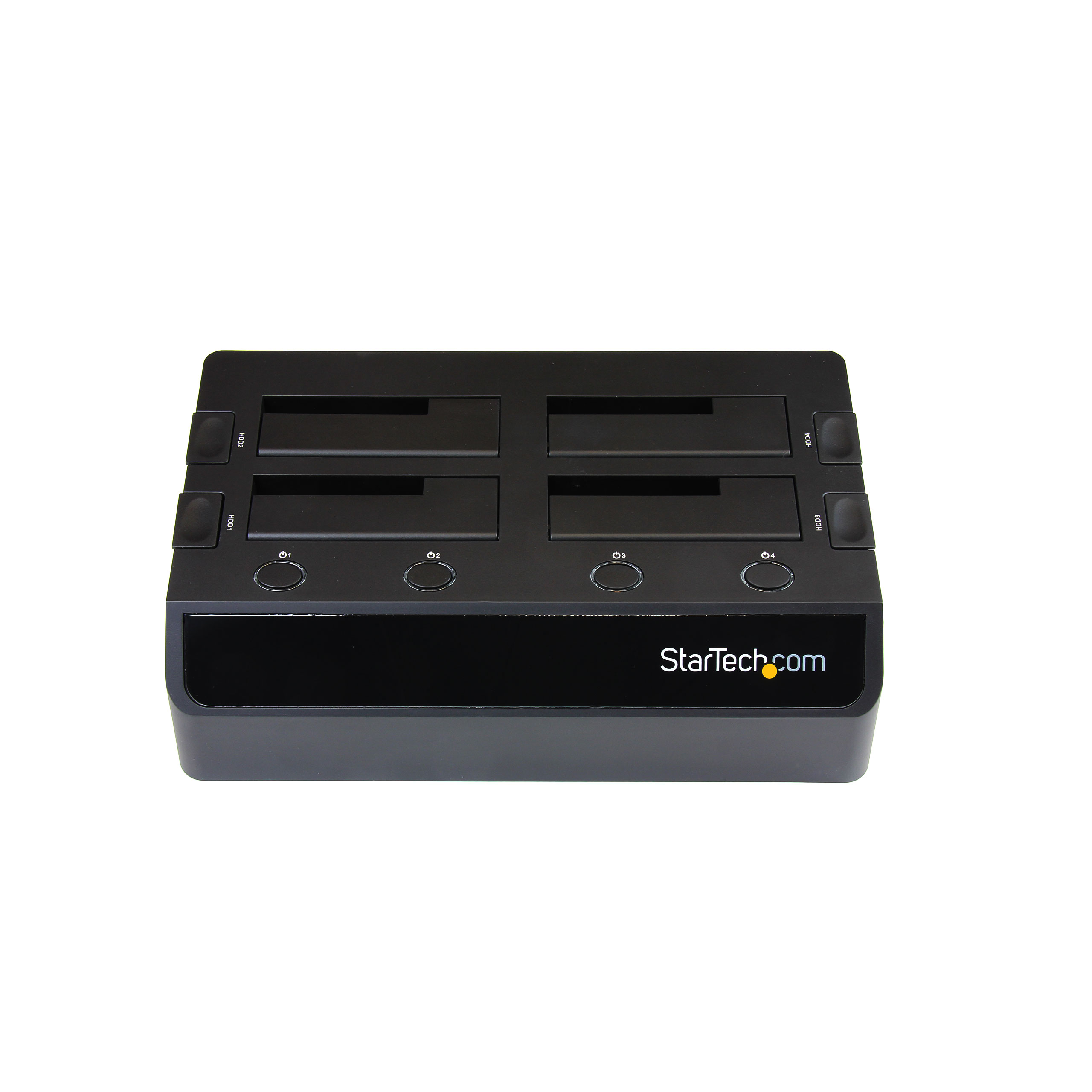

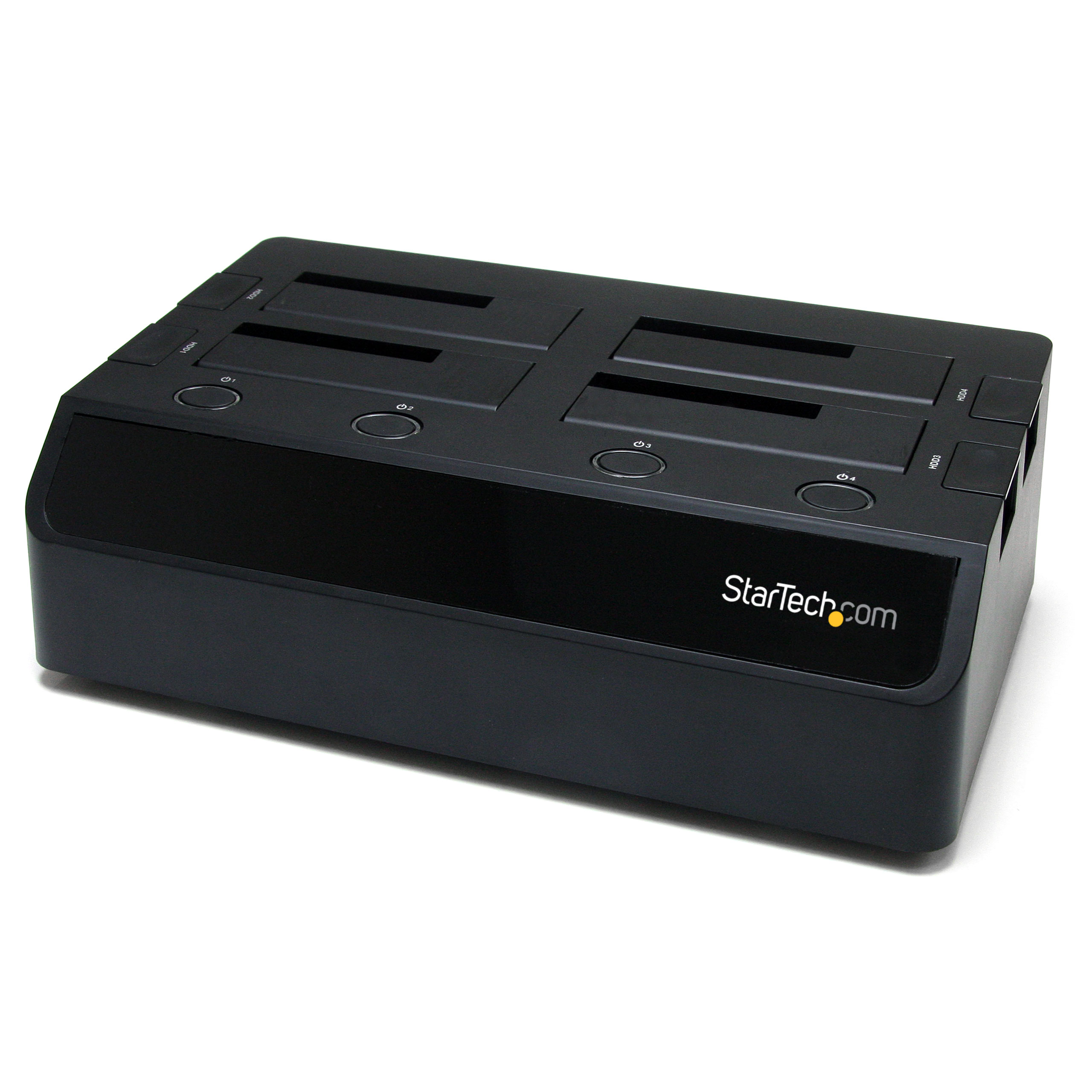

SATDOCK4U3E
4 Bay Hard Drive Dock eSATA USB 3.0 2.5/3.5 HDD

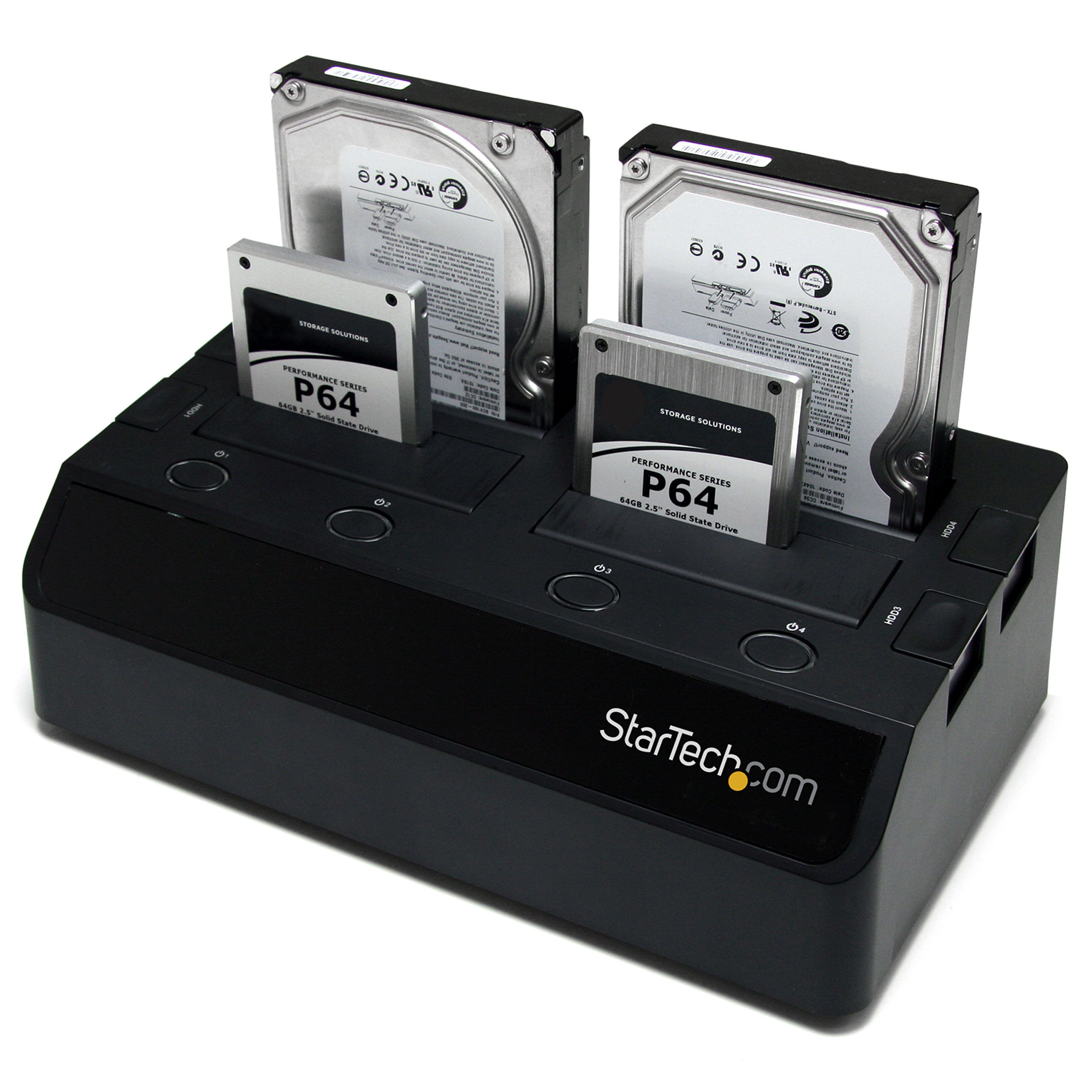

Enable quick access to four 2.5"/3.5" SATA HDD over USB 3.0 or eSATA
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image

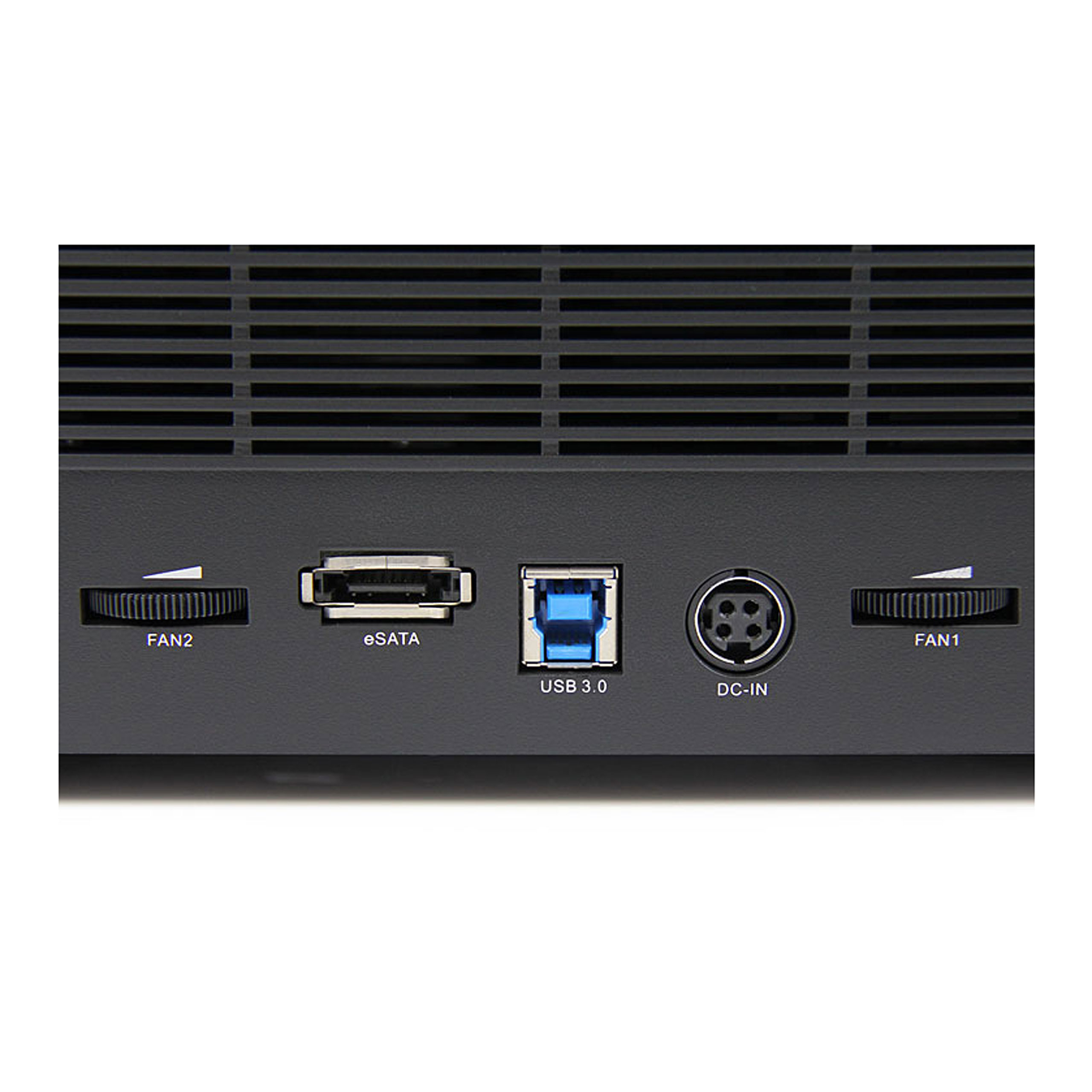

Product Name 4 Bay Hard Drive Dock eSATA USB 3.0 2.5/3.5 HDD Product Number SATDOCK4U3E UPC 065030842488 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) . Product Title (Short) 4 Bay eSATA USB 3.0 to SATA HDD Dock Product Title (Standard) 4 Bay eSATA USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD Product Title (Long) 4 Bay eSATA USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD Product Title (AMZ) 4 Bay eSATA USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD (SATDOCK4U3E) Title Ingram (Part 1) 4 Bay eSATA USB 3.0 to SATA Hard Title Ingram (Part 2) Drive Docking Station Website Product Headline Enable quick access to four 2.5"/3.5" SATA HDD over USB 3.0 or eSATA Bullet 1 Dual 60mm cooling fans mounted below the drives with variable speed controls (including OFF) Bullet 2 Plug-and-Play and Hot-Swap compatible Bullet 3 SuperSpeed USB 3.0 compliant host interface with support for transfer rates up to 5 Gbps Bullet 4 High speed eSATA with Port Multiplier host interface with supported transfer rates up to 3 Gbps Bullet 5 Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD) Bullets (Consolidated) Enable quick access to four 2.5"/3.5" SATA HDD over USB 3.0 or eSATA - Compatible with USB and eSATA enabled computer systems such as Latitude E5530 and 2.5in or 3.5in SATA solid-state Drives and hard drives - HDD Dock/SSD Dock/USB 3.0 Hard Drive Dock/eSATA Hard Drive Dock/SATA HDD and SSD Dock SATA 6Gbps - 4-Drive Dock w/ fans/Save time while backing up data to an external drive for archiving - Easily transfer data from one hard drive to another Marketing Copy Applications - Technicians who need to access up to 4 different drives from a single station
- Users who want to access multiple external drives but with a limited number of USB/eSATA ports
- IT professionals who need to hot-swap between multiple SATA drives regularly
- System builders who need to quickly image or copy data to multiple drives simultaneously
Website Search Keyword - hard drive dock
- SATA hard drive docking station
- quad drive dock
- 4 bay HDD dock
- USB 3.0 dock
- eSATA docking station
- external HDD docking station
Special Notes eSATA connections require the host computer to support Port Multiplier technology, otherwise only one of the hard drives will be detected. System and Cable Requirements Available USB 2.0 or 3.0 port or eSATA port Accessory Products - PEXUSB3S11
- ECUSB3S2
- ECESATA1
- ECESATA22
- ECESATA254
- USB3SAB3BK
- USB3SAB10BK
- ESATA3
- ESATA6
- PEXESATA1
- PEXESATA2
- ESATAPLATE1
- ESATAPLT1LP
- HDDSLEV25
- HDDSLEV35
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
- SVA12DN4NEUA
Related Products - SATDOCK22RE
- SATADOCK22UE
- SATDOCK22R
- SATDOCKU3S
- SATDOCKU3SE
- SATDOCKU3SP
- SATADOCKU2E
- UNIDUPDOCK
Replacement Product SDOCK4U33E Input Current 2.5 Input Voltage 110V-240V AC Output Current 6.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type 4-pin DIN Center Tip Polarity Positive Color Black Humidity 8% ~ 90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 290.5 Product Width (mm) 172.7 Product Height (mm) 94.7 Product Weight (g) 966 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15, 000 cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives per bay (16TB total) and 1TB 5400 RPM 2.5" hard drives (4TB total) OS Compatibility OS Independent SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fans 2 - 60 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.0 & eSATA LED Indicators - 4 - Power (Blue)
- 4 - Activity (Red)

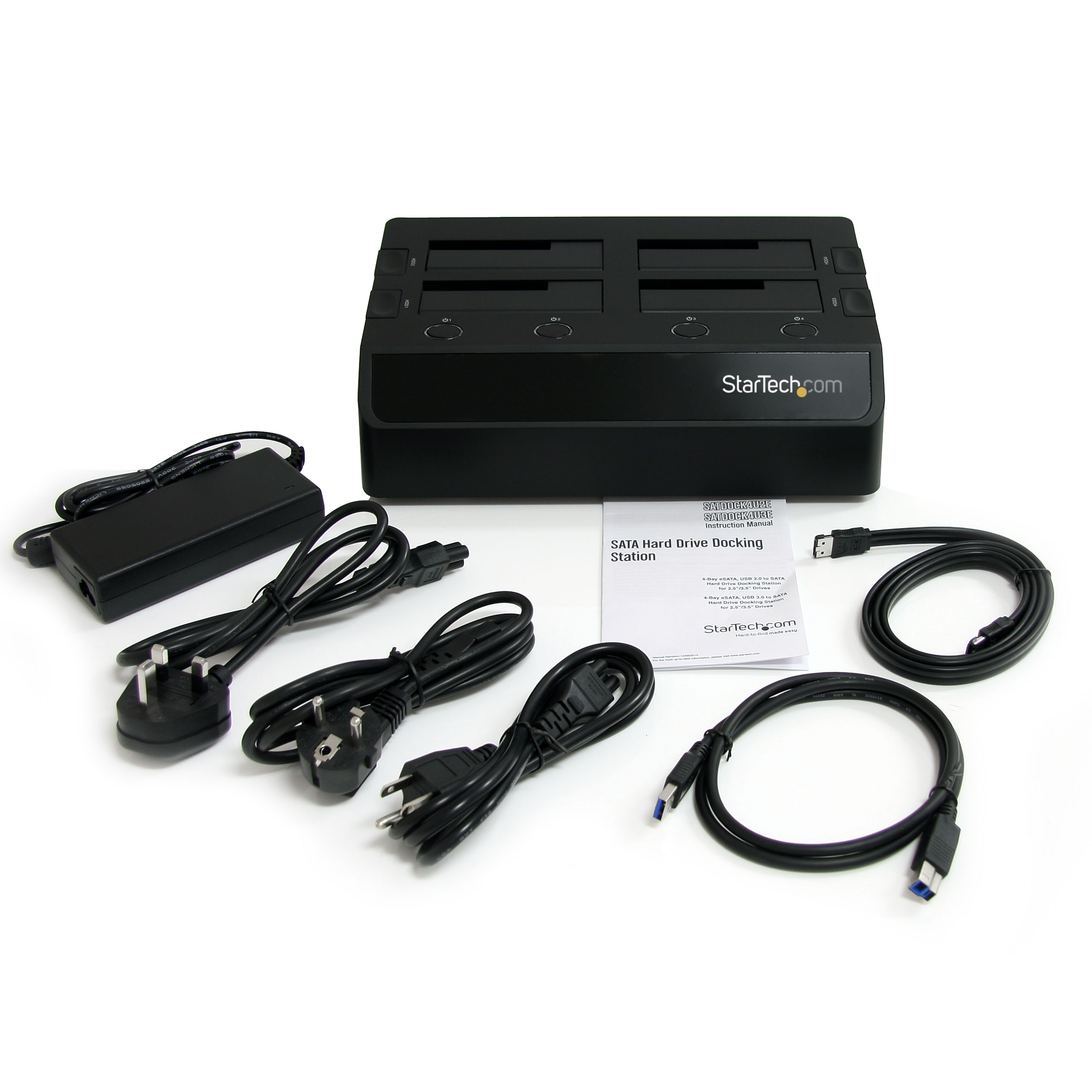

Number of Drives 4 Carton Depth (mm) 354 Carton Height (mm) 470 Carton Quantity 6 Carton Weight Gross (g) 10100 Included in Package - 1 - 4-Bay HDD Docking Station
- 1 - USB 3.0 cable
- 1 - eSATA cable
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual

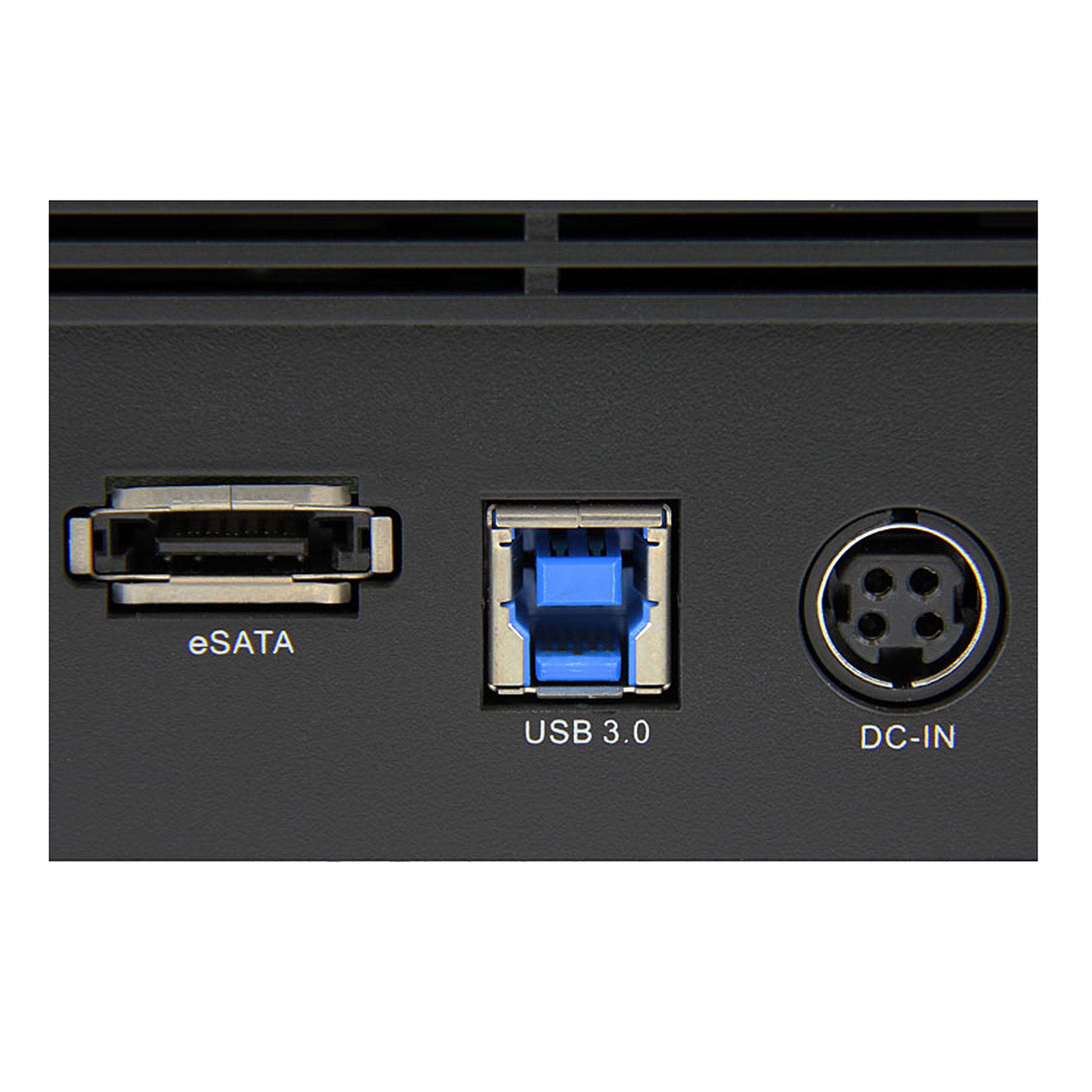

Package Depth (mm) 168 Package Height (mm) 213 Package Width (mm) 340 Package Quantity 1 Package Weight (g) 1598 Packaging Description 4 Bay eSATA/USB 3.0 to SATA HDD Dock Packaging Description India 4 Bay eSATA/USB 3.0 to SATA HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
