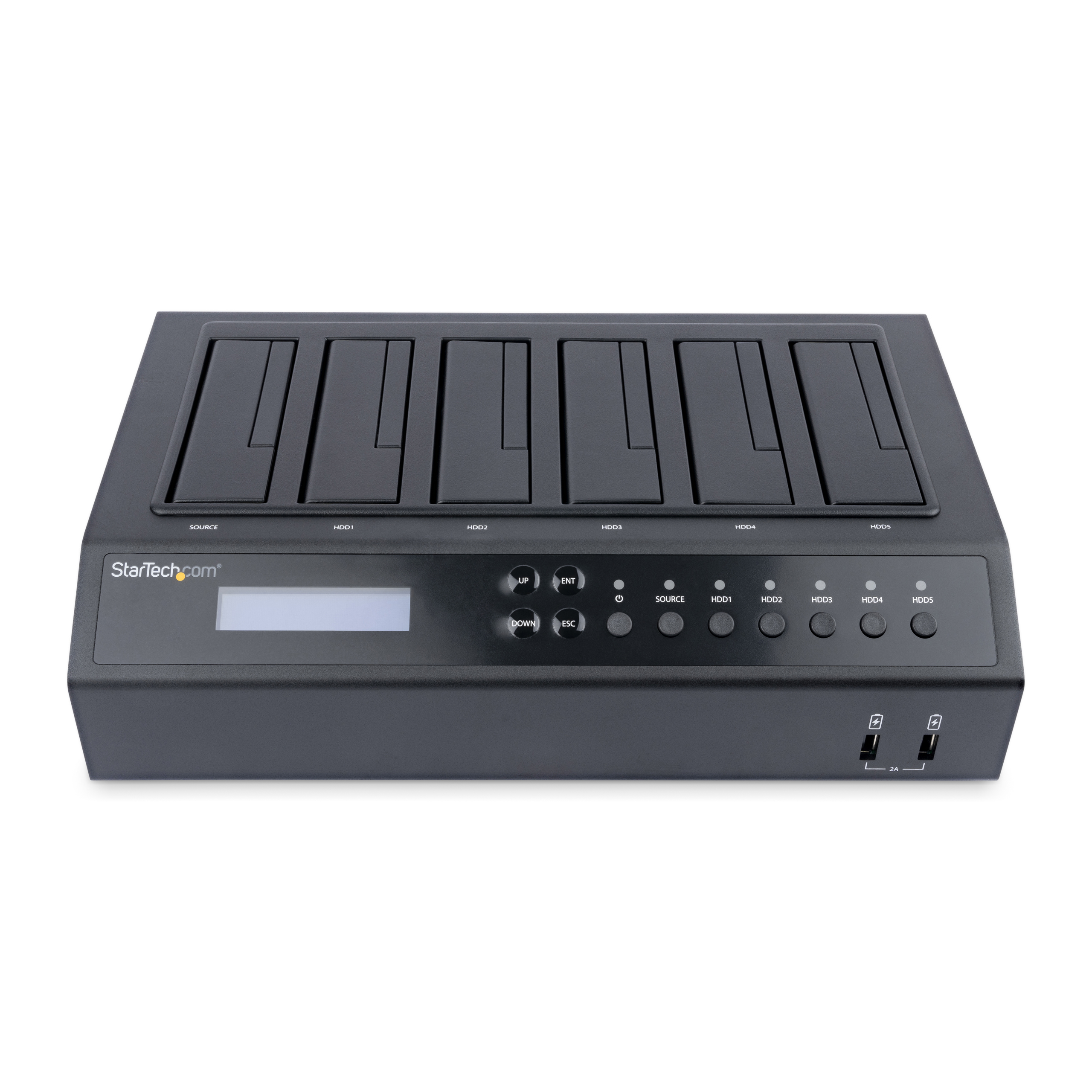

SATDOCK5U3ER
1 5 Hard Drive Duplicator

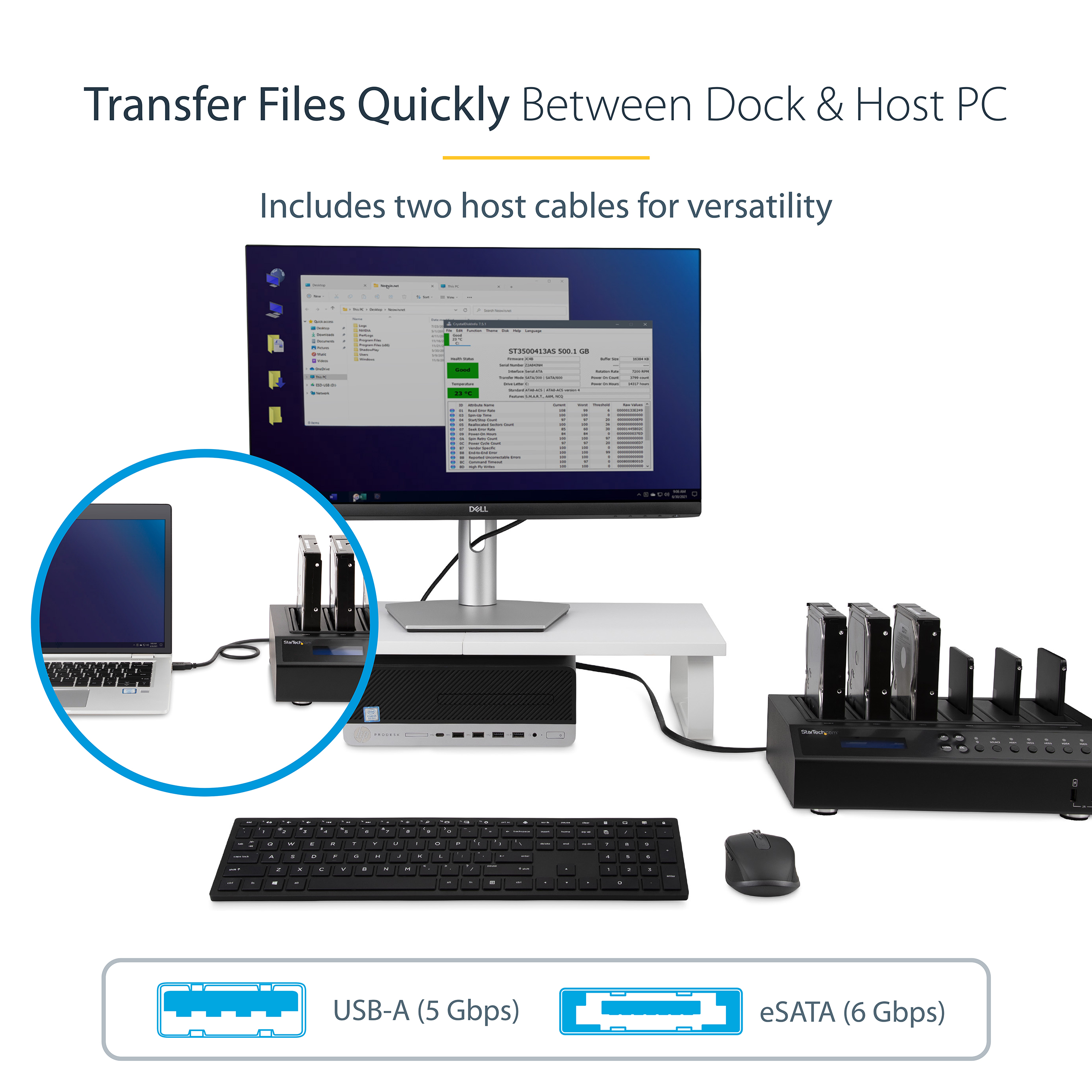

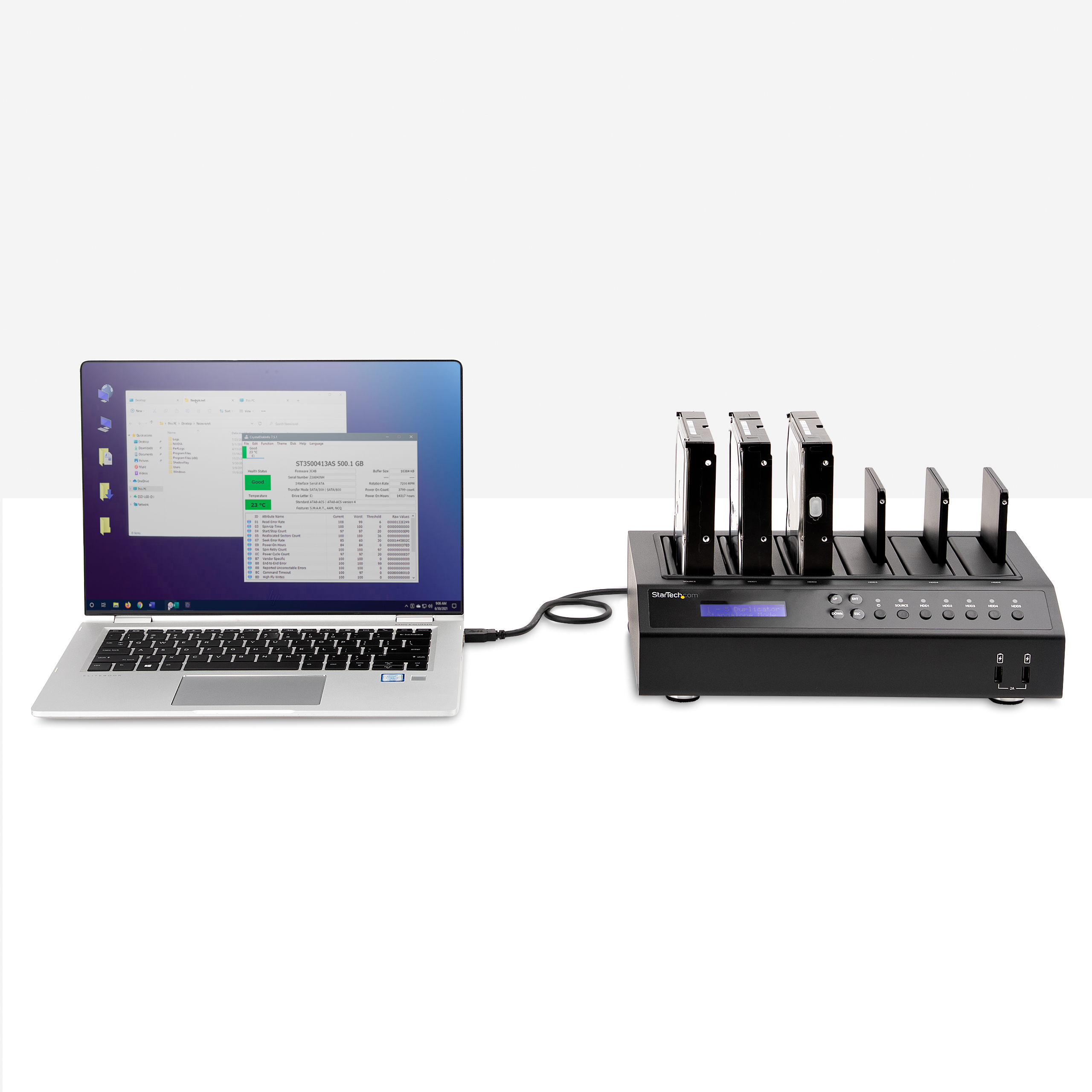

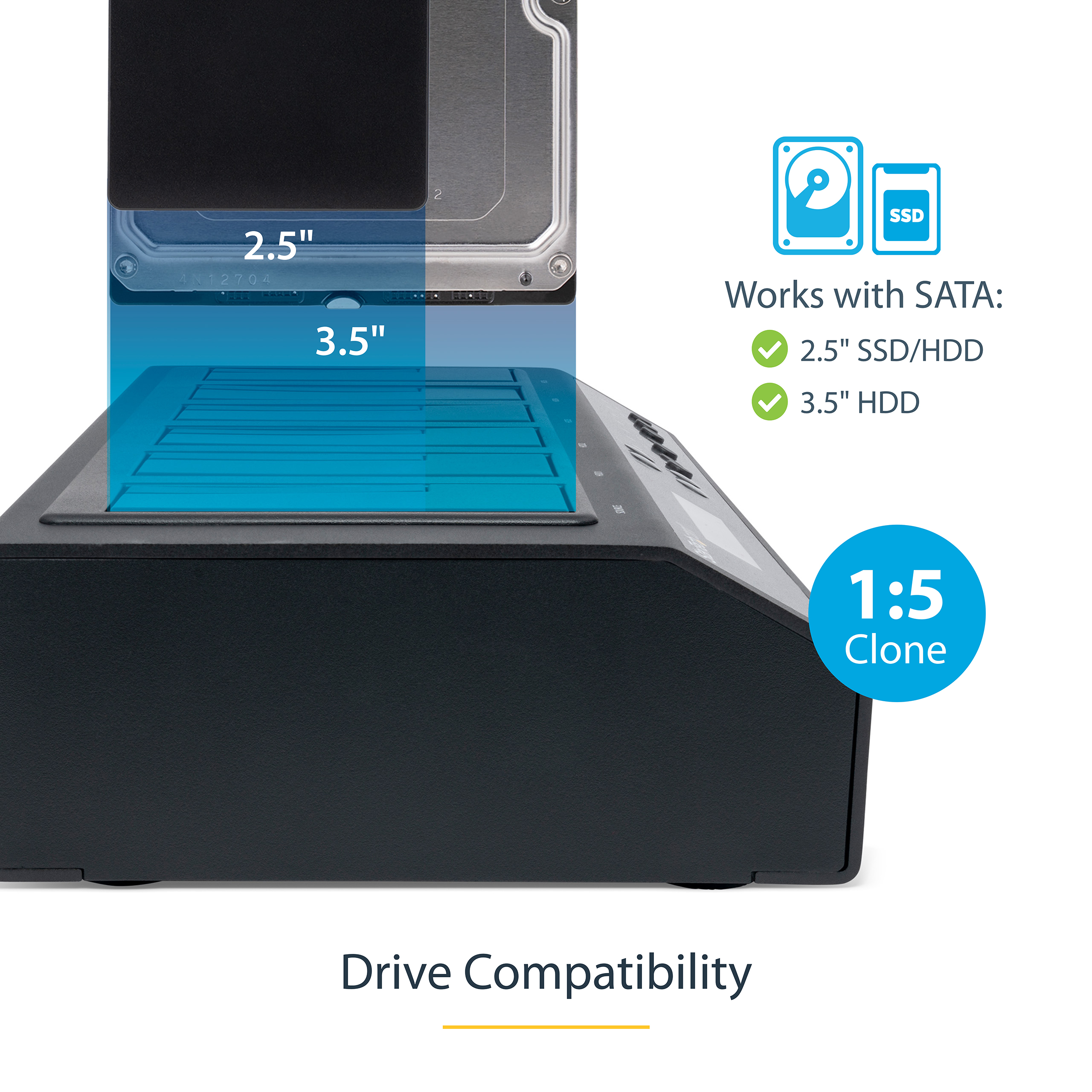

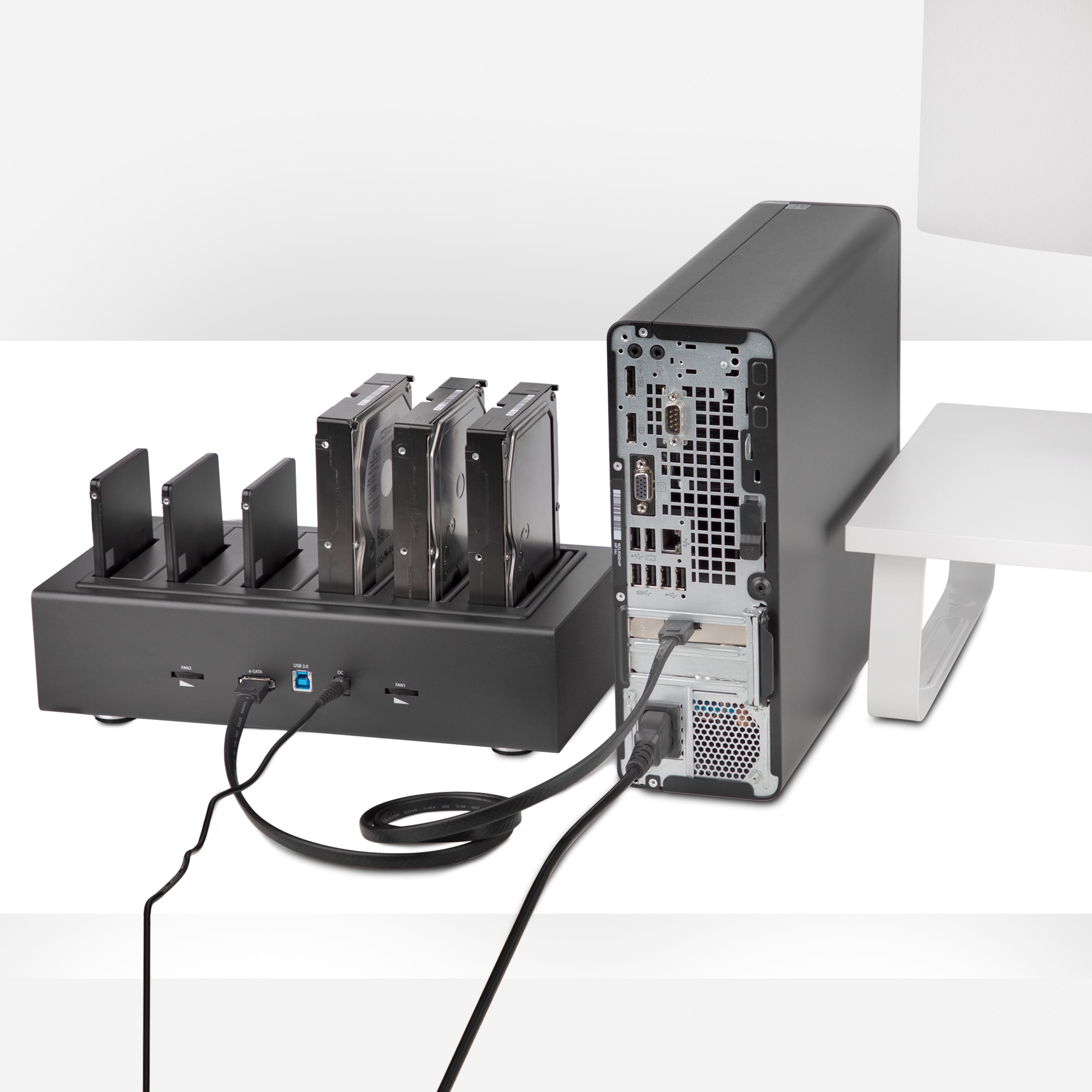

Duplicate a 2.5 in. or 3.5 in. SATA drive to five drives simultaneously, or dock the source drive or the five target drives to a computer through USB 3.0 or eSATA
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name 1 5 Hard Drive Duplicator Product Number SATDOCK5U3ER UPC 065030859172 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Duplicators and Erasers Category Level 1 Data Storage Category Level 2 Drive Duplicators and Erasers Category Level 3 Drive Duplicators and Erasers - SATA Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) HDD Duplicator Dock Product Title (Short) USB 3.0 / eSATA 1:5 HDD Duplicator Dock Product Title (Medium) USB 3.0 / eSATA 6-Bay Hard Drive Duplicator Dock - 1:5 HDD/SSD Cloner and Eraser Product Title (Standard) 6 Bay Hard Drive Duplicator/Eraser, 1:5 HDD/SSD Cloner/Copier, USB/eSATA to SATA Dock, Disk Sanitizer/Wiper, Cloning Device Product Title (Long) USB 3.0 / eSATA 6-Bay Hard Drive Duplicator Dock - 1:5 HDD / SSD Cloner and Eraser - TAA Product Title (AMZ) 6-Bay Hard Drive Duplicator/Eraser, Standalone 1:5 HDD/SSD Cloner/Copier, USB 3.0/eSATA to SATA Docking Station, Disk Sanitizer/Wiper, DoD Erasing, Cloning Toolless Device (SATDOCK5U3ER) Title Ingram (Part 1) USB 3.0 / eSATA 1:5 HDD / SSD Title Ingram (Part 2) Duplicator Docking Station Website Product Headline Duplicate a 2.5 in. or 3.5 in. SATA drive to five drives simultaneously, or dock the source drive or the five target drives to a computer through USB 3.0 or eSATA Bullet 1 Save time with 1:5 mass drive duplication & 5-drive mass erasing Bullet 2 Maximize versatility with eSATA & USB 3.0 host connections, charge only USB fast-charge ports, plus docking station, eraser and duplicator in a single device Bullet 3 Hassle-free standalone operation with built-in digital LCD display Bullet 4 Supports 2.5in or 3.5in form factor hard drives (HDD) or solid-state drives (SSD) Bullet 5 Supports SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullets (Compact) 6-Bay external hard drive duplicator/eraser; Standalone drive cloner/copier, eraser/wiper, or docking station; 7 GB/min Sector-by-Sector Copying/Cloning Device; Quick / Secure Erase, DoD Erasing; USB 3.0 (5Gbps) and eSATA, HDD/SSD Disk Recovery Tool Bullets (Consolidated) 6-Bay external hard drive duplicator/eraser works with 2.5/3.5" SATA HDD/SSDs - Disk mount/File transfer/Backup/Recovery tool, OS Independent - Hardware includes USB-A, eSATA Cable and Power Adapter, IDE adapter (SAT2IDEADP) sold separately - Hard Disk copier/cloner and wiper features a built-in LCD display, USB Fast Charging Ports and can be connected as a docking station - Up to 7GB/min Standalone sector-by-sector cloning, Quick Erase (NIST SP 800-88 Rev 1) and Secure Erase (DoD 5220.22-M) Marketing Copy Marketing Copy (No HTML) Applications - Create multiple exact replicas of a source drive onto a new drive for large deployment of identical computer systems
- Make exact copies of original hard drives for testing or investigation in law enforcement and forensic applications
- Quickly access external hard drives
- Clone data for disk recovery
- Securely erase multiple drives simultaneously to protect yourself against identity theft
Website Search Keyword - hard drive duplicator
- hdd cloner
- sata hard drive duplicator
- standalone hard drive duplicator
- sata hard drive cloner
- industrial hard drive duplicator
- hard drive quad cloner
- hard drive quad duplicator
- 1 to 5 hard drive cloner
- 1 to 5 hard drive duplicator
- 1 to 5 hdd duplicator
- 1 to 5 sata hard drive duplicator
- 1 to 5 standalone sata hard drive duplicator
- 1:5 hard drive cloner
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - S3510SMU33
- S2510BMU33
- ESATA3
- USB3CAB2M
- HDDCASE25BK
- SAT32M225
- SAT2MSAT25
- SAT2IDEADP
Related Products - SATDOCK4U3RE
- SDOCK1EU3P
- SATDOCK2REU3
- SDOCK2U33RE
- SDOCK2U313R

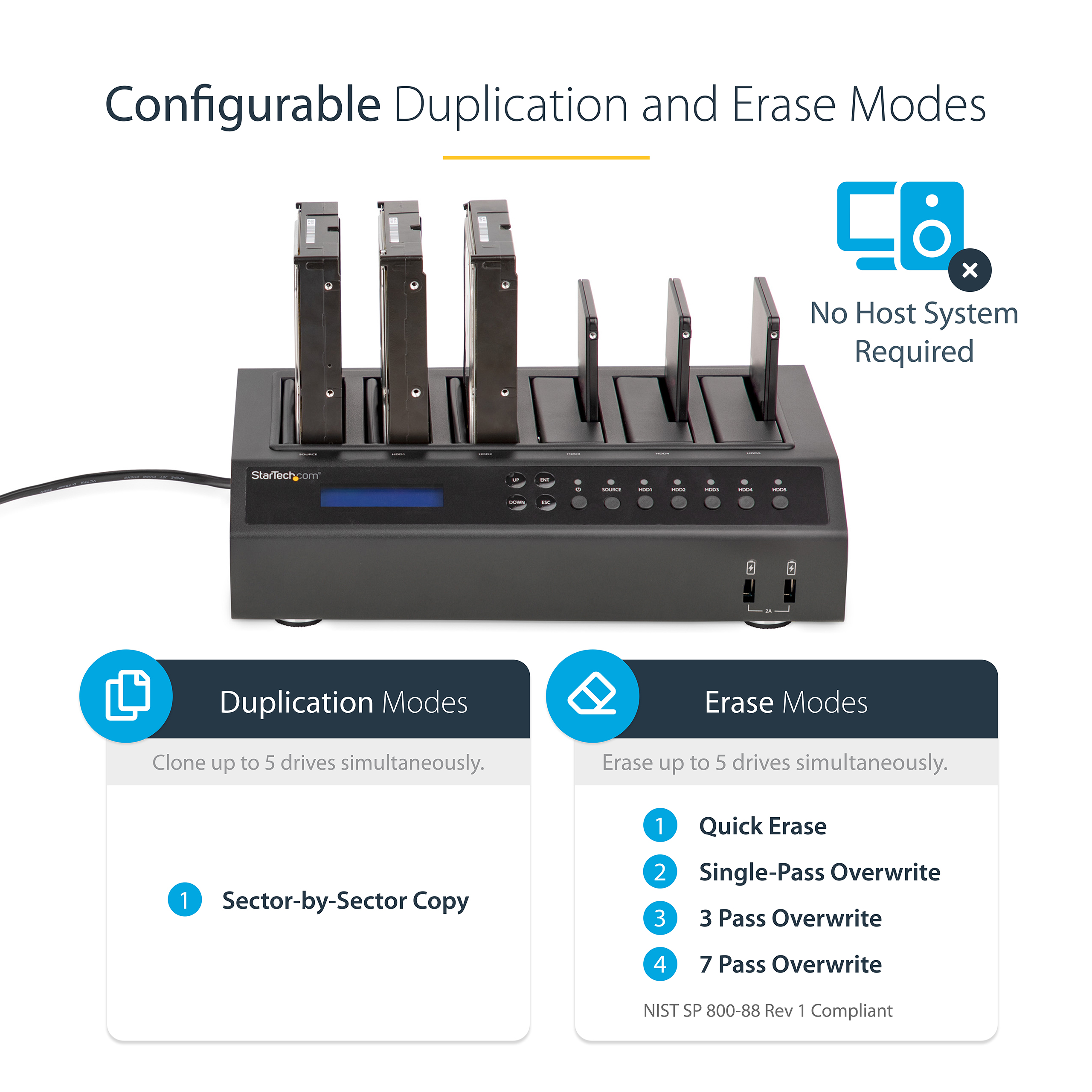

Constrained SKU Alternatives (Limited Stock) SATDOCK4U3RE Input Current 2 A Input Voltage 100 - 240 AC Output Current 5 A Output Voltage (V) 19V DC Power Consumption (In Watts) 95 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20%~80% RH Material Steel Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Steel Product Length (mm) 315.000 Product Width (mm) 151.800 Product Height (mm) 75.000 Product Weight (g) 1500.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant Yes Duplication Modes Sector by Sector (Whole Drive) Duplication Speed 7GBpm Erase Modes - Quick Erase
- 1-Pass Overwrite (NIST SP 800-88 Rev 1 - Clear)
- 3-Pass Overwrite
- 7-Pass Overwrite
General Specifications 7 GB per minute duplication speed Max Drive Capacity Currently tested with up to 6TB 7200 RPM Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent Port Multiplier Yes SATA Type and Rate SATA II (3 Gbps) USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fans 2 - 60 mm LED Indicators - 5 - Target Drive Power / Activity
- 1 - Source Drive Power and Activity
- 1 - Docking station power

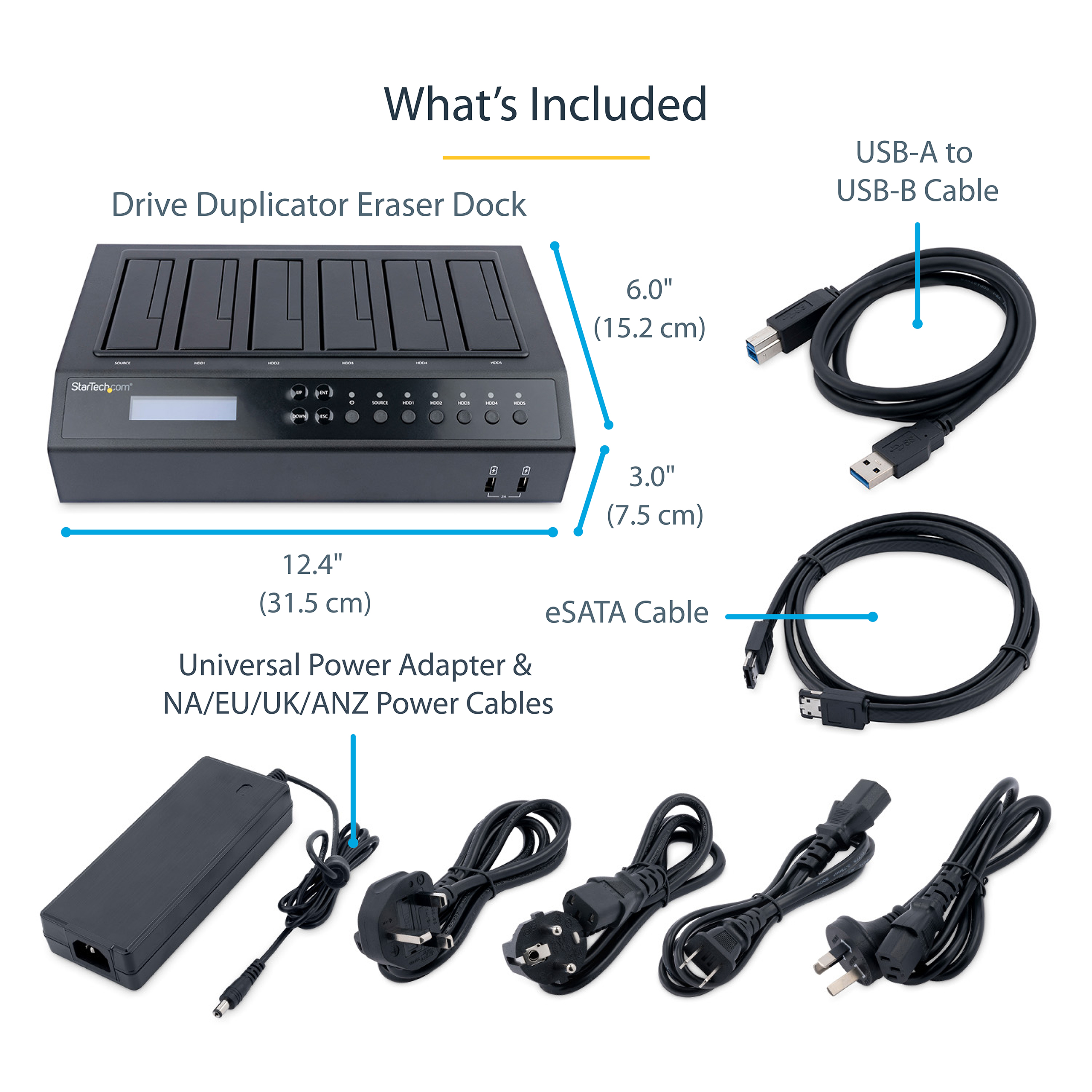

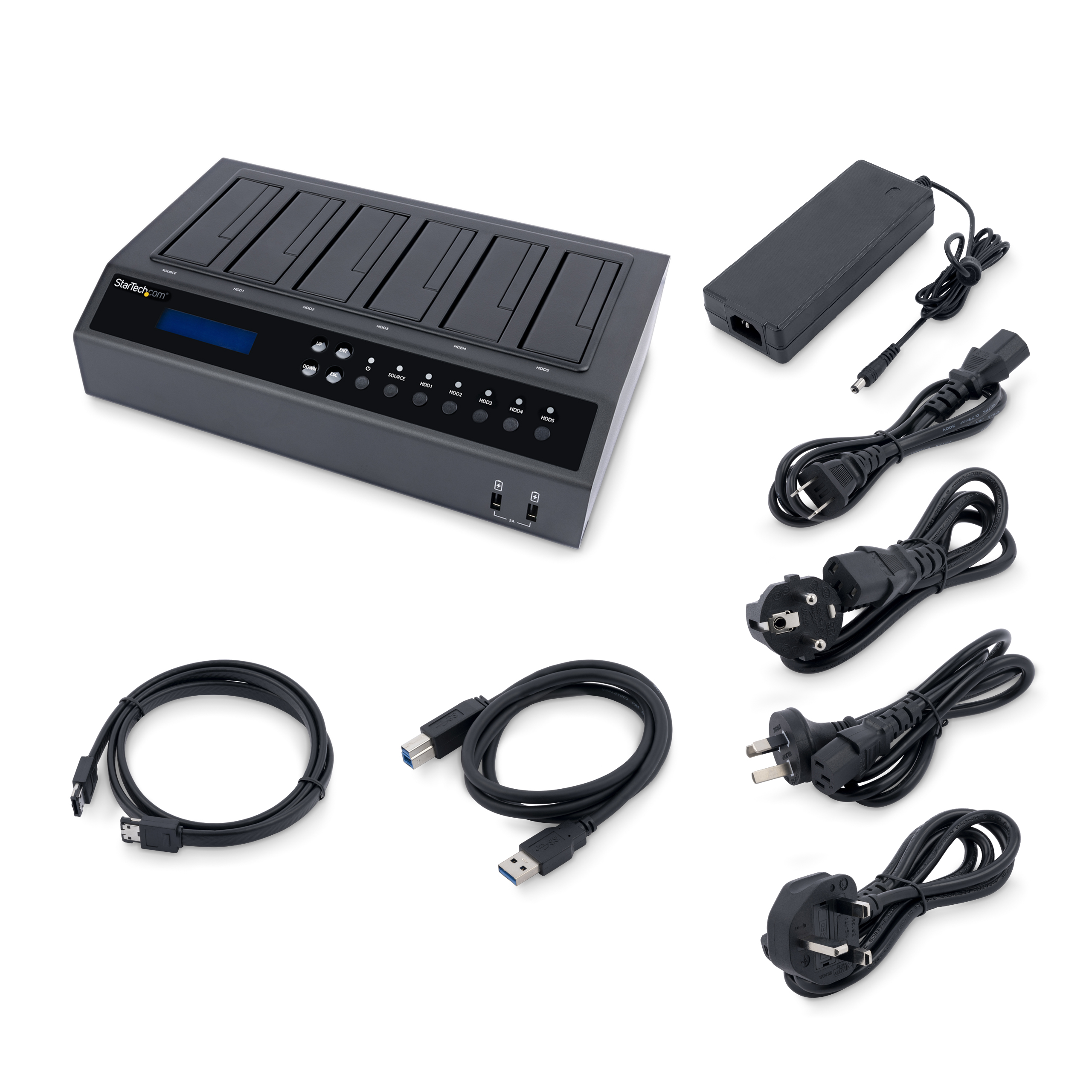

Number of Drives 5 Carton Depth (mm) 415 Carton Height (mm) 411 Carton Quantity 2 Carton Weight Gross (g) 15260 Included in Package - 1 - USB 3.0\eSATA 1:5 SATA HDD duplicator dock
- 1 - USB 3.0 cable
- 1 - eSATA cable
- 4 - rubber feet (installed)
- 1 - universal power adapter (NA, UK, EU, ANZ)
- 1 - instruction manual
Package Depth (mm) 276 Package Height (mm) 197 Package Width (mm) 387 Package Quantity 1 Package Weight (g) 2500 Packaging Description USB 3.0\eSATA 1:5 SATA HDD Duplicator Dock Packaging Description India USB 3.0\eSATA 1:5 SATA HDD Duplicator Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 6 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-08-11 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
