SATDOCKCRH

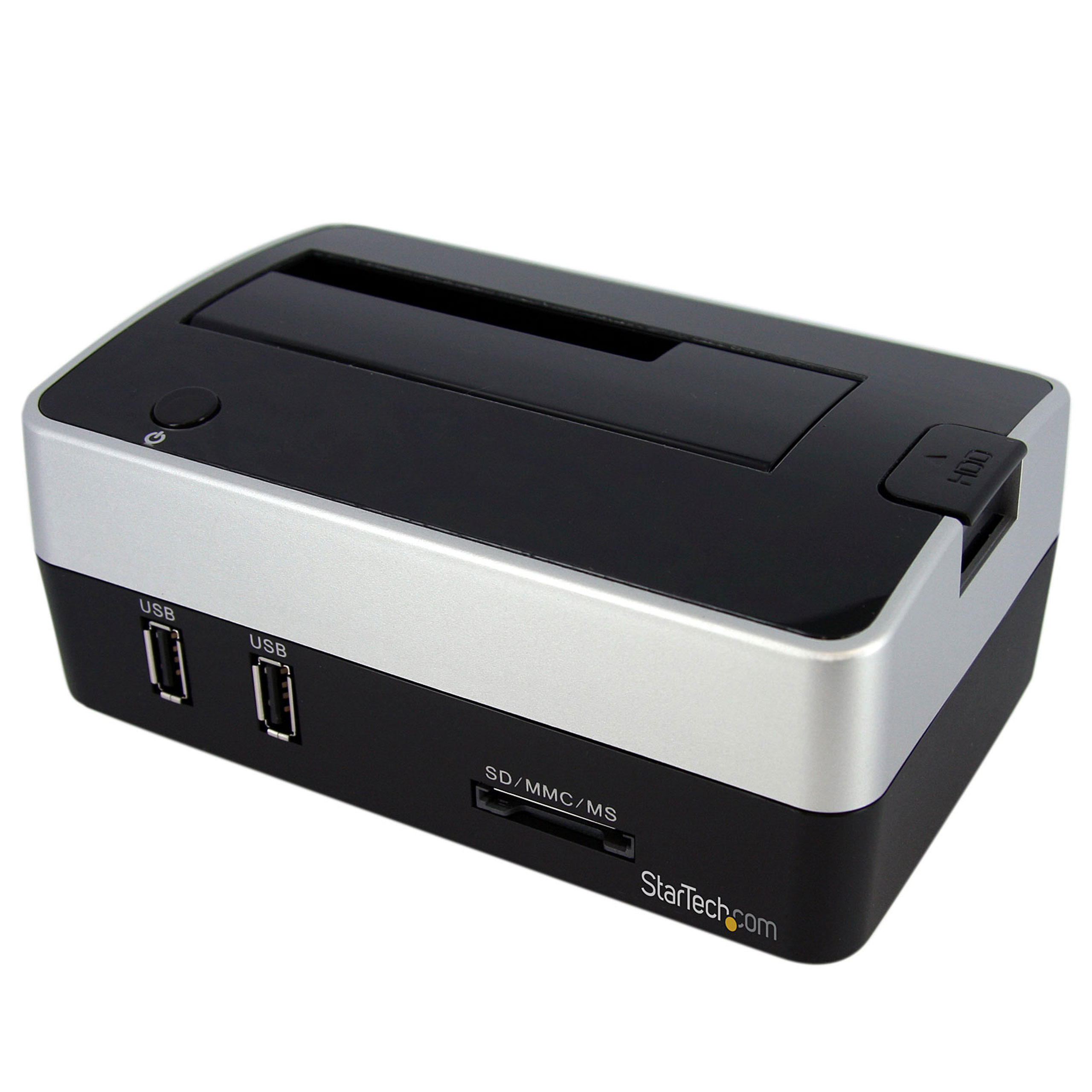

eSATA USB HDD Docking Station w/ Hub & Card Reader
Access and swap SATA hard drives and flash memory cards quickly and easily through USB 2.0
Main Image
Product Images
Product Images
BOM Image
Product Name eSATA USB HDD Docking Station w/ Hub & Card Reader Product Number SATDOCKCRH UPC 065030837002 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) eSATA USB to SATA HDD Docking Station Product Title (Standard) eSATA USB to SATA Hard Drive Docking Station w/ Hub & Card Reader Product Title (Long) eSATA USB to SATA Hard Drive Docking Station w/ Hub & Card Reader Title Ingram (Part 1) eSATA USB to SATA Hard Docking S Title Ingram (Part 2) tation w/ Hub & Card Reader Website Product Headline Access and swap SATA hard drives and flash memory cards quickly and easily through USB 2.0 Bullet 1 Built-in 13-in-1 memory card reader supports Secure Digital (SD), MultiMedia Card (MMC) and Memory Stick (MS) based Bullet 2 Top slot loading design with drive door Bullet 3 Power button with integrated Power/Activity LED indicator Bullet 4 SATA revision 2 compliant eSATA host interface, with support for transfer rates up to 3 Gbps Bullet 5 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480 Mbps Marketing Copy Applications - Data recovery specialists who need quick access to drives for imaging
- Consolidate the functionality of a card reader and drive dock into a single unit
- Backup data quickly to an external drive for archiving
- Access spare or removed 2.5/3.5" drives quickly to retrieve data from
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Take advantage of new laptops and desktops with USB 3.0 connectivity
Website Search Keyword - 2.5/3.5
- Convenient
- Dual
- eSATA/USB
- removable
- USB to SATA External HDD Dock
- Combo Card Reader and USB HUB
- Docking Station
- Hard Drive Dock
- 13-in-1 Card Reader
- 13n1
Accessory Products - ESATA3
- ESATA6
- USB2HAB6
- USB2HAB10
- USB2HAB15
- USB2HAB6T
- USB2HAB10T
- USB2HAB15T
- HDDSLEV25
- HDDSLEV35
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25WH
- HDDCASE25GN
- HDDCASE25YW
- HDDCASE25OR
Related Products - SAT2510BU2
- SAT2510U2
- SAT3510BU2E
- SAT3510U2B
- SAT3510U2V
- SAT3520U2
- SATADOCK22UE
- SATADOCKU2
- SATADOCK525
- SATADOCKU2E
- UNIDOCK2U
- SATDOCK22R
- UNIDUPDOCK
Equivalent Part Number in the UK SATDOCKCRHGB Input Voltage 115V AC Output Current 2.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black & Silver Humidity 8~90% RH Material Plastic Operating Temperature 5°C to 80° (41°F to 176°F) Product Length (mm) 145 Product Width (mm) 93 Product Height (mm) 65 Product Weight (g) 413 Storage Temperature -40°C to 70°C (-40°F to 158°F)) TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives and 1TB 5400 RPM 2.5" hard drives Memory Media Type - MS/MS Pro (Memory Stick/Memory Stick Pro)
- SD/MMC (Secure Digital/Multimedia Card)
- MS Duo, MS Pro Duo, MS Pro-HG Duo
- RS-MMC (Reduced Size Multimedia Card)
- SDHC (Secure Digital High Capacity)
- MS Micro (Memory Stick Micro)
- Mini-SD, Micro-SD (Mini/Micro Secure Digital)
- microSDHC (Micro Secure Digital High Capacity)

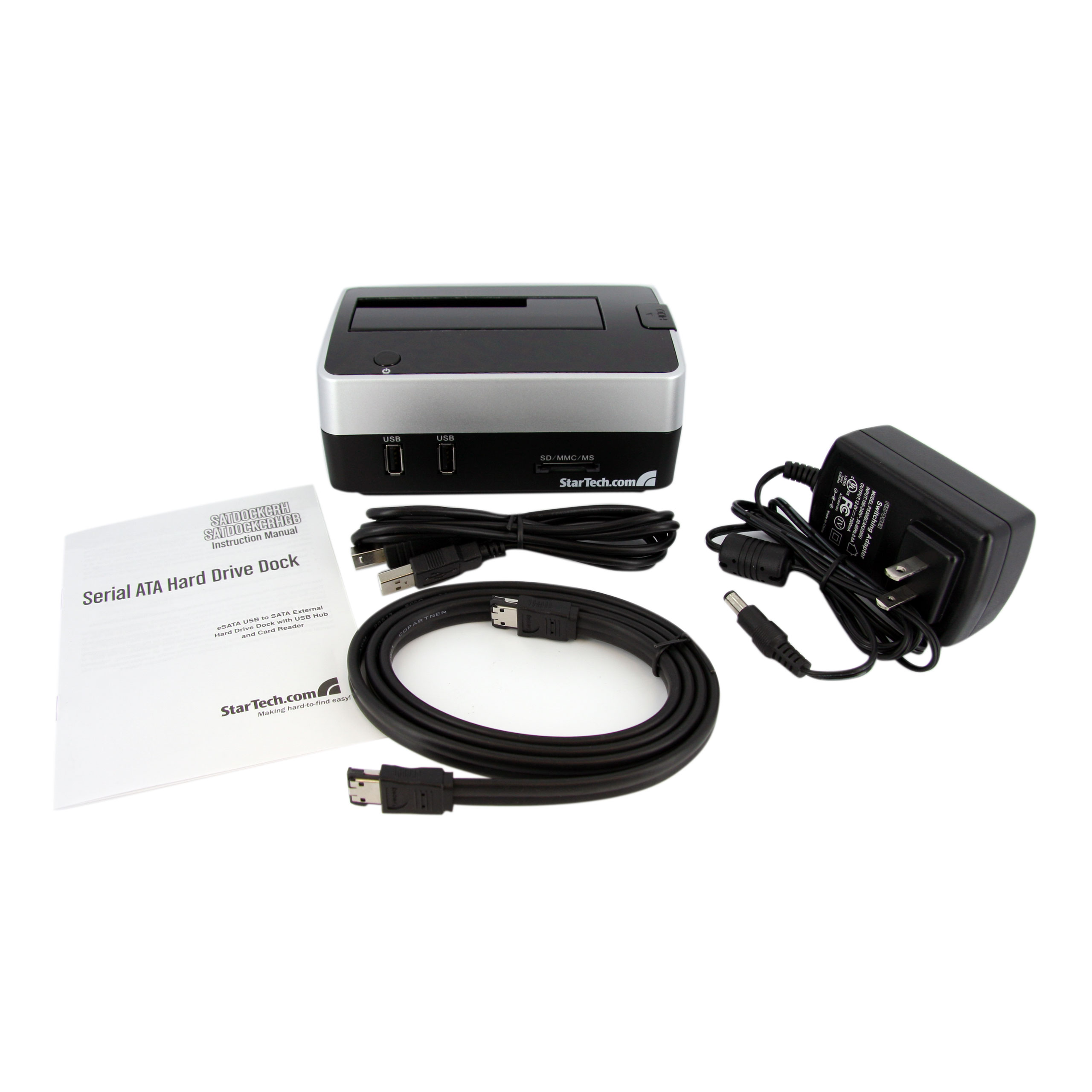

OS Compatibility Windows 8 SATA Type and Rate SATA II (3 Gbps) USB Type and Rate USB 2.0 (480Mbps) Chipset ID Initio - INIC-1611 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 & eSATA LED Indicators 1 - Power and Activity (Solid - Power, Blinking - Activity) Number of Drives 1 Carton Depth (mm) 362 Carton Height (mm) 382 Carton Quantity 10 Carton Weight Gross (g) 9500 Included in Package - 1 - HDD Docking Station
- 1 - Power Adapter
- 1 - eSATA Cable
- 1 - USB Cable
- 1 - Instruction Manual
Package Depth (mm) 91 Package Height (mm) 172 Package Width (mm) 161 Package Weight (g) 830 Packaging Description eSATA/USB 2.0 to 2.5/3.5in SATA HDD Dock Packaging Description India eSATA/USB 2.0 to 2.5/3.5in SATA HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 SD Card Slot Connector 2 (Quantity) 1 Connector 3 SD Card Slot Connector 3 (Quantity) 0 Connector 4 Memory Stick / PRO Slot Connector 4 (Quantity) 0 Connector 5 Memory Stick / PRO Slot Connector 5 (Quantity) 0 Connector 6 Memory Stick Micro (M2) Slot Connector 6 (Quantity) 0 Connector 7 SATA (7-Pin + 15-Pin) Connector 7 (Quantity) 1 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
