SATDOCKU3E
SATA HDD Dock - eSATA USB 3 Docking Station
Connect a 2.5in or 3.5in SATA hard drive to your computer through USB 3.0 or eSATA
Main Image
Product Images
BOM Image
Product Name SATA HDD Dock - eSATA USB 3 Docking Station Product Number SATDOCKU3E UPC 065030840972 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX057X Product Title (Ultra-Short) USB & eSATA HDD Dock Product Title (Short) SATA HDD Hard Drive Dock - eSATA USB 3.0 Product Title (Standard) SATA Hard Drive Docking Station eSATA USB 3.0 to SATA HDD Dock for 2.5in / 3.5in Product Title (Long) SATA Hard Drive Docking Station eSATA USB 3.0 to SATA HDD Dock for 2.5in / 3.5in Product Title (AMZ) SATA Hard Drive Docking Station eSATA USB 3.0 to SATA HDD Dock for 2.5in / 3.5in - eSATA USB 3 HDD Docking Station (SATDOCKU3E) Title Ingram (Part 1) SATA HDD Dock eSATA USB 3 Hard D Title Ingram (Part 2) rive Docking Station 2.5 / 3.5in Website Product Headline Connect a 2.5in or 3.5in SATA hard drive to your computer through USB 3.0 or eSATA Bullet 1 SuperSpeed USB 3.0 compliant host interface, with up to 5 Gbps of data bandwidth Bullet 2 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 3 Separate power switch and status LED Bullet 4 Supports 2.5" and 3.5" form factor SATA hard drives (HDD) and solid state drives (SSD) Bullet 5 SATA revision 2 compliant eSATA host interface, with up to 3 Gbps of data bandwidth Bullets (Consolidated) Replaced by SDOCKU33EBV - Connect a 2.5in or 3.5in SATA hard drive to your computer through USB 3.0 or eSATA Marketing Copy Applications - Technicians who regularly test or benchmark different hard drives and need to swap between them
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external data archiving
Website Search Keyword - hard drive dock
- hard drive docking station
- usb dock
- esata dock
- sata dock
- superspeed
- usb 3.0
- external hdd dock
System and Cable Requirements Available USB or eSATA port Accessory Products - PEXUSB3S2
- ECUSB3S2
- PEXUSB3S11
- USB3SAB3
- USB3SAB6
- USB3SAB10
- ESATA3
- ESATA6
- GCESATAFF
- ESATAPLT1LP
- ESATAPLATE1
- PEXESATA1
- PEXESATA2
- PCIESATA2I
- ECESATA1
- ECESATA254
- CBESAT2
- HDDSLEV25
- HDDSLEV35
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25OR
- HDDCASE25GN
- HDDCASE25WH
- HDDCASE25YW
Related Products - SATDOCKU3S
- USB3S2SATA
- SATDOCKU3SEF
- SATDOCK22U3S
- UNIDOCK3U
- SATDOCK4U3E
- SATDOCK4U3RE
- SATDOCK22RU3
Replacement Product SDOCKU33EBV Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8 ~ 90% RH Material Plastic Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 142 Product Width (mm) 80 Product Height (mm) 80 Product Weight (g) 414 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Hot Swap Capability Yes Insertion Rating 15,000 cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drives OS Compatibility OS Independent RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1051 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.0 & eSATA LED Indicators - 1 - Drive Status (Blue - Powered On, Flashing Red - Activity)
- 1 - Power (Blue)

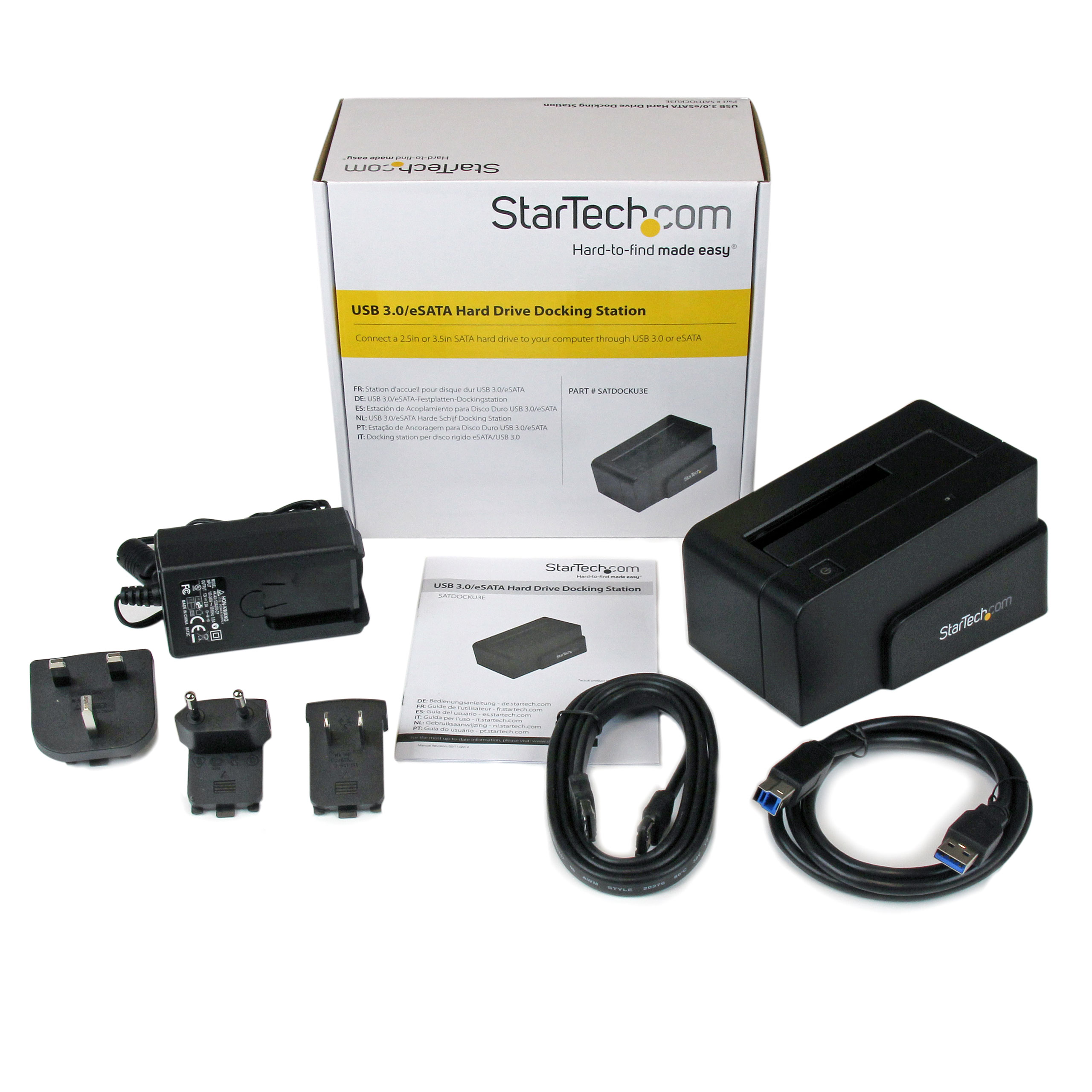

Number of Drives 1 Carton Depth (mm) 385 Carton Height (mm) 385 Carton Quantity 20 Carton Weight Gross (g) 20150 Included in Package - 1 - Hard Drive Docking Station
- 1 - Universal Power Adapter
- 1 - USB 3.0 Cable
- 1 - eSATA Cable
- 1 - Instruction Manual
- 3 - Power Adapter Plug (NA/UK/EU)

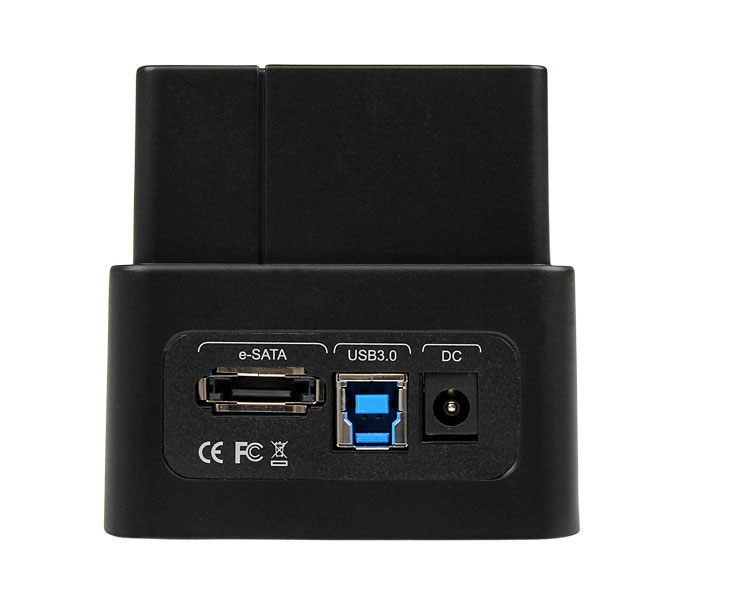

Package Depth (mm) 180 Package Height (mm) 90 Package Width (mm) 190 Package Weight (g) 960 Packaging Description USB 3.0/eSATA Hard Drive Docking Station Packaging Description India USB 3.0/eSATA Hard Drive Docking Station Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,ES,EU,FR,IT,MX,NL,SE,UK,US Primary Technology None Product Development Specialist Yiming Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tony Parackal Product Photographer Alejandra Valencia Tech Lead Justin Weaver
