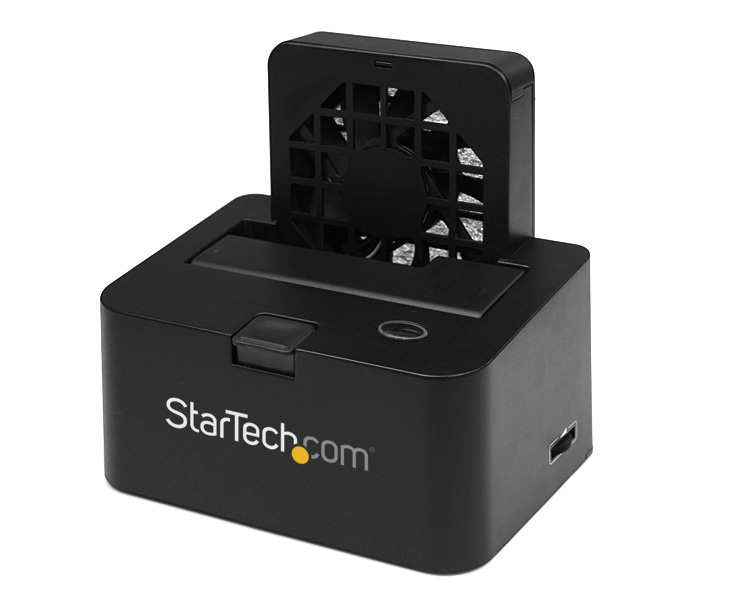

USB 3 eSATA HDD Docking Station with Cooling Fan
Dock your 2.5in or 3.5in SATA Hard Drive over USB 3.0 or eSATA, with the added benefit of a built-in Cooling Fan
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 eSATA HDD Docking Station with Cooling Fan Product Number SATDOCKU3FEU UPC 065030843942 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Family Single Bay SATA Dock 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) USB 3.0 eSATA HDD Docking Station w/ Fan Product Title (Standard) SuperSpeed USB 3.0 eSATA Hard Drive Docking Station with Cooling Fan Product Title (Long) SuperSpeed USB 3.0 eSATA Hard Drive Docking Station with Cooling Fan Product Title (AMZ) SuperSpeed USB 3.0 eSATA Hard Drive Docking Station with Cooling Fan (SATDOCKU3FEU) Title Ingram (Part 1) USB 3.0 eSATA Hard Drive Docking Title Ingram (Part 2) Station with Cooling Fan Website Product Headline Dock your 2.5in or 3.5in SATA Hard Drive over USB 3.0 or eSATA, with the added benefit of a built-in Cooling Fan Bullet 1 80mm cooling fan with variable speed control (including Off) Bullet 2 Top slot-loading design with bay door Bullet 3 SuperSpeed USB 3.0 compliant host interface with support for transfer rates up to 5 Gbps Bullet 4 High speed eSATA host interface with supported transfer rates up to 3 Gbps Bullet 5 Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD) Bullets (Consolidated) Replaced by SDOCKU33EF - Dock your 2.5in or 3.5in SATA Hard Drive over USB 3.0 or eSATA, with the added benefit of a built-in cooling fan Marketing Copy Applications - High performance hard drives that require active cooling for reliability
- Hot or non-temperature controlled environments where passive cooling may not be reliable enough
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Take advantage of new laptops and desktops with USB 3.0 connectivity for faster data transfers
- Upgrade from a USB 2.0 drive dock to faster USB 3.0
Website Search Keyword - eSATA HDD dock
- drive dock with cooling fan
- usb 3.0 docking station
- SATA hard drive dock
- superspeed usb 3.0
- ide pata hdd dock
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference System and Cable Requirements Available USB or eSATA port Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
- HDDSLEV25
- HDDSLEV35
Related Products - SATDOCK25U
- SATDOCKU3S
- SATDOCKU3SP
- SATDOCKCRH
- SATDOCK22R
- SATDOCKU3SE
- SATDOCK22RE
- SATDOCK4U3E
- SATDOCK4U2E
Replacement Product SDOCKU33EF Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8~90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 130 Product Width (mm) 92 Product Height (mm) 127 Product Weight (g) 505 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drive OS Compatibility OS Independent SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID JMicron - JMS551 Compatible Drive Types SATA Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.0 & eSATA LED Indicators - 1 - Drive Power/Activity
- 1 - Power

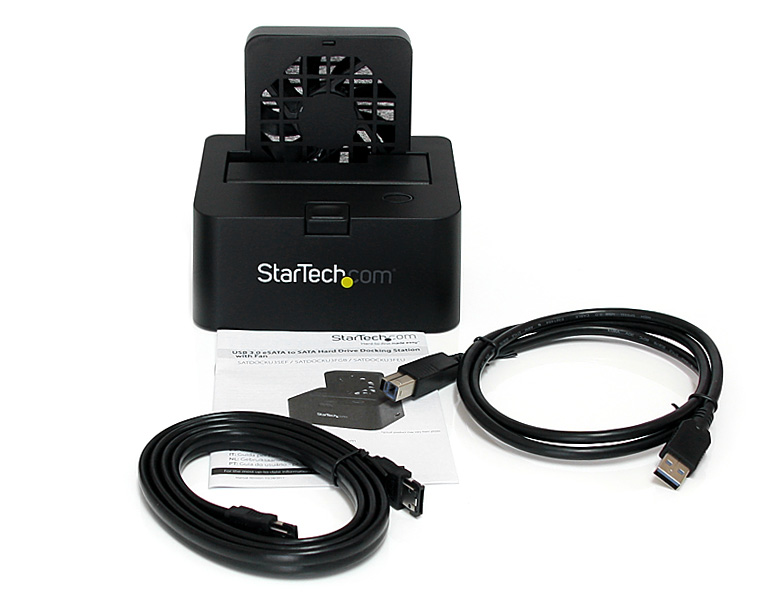

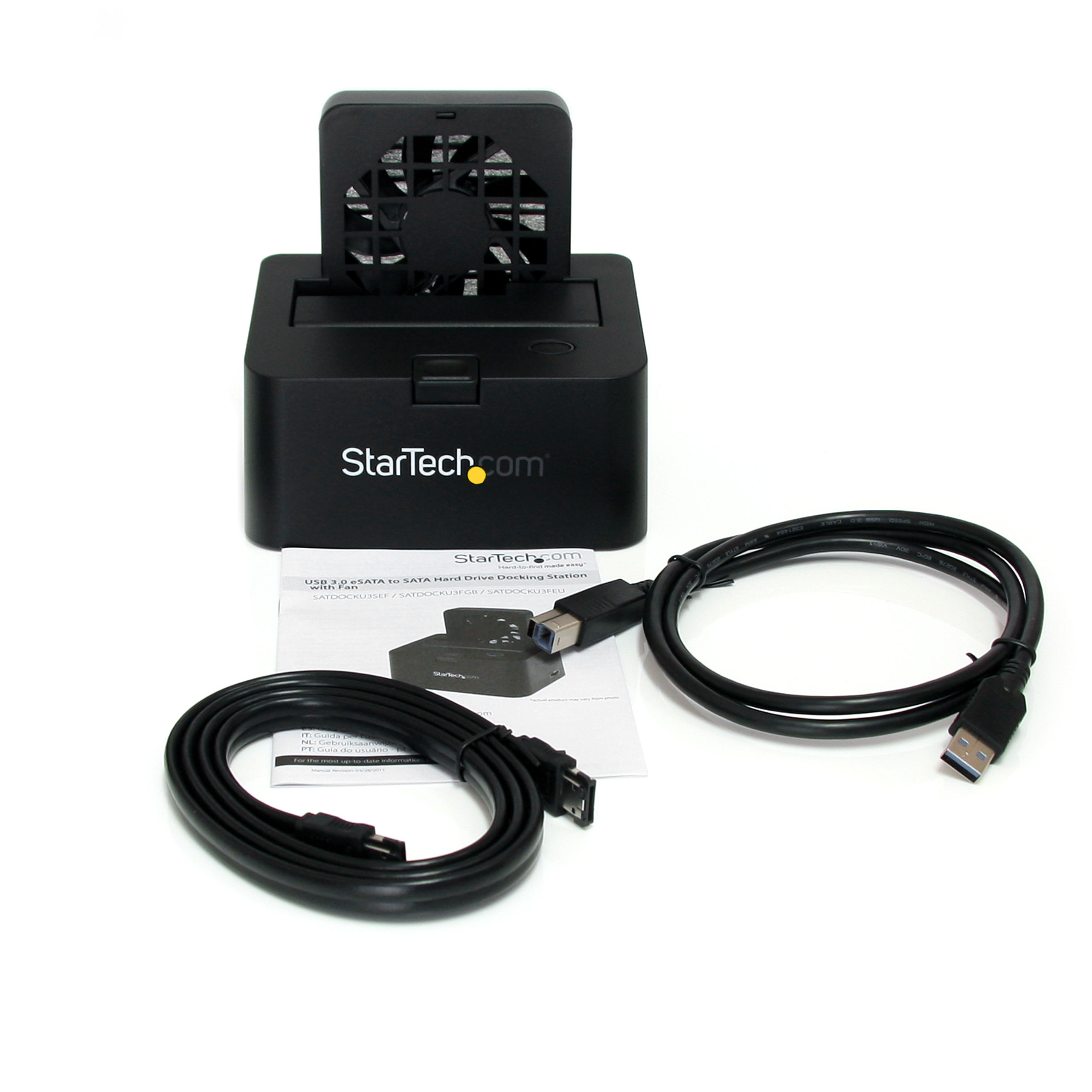

Number of Drives 1 Carton Depth (mm) 175 Carton Height (mm) 405 Carton Quantity 10 Carton Weight Gross (g) 10300 Included in Package - 1 - SATA Hard Drive Dock
- 1 - USB 3.0 Cable
- 1 - eSATA Cable
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 120 Package Height (mm) 190 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 930 Packaging Description USB 3.0/eSATA to SATA HDD Dock w/Fan Packaging Description India USB 3.0/eSATA to SATA HDD Dock w/Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
