SATDOCKU3S
SuperSpeed USB 3 0 to SATA Hard Drive Docking Station for 2
SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock
Main Image
Product Images
Product Images
BOM Image
Product Name SuperSpeed USB 3 0 to SATA Hard Drive Docking Station for 2 Product Number SATDOCKU3S UPC 065030838160 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Family Single Bay SATA Dock 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) SATA Hard Drive Dock Product Title (Short) USB 3.0 SATA Hard Drive Docking Station Product Title (Medium) Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Product Title (Standard) Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA HDD/SSD Dock Product Title (Long) Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay Product Title (AMZ) Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay (SATDOCKU3S) Title Ingram (Part 1) Single Bay Hard Drive Dock - Title Ingram (Part 2) USB 3.0 to 2.5/3.5" SATA SSD/HDD Website Product Headline SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock Bullet 1 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Single-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance Bullet 2 DRIVE COMPATIBILITY: Supports a 2.5/3.5" SATA HDD/SSD of any capacity; OS Independent; IDE (SAT2IDEADP), mSATA (SAT2MSAT25), & M.2 SATA (SAT32M225) adapters sold separately Bullet 3 HARD DRIVE DOCKING STATION: This single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for file backup, imaging, and data transfer over USB 3.2 Gen 1 (5 Gbps) Bullet 4 PERFORMANCE: Toolless Top-loading design enables quick hot-swapping of idle drives; Backwards compatible with previous SATA & USB versions; No software / drivers required Bullet 5 SPECS: Single-Bay Hard Drive Dock; SATA I/II/III; USB 3.2 Gen 1 (5 Gbps) Host Connection; Top-Loading Drive Bay with Eject Button; Power and Activity LED Indicators; Includes USB 3.2 (5 Gbps) Type-A Cable and Universal Power Adapter Bullets (Compact) Single-bay Hard Drive Docking Station; 2.5/3.5in SATA I/II/III; USB 3.2 Gen 1 (5 Gbps) Host Connection; 4Kn; No Capacity Limit; Toolless Top-Loading Design with Eject Button; LED Indicators; No Software or Drivers Required; Includes 3ft USB cable Bullets (Consolidated) Single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for backup or data transfer over USB 3.2 (5 Gbps) - Supports 2.5/3.5" SATA HDDs and SSDs of any capacity | 4Kn compatible | No software or drivers required - Top-Loading with Eject Button | LED Indicators | Includes 3ft USB-A Cable and Universal Power Adapter Marketing Copy Applications - Data recovery specialists who need quick access to drives for imaging
- Upgrade from a USB 2.0 drive dock to faster USB 3.0
- Technicians who test or benchmark multiple hard drives
- Backup data quickly to an external drive for archiving
- Take advantage of new laptops and desktops with USB 3.0 connectivity
Website Search Keyword - 2.5/3.5
- Convenient
- Docking Station
- Hard Drive Dock
- removable
- USB to SATA External HDD Dock
- USB 3.0
- SuperSpeed
- Super Speed
- USB 2.0
- Hot Swap Dock
- Plug and Play Dock
- HD Dock
- U339-000
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - USB3SAB10
- USB3SAB3
- USB3SAB6
- SAT2IDEADP
- HDDSLEV25
- HDDSLEV35
- SVA12M2NEUA
- SVA12M5NA
- SAT32MSAT257
- SAT32M225
- PEXUSB3S25
Related Products - SAT2510BU2
- SAT2510U2
- SAT3510BU2E
- SAT3510U2B
- SAT3510U2V
- SAT3520U2
- SATADOCK22UE
- SATADOCK525
- SATADOCKU2
- SATADOCKU2E
- SATDOCK22R
- UNIDOCK2U
- UNIDUPDOCK
- SATDOCKCRH
Input Voltage 100 - 240 AC Output Current 2.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 30 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8~80% RH Material Plastic Operating Temperature 5°C to 80° (41°F to 176°F) Primary Material Plastic Product Length (mm) 145 Product Width (mm) 93 Product Height (mm) 65 Product Weight (g) 392 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with hard drives up to 16TB at 7200 RPM OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support No USB Type and Rate - USB 3.0 (5Gbps)
- USB 2.0 (480Mbps)

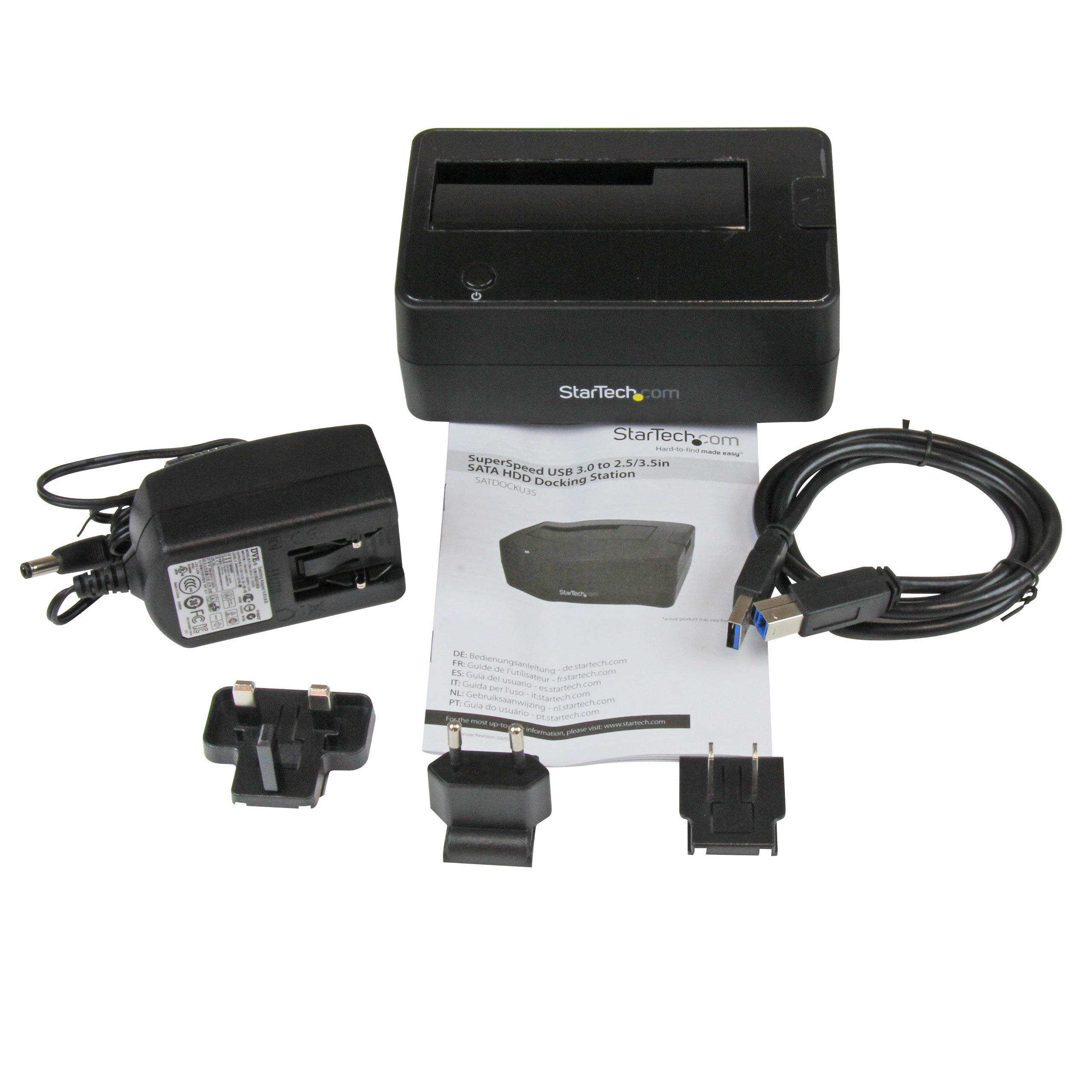

Chipset ID ASMedia - ASM225CM Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power and Activity (Solid - Power, Blinking - Activity) Number of Drives 1 Carton Depth (mm) 486 Carton Height (mm) 389 Carton Quantity 10 Carton Weight Gross (g) 7846 Included in Package - 1 - USB 3.0 HDD Dock
- 1 - USB 3.0 Cable
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA,EU,UK,ANZ)
Package Depth (mm) 163 Package Height (mm) 94 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 732 Packaging Description USB 3.0 to 2.5/3.5in SATA HDD Dock Packaging Description India USB 3.0 to 2.5/3.5in SATA HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
