SATDOCKU3SE
USB 3 SATA HDD Docking Station w/ Controller
Enable fast, swappable external access to SATA drives, through a USB 3.0 ExpressCard
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name USB 3 SATA HDD Docking Station w/ Controller Product Number SATDOCKU3SE UPC 065030839358 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) USB 3 SATA Hard Drive Docking Station Product Title (Standard) USB 3 SATA HDD Docking Station & Laptop Controller Product Title (Long) USB 3.0 SATA Hard Drive Docking Station w/ Laptop Controller Title Ingram (Part 1) USB 3.0 SATA HDD Docking Station Title Ingram (Part 2) w/ Laptop Controller Website Product Headline Enable fast, swappable external access to SATA drives, through a USB 3.0 ExpressCard Bullet 1 Plug-and-Play and hot-swap compatible Bullet 2 Supports 2.5" and 3.5" SATA hard drives (HDD) and solid state drives (SSD) Bullet 3 Power/Activity LED indicator Bullet 4 Includes an ExpressCard 2-Port USB 3.0 host controller card Bullet 5 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480Mbps Marketing Copy Applications - Upgrade from a USB 2.0 drive dock to faster USB 3.0
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Upgrade an older laptop with USB 3.0 connectivity and matching drive docking station
Website Search Keyword - 2.5/3.5
- Convenient
- Docking Station
- Hard Drive Dock
- Hot Swap Dock
- Plug and Play Dock
- removable
- Super Speed
- SuperSpeed
- USB 2.0
- USB 3.0
- USB to SATA External HDD Dock
- ExpressCard adapter
- Docking Station Kit
Accessory Products - PEXUSB3S2
- USB3SAB10
- USB3SAB3
- USB3SAB6
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25OR
- HDDCASE25GN
- HDDCASE25WH
- HDDCASE25YW
- HDDSLEV25
- HDDSLEV35
Related Products - SAT2510BU2
- SAT2510U2
- SAT3510BU2E
- SAT3510U2B
- SAT3510U2V
- SAT3520U2
- SATADOCK22UE
- SATADOCK525
- SATADOCKU2
- SATADOCKU2E
- SATDOCK22R
- SATDOCKCRH
- UNIDOCK2U
- UNIDUPDOCK
- SATDOCKU3S
Input Voltage 110V-240V AC Output Current 2.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8~80% RH Material Plastic Operating Temperature 5°C to 80° (41°F to 176°F) Product Length (mm) 145 Product Width (mm) 93 Product Height (mm) 65 Product Weight (g) 407.24 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity 2TB (3.5in), 500GB (2.5in) OS Compatibility - Linux
- Windows 7
- Windows Vista
- Windows XP
- Windows Server 2003
- Windows Server 2008 R2
USB Type and Rate - USB 2.0 (480Mbps)
- USB 3.0 (5Gbps)
Chipset ID Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power and Activity (Solid - Power, Blinking - Activity) Number of Drives 1 Carton Depth (mm) 477 Carton Height (mm) 412 Carton Quantity 1 Carton Weight Gross (g) 9900 Included in Package - 1 - Instruction Manual
- 3 - Power Adapter Plug (NA/EU/UK)
- 1 - Universal Power Adapter
- 1 - USB 3.0 Cable

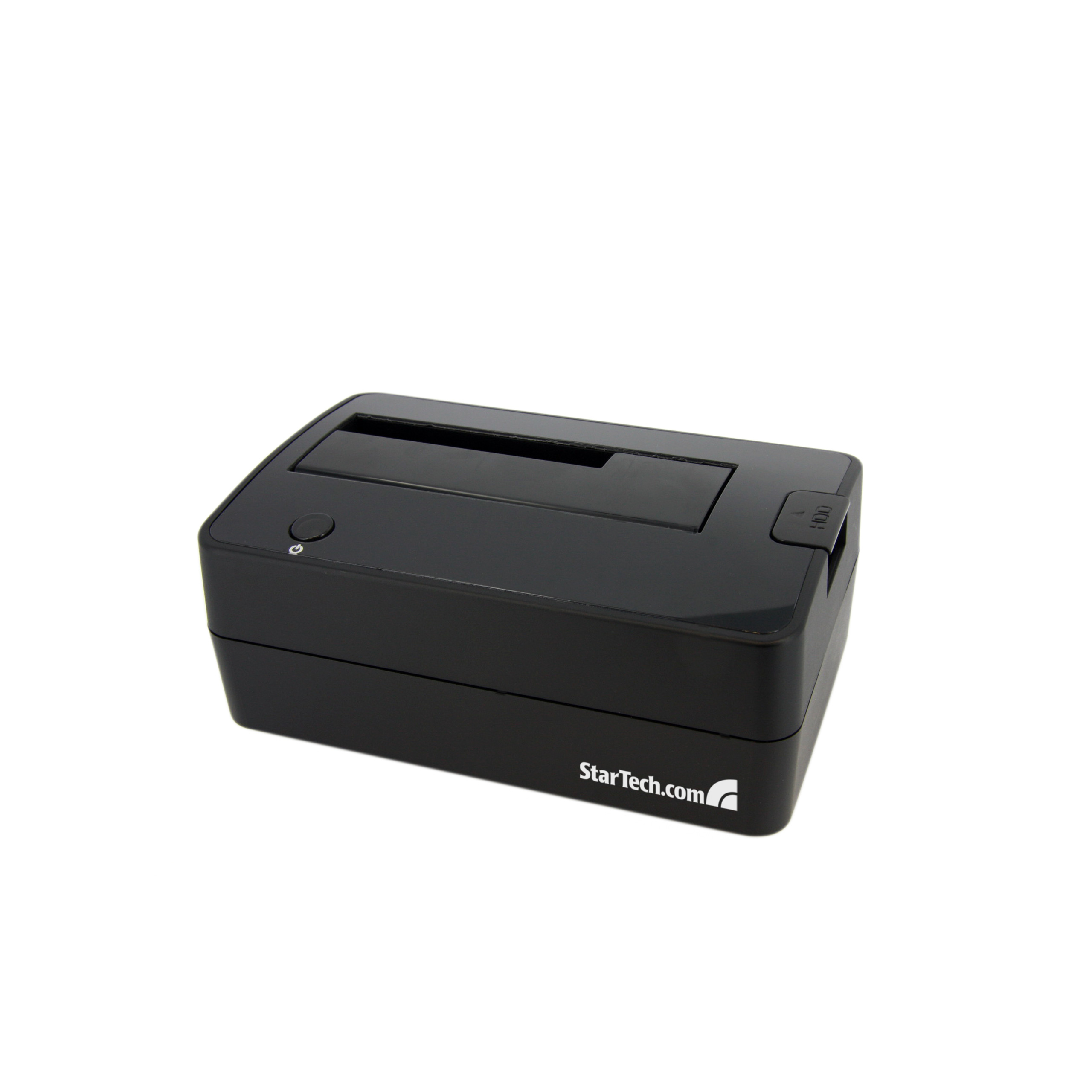

- 1 - USB 3.0 HDD Dock

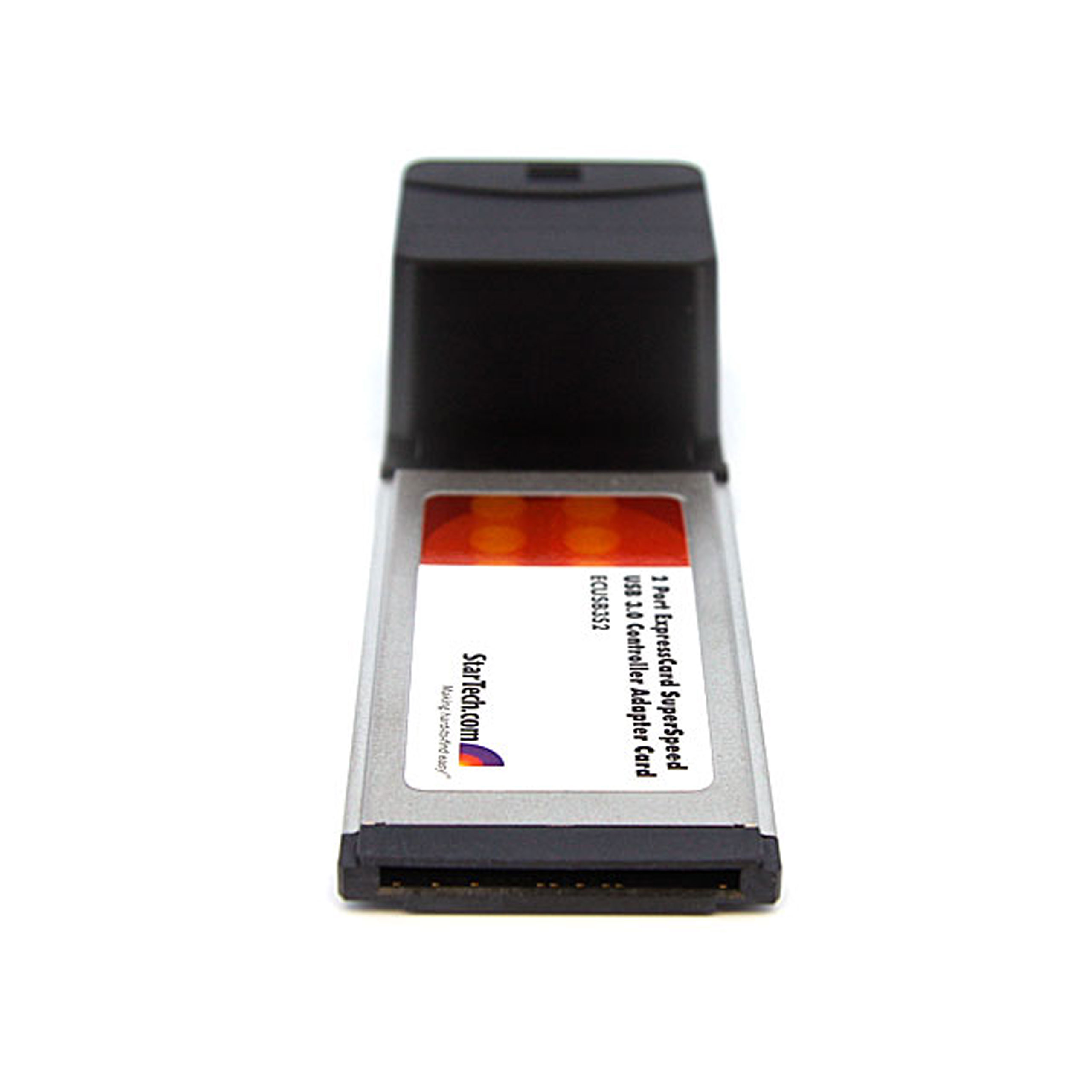

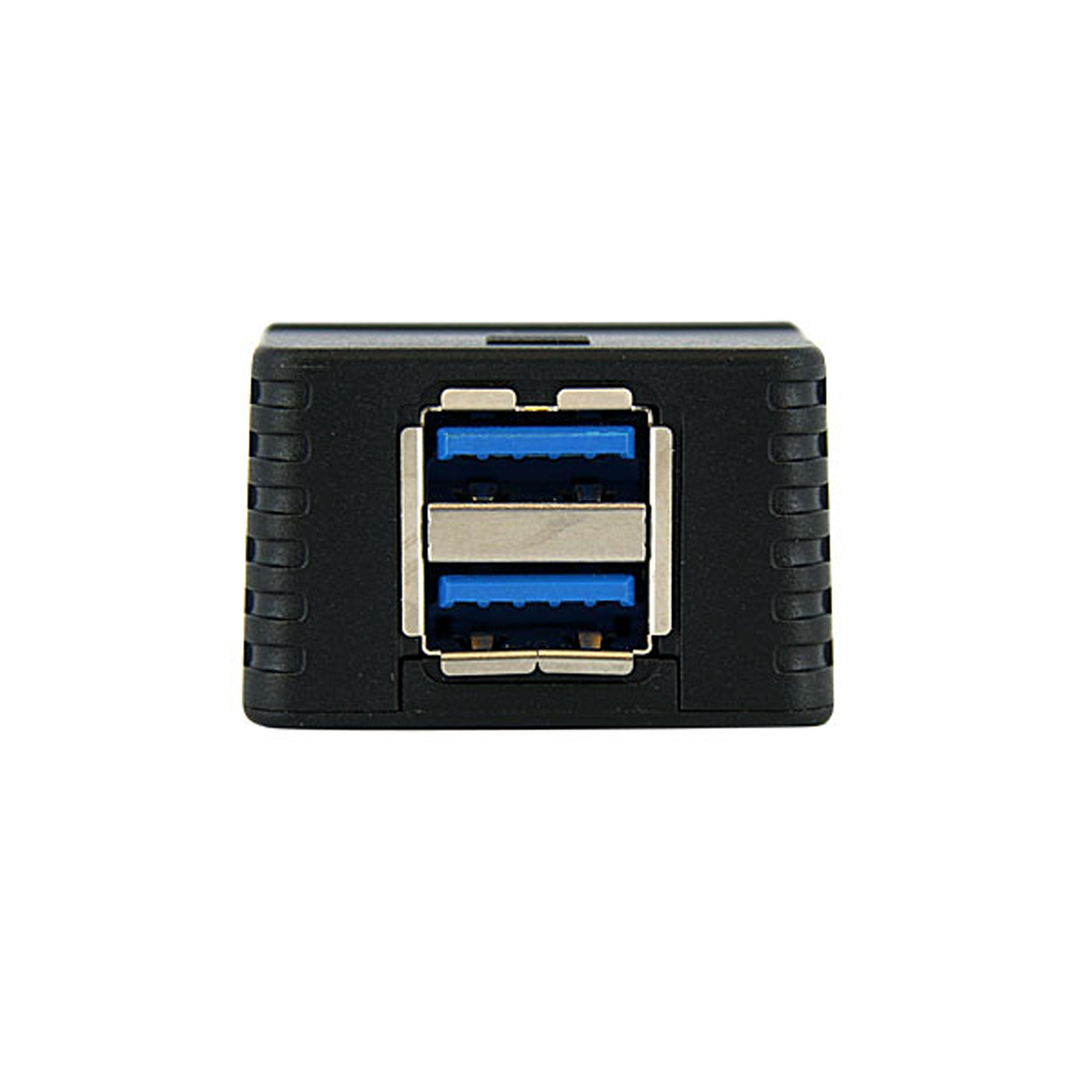

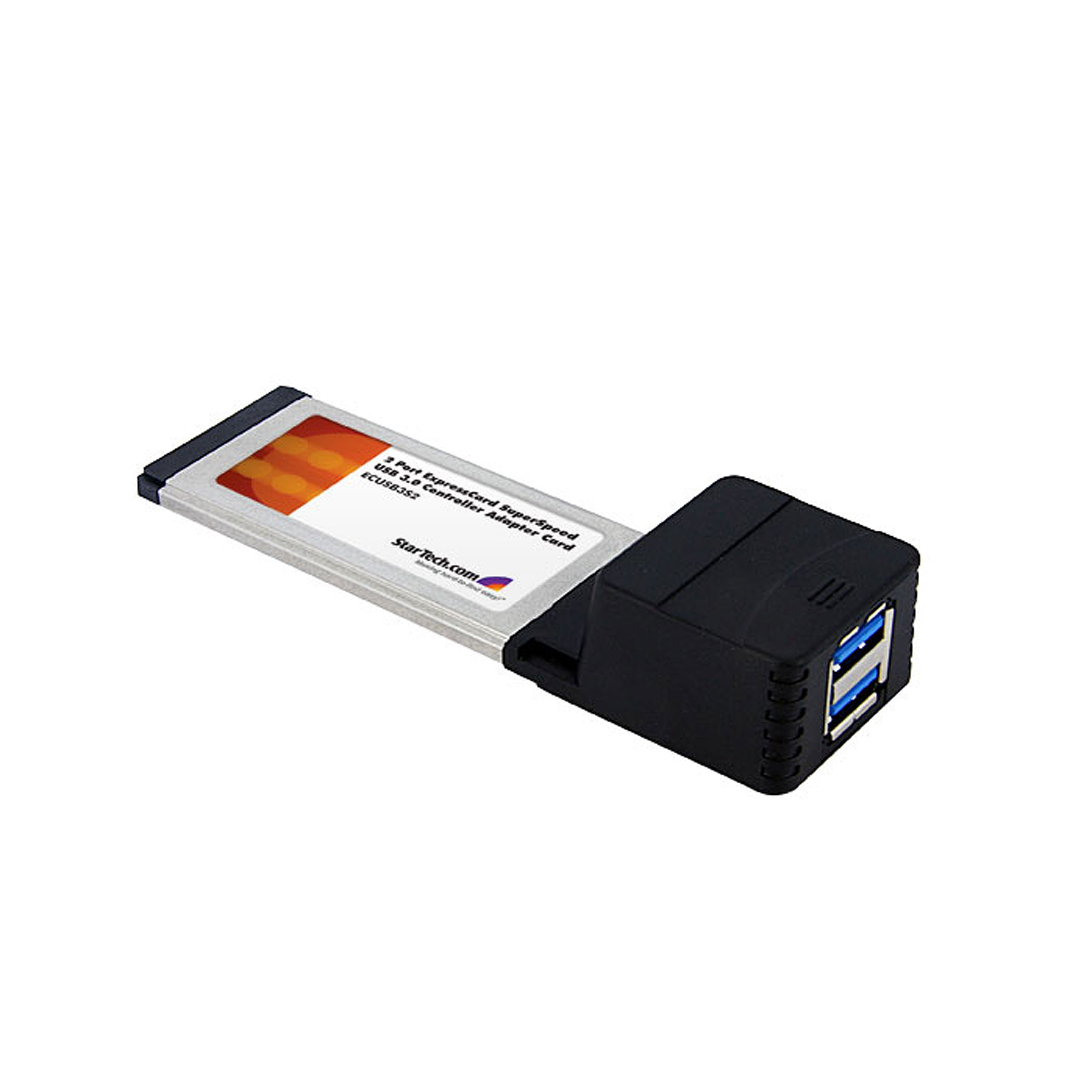

- 1 - 2 port USB 3.0 ExpressCard Adapter
Package Depth (mm) 90 Package Height (mm) 174 Package Width (mm) 164 Package Weight (g) 870 Packaging Description USB 3.0 to SATA HDD Dock w/ExpressCard Packaging Description India USB 3.0 to SATA HDD Dock w/ExpressCard Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
