SATDOCKU3SP

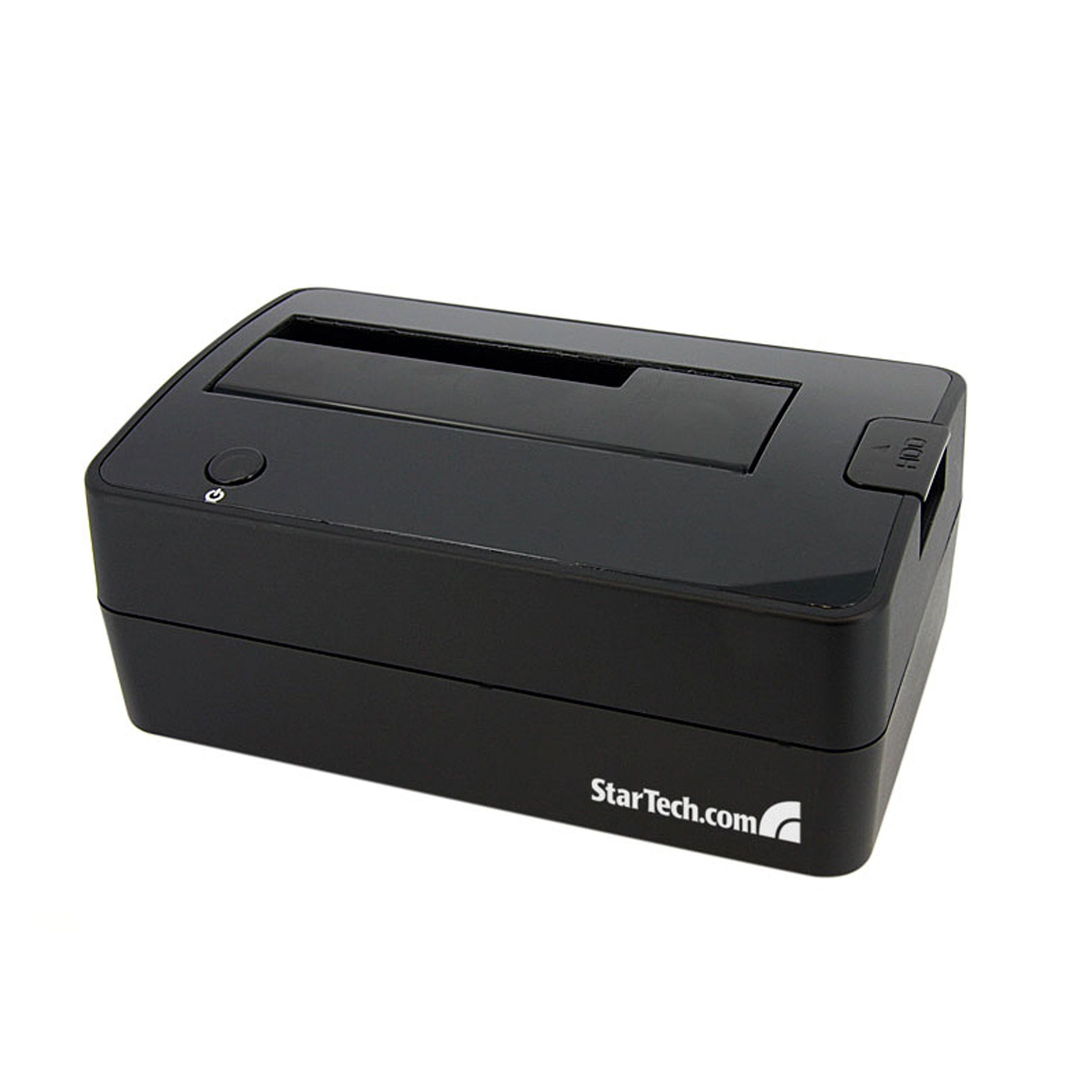

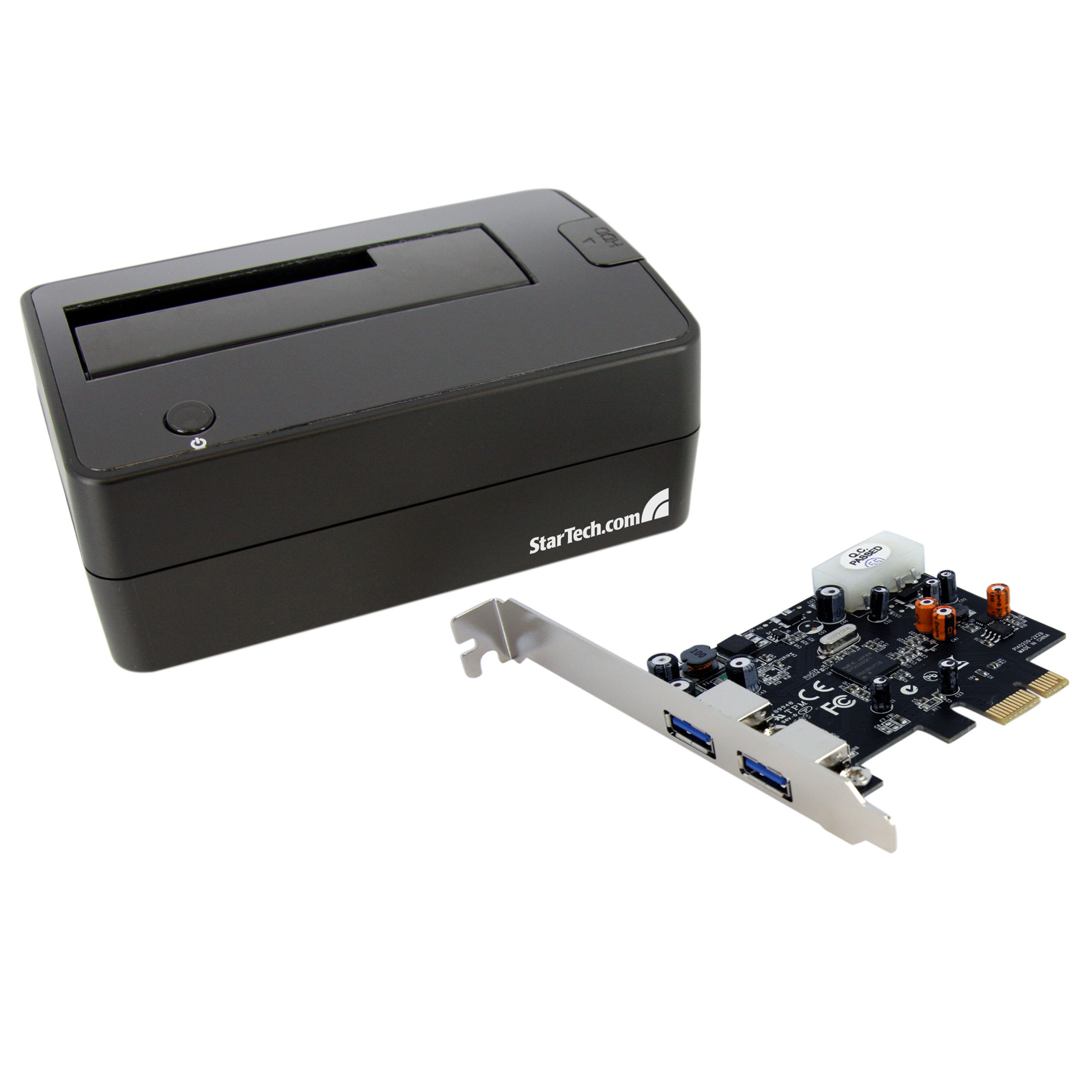

USB 3 SATA HDD Docking Station w/ PCIe Controller
Enable fast, swappable external access to SATA drives, through a USB 3.0 PCIe Card
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 SATA HDD Docking Station w/ PCIe Controller Product Number SATDOCKU3SP UPC 065030839365 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) USB 3.0 SATA Hard Drive Docking Station Product Title (Standard) USB 3 SATA HDD Docking Station w/ PCIe Controller Product Title (Long) USB 3.0 SATA Hard Drive Docking Station w/ PCIe Controller Title Ingram (Part 1) USB 3.0 SATA HDD Docking Station Title Ingram (Part 2) w/ PCIe Controller Website Product Headline Enable fast, swappable external access to SATA drives, through a USB 3.0 PCIe Card Bullet 1 PCI Express card: PCI Express 2.0 base specification compliant Bullet 2 Power/Activity LED indicator Bullet 3 Plug-and-Play and hot-swap compatible Bullet 4 Patented drive ejection mechanism Bullet 5 Includes a PCI Express 2-Port USB 3.0 host controller card Marketing Copy Applications - Upgrade from a USB 2.0 drive dock to faster USB 3.0
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Upgrade an older system with USB 3.0 connectivity and matching drive docking station
Website Search Keyword - 2.5/3.5
- Convenient
- Docking Station
- Hard Drive Dock
- Hot Swap Dock
- Plug and Play Dock
- removable
- Super Speed
- SuperSpeed
- USB 2.0
- USB 3.0
- USB to SATA External HDD Dock
- PCIe
- PCI Express
- Adapter card
Accessory Products - ECUSB3S2
- USB3SAB10
- USB3SAB3
- USB3SAB6
- LP4SATAFM
- LP4SATAFM6IN
- SAT2IDEADP
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - SAT2510BU2
- SAT2510U2
- SAT3510BU2E
- SAT3510U2B
- SAT3510U2V
- SAT3520U2
- SATADOCK22UE
- SATADOCK525
- SATADOCKU2
- SATADOCKU2E
- SATDOCK22R
- SATDOCKCRH
- UNIDOCK2U
- UNIDUPDOCK
- SATDOCKU3S
Input Voltage 110V-240V AC Output Current 2.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8~80% RH Material Plastic Operating Temperature 5°C to 80° (41°F to 176°F) Product Length (mm) 145 Product Width (mm) 93 Product Height (mm) 65 Product Weight (g) 407.24 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Tested up to 2.0 TB OS Compatibility - Linux
- Windows 7
- Windows Vista
- Windows XP
- Windows Server 2003
- Windows Server 2008 R2
USB Type and Rate - USB 2.0 (480Mbps)
- USB 3.0 (5Gbps)

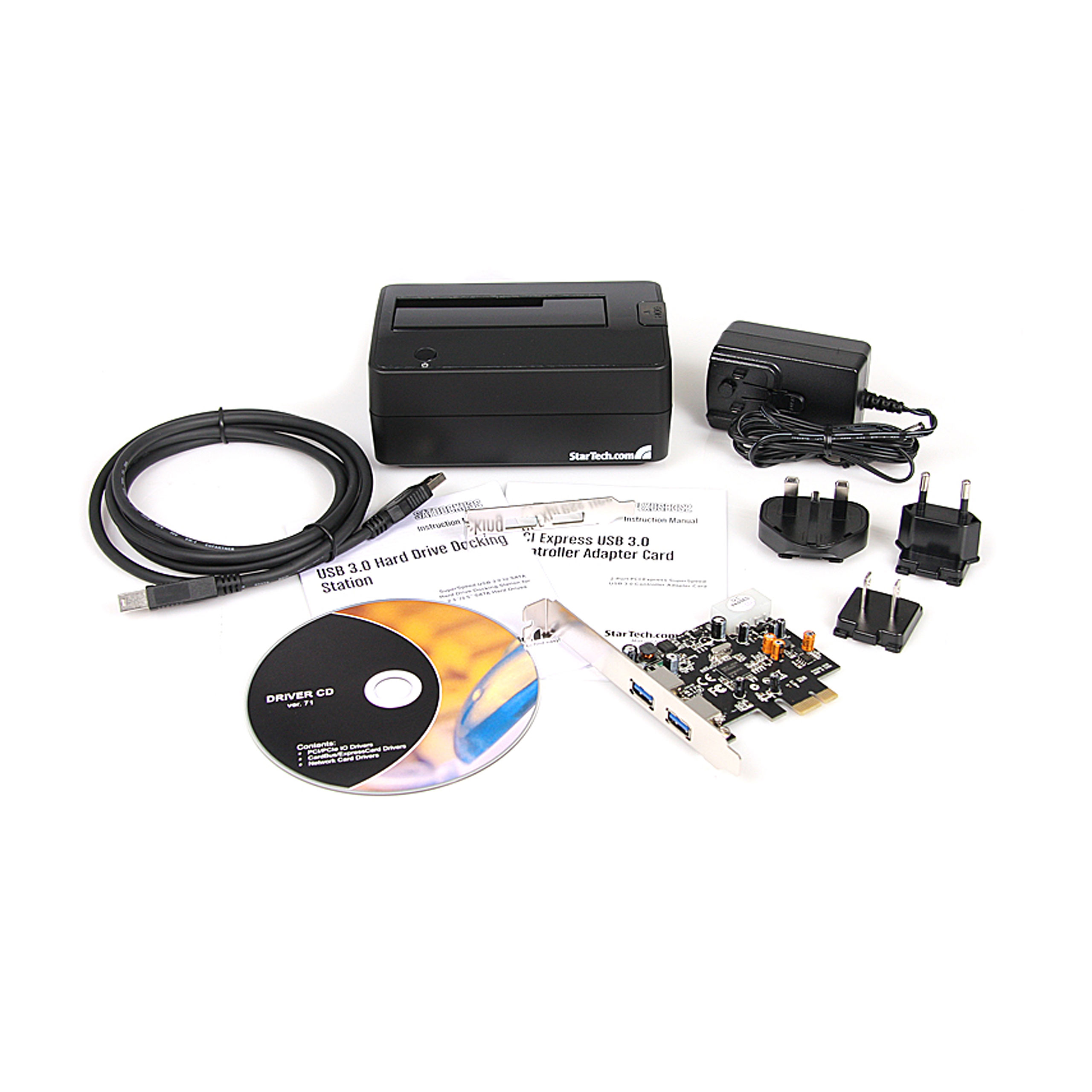

Chipset ID Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power and Activity (Solid - Power, Blinking - Activity) Number of Drives 1 Carton Depth (mm) 477 Carton Height (mm) 412 Carton Quantity 1 Carton Weight Gross (g) 8640 Included in Package - 1 - Instruction Manual
- 3 - Power Adapter Plug (NA/EU/UK)
- 1 - Universal Power Adapter
- 1 - USB 3.0 Cable
- 1 - USB 3.0 HDD Dock

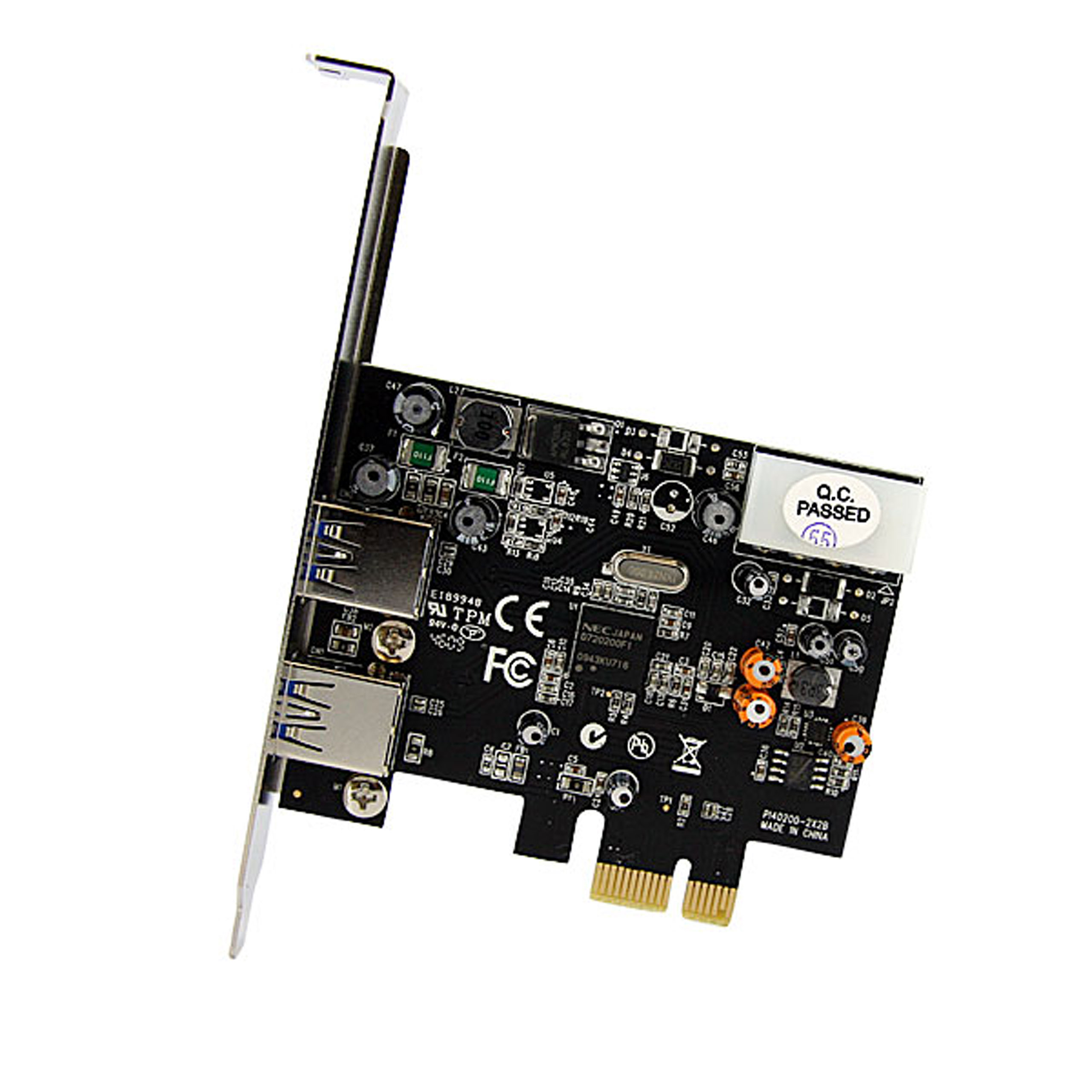

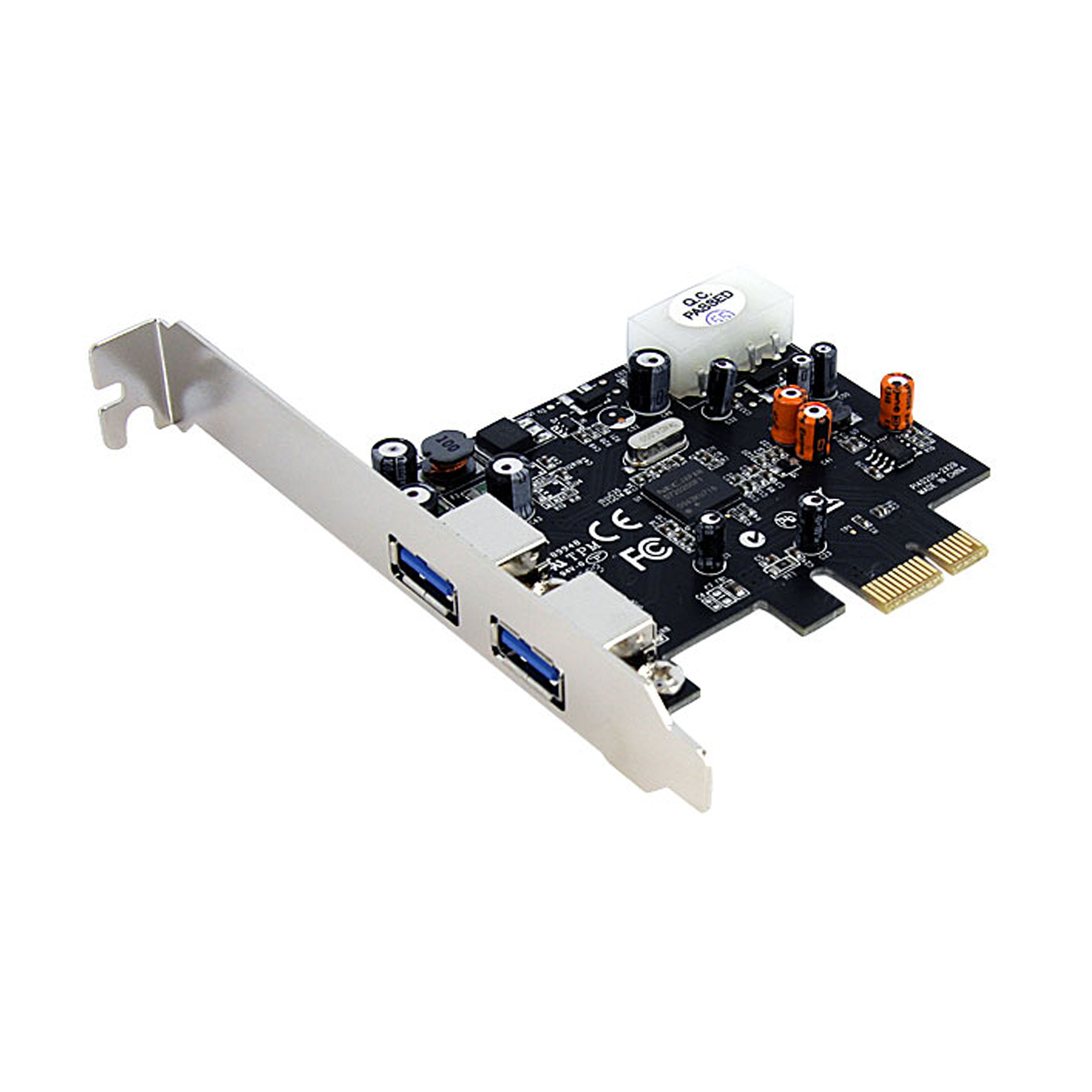

- 1 - 2 port USB 3.0 PCIe Adapter Card

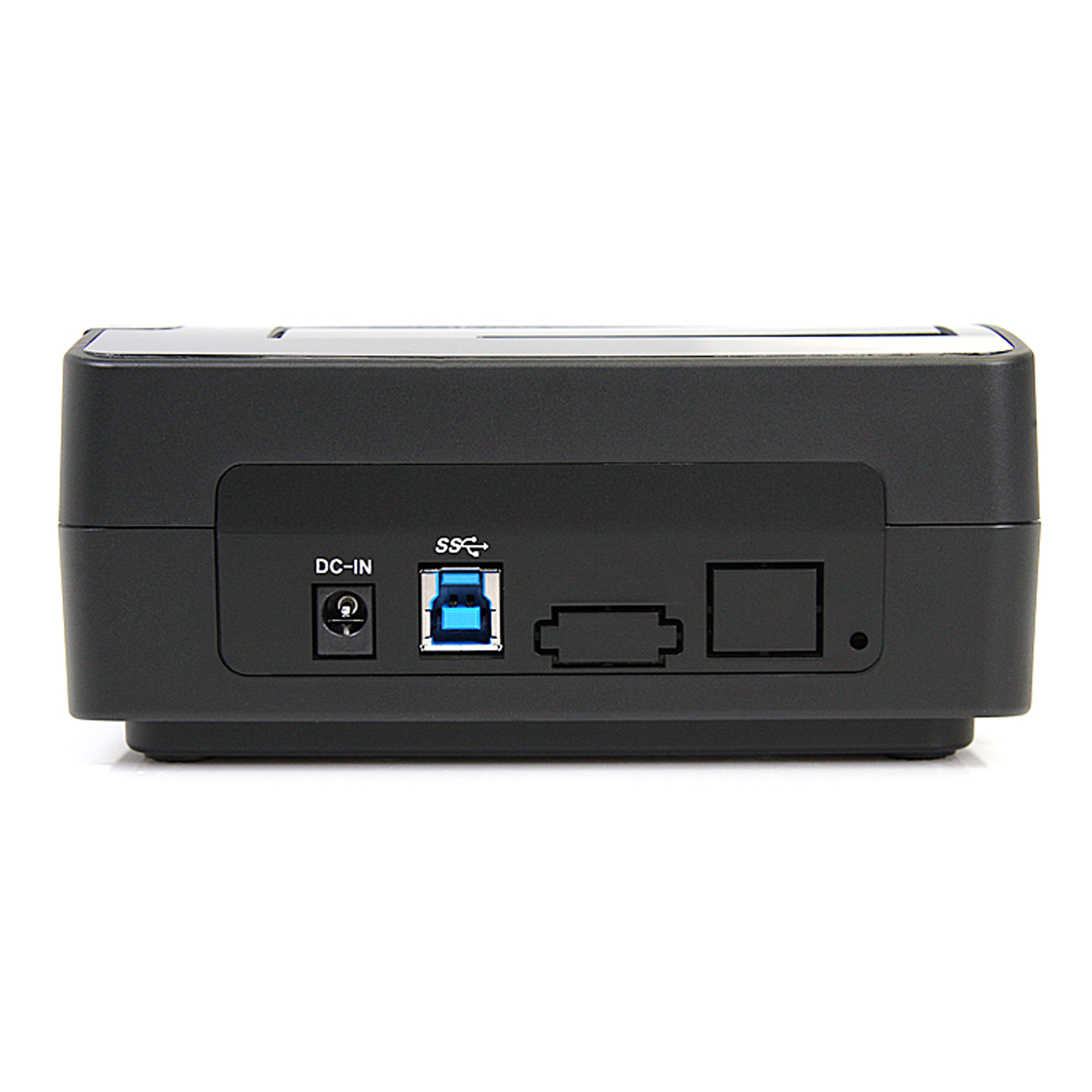

Package Depth (mm) 90 Package Height (mm) 174 Package Width (mm) 164 Package Weight (g) 930 Packaging Description USB 3.0 to SATA HDD Dock w/PCIe Card Packaging Description India USB 3.0 to SATA HDD Dock w/PCIe Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
