Main Image
SATDUP13

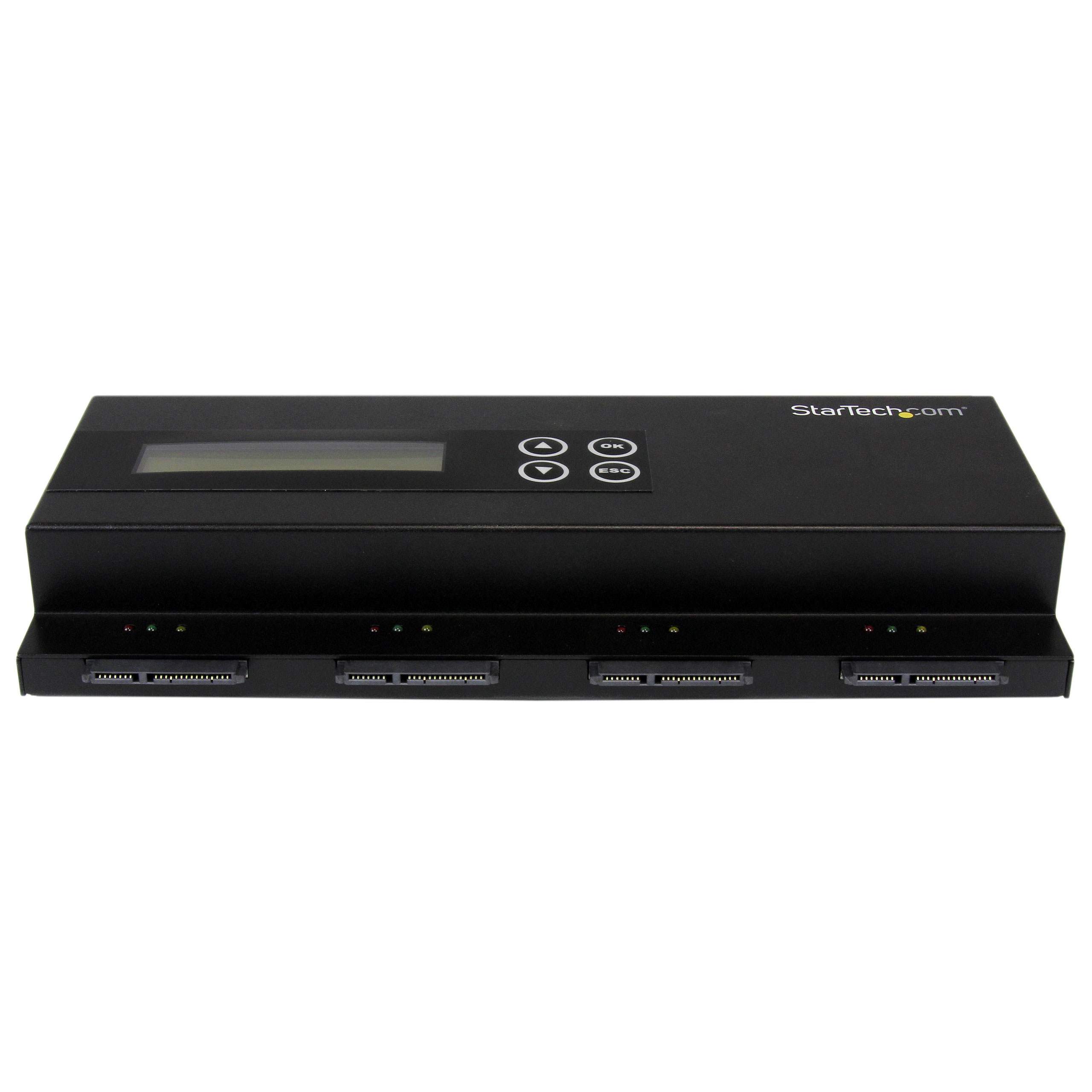

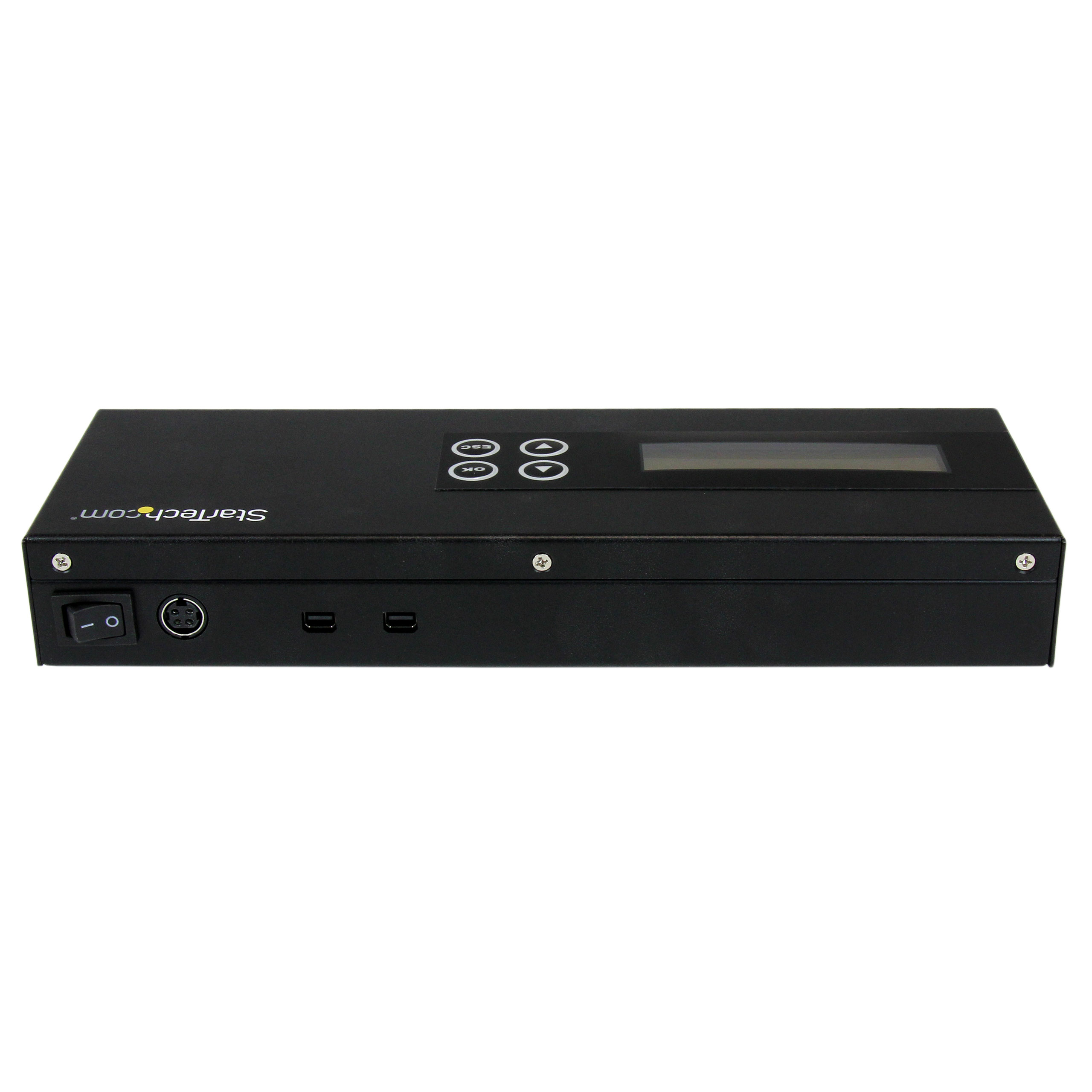

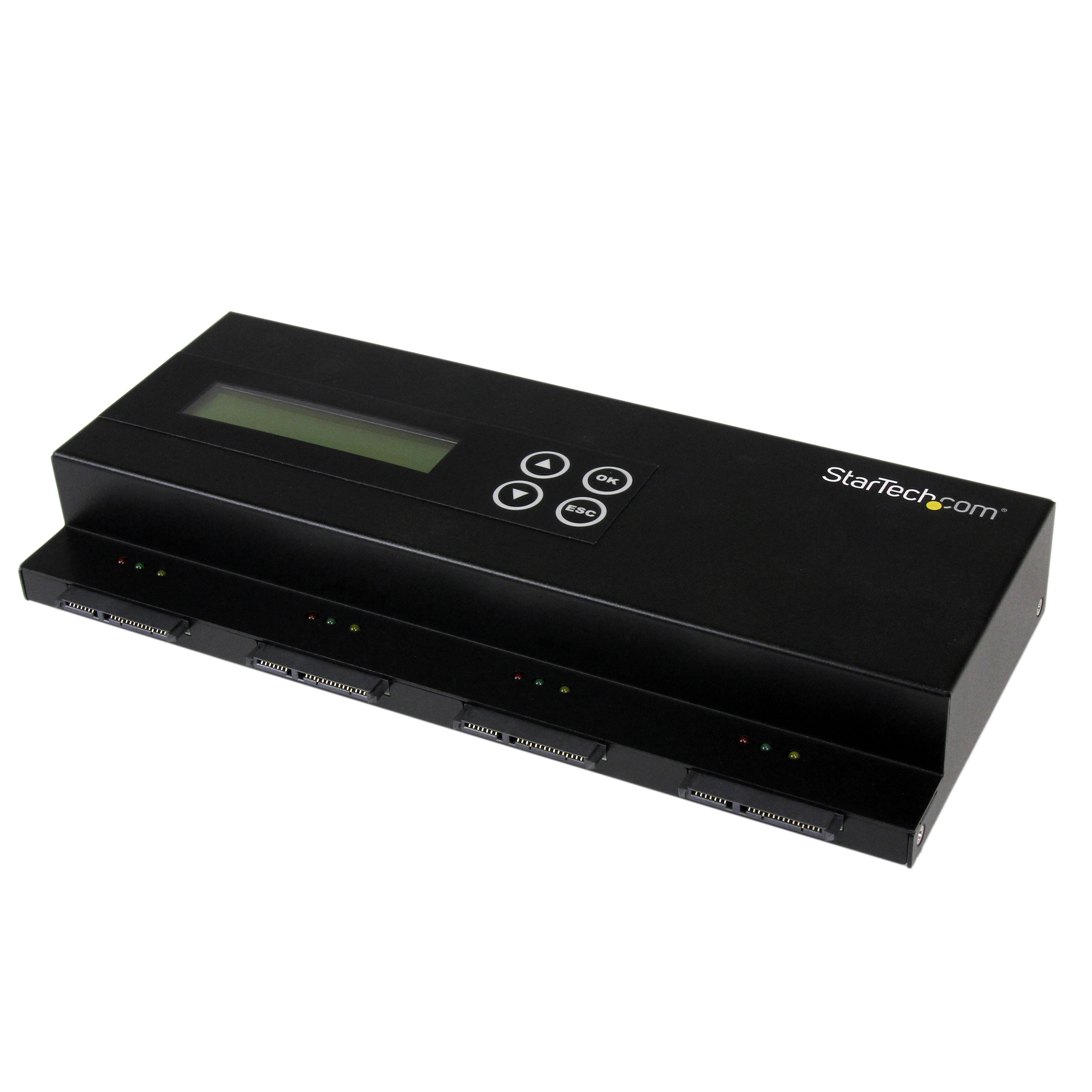

Standalone 1:3 SATA 2.5/3.5" Hard Drive Duplicator
Clone or erase 2.5in/3.5in SATA hard drives, without a host computer connection
Main Image
Product Images
Product Images
BOM Image
Product Name Standalone 1:3 SATA 2.5/3.5" Hard Drive Duplicator Product Number SATDUP13 UPC 065030852333 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Duplicators and Erasers Category Level 3 Drive Duplicators and Erasers - SATA Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX085X Product Title (Ultra-Short) 1:3 HDD Duplicator Product Title (Short) 1:3 SATA 2.5/3.5” HDD Cloner and Eraser Product Title (Standard) Standalone 1:3 SATA 2.5 / 3.5” Hard Drive Duplicator and Eraser w/ Daisy Chaining Product Title (Long) Standalone 1:3 SATA 2.5 / 3.5” Hard Drive Duplicator and Eraser w/ Daisy Chaining Product Title (AMZ) Standalone 1:3 SATA 2.5/3.5” Hard Drive Duplicator Eraser w/ Daisy Chain & HDD/SSD Sanitizer (SATDUP13) Title Ingram (Part 1) Standalone 1:3 SATA 2.5 / 3.5" Title Ingram (Part 2) Hard Drive Duplicator Website Product Headline Clone or erase 2.5in/3.5in SATA hard drives, without a host computer connection Bullet 1 Three modes hard drive duplication including Sector-by-Sector Bullet 2 1:1, 1:2, or 1:3 drive duplication Bullet 3 Erase up to 4 hard drives with single-pass and multi-pass overwriting / DoD erasing Bullet 4 Supports SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullet 5 Universal Power Adapter (NA/UK/EU) Bullets (Consolidated) Clone or erase 2.5in/3.5in SATA hard drives without a host computer connection - Hard Drive Duplicator - Hard Disk Duplicator - Hard Drive Copier - HDD Duplicator - Hard Drive Sanitizer - 1 to 3 Standalone HDD/SSD Duplicator Eraser w/ Daisy Chaining - 1:1/1:2/1:3 Drive Duplication Marketing Copy Marketing Copy (No HTML) The SATDUP13 standalone HDD duplicator/eraser lets you copy up to three, or erase up to four SATA HDDs or SSDs simultaneously, without having to connect to a host computer. The duplicator/eraser works with any 3.5" or 2.5" SATA Hard Drive or Solid State Drive, and features an integrated LCD that makes it easy to monitor cloning/erasing performance. The versatile 1-to-3 duplicator features three operating modes for duplication, including Data Only, All Partitions, and Sector by Sector cloning. The SATDUP13 also offers several erase modes, including Quick Erase, Secure Erase, and Single-Pass/Multi-Pass Hard Drive Overwriting (DoD), which passes over the hard drive 3 times to ensure that the data has been completely wiped. For increased scalability, the HDD duplicator/eraser features a unique daisy-chain port that gives you the option to combine multiple SATDUP13 units together, allowing up to four additional drives to be erased or copied with each added unit to help save you time. For added compatibility with different drive types in duplication and quick erase applications, the SATDUP13 supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator: 2.5/3.5in IDE drives - SAT2IDEADP mSATA drives - SAT2MSAT25 M.2 (NGFF) drives - SAT32M225 With high-quality aluminum construction, the durable SATDUP13 is backed by a 2-year StarTech.com warranty and free lifetime technical support. Compatible with: For added compatibility with different drive types in duplication and quick erase applications, the SATDUP13 supports the use of various drive adapters. Applications - Professionals who require identical backups for when data integrity is crucial, such as data recovery
- Forensic investigators who require disk sector imaging/cloning to create an exact replica of a source drive onto a different drive
- Clone hard drives that contain hidden partitions, that some software disk cloning programs may skip
Website Search Keyword - hard drive duplicator
- hdd clone
- ssd duplicate
- sector copy
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Accessory Products - HDDSLEV35
- HDDCASE25BK
- HDDCASE25OR
- 25SATSAS35
- SAT2MSAT25
- SAT2CF
- SAT2IDEADP
- HDDSLEV25
- HDDCASE25GN
- HDDCASE25WH
- HDDCASE25BL
- HDDCASE25YW
Related Products - SATDUP11
- SATDOCK4U3RE
- SATDOCK22RE
- USBDUP12
- UNIDUPDOCK
- SATDUPUE
- SATDOCK22RU3
- SATDOCK2REU3
Replacement Product SATDUP11 Input Current 2.2A Input Voltage 100 - 240 AC Output Current 9A Output Voltage (V) 12V DC Power Consumption (In Watts) 108 Power Source AC Adapter Included Plug Type 4-pin DIN Color Black Humidity 20% ~ 80% Material Aluminum Operating Temperature 5°C to 45°C (41°F to 113°F) Product Length (mm) 120.000 Product Width (mm) 260.000 Product Height (mm) 40.000 Product Weight (g) 879.000 Storage Temperature -20°C to -85°C (-4°F to 185°F) TAA Compliant Yes Duplication Modes - System and File
- All Partitions
- Sector by Sector (Whole Drive)
- Percentage Copy
Duplication Speed 3.8GBpm Erase Modes - Quick Erase
- 1-Pass Overwrite (NIST SP 800-88 Rev 1 - Clear)
- 3-Pass Overwrite
- 3-Pass Erase and Compare
General Specifications Maximum daisy chain devices:30 (119 target drives in total) Max Drive Capacity Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay and 1TB 7200 RPM 2.5" hard drives per bay OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types SATA LED Indicators - 1 - Source Drive Activity
- 1 - LED Panel
- 1 - Destination Drive 1 Error
- 1 - Destination Drive 2 Error
- 1 - Destination Drive 3 Error
- 1 - Destination Drive 1 Power
- 1 - Destination Drive 2 Power
- 1 - Destination Drive 3 Power
- 1 - Source Drive Error
- 1 - Source Drive Power Indicator
- 1 - Destination Drive 1 Activity
- 1 - Destination Drive 2 Activity
- 1 - Destination Drive 3 Activity

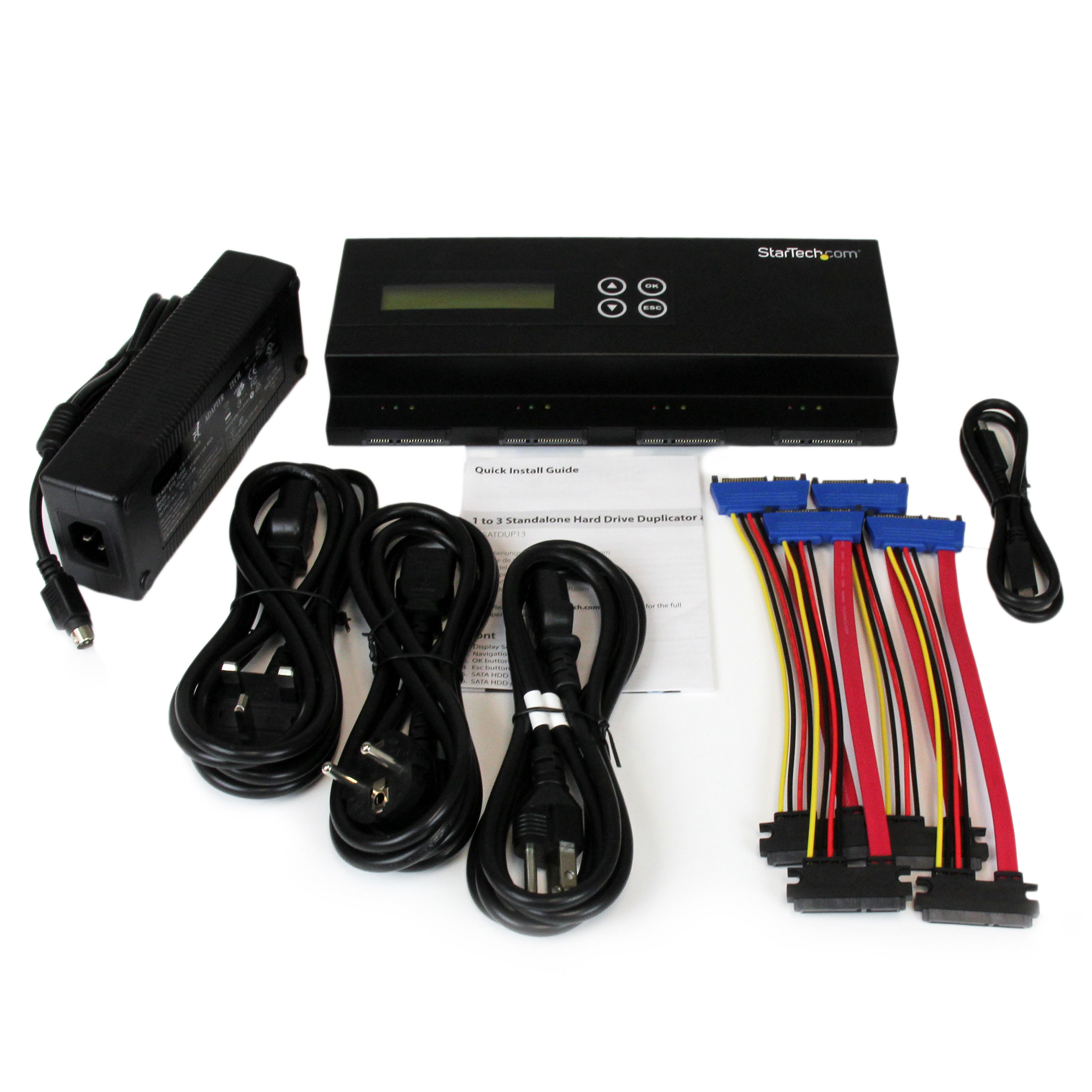

Number of Drives 4 Carton Depth (mm) 480 Carton Height (mm) 270 Carton Quantity 6 Carton Weight Gross (g) 16410 Included in Package - 1 - 1 to 3 HDD Duplicator
- 4 - SATA Cable
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Quick Install Guide
- 1 - Daisy Chain Cable
Package Depth (mm) 450 Package Height (mm) 82 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 2540 Packaging Description 1 to 3 Standalone Hard Drive Duplicator and Eraser Packaging Description India 1 to 3 Standalone Hard Drive Duplicator and Eraser Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 20Gbps) Connector 1 (Quantity) 2 Connector 2 SATA (7-Pin + 15-Pin) Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-06-07 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
