SATDUPUE
Portable SATA Duplicator w/ eSATA and USB
Clone 2.5in or 3.5in SATA hard drives while on the go, without a host computer connection
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Portable SATA Duplicator w/ eSATA and USB Product Number SATDUPUE UPC 065030843362 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) eSATA USB to SATA HDD Duplicator Dock Product Title (Standard) Portable eSATA USB to SATA Standalone HDD Hard Drive Duplicator Dock HDD Product Title (Long) Portable eSATA USB to SATA Standalone HDD Hard Drive Duplicator Dock HDD Title Ingram (Part 1) eSATA USB to SATA Standalone Har Title Ingram (Part 2) d Drive Duplicator Dock Website Product Headline Clone 2.5in or 3.5in SATA hard drives while on the go, without a host computer connection Bullet 1 Standalone Sector-by-Sector hard drive copying including the HPA Bullet 2 LED progress bar for duplication status Bullet 3 Push-button switching between Duplicator mode and Docking Station mode Bullet 4 A single SATA revision 2 compliant eSATA host interface, with supported data transfer rates up to 3 Gbps Bullet 5 High Speed USB 2.0 compliant host interface, with supported transfer rates up to 480 Mbps Marketing Copy Applications - Technicians who require access to bare SATA hard drives for backup/recovery purposes, or need to swap between drives regularly
- Professionals who require identical backups for when data integrity is crucial, such as data recovery
- Quickly accessing data from a drive, without having to install it internally in a system or into an enclosure
- Forensic investigators who require disk sector imaging/cloning to create an exact replica of a source drive onto a different drive
- Technicians who require hard drive docking and/or duplication capabilities on the road
- Clone hard drives that contain hidden partitions, that some software disk cloning programs may skip
Website Search Keyword - hard drive duplicator
- hdd clone
- ssd duplicate
- sector copy
Special Notes System and Cable Requirements Available USB or eSATA port Accessory Products - ESATA3
- USB2HABM6IN
- USB2HABM10
- USB2HABM1
- USBHAUBMB3
- USB2HABM3
- USB2HABM6
- SAT2IDEADP
Related Products - UNIDUPDOCK
- SATDOCK22R
- SATDOCK22RE
Equivalent Part Number in the EU SATDUPUEEU Equivalent Part Number in the UK SATDUPUEGB Input Current 1.2A Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 12/5V DC Power Source AC Adapter Included Color Black Humidity 8% ~ 90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 80 Product Width (mm) 70 Product Height (mm) 16.3 Product Weight (g) 45 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15, 000 Cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives per bay (8TB total) and 1TB 5400 RPM 2.5" hard drives (2TB total) OS Compatibility OS Independent SATA Type and Rate SATA II (3 Gbps) USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JMB352U Compatible Drive Types SATA Interface/Bridge USB 2.0 & eSATA LED Indicators - 1 - Mode Indicator (Green - JBOD, Red - Duplication)
- 1 - Progress Bar/Drive Activity (Green)
- 2 - Drive Detect (Green)

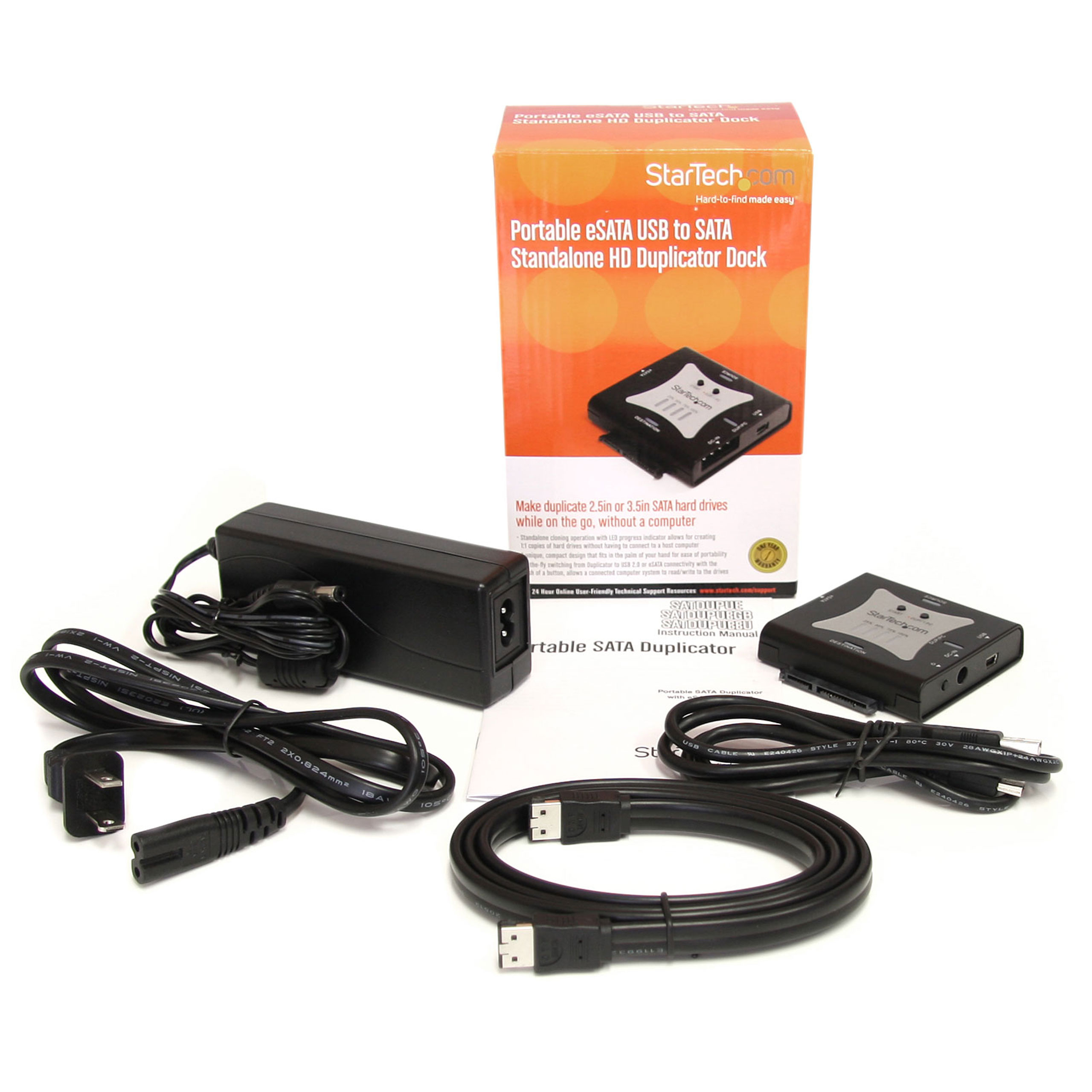

Number of Drives 2 Carton Depth (mm) 430 Carton Height (mm) 370 Carton Quantity 30 Carton Weight Gross (g) 15870 Included in Package - 1 - Portable Duplicator
- 1 - USB 2.0 cable - 1 m
- 1 - Power Adapter
- 1 - Instruction Manual
- 1 - eSATA Cable
Package Depth (mm) 80 Package Height (mm) 170 Package Width (mm) 110 Package Weight (g) 499 Packaging Description eSATA/USB to SATA HDD Duplicator Dock Packaging Description India eSATA/USB to SATA HDD Duplicator Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB Mini-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
