SATDUPUEGB

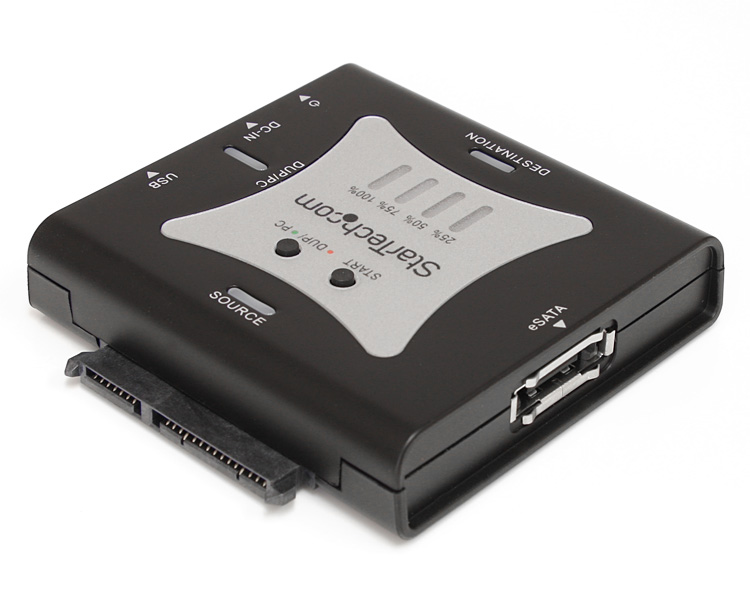

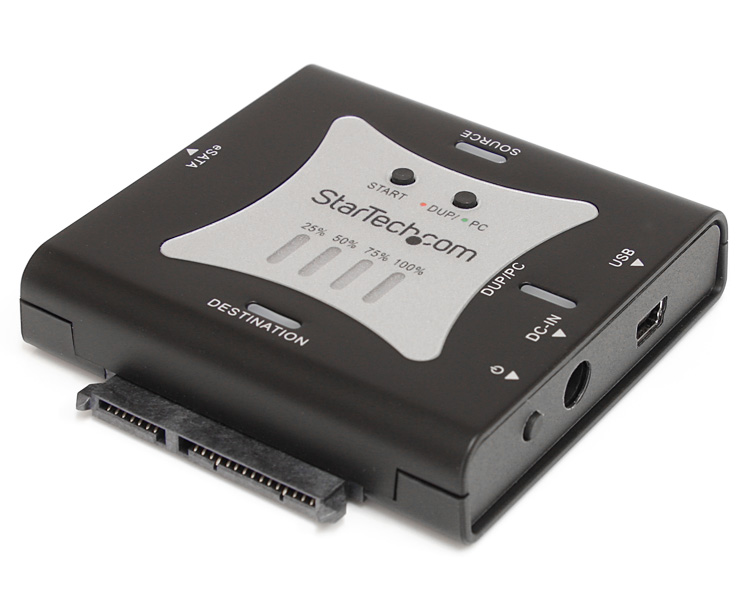

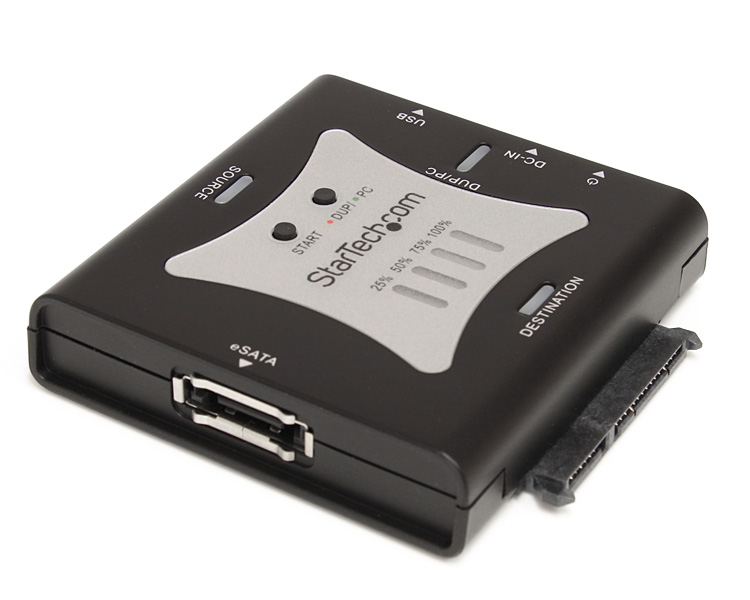

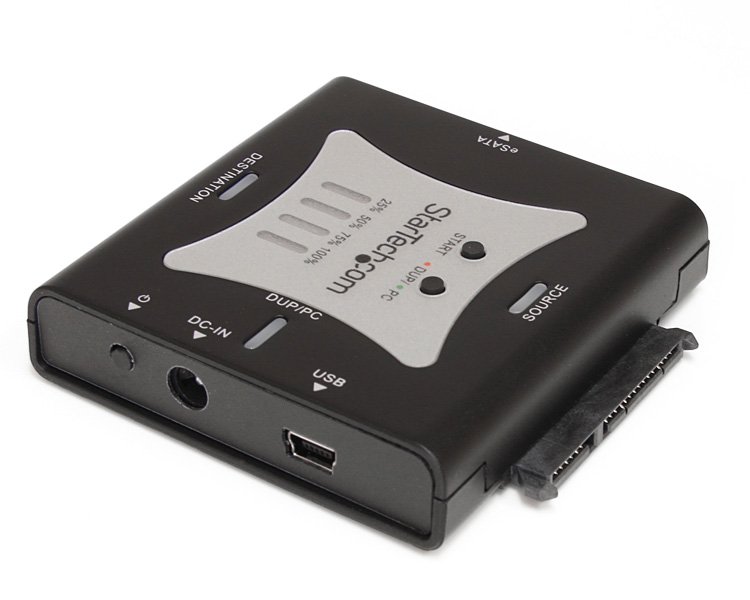

Portable SATA Duplicator with eSATA and USB
Clone 2.5in or 3.5in SATA hard drives while on the go, without a host computer connection
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Portable SATA Duplicator with eSATA and USB Product Number SATDUPUEGB UPC 065030843379 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) eSATA USB to SATA HDD Duplicator Dock Product Title (Standard) Portable eSATA USB to SATA Standalone HDD Hard Drive Duplicator Dock Product Title (Long) Portable eSATA USB to SATA Standalone HDD Hard Drive Duplicator Dock Title Ingram (Part 1) eSATA USB to SATA Standalone Har Title Ingram (Part 2) d Drive Duplicator Dock Website Product Headline Clone 2.5in or 3.5in SATA hard drives while on the go, without a host computer connection Bullet 1 A single SATA revision 2 compliant eSATA host interface, with supported transfer rates up to 3 Gbps Bullet 2 Compact, pocket-sized form factor Bullet 3 High Speed USB 2.0 compliant host interface, with supported data transfer rates up to 480 Mbps Bullet 4 Hot-Swap and Plug-and-Play compatible Bullet 5 LED progress bar for duplication status Marketing Copy Applications - Forensic investigators who require disk sector imaging/cloning to create an exact replica of a source drive onto a different drive
- Professionals who require identical backups for when data integrity is crucial, such as data recovery
- Quickly access data from a SATA hard drive, without having to install it internally in a system or into an enclosure
- Technicians who require access to bare SATA hard drives for backup/recovery purposes or need to swap between drives regularly
- Technicians who require hard drive docking and/or duplication capabilities while on the road
Website Search Keyword - hard drive duplicator
- hdd clone
- sector copy
- ssd duplicate
Special Notes System and Cable Requirements Available USB or eSATA port Accessory Products - ESATA3
- SAT2IDEADP
- USB2HABM1
- USB2HABM10
- USB2HABM3
- USB2HABM6
- USB2HABM6IN
- USBHAUBMB3
Related Products - SATDOCK22R
- SATDOCK22RE
- UNIDUPDOCK
Input Current 1000 mA Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 12/5V DC Power Source AC Adapter Included Color Black Humidity 8% ~ 90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 80 Product Width (mm) 70 Product Height (mm) 16.3 Product Weight (g) 45 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15, 000 Cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives per bay (8TB total) and 1TB 5400 RPM 2.5" hard drives (2TB total) OS Compatibility - Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows 7
SATA Type and Rate SATA II (3 Gbps) USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JMB352U Compatible Drive Types SATA Interface/Bridge USB 2.0 & eSATA LED Indicators - 2 - Drive Detect (Green)
- 1 - Mode Indicator (Green - JBOD, Red - Duplication)
- 1 - Progress Bar/Drive Activity (Green)

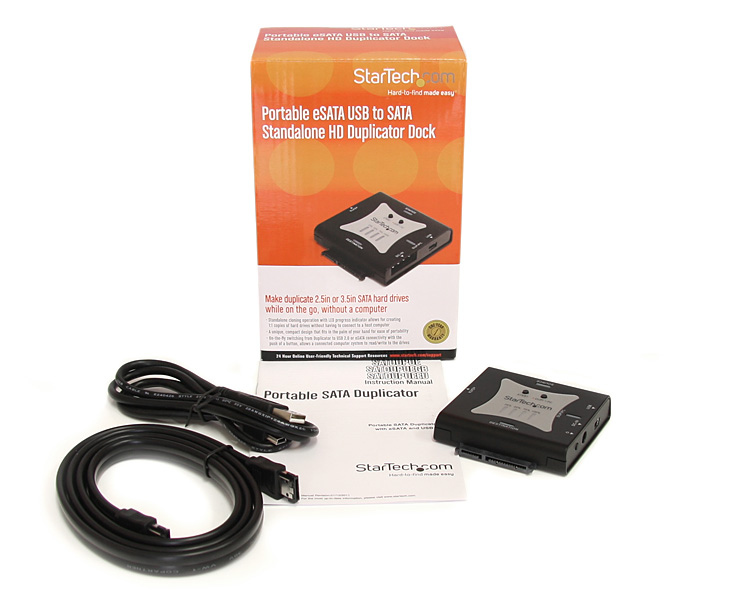

Number of Drives 2 Carton Depth (mm) 430 Carton Height (mm) 370 Carton Quantity 30 Carton Weight Gross (g) 20800 Included in Package - 1 - Instruction Manual
- 1 - Portable Duplicator
- 1 - Power Adapter
- 1 - USB 2.0 cable - 1 m
Package Depth (mm) 80 Package Height (mm) 170 Package Width (mm) 110 Package Quantity 1 Package Weight (g) 560 Packaging Description eSATA/USB to SATA HDD Duplicator Dock Packaging Description India eSATA/USB to SATA HDD Duplicator Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB Mini-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
