SATSAS425BK

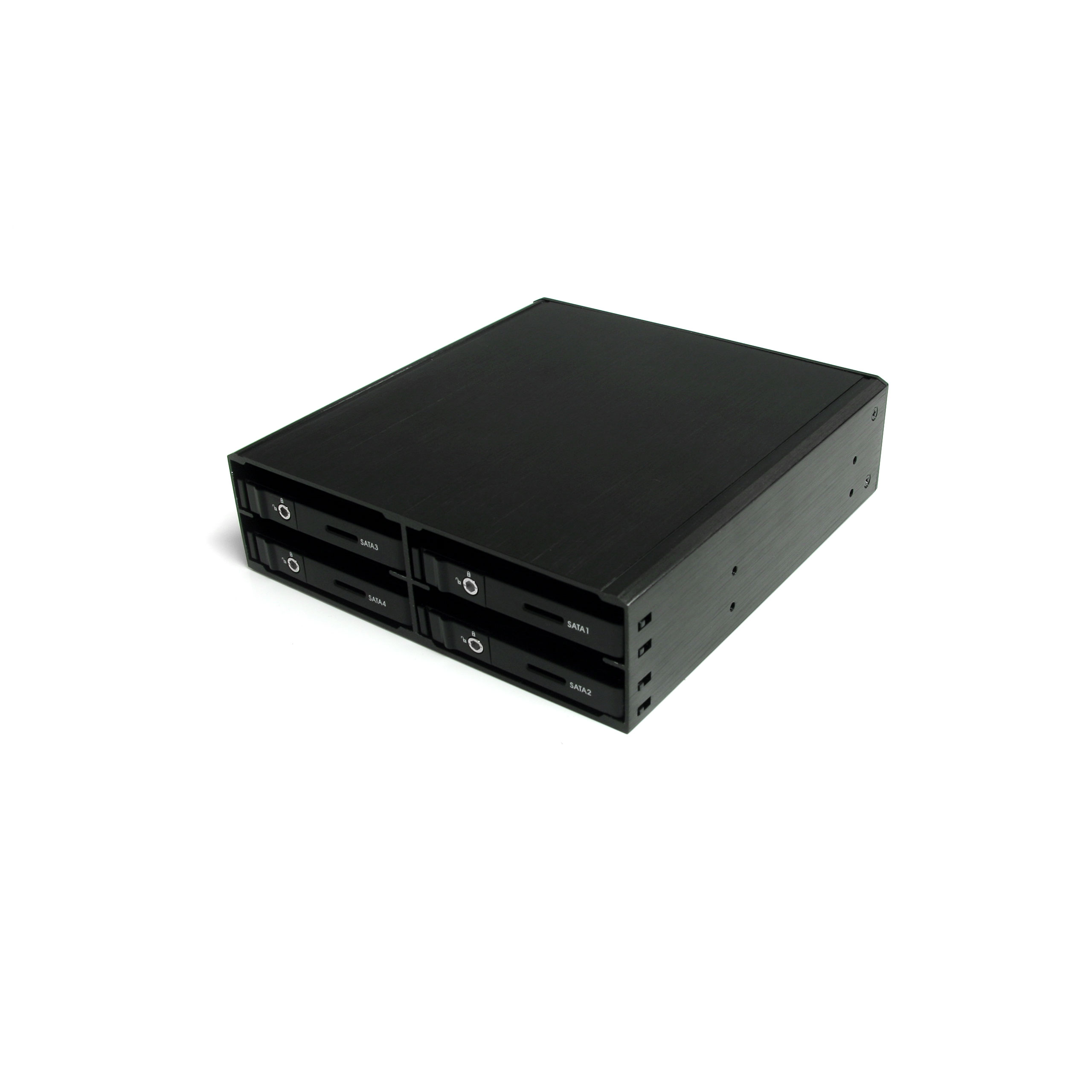

4 Bay Hot Swap SATA Backplane Mini SAS to SATA/SAS
Add 4 Removable SATA/SAS Hard Drives through a Single 5.25in Bay
Main Image
Product Images
BOM Image
Product Name 4 Bay Hot Swap SATA Backplane Mini SAS to SATA/SAS Product Number SATSAS425BK UPC 065030844871 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) Mini SAS to 4x2.5in SATA/SAS Backplane Product Title (Standard) Mini SAS SFF-8087 to 4x 2.5in SATA/SAS 5.25in Hot Swap Backplane Product Title (Long) Mini SAS SFF-8087 to 4x 2.5in SATA/SAS 5.25in Hot Swap Backplane Product Title (AMZ) Mini SAS SFF-8087 to 4x 2.5in SATA/SAS 5.25in Hot Swap Backplane - 4 Drive SAS mobile Rack - SATA cage (SATSAS425BK) Title Ingram (Part 1) Mini SAS to 4x 2.5in SATA/SAS 5. Title Ingram (Part 2) 25in Hot Swap Backplane Website Product Headline Add 4 Removable SATA/SAS Hard Drives through a Single 5.25in Bay Bullet 1 Durable aluminum construction with air vents Bullet 2 Hold up to four 2.5in SATA/SAS drives Bullet 3 Entire unit fits into a single 5.25in front panel bay Bullet 4 40mm cooling fan Bullet 5 Fully supports SAS revision I/II (3.0/6.0 Gbps) hard drives and controllers Bullets (Consolidated) Add 4 Removable SATA/SAS Hard Drives through a Single 5.25in Bay - SATA Backplane - 3 Drive SAS Mobile Rack - Serial Attached SCSI Backplane - SAS Hot Swap Bay - SAS Backplane Marketing Copy Applications - Add up to 4 SATA/SAS hard drives to small form factor systems with a limited number of hard drive bays
- Add convenient removable storage for backups or RAID storage systems
- Maximize hard drive density in a system by adding 4 hard drives for each 5.25in bay
- Build a small, power-efficient storage array with low-powered 2.5in drives
Website Search Keyword - storage backplane
- raid array
- serial attached scsi
- serial ata
- sff-8087
- sff-8482
- hot swap
- storage enclosure
- sata sas hard drive backplane
- mobile rack
- hot swap bay
- sata hot swap backplane
- hot swap backplane
- External storage
- multi drive enclosure
Special Notes SATA drives can be used on both SATA or SAS controllers, but SAS drives can only be used on SAS controllers System and Cable Requirements Available 5.25in front expansion bay </br> SFF-8087 Mini SAS Cable Accessory Products - SAS878750
- SAS8787100
- SAS8087S4R50
Related Products - HSB220SAT25B
- SATSASBAY425
- SATDOCK2520

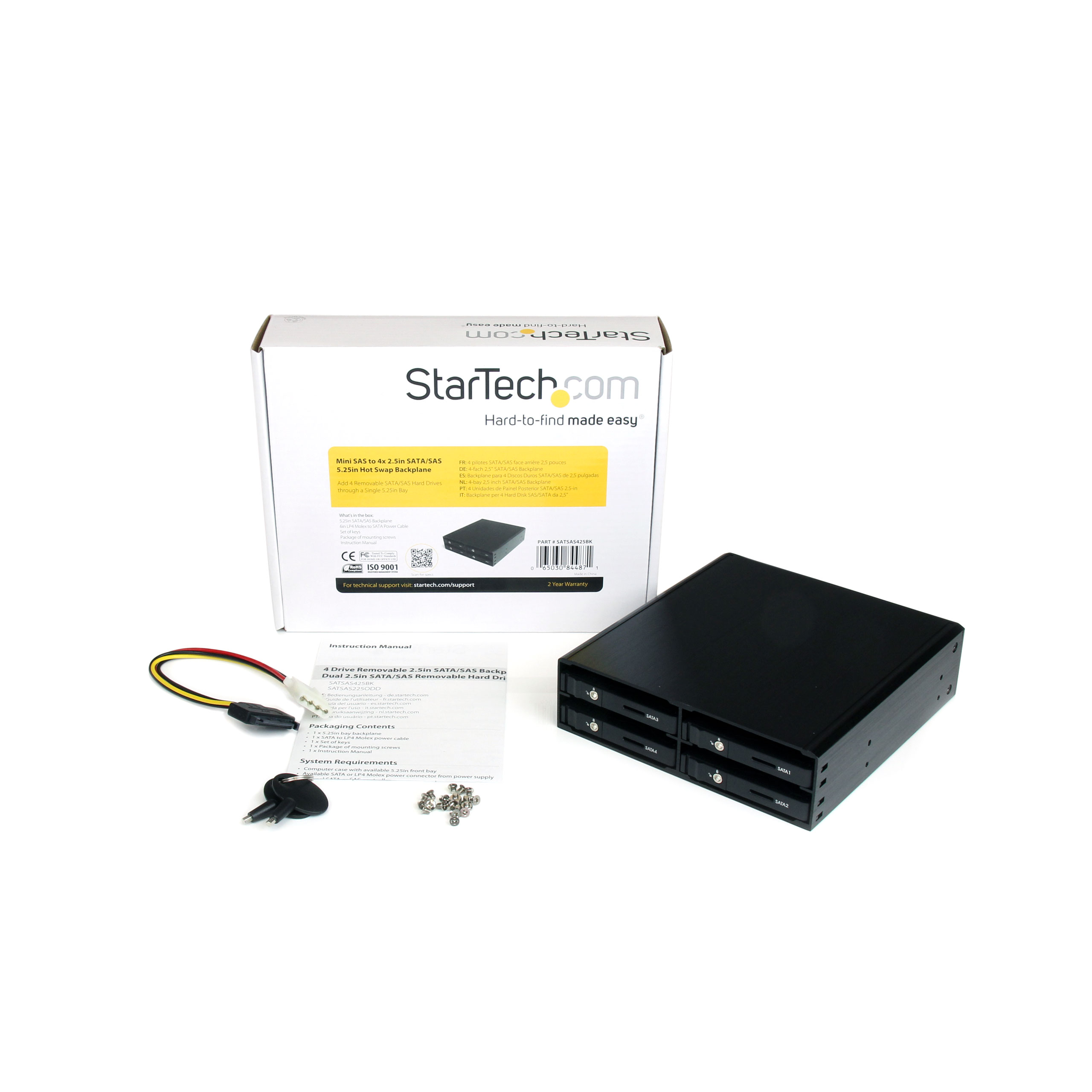

Replacement Product SATSASBP425 Color Black Humidity 8% ~ 90% RH Material Aluminum and Plastic Max Drive Height (mm) 15 Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 156 Product Width (mm) 145 Product Height (mm) 42 Product Weight (g) 577 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Hot Swap Capability Yes Insertion Rating 3, 000 cycles OS Compatibility OS Independent RAID No Compatible Drive Types SAS & SATA Fans 1 - 40 mm Fans Included? Yes/No Yes Front Door Key Lock Yes LED Indicators 4 - HDD Power/Activity Number of Drives 4 Regulatory Approvals UL94 V-0 Rated Carton Depth (mm) 310 Carton Height (mm) 410 Carton Quantity 20 Carton Weight Gross (g) 15617 Included in Package - 1 - 5.25in SATA/SAS Backplane
- 1 - 6in LP4 Molex to SATA Power Cable
- 1 - Instruction Manual
- 1 - Set of keys
- 1 - Package of mounting screws
Package Depth (mm) 172 Package Height (mm) 52 Package Width (mm) 218 Package Quantity 1 Package Weight (g) 707 Packaging Description 4 drive 2.5in SATA/SAS Backplane Packaging Description India 4 drive 2.5in SATA/SAS Backplane Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFF-8482 (29-Pin, SAS) Connector 1 (Quantity) 4 Host Connector 1 SFF-8087 (36-Pin, SAS) Host Connector 1 (Quantity) 1 Host Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
