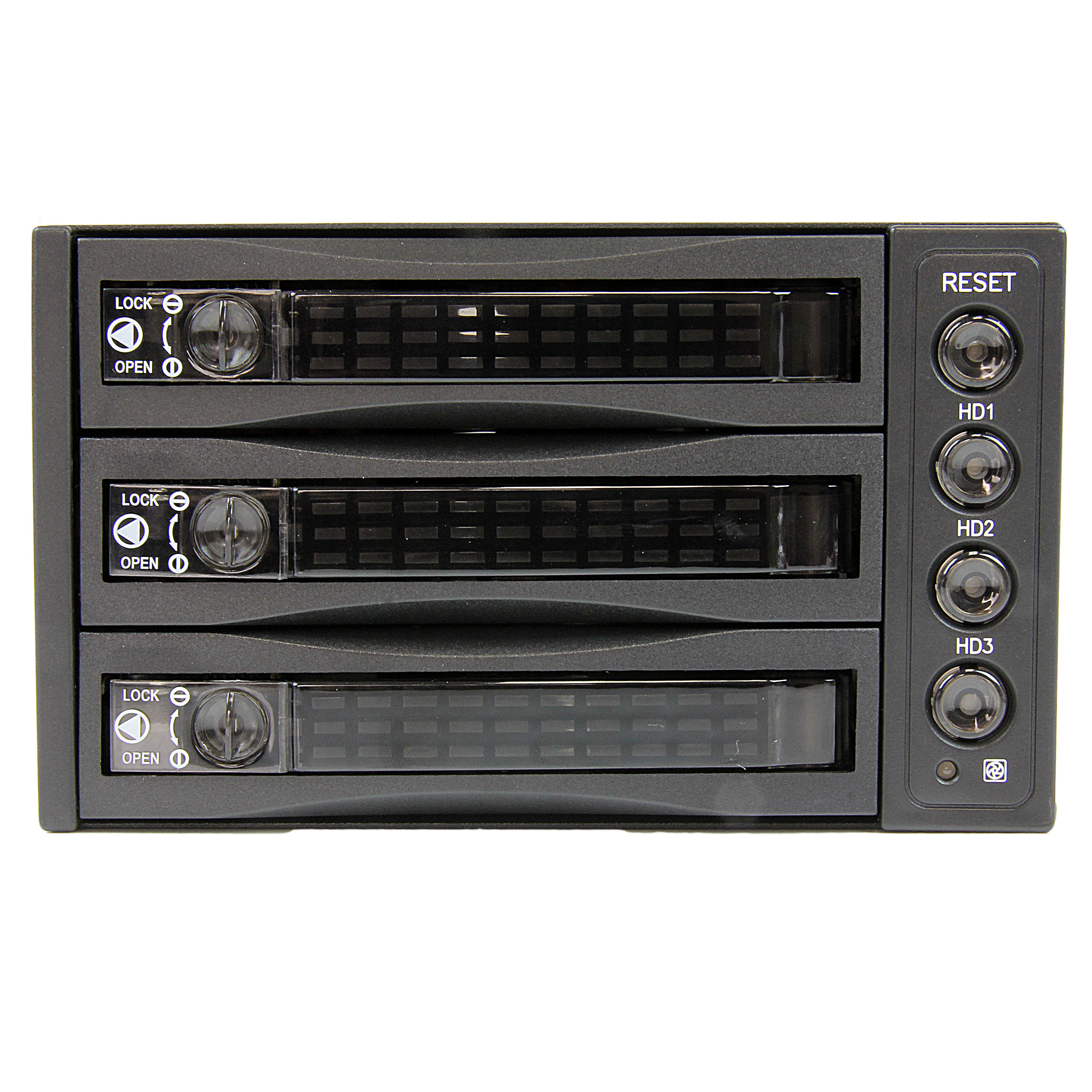

Main Image
SATSASBAY3BK
3 Drive Hot Swap SAS SATA Backplane
Hot Swap up to three 3.5in SAS or SATA hard drives in and out of this removable backplane; features 3-in-2 design, that requires only two 5.25in drive bays
Main Image

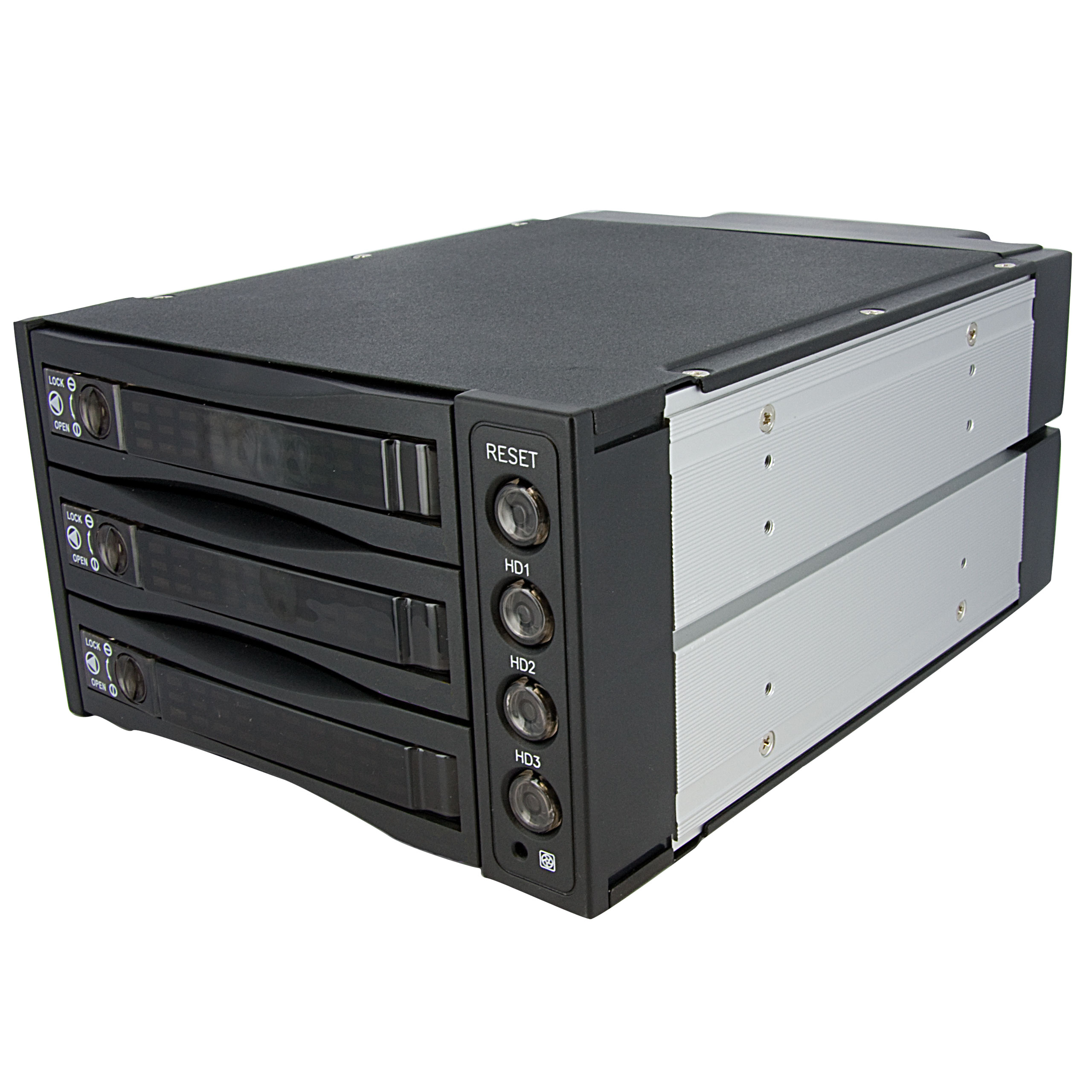

Product Images

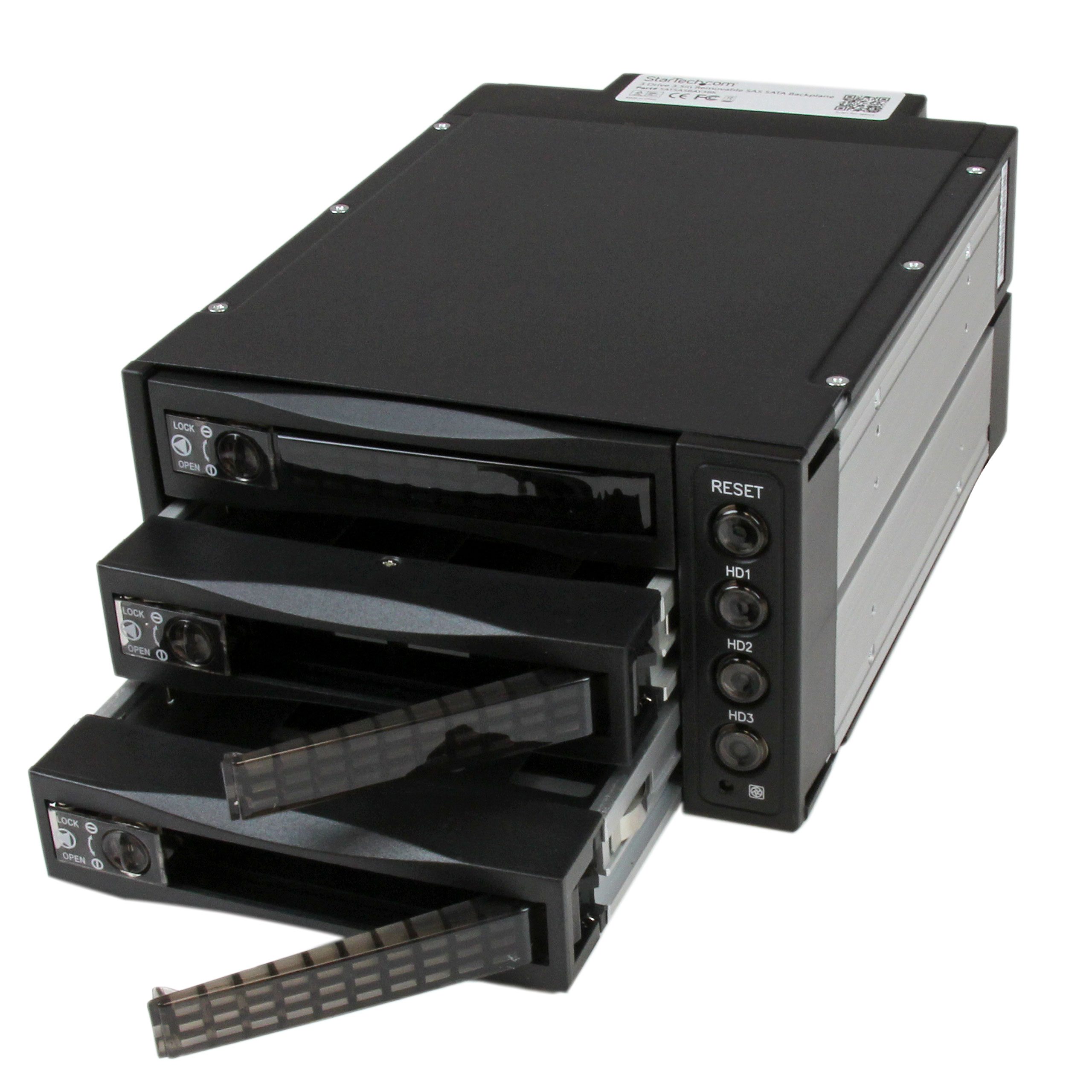

Product Images
Product Images
BOM Image
Product Name 3 Drive Hot Swap SAS SATA Backplane Product Number SATSASBAY3BK UPC 065030836630 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 3.5" Drive Mobile Racks and Backplanes Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Short) Hot Swap SATA/SAS Backplane RAID Bays Product Title (Medium) x Product Title (Standard) Hot Swap SATA/SAS Backplane RAID Bays – 3 Hard Drive Mobile Rack Product Title (Long) Hot Swap SATA/SAS Backplane RAID Bays – 3 Hard Drive Mobile Rack Product Title (AMZ) Hot Swap SATA/SAS Backplane RAID Bays - 3 Hard Drive Mobile Rack - 3 Drive SAS mobile Rack (SATSASBAY3BK) Title Ingram (Part 1) Hot Swap SATA/SAS Backplane RAID Title Ingram (Part 2) Bays – 3 Hard Drive Website Product Headline Hot Swap up to three 3.5in SAS or SATA hard drives in and out of this removable backplane; features 3-in-2 design, that requires only two 5.25in drive bays Bullet 1 Fully supports SAS revision 1/2 (3.0/6.0 Gbps) hard drives and controllers Bullet 2 Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullet 3 Supports 2.5" and 3.5" form factor SAS or SATA hard drives Bullet 4 Easy to use and lockable removable drive trays Bullet 5 Audible temperature warning buzzer for 55°C, 60°C, or 65°C Bullets (Consolidated) Hot Swap up to three 3.5in SAS or SATA hard drives in and out of this removable backplane; features 3-in-2 design - that requires only two 5.25in drive bays - SATA Backplane - SAS Backplane - 3 Drive SAS Mobile Rack - Serial Attached SCSI Backplane - SAS Hot Swap bay - Supports 2.5in and 3.5in - Marketing Copy Applications - Add additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE or SATA backplanes with a SAS/SATA backplane
- Backup systems where physically removing the backed up data from the system is required
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Website Search Keyword - 1.5 terabyte hard drives
- Mobile Rack
- Mobile Backplane
- SAS
- SATA
- Hot swap
- hotswap
- drive drawer
- Caddy
- SATABAY3BK
Required Regulatory Compliance Marks RCM - EMC/EMI - Australia/New Zealand - RCM Mark Special Notes If using SFF-8484 SAS controller for SAS Hard Drives, use StarTech.com SAS cable SAS84S450 System and Cable Requirements - Two free 5.25" drive bays
- 3 x Available SAS or SATA ports
Accessory Products - LP4SATAFM
- PYO1LP4SATA
- SATA18POW
- SATA18POWRA
- SATA24POW
- SATA24
- LSATA24
- LSATA24RA2
- SATA36
- SATA36RA1
- PCISATA4R1
- PEXSATA24E
- SAS84S450
- SATSASTRAYBK
Related Products - HSB320SATBK
- HSB430SATBK
- SATABAY425BK
- SATABAY4
- SATABAY4BK
- SATABAY5BK
- HSB100SATBK
- HSB220SAT25B
Color Black Humidity 90% RH at 30°C Material - Aluminum and Steel
- Plastic

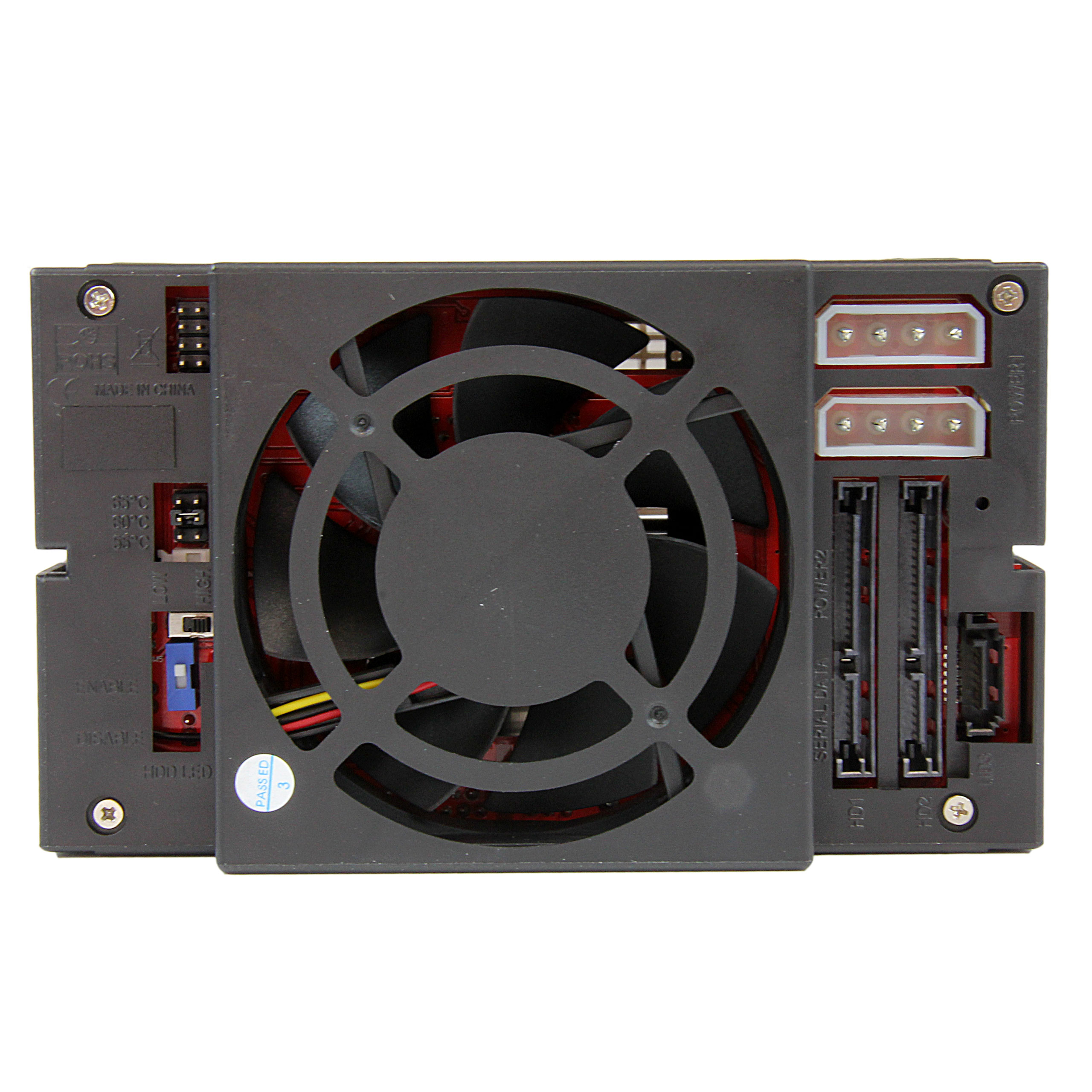

Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 202.000 Product Width (mm) 146.000 Product Height (mm) 86.000 Product Weight (g) 1210.000 Storage Temperature -15°C to 75°C (-59°F to 167°F) TAA Compliant No Hot Swap Capability Yes Compatible Drive Types SAS & SATA Fans 1 - 80 mm LED Indicators - 3 - Hard Drive Indicator (Green - Power, Orange/Red Blinking - Activity)
- 1 - Over Heating Alarm (Flashing Red - Temperature Warring, Reset sensor and alarm)

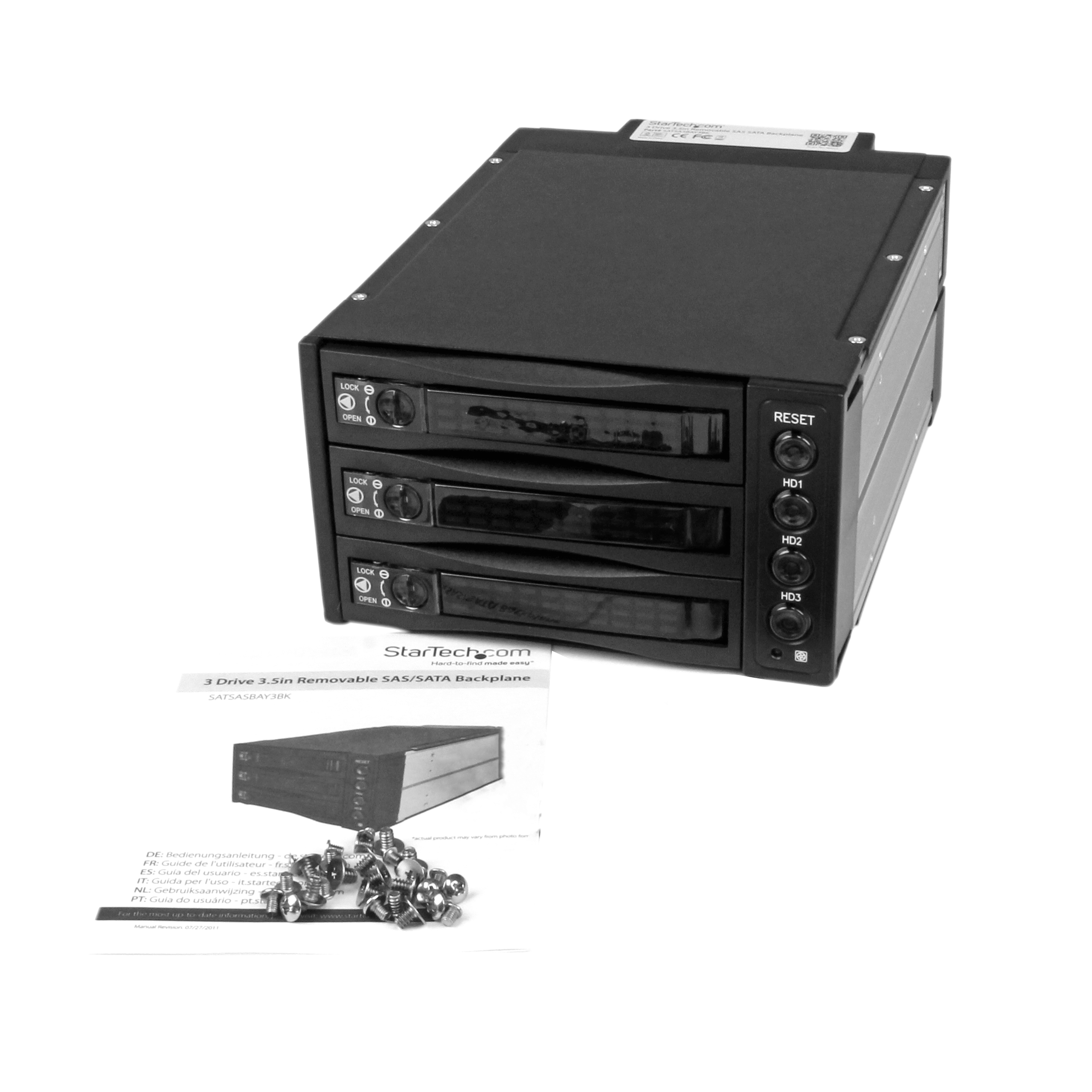

Number of Drives 3 Regulatory Approvals UL94 V-0 Rated Carton Depth (mm) 521 Carton Height (mm) 277 Carton Quantity 8 Carton Weight Gross (g) 12640 Included in Package - 1 - SAS/SATA Backplane
- 1 - Package of assemble screws
- 1 - Instruction Manual
Package Depth (mm) 123 Package Height (mm) 190 Package Width (mm) 254 Package Quantity 1 Package Weight (g) 1430 Packaging Description 3 Drive 3.5in Removable SAS SATA Backplane Packaging Description India 3 Drive 3.5in Removable SAS SATA Backplane Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 3 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 SATA (7-Pin + 15-Pin) Host Connector 2 (Quantity) 2 Host Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 3 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
