SATSASBAY425
SAS SATA Storage Mobile Rack Backplane
Install four 2.5in SAS/SATA Hard Drives into one 5.25in Bay
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name SAS SATA Storage Mobile Rack Backplane Product Number SATSASBAY425 UPC 065030837934 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mobile Racks and Backplanes Family Quad 2.5" SATA Backplane Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Short) 4 Drive SAS SATA Mobile Rack Backplane Product Title (Standard) 4 Drive 2.5in SAS SATA Mobile Rack Backplane Product Title (Long) 4 Drive 2.5in Removable SAS SATA Mobile Rack Backplane Product Title (AMZ) 4 Drive 2.5in Removable SAS SATA Mobile Rack Backplane (SATSASBAY425) Title Ingram (Part 1) 4 Drive 2.5in Removable SAS SATA Title Ingram (Part 2) Mobile Rack Backplane Website Product Headline Install four 2.5in SAS/SATA Hard Drives into one 5.25in Bay Bullet 1 25,000+ insertion rating Bullet 2 Power/Activity LED for each drive Bullet 3 Fully supports SAS revision I/II (3.0/6.0 Gbps) Bullet 4 Durable, vented aluminum construction Bullet 5 Dual 40mm cooling fans Bullets (Consolidated) Replaced by SATSASBP425 - Install four 2.5in SAS/SATA Hard Drives into one 5.25in Bay Marketing Copy Applications - Add additional hot-swap bays to a server or workstation computer
- System builders who need to image many 2.5" drives simultaneously and quickly
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
- Replace or upgrade old IDE or SATA-only backplane with a SAS/SATA backplane
Website Search Keyword - 2.5
- 5.25 Bay
- disk drive array
- RAID
- SAS
- SATA
- Mobile
- Laptop Drive
- backplane
- hotswap
- SSD
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - LP4SATAFM
- LP4SATAFM2L
- LP4SATAFMD
- LSATA12
- LSATA18
- SATA18
- SATA36
Related Products - DRW150SASBK
- DRW150SATBK
- HSB430SATBK
- SATABAY425BK
- SATSASBAY3BK
- HSB320SATBK
- SATDOCK2520
- SBAY5BK

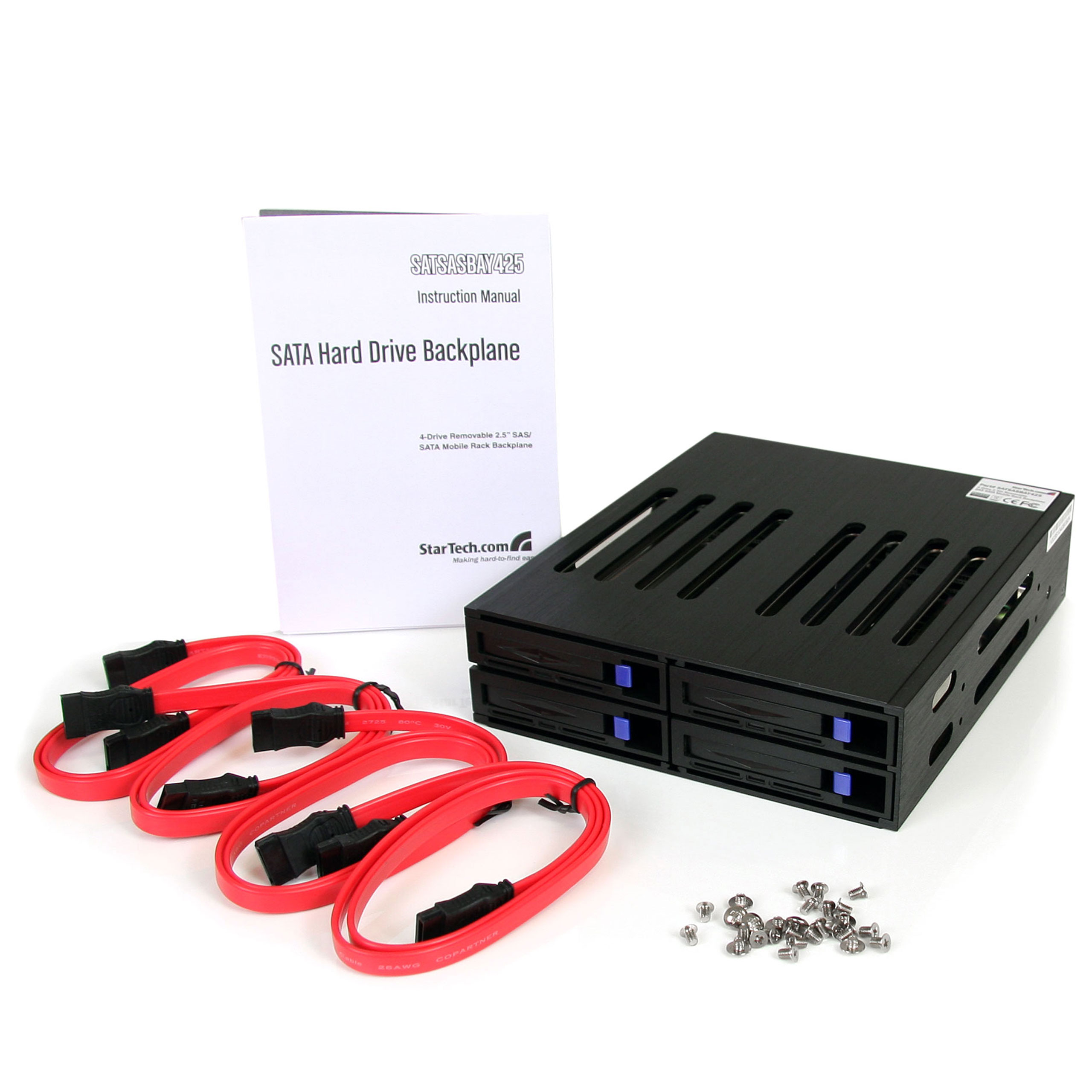

Replacement Product SATSASBP425 Color Black Humidity 5~90% RH Material Aluminum Max Drive Height (mm) 15 Operating Temperature -10°C to 70°C (14°F to 158°F) Product Length (mm) 175 Product Width (mm) 146 Product Height (mm) 42 Product Weight (g) 790 Storage Temperature -20°C to 75°C (-4°F to 167°F) TAA Compliant No Air Flow Rate 7.81 CFM Hot Swap Capability Yes Insertion Rating 25, 000 Cycles MTBF (hours) 20,000 Hours Noise Level 29.07 dBA Compatible Drive Types SAS & SATA Fan Bearing Type Sleeve Bearing Fans 2 - 40 mm Fans Included? Yes/No Yes LED Indicators 4 - Green (Solid - Power, Blinking - Activity) Number of Drives 4 Carton Depth (mm) 496 Carton Height (mm) 365 Carton Quantity 20 Carton Weight Gross (g) 22600 Included in Package - 1 - 4 Drive Backplane
- 1 - Instruction Manual
- 4 - 24in SATA cables
- 1 - Screw Kit

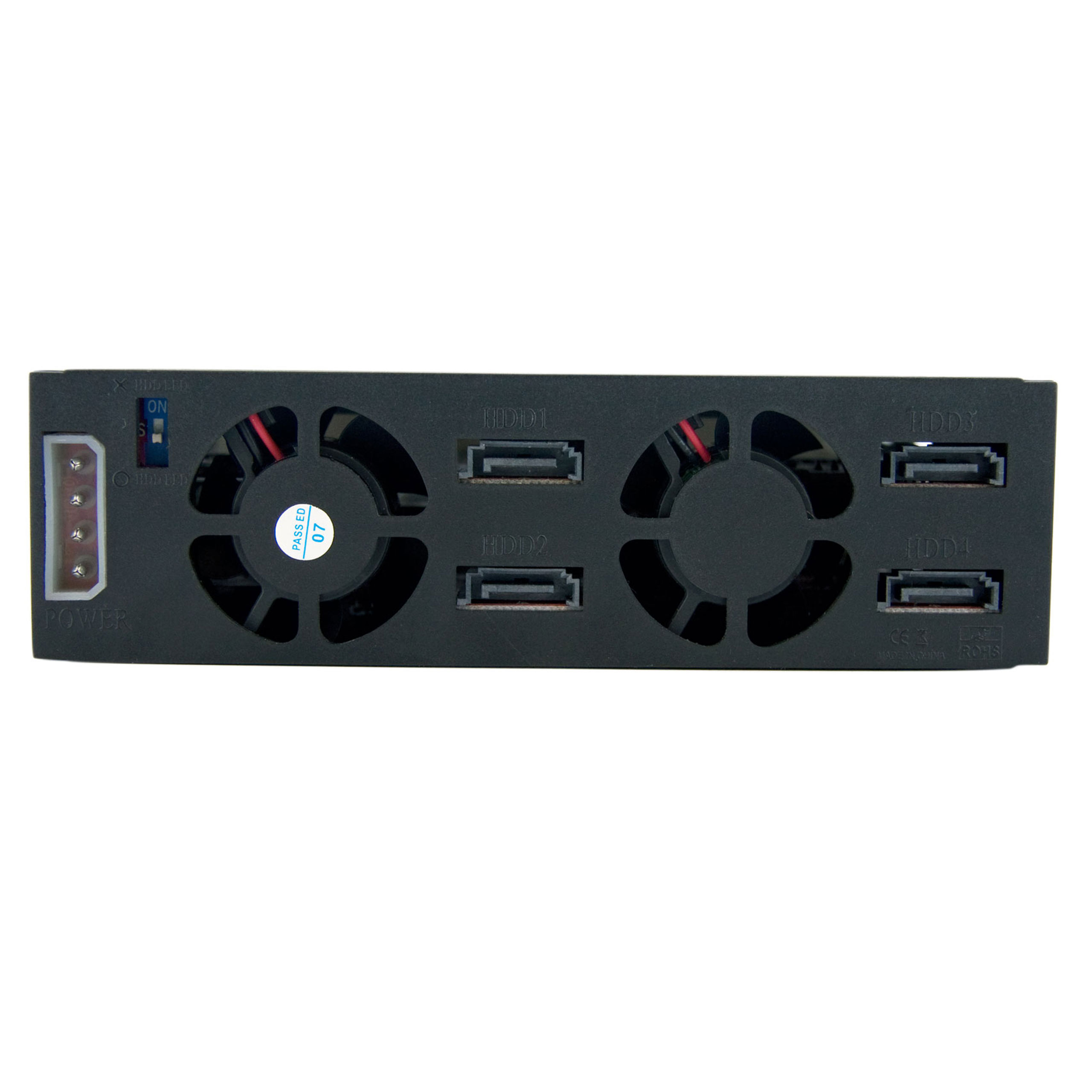

Package Depth (mm) 67 Package Height (mm) 171 Package Width (mm) 238 Package Quantity 1 Package Weight (g) 1070 Packaging Description 4 Drive 2.5in SAS/SATA Mobile Rack Packaging Description India 4 Drive 2.5in SAS/SATA Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 4 Host Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
