SATSASBP125
Connect and hot swap 2 5in SSD HDD 5 15mm drive
Easily connect and hot swap a SSD or HDD from a 3.5in bay
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Connect and hot swap 2 5in SSD HDD 5 15mm drive Product Number SATSASBP125 UPC 065030860826 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mobile Racks and Backplanes Family Mobile Backplane for 2.5" SATA/SAS Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX088X Product Title (Ultra-Short) One-bay Backplane Product Title (Short) Mobile Rack Backplane for 2.5" SAS/SATA Product Title (Medium) Mobile Rack Backplane for 2.5in SATA/SAS Drive - 5-15mm SSD/HDD Product Title (Standard) Mobile Rack Backplane for 2.5in SATA/SAS Drive - Supports SAS II & SATA III (6 Gbps) Product Title (Long) Mobile Rack Backplane for 2.5in SATA/SAS Drive Product Title (AMZ) Mobile Rack Backplane for 2.5" SATA/SAS Drive - Supports 5mm-15 mm SSDs/HDDs - Hot Swap Vented Metal Enclosure (SATSASBP125) Title Ingram (Part 1) Connect and hot swap a SSD/HDD Title Ingram (Part 2) - supports 5-15mm SAS/SATA drive Website Product Headline Easily connect and hot swap a SSD or HDD from a 3.5in bay Bullet 1 Hot swap drives between systems with this single 2.5in SAS/SATA drive backplane Bullet 2 Supports a wide range of SSDs and HDDs from 5-15 mm Bullet 3 Easy, error-free tray insertion with this vertically or horizontally-mounted backplane Bullet 4 Lockable, removable tray provides drive protection Bullet 5 NSS connector provides 50,000+ insertion rating for long-lasting performance Bullets (Consolidated) Easily connect and hot swap a SSD or HDD from a 3.5in bay - 1-Bay mobile rack backplane/drive caddy/2.5" hard drive adapter - Works with 5-15mm 2.5in SAS/SATA drives incl Samsung 840 EVO - Ideal for drive sharing and redundant backup - Compatible with the 3.5in bay in your desktop or server - Supports SAS II and SATA III HDDs and SSDs (up to 6 Gbps) - 50,000+ Insertion Rating - Durable metal housing - Lockable and removable tray - Interchangeable drive tray with 4-bay backplane SATSASBP425 Marketing Copy Marketing Copy (No HTML) This single 2.5in SAS/SATA drive backplane lets you install and easily remove a 2.5in SAS or SATA HDD or SDD in a 3.5in external expansion bay on your desktop PC or server. The SATA/SAS drive hot swap backplane provides an easy, convenient way to install and swap drives between desktops or servers. It supports both SAS and SATA 2.5in drives ranging from 5 to 15mm in height. To maximize the performance of your hard drives, the backplane for 2.5in SATA/SAS drive supports SAS II and SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. The one-bay mobile rack backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers. You can lock the removable steel tray of the mobile rack backplane in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector in this single 2.5in SAS/SATA drive backplane provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drive and the bay. Many fast-paced work environments require drives to be removed regularly. This convenient SATA/SAS drive hot swap backplane lets you hot swap between systems quickly, without shutting down.The included drive tray is interchangeable, working with both the backplane for 2.5in SATA/SAS drive and the 4-bay backplane (SATSASBP425). Engineered with high-quality metal, the robust metal housing delivers reliable performance. The venting helps to ensure proper air flow to assist with heat dissipation.The single-bay one-bay mobile rack backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - System integrators and administrators looking for flexible management of their storage
- Build your incremental or off-site storage back-up plan by attaching hot swappable hard drives to your server or computer
- Fast-paced work environments where drives need to be replaced or removed regularly
Website Search Keyword - Hard drive backplane
- Mobile rack backplane
- 2.5" SAS/SATA HDD or SSD Backplane
- 2.5" SAS/SATA Backplane
- 2.5" SAS/SATA HDD or SSD Drive Backplane
- 2.5" SATA SDD Backplane
- Single-Bay Backplane
- Hot swap SDD/HDD backplane
- 1-Bay Backplane
- One-bay backplane
- Hot swappable mobile rack HDD backplane
- 2.5" hard drive adapter
- one drive backplane
- 1-drive mobile rack backplane
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU

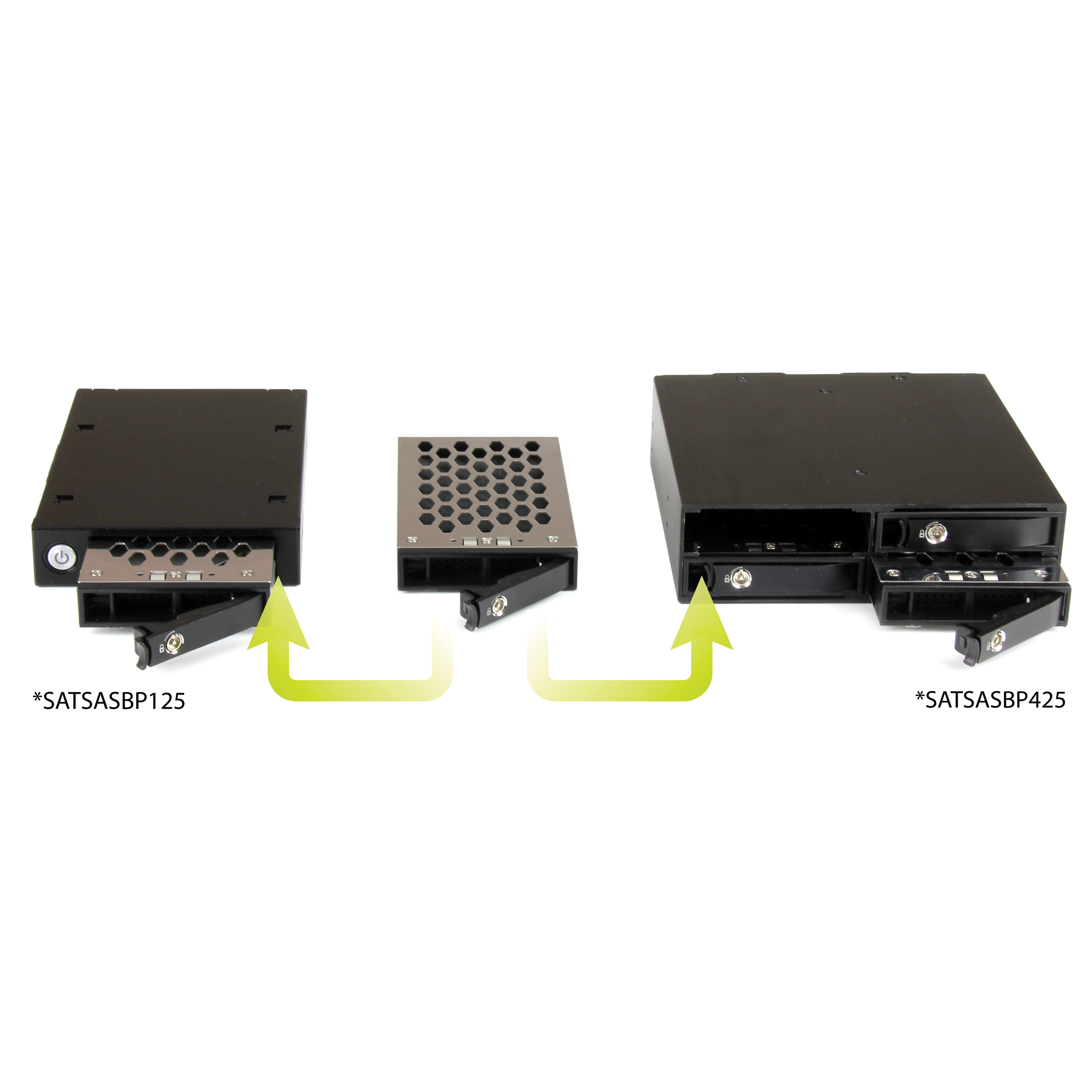

Special Notes Flammability rating: UL94 - V0 Accessory Products - SATSASBP425
- SATSASTRX25
Related Products - HSB220SAT25B
- SAT2510U3S
- SAT2510U3REM
- S25SLOTR
- S2510U33RUSM
- HSB225SATBK
- SATSAS425BK
- SATSAS225ODD
- SATSASBAY425
- LSATA6
- LSATA8
- LSATA12
- LSATA18
- LSATA24
- LSATARND6
- LSATARND12
- LSATARND18
- LSATARND24
- SATAPOWADAP
- PYO2LP4SATA
- PYO4SATA
- PYO2SATA
- SATAPOWADPL
- PYO2LSATA
- PYO2LP4LSATA
Color Black & Silver Humidity 0% to 95% (non-condensing) at 25°C Material Aluminum and Steel Max Drive Height (mm) 15 Operating Temperature -20°C to 70°C (-4°F to 158°F) Primary Material Aluminum Product Length (mm) 141.000 Product Width (mm) 101.000 Product Height (mm) 25.000 Product Weight (g) 440.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Hot Swap Capability Yes Insertion Rating 50,000 Max Drive Capacity Tested with hard drives up to 2TB at 7200 RPM Maximum Data Transfer Rate 6 Gbps Noise Level 20 bBA OS Compatibility OS Independent Port Multiplier No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types SAS & SATA Front Door Key Lock Yes Interface/Bridge - SATA
- SAS
LED Indicators 1 - Drive power and activity Number of Drives 1 Supported Drive Height(s) - 5mm
- 9.5mm
- 12.5mm
- 15mm

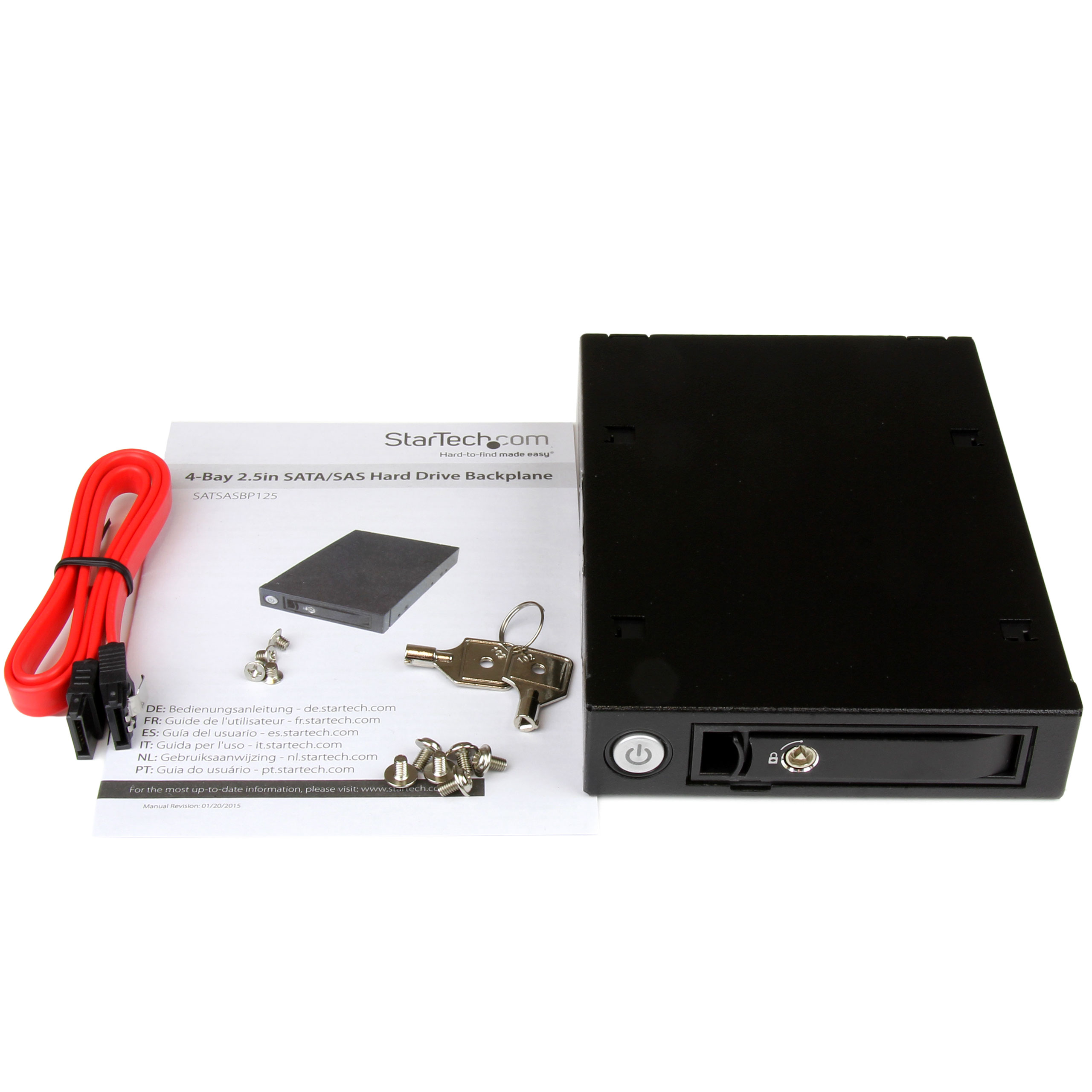

Carton Depth (mm) 328 Carton Height (mm) 260 Carton Quantity 20 Carton Weight Gross (g) 11792 Included in Package - 1 - 1-Bay 2.5in SATA/SAS Hard Drive Backplane
- 2 - Drive bay keys
- 1 - 2.5” HDD/SSD Drive Tray
- 1 - SATA cable
- 1 - Drive mounting screw kit
- 1 - Backplane mounting screw kit
- 1 - Quick install guide

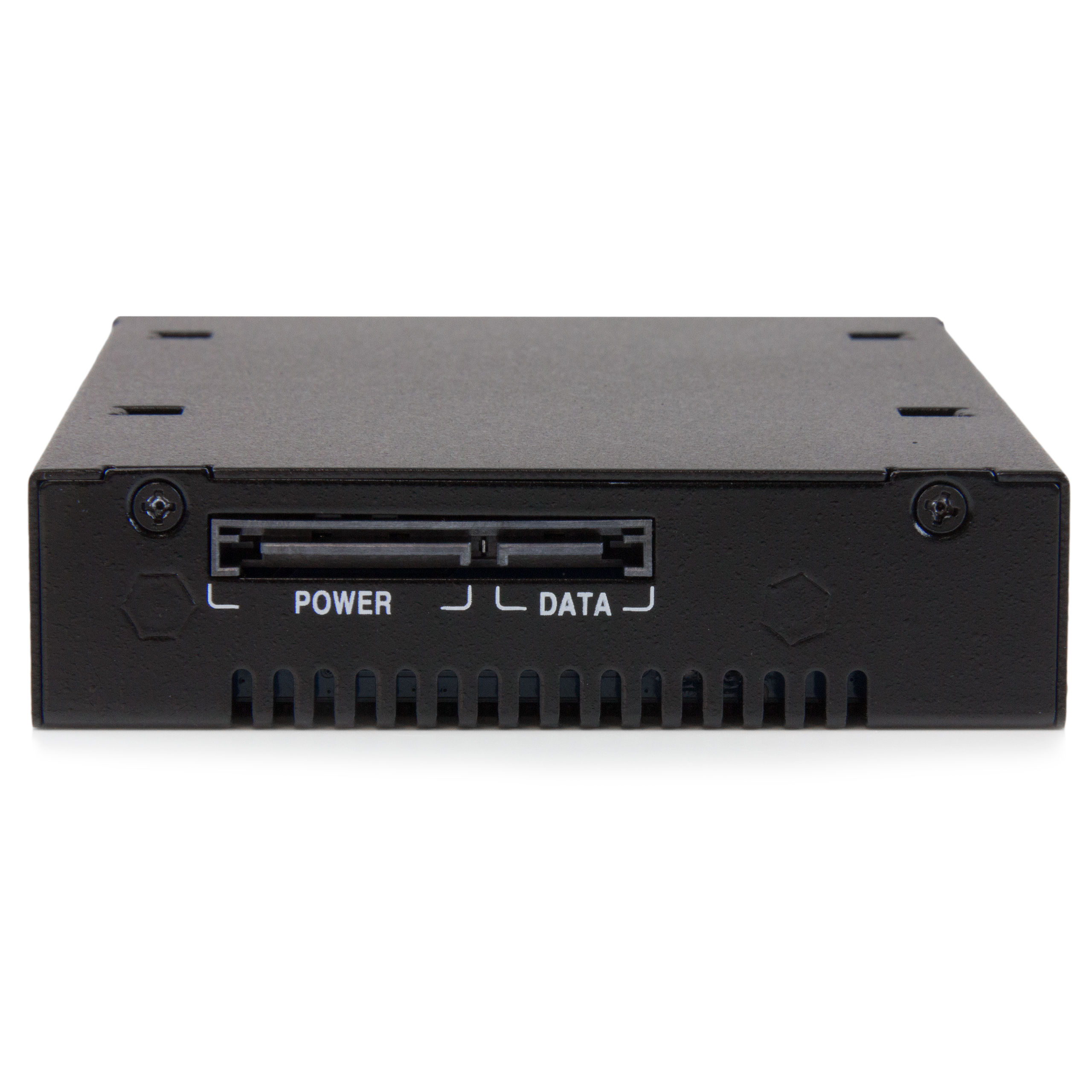

Package Depth (mm) 158 Package Height (mm) 46 Package Width (mm) 194 Package Quantity 1 Package Weight (g) 552 Packaging Description Single-bay SAS/SATA 2.5in HDD backplane Packaging Description India Single-bay SAS/SATA 2.5in HDD backplane Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-12-16 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-02-26 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
