SATSASBP425
Install 4 SSDs HDDs into one 5 25in bay

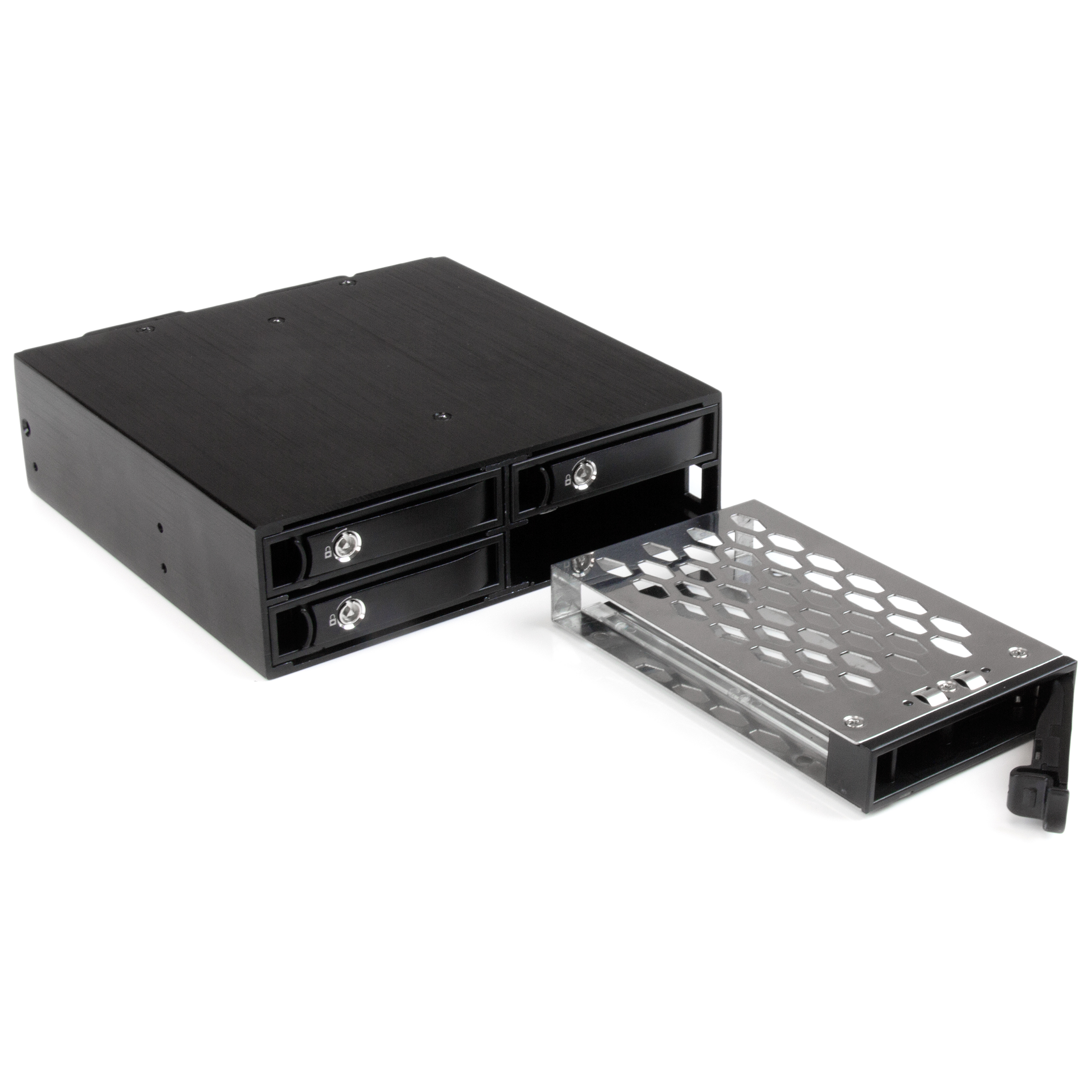

Hot swap with ease by installing four SSDs/HDDs into one 5.25in bay
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Install 4 SSDs HDDs into one 5 25in bay Product Number SATSASBP425 UPC 065030859837 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mobile Racks and Backplanes Family Mobile Backplane for 2.5" SATA/SAS Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) 4-Bay Backplane Product Title (Short) 4-Bay Backplane for 2.5" SATA/SAS Drives Product Title (Medium) 4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives - 5-15mm SSDs/HDDs Product Title (Standard) 4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives, TAA Product Title (Long) 4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives - TAA Product Title (AMZ) 4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives - Hot Swap SSDs/HDDs from 5-15mm - Supports SAS II & SATA III (6 Gbps) , TAA (SATSASBP425) Title Ingram (Part 1) Install 4 SSD/HDDs in 5.25" bay Title Ingram (Part 2) - for SAS II & SATA drives 5-15mm Website Product Headline Hot swap with ease by installing four SSDs/HDDs into one 5.25in bay Bullet 1 Build your storage system by adding four 2.5in SAS or SATA drives into one 5.25in bay Bullet 2 Supports a wide range of SSDs and HDDs from 5-15mm Bullet 3 Easy, error free insertion of tray with vertically or horizontally mounted backplane Bullet 4 Lockable, removable trays provide drive protection Bullet 5 NSS connector provides 50,000+ insertion rating for long-lasting performance Bullets (Compact) Hot swap with ease by installing four SSDs or HDDs into one 5.25in bay - 4-Bay Mobile Rack Backplane for 2.5in SATA and SAS Drives - Works with 5-15mm 2.5in SAS and SATA drives including Samsung 840 EVO - Supports SAS II & SATA III (6 Gbps) Bullets (Consolidated) Hot swap with ease by installing 4 SSDs/HDDs into one 5.25in bay - Multi-bay mobile rack backplane/drive caddy/2.5" hard drive adapter - Works with 5-15mm 2.5in SAS/SATA drives including Samsung 840 EVO - Ideal for drive sharing and redundant backup - Supports SAS II and SATA III (6 Gbps) - Lockable and removable trays - 50,000+ Insertion Rating - Durable metal housing - Two 40mm fans for ventilation - Interchangeable drive tray with 1-bay backplane SATSASBP125 - Replacement for SATSASBAY425 Marketing Copy Marketing Copy (No HTML) Applications - Systems integrators and administrators looking for flexible storage management
- Build your incremental or off-site storage back-up plan by attaching hot-swappable drives to your server or computer
- Fast-paced work environments where drives need to be replaced or removed regularly
Website Search Keyword - Hard drive backplane
- Mobile rack backplane
- 2.5" SAS/SATA HDD or SSD Backplane
- 2.5" SAS/SATA Backplane
- 2.5" SAS/SATA HDD or SSD Drive Backplane
- 2.5" SATA SDD Backplane
- Hot swap SDD/HDD backplane
- Hot swappable mobile rack HDD backplane
- 4-bay backplane
- four bay backplane
- 4 drive backplane
- four drive backplane
- multi-bay mobile rack backplane
- multi-bay backplane
- multi-bay SAS/SATA HDD backplane
- 4-bay 2.5" SAS/SATA Backplane
- multi-bay 2.5" SAS/SATA HDD mobile rack Backplane
- 2.5" hard drive adapter
- SATSASBAY425
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords

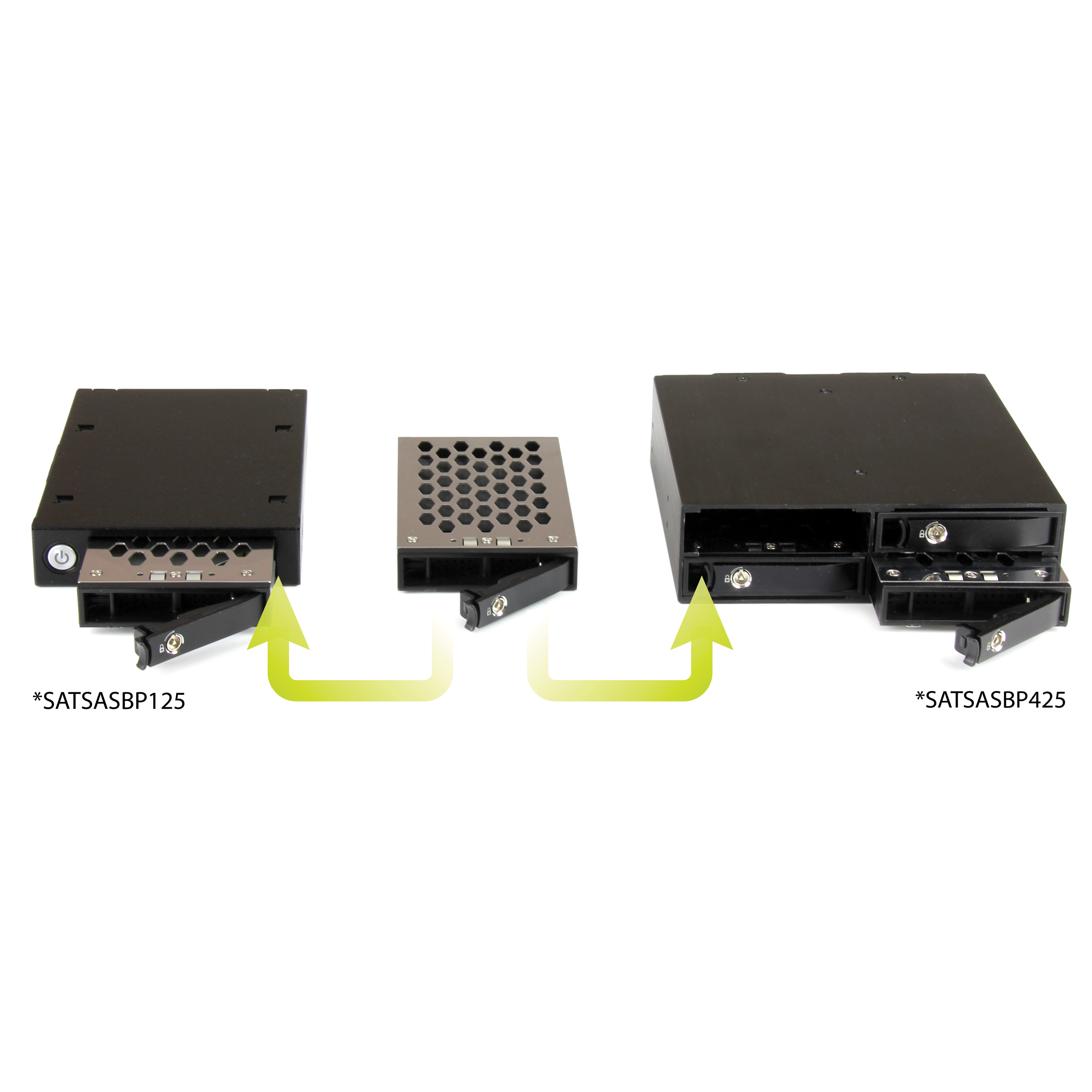

Special Notes Flammability rating: UL94 - V0 Accessory Products - SATSASBP125
- SATSASTRX25
- LSATA12
- LSATA6
- LSATA8
- LSATA24
- LSATA18
- LSATARND12
- LSATARND18
- LSATARND24
- LSATARND6
- PYO4SATA
- PYO2SATA
- PYO2LSATA
- LP4SATAFM12
- LP4SATAFM6IN
- LP4SATAFMD
- LP4SATAFM2L
- PYO2L
Related Products - HSB220SAT25B
- SAT2510U3S
- SAT2510U3REM
- S25SLOTR
- S2510U33RUSM
- HSB225SATBK
- SATSAS425BK
- SATSAS225ODD
- SATSASBAY425
Color Black Humidity 5%~65% RH Material Aluminum and Steel Max Drive Height (mm) 15 Operating Temperature 0°C to 55°C (23°F to 95°F) Primary Material Aluminum Product Length (mm) 151.500 Product Width (mm) 146.000 Product Height (mm) 42.000 Product Weight (g) 760.000 Storage Temperature -20°C to 55°C (-4°F to 131°F) TAA Compliant Yes Hot Swap Capability Yes Insertion Rating 50,000 Max Drive Capacity Tested with hard drives up to 2TB at 7200 RPM Maximum Data Transfer Rate 6 Gbps MTBF (hours) 30,000 Noise Level 20 dBA OS Compatibility OS Independent Port Multiplier No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types SAS & SATA Fan Bearing Type Sleeve Bearing Fans 2 - 40 mm Fans Included? Yes/No Yes Front Door Key Lock Yes Interface/Bridge - SATA
- SAS
LED Indicators - 4 - Drive power and activity LED
- 1 - Fan activity
Number of Drives 4 Supported Drive Height(s) - 5mm
- 9.5mm
- 12.5mm
- 15mm

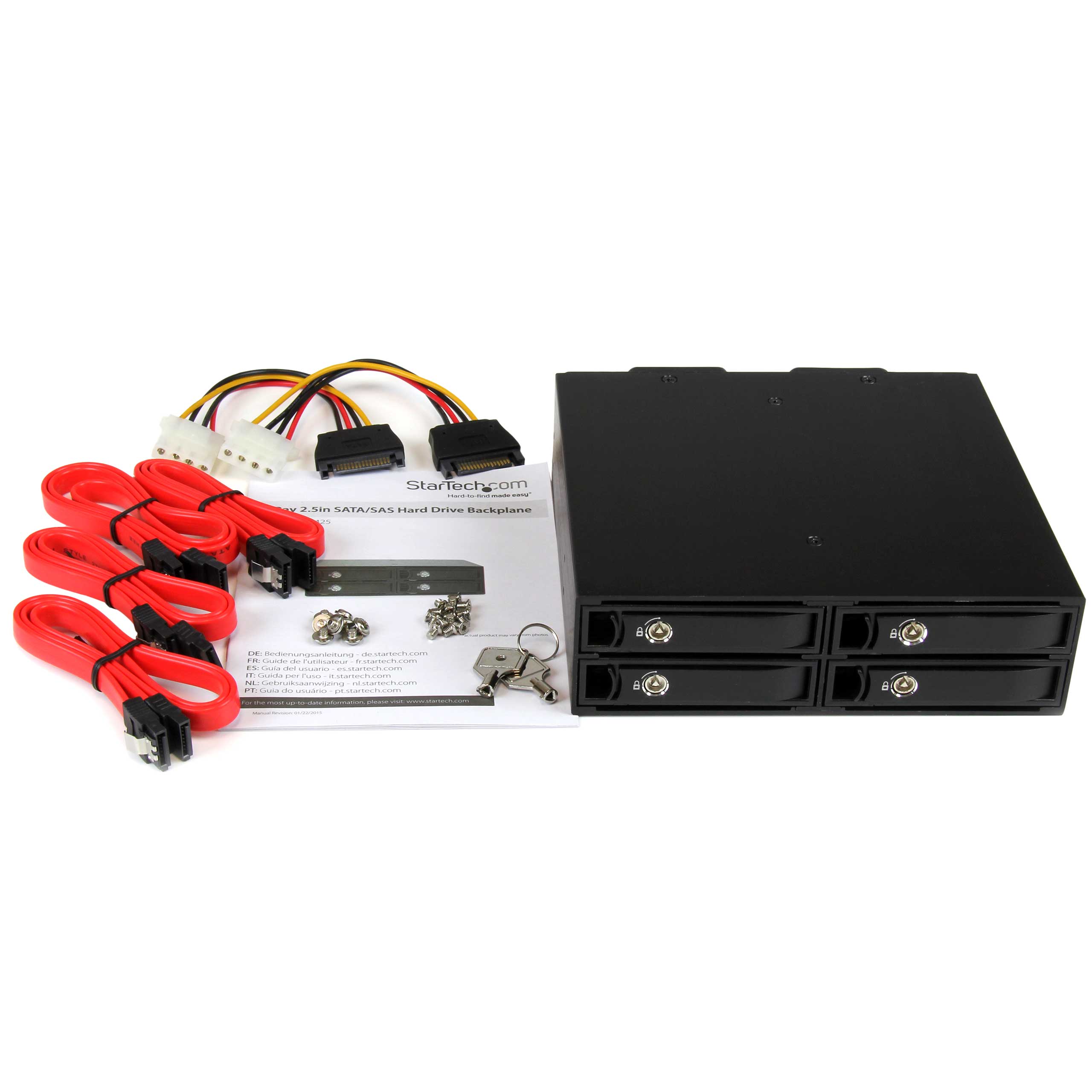

Carton Depth (mm) 456 Carton Height (mm) 233 Carton Quantity 8 Carton Weight Gross (g) 8990 Included in Package - 1 - 4-bay SATA/SAS hard drive backplane
- 2 - drive tray keys
- 4 - 18" SATA data cables
- 1 - quick start guide
- 16 - drive mounting screws
- 4 - 2.5" drive trays
- 2 - SATA to Molex power adapters
- 8 - backplane mounting screws
Included In Package for Label - 4 - Drive Trays
- 2 - SATA To LP4 Converters
- 1 - Hardware Kit
- 1 - Quick Start Guide
- 4 - 18" SATA Data Cables
- 2 - Keys
- 1 - Hard Drive Backplane

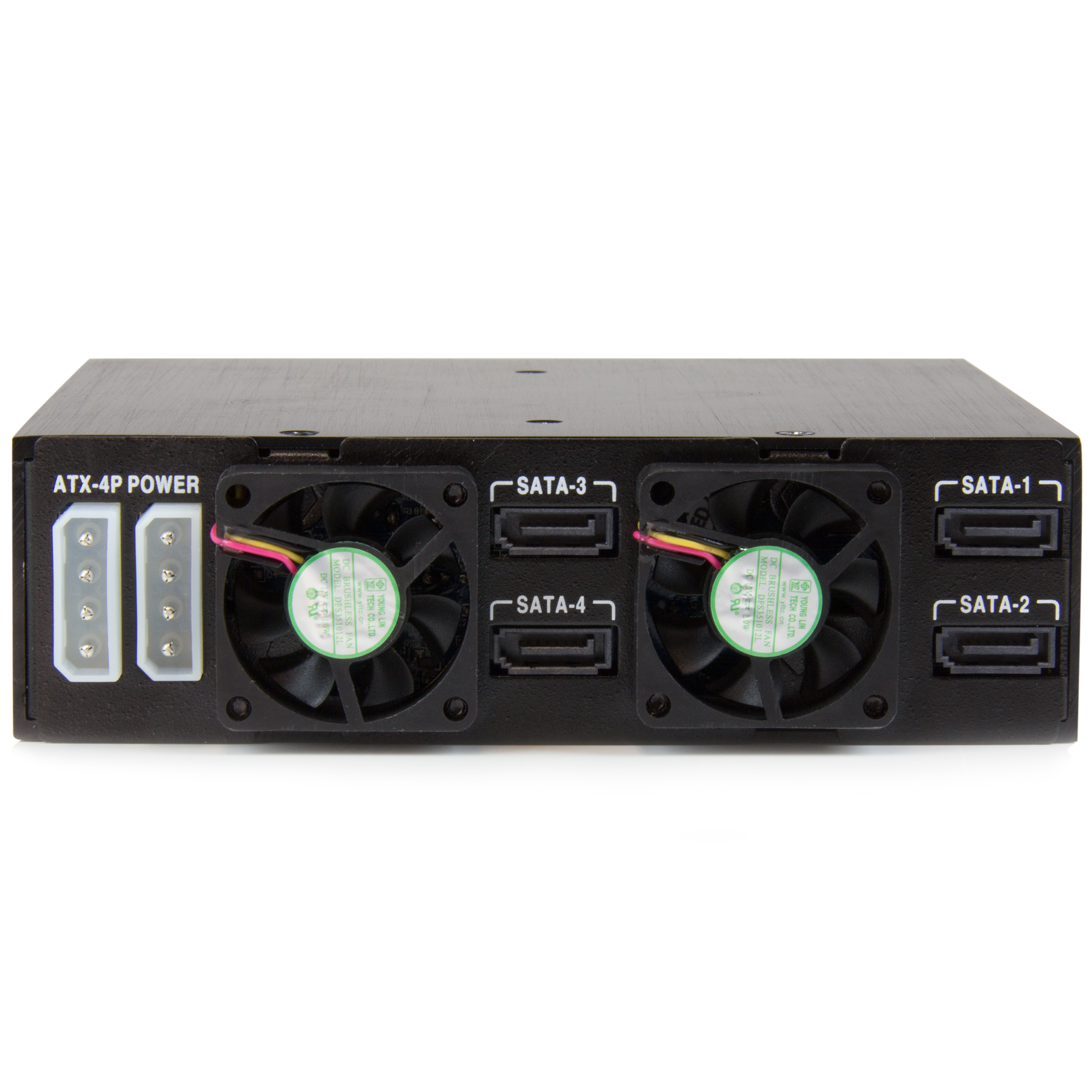

Package Depth (mm) 216 Package Height (mm) 83 Package Width (mm) 196 Package Quantity 1 Package Weight (g) 1032 Packaging Description 4-Bay 2.5in SATA/SAS Hard Drive Backplane Packaging Description India 4-Bay 2.5in SATA/SAS Hard Drive Backplane Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin + 15-Pin) Connector 2 (Quantity) 4 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-12-08 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-02-27 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
