SBAY5BK
SAS SATA Storage Mobile Rack Backplane

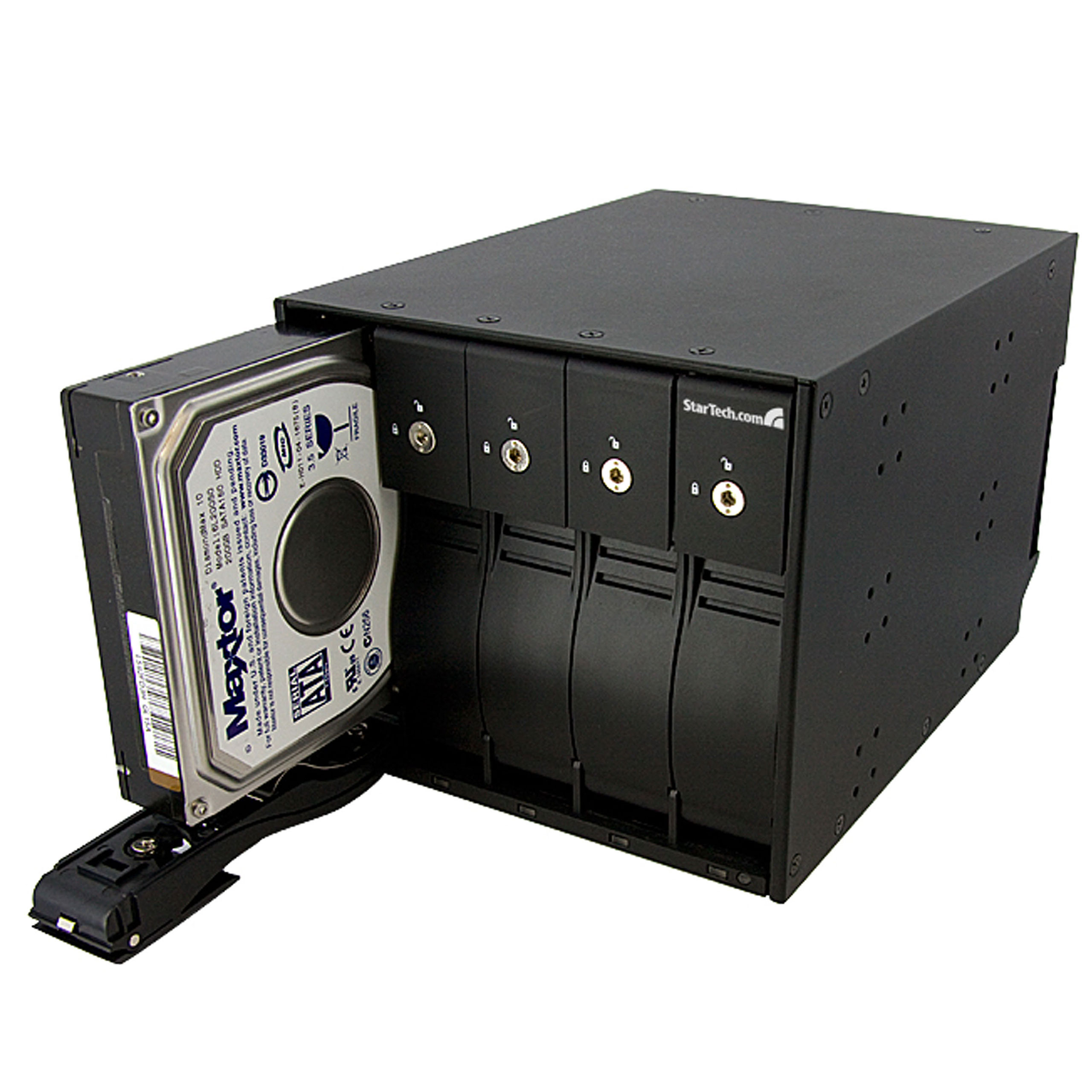

Turn 5 SATA/SAS hard drives into front accessible hot-swappable drives
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name SAS SATA Storage Mobile Rack Backplane Product Number SBAY5BK UPC 065030837200 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) 5 Drive SAS SATA Mobile Rack Backplane Product Title (Standard) 5 Drive SAS SATA Mobile Rack Backplane Product Title (Long) 5 Drive 3.5in Removable SAS SATA Mobile Rack Backplane Title Ingram (Part 1) 5 Drive 3.5in Removable SAS SATA Title Ingram (Part 2) Mobile Rack Backplane Website Product Headline Turn 5 SATA/SAS hard drives into front accessible hot-swappable drives Bullet 1 Holds up to five 3.5" SATA drives across three 5.25" bays Bullet 2 Power/Activity LED indicator for each drive Bullet 3 Flammability rating of UL 94 V-0 Bullet 4 Fully supports SAS revision 1/2 (3.0/6.0 Gbps) hard drives and controllers Bullet 5 Sturdy aluminum and steel construction Marketing Copy Applications - Add additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE or SATA-only backplane with a SAS/SATA backplane
- System builders who need to image many 3.5" drives simultaneously and quickly
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
- Add additional disk drive bays to a system with no more internal drive bays
Website Search Keyword - 2.0 terabyte hard drives
- 4U Rack mountable
- RAID
- SATA
- SATABAY
- Serial ATA
- SAS
- Serial Attached SCSI
- 5 Drive
- Storage Array
- Backplane
System and Cable Requirements Three free 5.25" drive bays Accessory Products - LSATA12
- LSATA18
- LSATA24
- SATA18
- SATA24
- SATA36
- LP4SATAFM
- LP4SATAFM2L
Related Products - RAIDBAY3BK
- SATABAY3BK
- SATABAY425BK
- SATABAY4BK
- SATABAY5BK
- SATSASBAY3BK
- HSB320SATBK
- HSB430SATBK
Color Black Humidity 8~90% RH Material Steel Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 190 Product Width (mm) 146 Product Height (mm) 126 Product Weight (g) 1482 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Air Flow Rate 24.3 CFM Hot Swap Capability Yes Compatible Drive Types SAS & SATA Fan Bearing Type Sleeve Bearing Fans 2 - 60 mm Front Door Key Lock Yes LED Indicators - 1 - Power - Green
- 5 - Drive Indicator - Blue (Drive Present), Purple (Drive Activity)

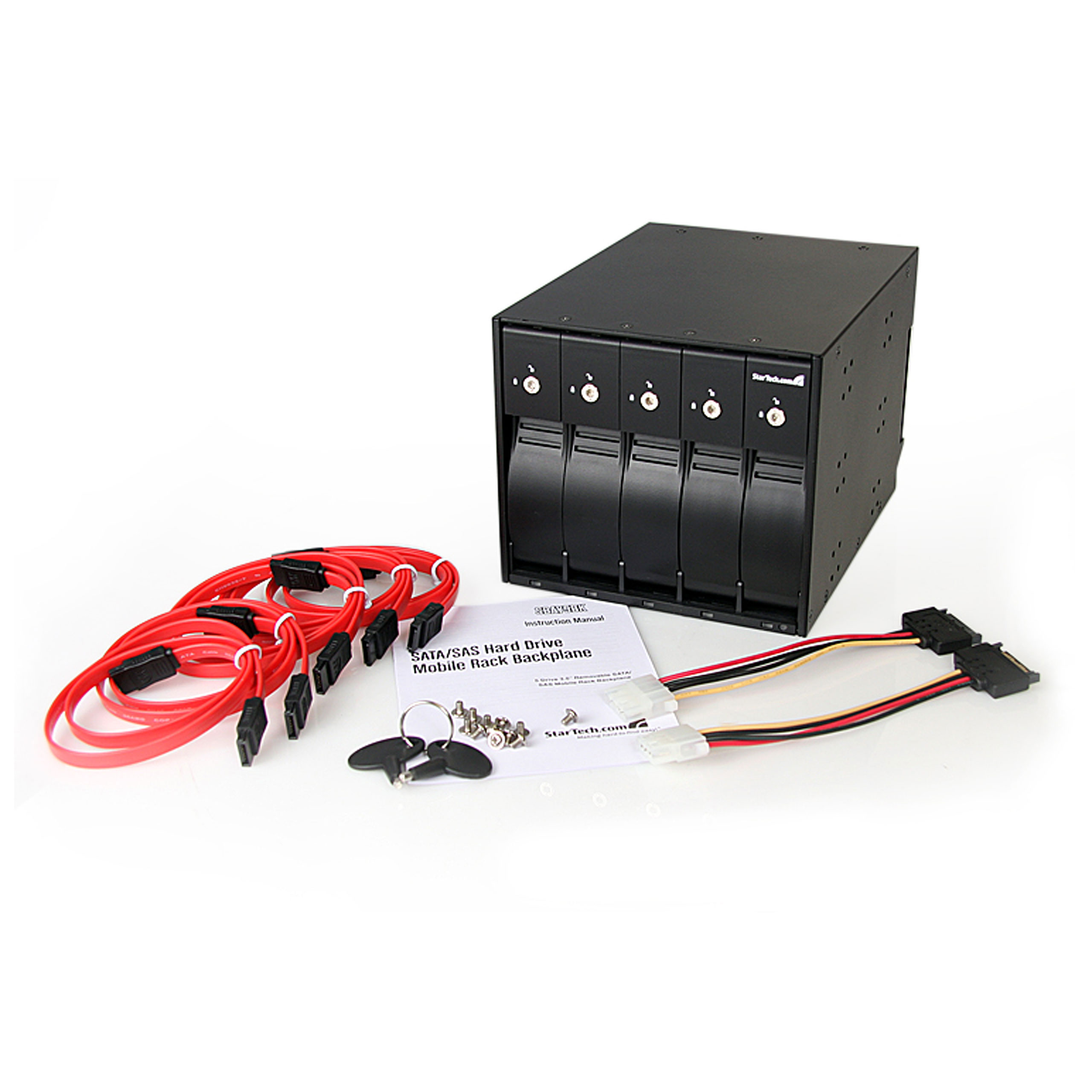

Number of Drives 5 Regulatory Approvals UL 94 V-0 Flammability Rating Carton Depth (mm) 613 Carton Height (mm) 486 Carton Quantity 6 Carton Weight Gross (g) 13140 Included in Package - 1 - 5 Bay Trayless HDD Backplane
- 1 - Key
- 1 - Pack of Mounting Screws
- 1 - Instruction Manual
- 5 - SATA Data Cables
- 2 - SATA to LP4 Adapters

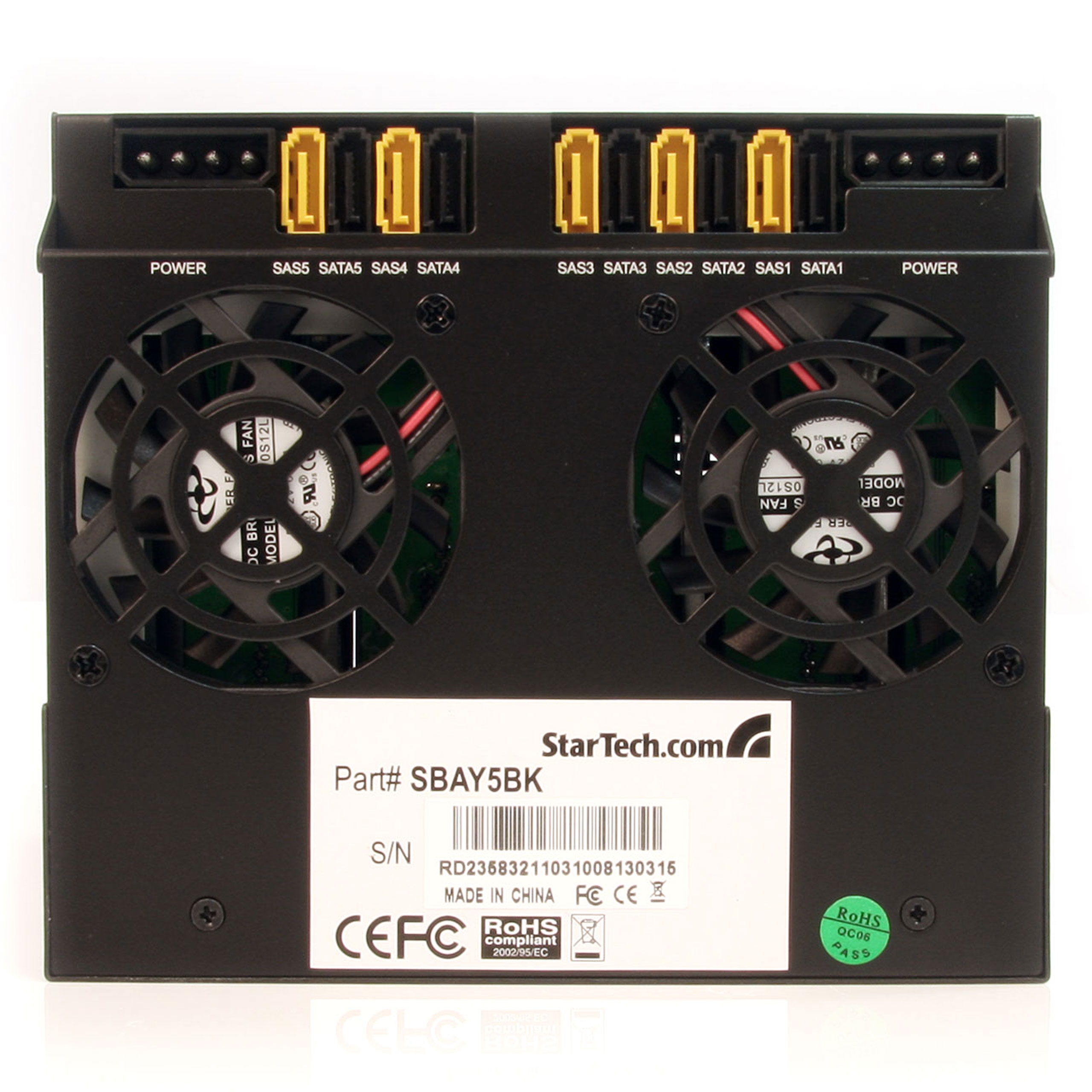

Package Depth (mm) 191 Package Height (mm) 220 Package Width (mm) 279 Package Weight (g) 1990 Packaging Description 5 Drive 3.5in SAS/SATA Mobile Rack Packaging Description India 5 Drive 3.5in SAS/SATA Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFF-8482 (29-Pin, SAS) Connector 1 (Quantity) 5 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 10 Host Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager David Muzinic
