SCSI8068ALBK
Main Image

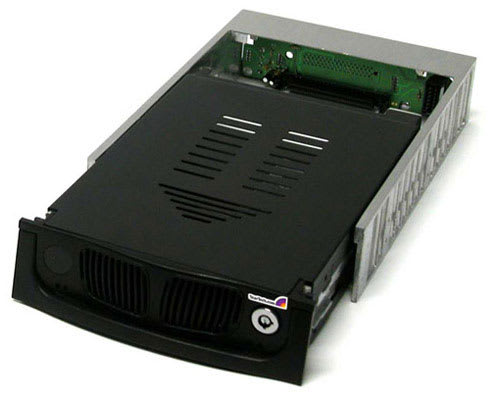

Product Name *D* Black 68 to 80 Pin SCSI U160 Drawer Product Number SCSI8068ALBK UPC 065030795289 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Product Title (Long) Black Aluminum 68 to 80 Pin SCSI U160 Drive Drawer with Temperature Alarm Bullet 1 Secure and affordable solution to store and transfer data Bullet 2 Two Ball Bearing fans maintain optimum cooling and increased air flow Bullet 3 Supports Ultra 160 SCSI with data transfer rate up to 160 MB/s Bullet 4 Aluminum construction provides a durable enclosure and excellent heat dissipation Marketing Copy The StarTech.com SCA drive drawer is an aluminum drive caddy and receiving bay for internally mounting 3.5" SCA drives into half-height, 5.25" peripheral bays. This allows SCA hard drives to be quickly added or removed from any PC with an available 5.25 inch drive bay without opening the computer. The 2-piece unit consists of a bay that mounts into the PC and a removable drawer or caddy that encases the hard disk. A locking mechanism controls power to the drive to prevent it from being removed while operating. A handle activated drawer release mechanism allows the drive to be inserted or removed with minimal force. Dual front mounted ball-bearing cooling fans provide fresh cool air flow over the hard drive, preventing overheating and data loss. Additionally, if your drive gets too hot or if the fan fails, the built-in alarm will sound, warning you of the problem. The Removable Hard Disk Drawer is perfect for educational use, where the same PC needs to run several different operating systems, high speed, high capacity backups, hot-swap server drives, or any mission critical PC where downtime must be minimized. Applications - Can be conveniently used as a mobile back up system
- For use in servers, storage subsystems and high-end workstations
- Mission critical control PCs where downtime must be minimized
- Ideal for environments using RAID storage applications which includes Multimedia, Video Streaming and Digital Broadcasting
Related Products SCSI8068ALDR Color Black Material - Aluminum
- Plastic
Product Height (mm) 41 TAA Compliant No General Specifications - HD Compatibility: All 3.5 Inch U160 SCSI Hard Drives
- CPU Compatibility: PC or MAC with a 5.25 Inch Drive Bay
- Internal Connectors: Header – 80 Pin SCA Female & LP4 – 4 Pin Female
- External Connectors: Header – 68 Pin SCSI Male & LP4 – 4 Pin Male
- LED Indicators:
- Drive Activity: Yellow
- Drive Power: Green
- Temperature:: Normal - Green & Overheating – Red
- Cooling Fan: 2 Ball-Bearing Fans
- Fan Enclosure: Plastic
- Drive Drawer Enclosure: Aluminum
- Enclosure Color: Black
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
- 1 - Temperature Warning
Carton Depth (mm) 330 Carton Height (mm) 272 Carton Quantity 20 Carton Weight Gross (g) 20200 Package Depth (mm) 50 Package Height (mm) 252 Package Width (mm) 155 Package Weight (g) 950 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SCA SCSI (80-Pin) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 1 Connector 3 HPDB68 SCSI-3 (68-Pin) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
